ECS-1612MV-260-AN-TR: DescriptionHCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size397KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

ECS-1612MV-260-AN-TR Overview

HCMOS Output Clock Oscillator,

ECS-1612MV-260-AN-TR Parametric

Parameter Name	Attribute value
Objectid	7221156177
Reach Compliance Code	compliant
Other features	STANDBY; TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	4.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	26 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	SOLCC4,.05,40
physical size	1.6mm x 1.2mm x 0.6mm
longest rise time	4.5 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	1.6 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	GOLD

Preview

Download Datasheet

View All

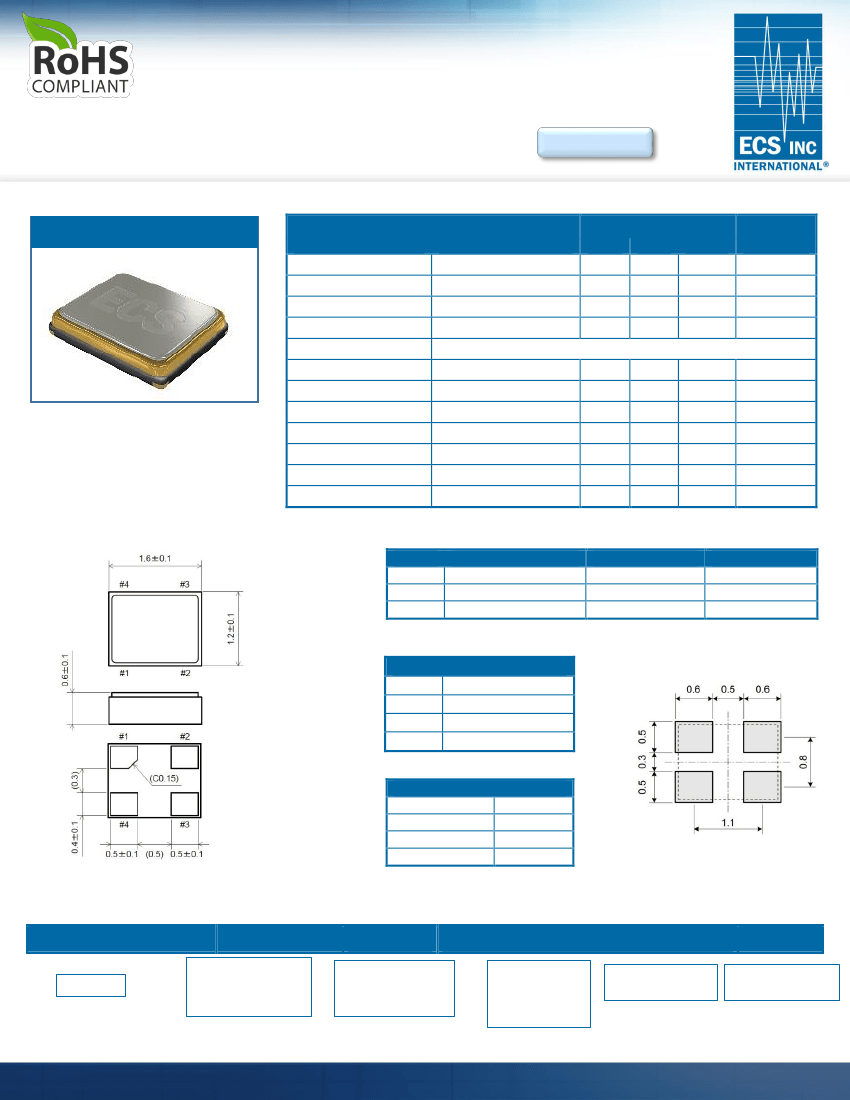

ECS-1612MV

SMD MultiVolt Crystal Oscillator

The ECS-1612MV is a miniature SMD HCMOS Oscillator with

MultiVolt capability of 1.6 ~ 3.6 V. The 1.6 x 1.2 x 0.7 mm ceramic

package is ideal for LoRa WAN, Low Power/Portable, Industrial, and

IoT applications.

Request a Sample

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

ECS-1612MV SMD XO

PARAMETERS

Frequency Range

* Frequency Stability

Supply Voltage

Output Load

Output voltage Level

Rise & Fall time

Start Up Time

VDD 1.8V

12 kHz to 5 MHz

@ ½ Vdd

N Option

-40

CMOS

10% Vdd – 90% Vdd

-40 ~ +85°C (CN Opt)

1.6

CONDITIONS

ECS-1612MV

MIN

3.000

TYP

MAX

80.000

±25

3.63

15

VOL: 0.4 Max. / VOH: Vdd-0.4 Min.V DC

4.5

5

1

45/55

10

+85

+105

ns

mS

pS

%

µA

°C

UNITS

MHz

ppm

V

pF

•

1.6 x 1.2 mm Footprint

Extended Temp Range

RoHS Compliant

Wide Supply Voltage

Low Jitter

Compatible with 1.8V, 2.5V or

3.3V Power Supply

Phase Jitter

Duty Cycle

Standby Current

Operating Temp*

Storage Temp

DIMENSIONS (mm)

FREQ.

+1.8V

+2.5V

+3.3V

CURRENT CONSUMPTION mA

~ 20 MHz

2 Typ. / 2.5 Max.

2 Typ. / 3 Max.

3 Typ. / 4 Max.

~ 50 MHz

2.5 Typ. / 3 Max.

2.5 Typ. / 4 Max.

4 Typ. / 5 Max.

~ 80 MHz

3 Typ. / 4 Max.

3 Typ. / 5 Max.

5 Typ. / 7 Max.

PAD CONNECTIONS

1

Stand-by

2

Gnd

3

Output

4

Vdd

Tri State Function

Pin 1

Output

Open

Active

0.7 * Vdd Min

Active

0.3 * Vdd Max.

High-Z

Figure 1)

Top, Side, and Bottom views

Figure 2)

Suggested Land Pattern

PART NUMBERING GUIDE: Example ECS-1612MV-250-CN-TR

ECS

-

SERIES

1612MV

1.6 x 1.2 mm

MultiVolt Oscillator

FREQUENCY

ABBREVIATION

250 = 25.000 MHz

See Developed

Frequencies Pg.2

-

* STABILITY

TEMP RANGE -

PACKAGING

ECS

A= ±100 ppm

B = ±50 ppm

G = ±30 ppm

C= ±25 ppm

D = ±20 ppm

M = -20 ~ +70°C

N = -40 ~ +85°C

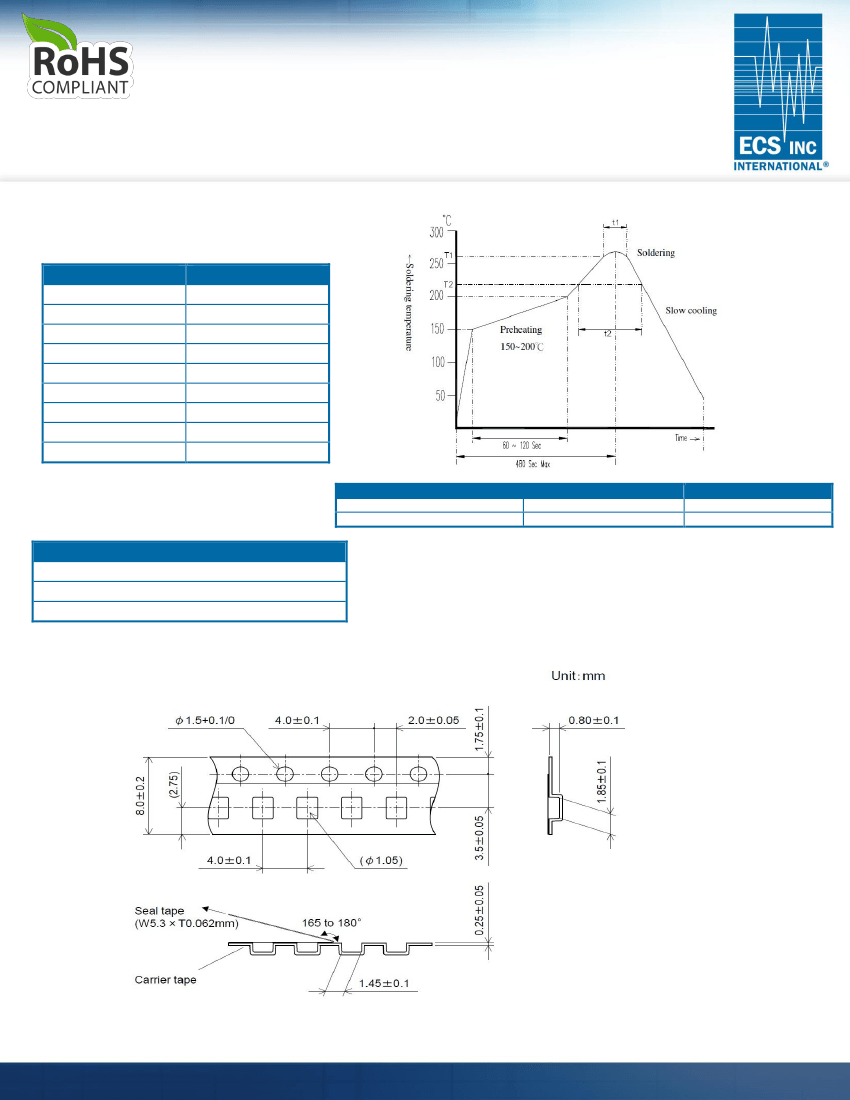

-TR = Tape & Reel

3K/Reel

* Frequency Stability includes initial tolerance, temperature, supply voltage and load change reflow frequency shift, and aging.

Rev. 2021

15351 West 109

th

Street

|

Lenexa, KS 66219

|

Phone: 913.782.7787

|

Fax: 913.782.6991

|

www.ecsxtal.com
