ECS-245.7-8-36-ADS-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-245.7-8-36-ADS-TR

ECS-245.7-8-36-ADS-TR: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size627KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-245.7-8-36-ADS-TR Overview

Parallel - Fundamental Quartz Crystal,

ECS-245.7-8-36-ADS-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7169551811
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
YTEOL	7.12
Other features	TR, 7 INCH
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.01%
frequency tolerance	25 ppm
JESD-609 code	e4
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	24.576 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	L2.5XB2.0XH0.5 (mm)/L0.098XB0.079XH0.02 (inch)
Series resistance	60 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

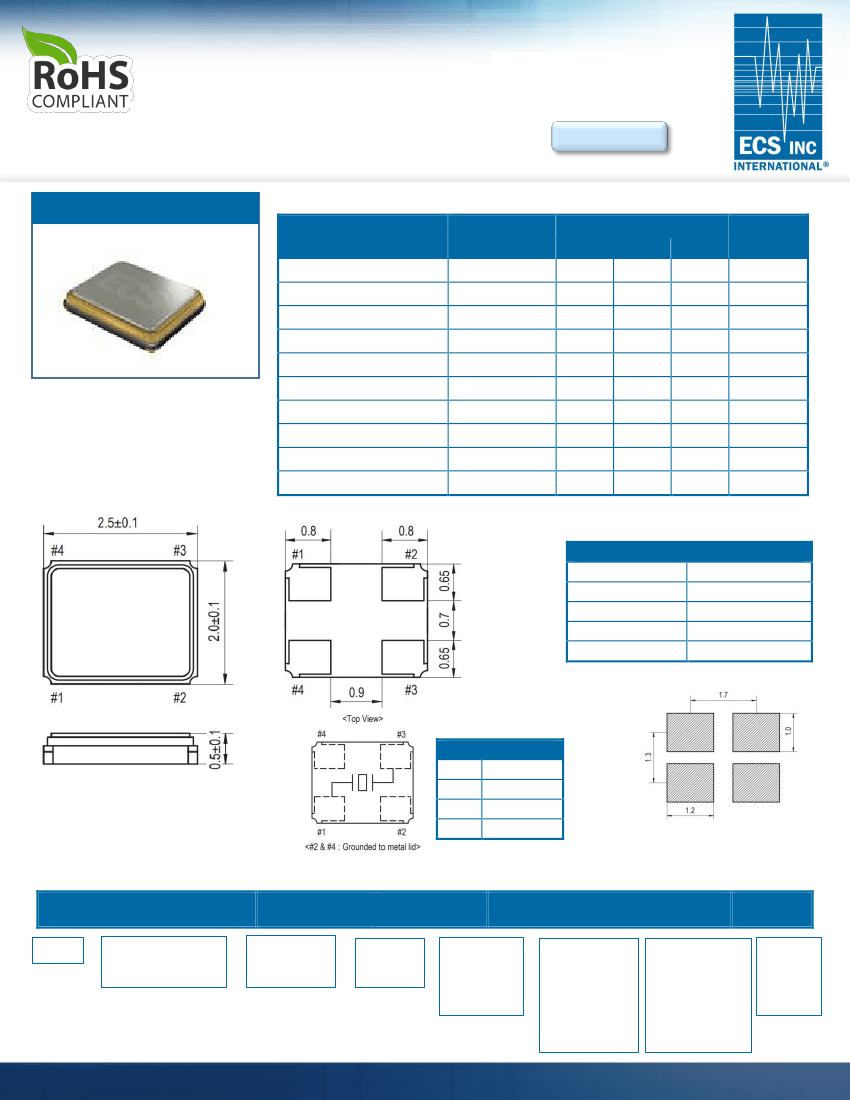

ECX-2236

SMD CRYSTAL

The miniature ECX-2236 is a compact SMD Crystal. The industry

standard 2.5 x 2.0 x 0.55 mm ceramic package is ideal for

today’s SMD manufacturing environment.

ECX-2236 SMD CRYSTAL

Request a Sample

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Mode of Oscillation

Frequency Tolerance*

Frequency Stability*

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature*

Storage Temperature

Aging (First Year)

Fundamental

@ +25°C

-20 ~ +70°C

CONDITIONS

MIN

ECX-2236

TYP

MAX

UNITS

80.000

± 50

MHz

ppm

100

μW

°C

ppm

+70

+125

±5

12.000

Specify in P/N

opr

stg

@ +25°C ±3°C

-20

-55



Low Profile

2.5 x 2.0 mm Footprint

Extended Temp. Range

IOT/Wearable applications

DIMENSIONS (mm)

Frequency (MHz)

12.000 ~ 15.999

16.000 ~ 19.999

20.000 ~ 29.999

30.000 ~ 34.999

35.000 ~ 80.000

ESR Ω Max.

150

Figure 1)

Top, Side, and Bottom

Crystal is symmetrical, pad 1 & 3 are interchangeable.

Chamfer on the bottom pad has no electrical

significance.

Pad Connections

In/Out

Gnd

Out/In

Gnd

Figure 2)

Suggested land

pattern

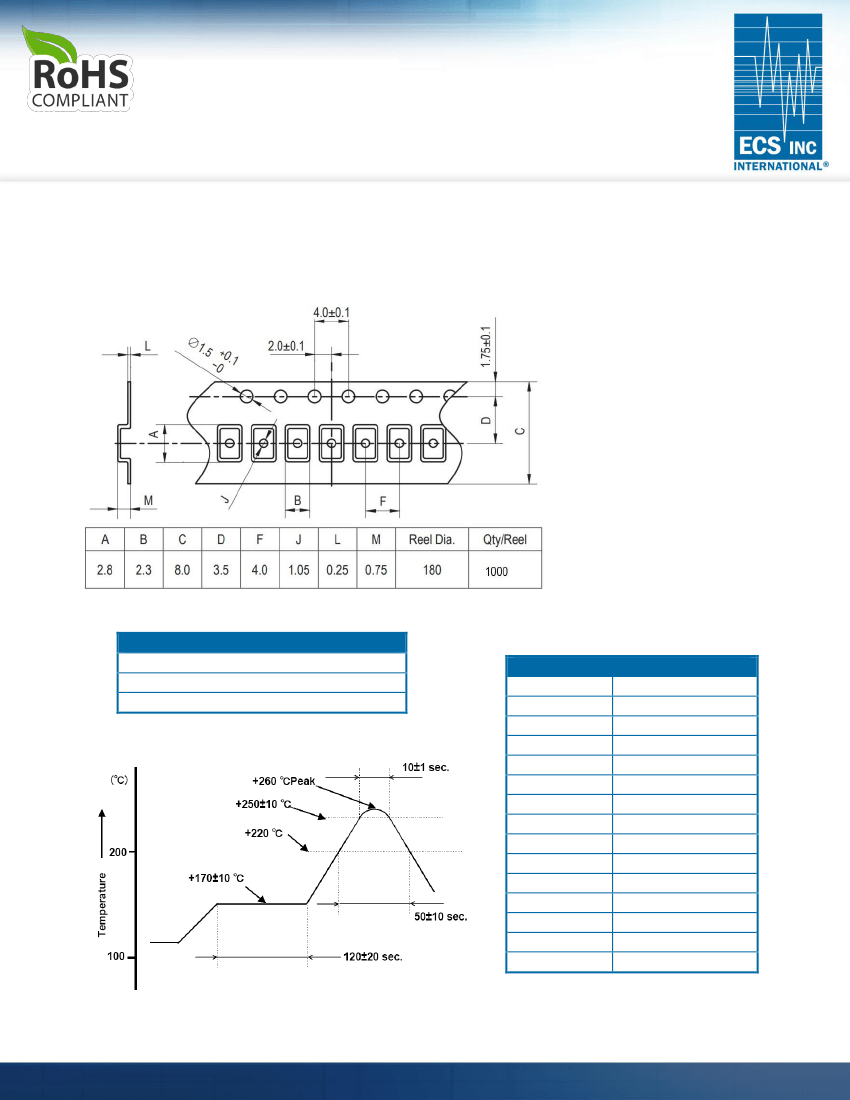

PACKAGING

PART NUMBERING GUIDE: Example ECS-240-8-36-TR

ECS - FREQUENCY ABBREVIATION

LOAD

CAPACITANCE

8 = 8 pF

10=10 pF

PACKAGE

Tolerance

-36 =

ECX-2236

Blank = Std

A = ± 25

ppm

J = ± 20

ppm

R = ± 15

ppm

C = ± 10

ppm

AVAILABLE OPTIONS

Stability

Blank= Std

D= ±100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm †

W = ±15 ppm †

K = ± 10 ppm †

Temp Range

Blank= Std

L = -10 ~ +70°C

M = -20 ~ +70°C

Y = -30 ~ +85°C

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

U = -55 ~ +125°C

TR =

Tape

& Reel

1K/Reel

ECS

240 = 24.000 MHz

See P/N Guide

* Specify available options in P/N.

† Contact ECS for availability over extended temp range.

Rev.2017

15351 West 109

Street

Lenexa, KS 66219

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
