DG506ACK+: DescriptionSingle-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, ROHS COMPLIANT, CERDIP-28; CategoryAnalog mixed-signal IC The signal circuit; File Size4MB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

DG506ACK+ Overview

Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, ROHS COMPLIANT, CERDIP-28

DG506ACK+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T28
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	16
Number of functions	1
Number of terminals	28
Nominal off-state isolation	68 dB
On-state resistance matching specifications	16.2 Ω
Maximum on-state resistance (Ron)	450 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.89 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
Base Number Matches	1

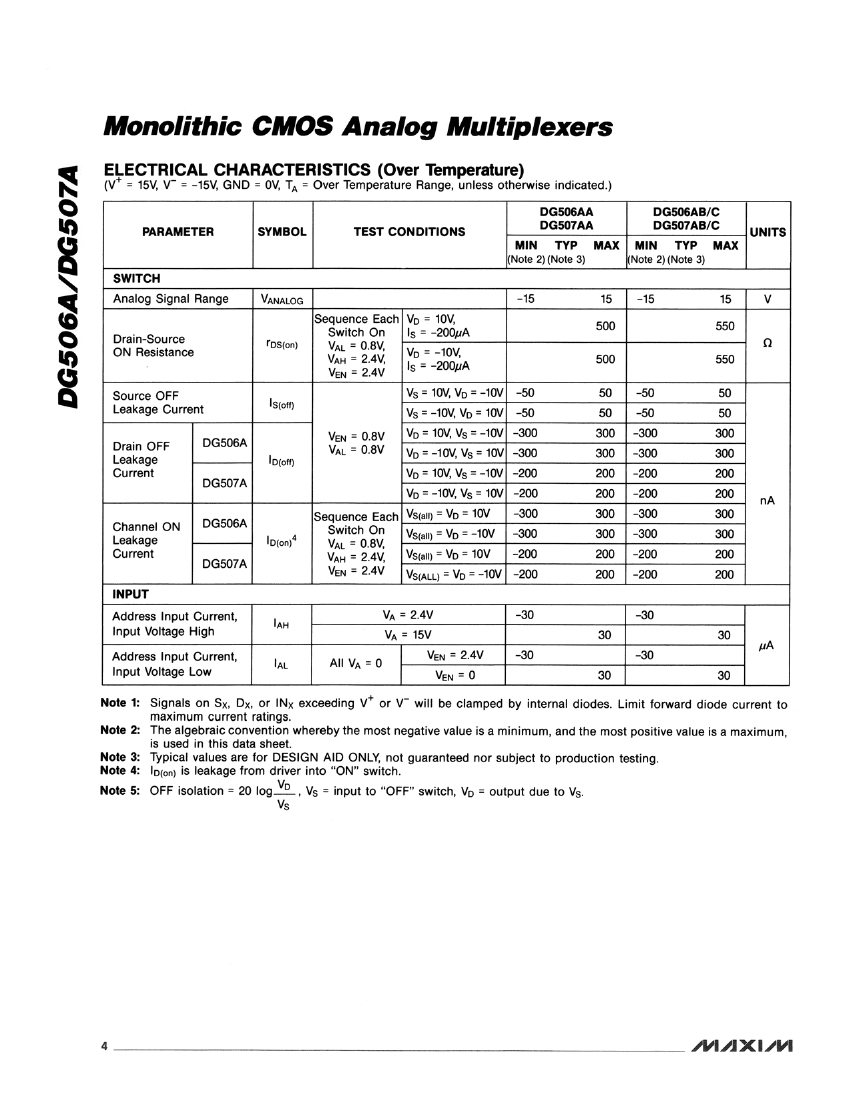

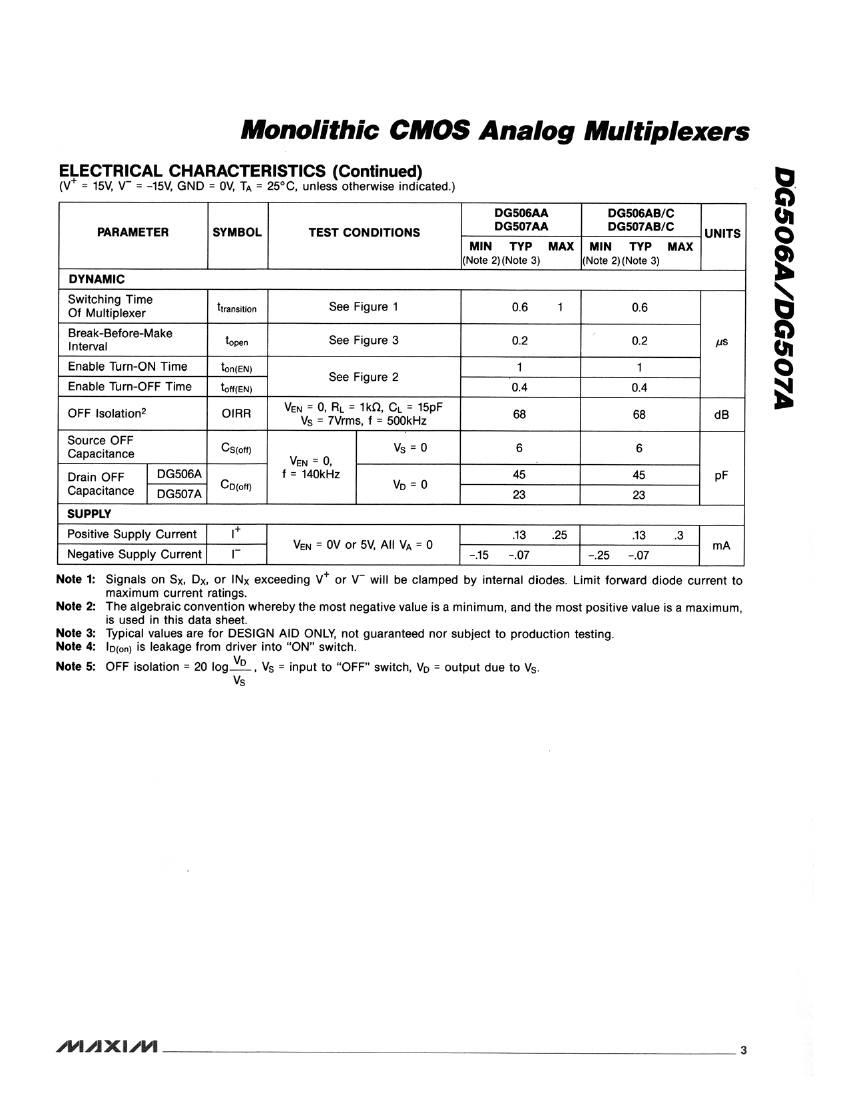

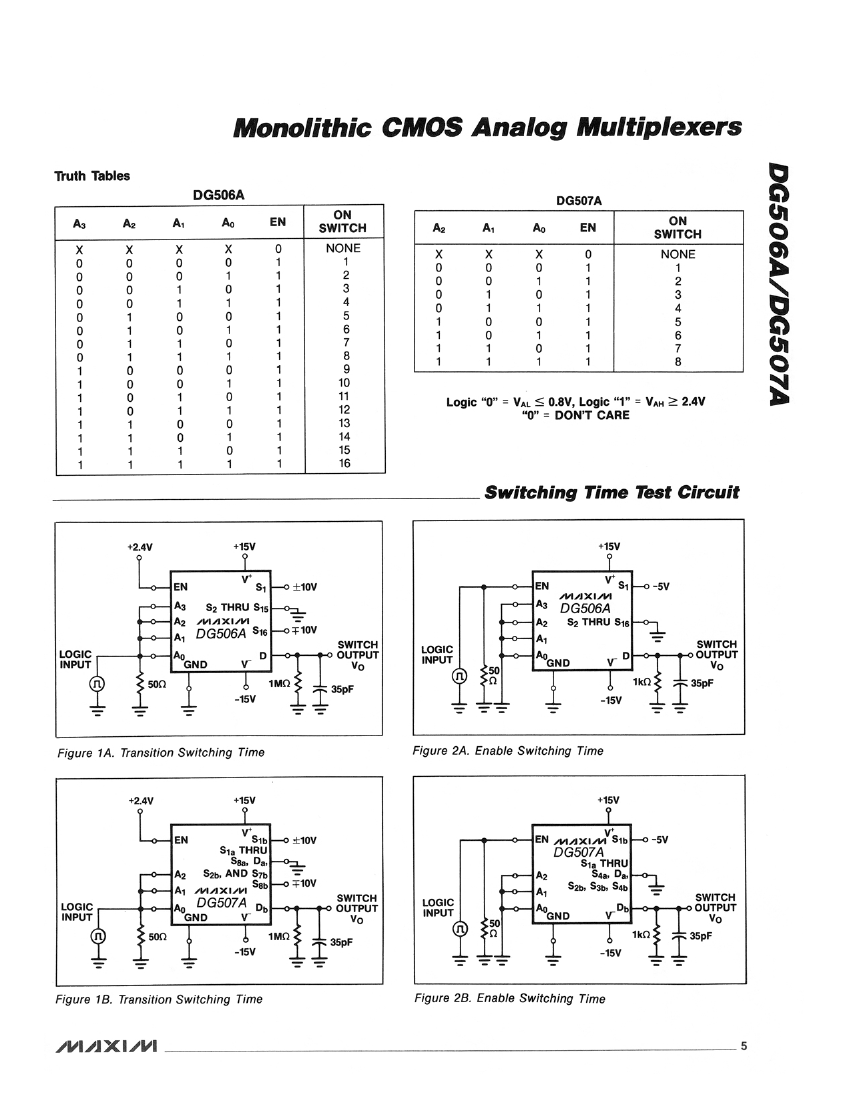

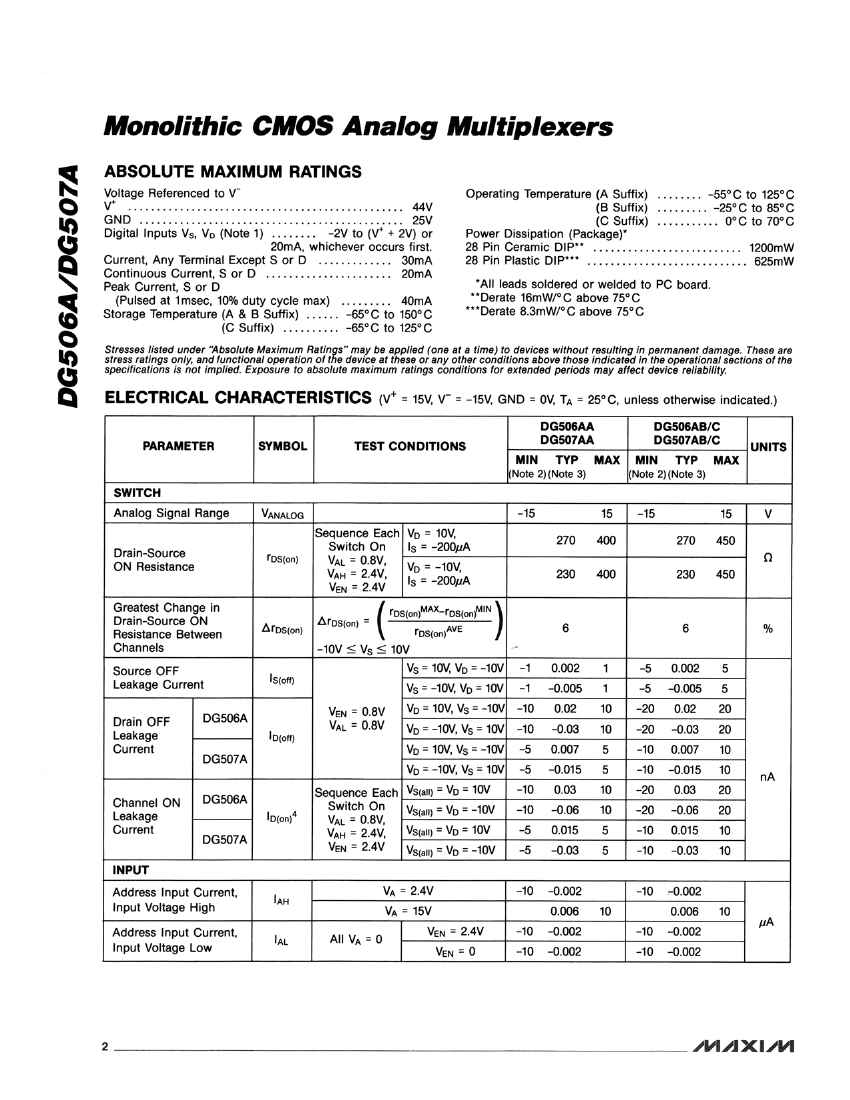

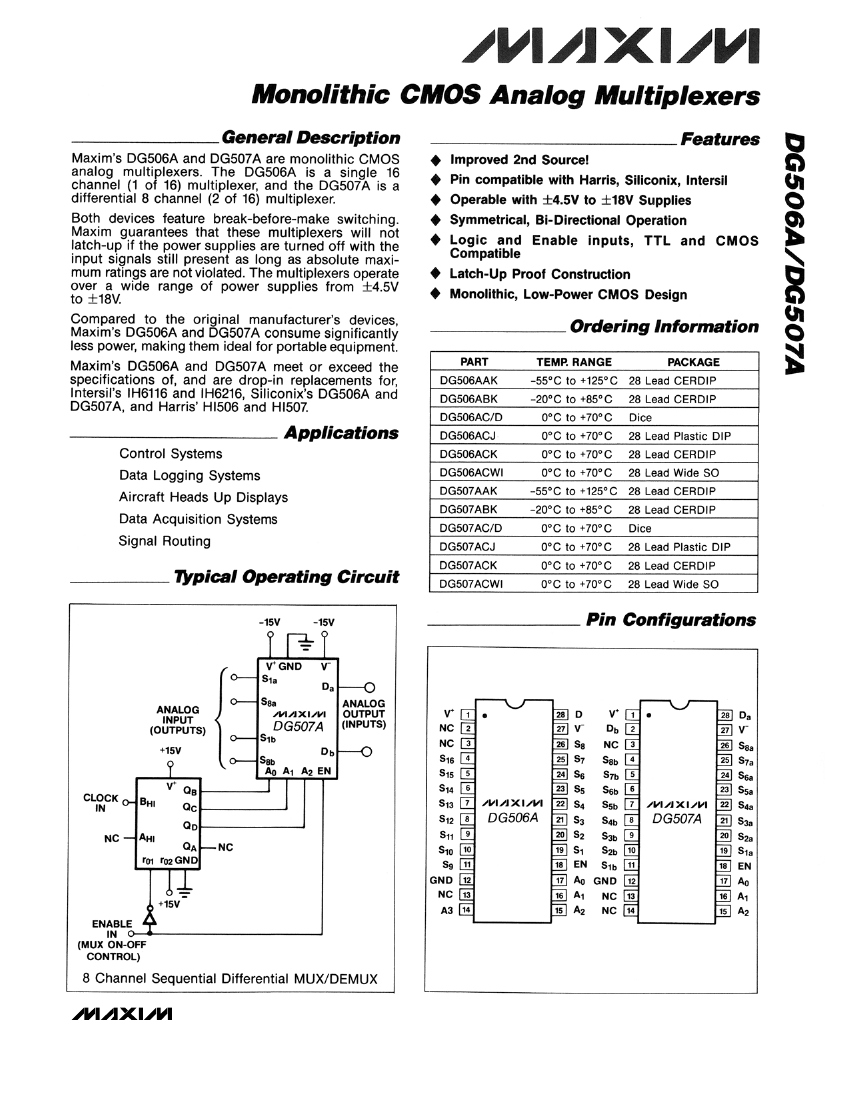

Preview

Download Datasheet

View All

___________________________________________________________________________

Maxim

Integrated Products

1

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

DG506ACK+ Related Products

	DG506ACK+	DG506AAK+	DG506AC/D+
Description	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, ROHS COMPLIANT, CERDIP-28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, ROHS COMPLIANT, CERDIP-28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, ROHS COMPLIANT, DIE
Is it Rohs certified?	conform to	conform to	conform to
Maker	Maxim	Maxim	Maxim
Parts packaging code	DIP	DIP	DIE
package instruction	DIP,	DIP,	DIE,
Reach Compliance Code	compliant	compliant	compli
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T28	R-GDIP-T28	R-XUUC-N
Maximum negative supply voltage (Vsup)	-18 V	-18 V	-18 V
Negative supply voltage minimum (Vsup)	-4.5 V	-4.5 V	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of channels	16	16	16
Number of functions	1	1	1
Nominal off-state isolation	68 dB	68 dB	68 dB
On-state resistance matching specifications	16.2 Ω	16.2 Ω	16.2 Ω
Maximum on-state resistance (Ron)	450 Ω	400 Ω	450 Ω
Maximum operating temperature	70 °C	125 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	UNSPECIFIED
encapsulated code	DIP	DIP	DIE
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	18 V	18 V	18 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contacts	28	28	-
Number of terminals	28	28	-
Maximum seat height	5.89 mm	5.89 mm	-
Terminal pitch	2.54 mm	2.54 mm	-
width	15.24 mm	15.24 mm	-
Base Number Matches	1	1	-
