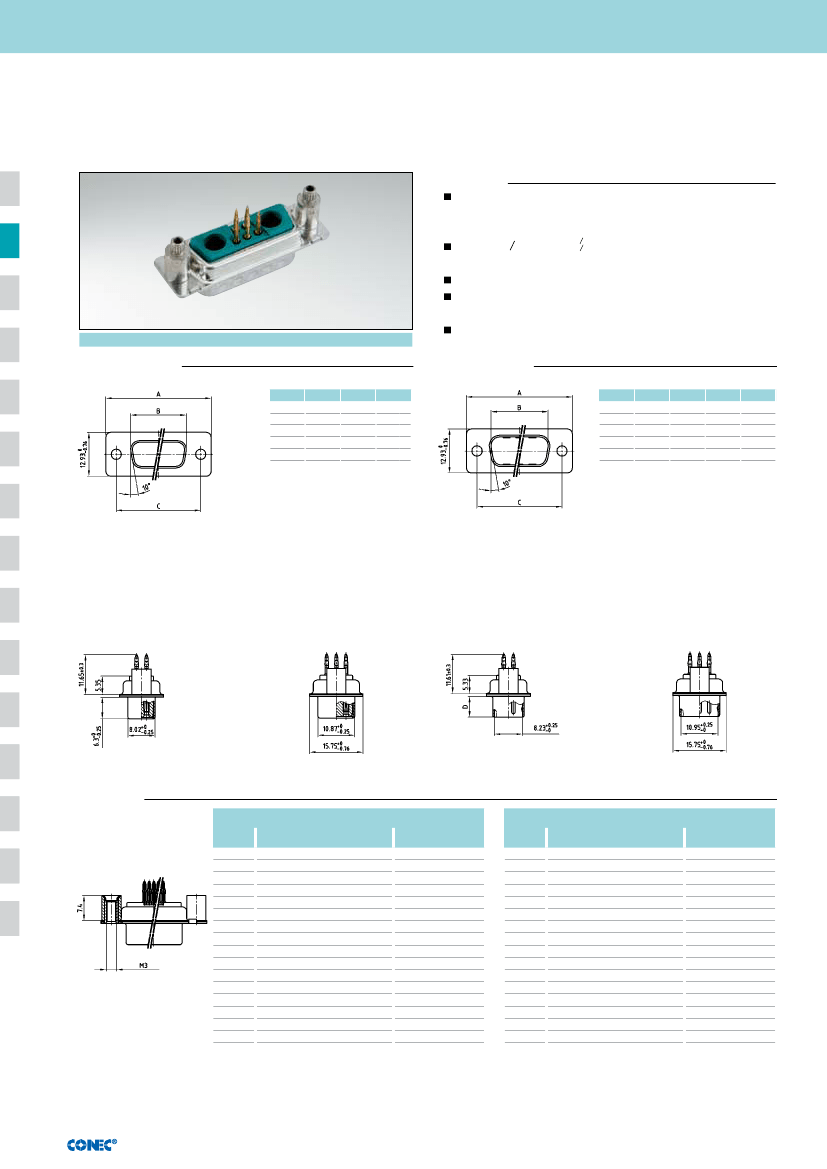

C ombi n ati o n D- S UB Co nn e ctors

Combination D-SUB with signal contacts

Press-fit – Straight – Precision machined contacts

Description

RoHS compliant – CSA listed, File No.: LR 115000-1–UL listed, File No.: E 228329

Mounting styles:

- with 4-40 UNC or M3 threaded rear spacer

- with M3 or 4-40 UNC rear press-fit spacer

+ .003" 0.09 mm

For .040" 1.0 mm

- .002" 0.06 mm

finished through-hole diameter

Refer to product drawing for details

Quality class 3 (also available in quality class 1)

Shell: Steel tin plated

(brass tin plated or stainless steel available on request)

For power contacts please contact factory

Socket connector

Shellsize

1

2

3

4

5

Plug connector

A

-0.76

31.19

39.52

53.42

69.70

67.31

B

-0.25

16.46

24.79

38.50

54.96

52.55

c

25.00

33.30

47.04

63.50

61.10

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

+ 0.14

- 0.11

Shellsize

1

2

3

4

5

A

-0.76

31.19

39.52

53.42

69.70

67.31

B

+0.25

16.79

25.12

38.84

55.30

52.68

c

25.00

33.30

47.04

63.50

61.10

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

+ 0.14

- 0.11

D

-0.30

6.12

5.99

Shell size 1-4

Shell size 5

Shell size 1-4

Shell size 5

Order data

Socket connector

Design

5W1

7W2

11W1

9W4

13W3

17W2

21W1

13W6

17W5

21WA4

25W3

27W2

24W7

36W4

43W2

47W1

Mounting style M3

Threaded rear spacer

Part number

3005W1SAP99A70X

3007W2SAP99A70X

3011W1SAP99A70X

3009W4SAP99A70X

3013W3SAP99A70X

3017W2SAP99A70X

3021W1SAP99A70X

3013W6SAP99A70X

3017W5SAP99A70X

321WA4SAP99A70X

3025W3SAP99A70X

3027W2SAP99A70X

3024W7SAP99A70X

3036W4SAP99A70X

3043W2SAP99A70X

3047W1SAP99A70X

Plug connector

Design

5W1

7W2

11W1

9W4

13W3

17W2

21W1

13W6

17W5

21WA4

25W3

27W2

24W7

36W4

43W2

47W1

Mounting style M3

Threaded rear spacer

Part number

3005W1PAP99A70X

3007W2PAP99A70X

3011W1PAP99A70X

3009W4PAP99A70X

3013W3PAP99A70X

3017W2PAP99A70X

3021W1PAP99A70X

3013W6PAP99A70X

3017W5PAP99A70X

321WA4PAP99A70X

3025W3PAP99A70X

3027W2PAP99A70X

3024W7PAP99A70X

3036W4PAP99A70X

3043W2PAP99A70X

3047W1PAP99A70X
