CRYSTAL OSCILLATORS
Data Sheet 0832B
Rev. C
AA-X53AXXX Series
LVCMOS XO
Description
The AA-X53AXXX Series
of crystal oscillators (XO) provides customer selectable four
frequency LVCMOS output in wide frequency range up to 250 MHz. The output can be disabled
for test automation or combining multiple clocks. The device packaged in a miniature, low profile,
leadless FR-4 based package with gold plated pads, which enhances compatibility with PCB
material.
Applications and Features
•
•
•
•
•
•
Customer selectable output frequency up to 250 MHz
Fiber Channel; 10 GbE; Infiniband; Network Processors; SOHO Routing
High Reliability – NEL HALT/HASS qualified for crystal oscillator start-up conditions
Fast Rise and Fall times
Tight frequency stability - ±20 ppm overall available
Low cost
•
COTS/Dual use
Creating a Part Number
AA - X 53A X X X - X - F1/F2/F3/F4, MHz
Package code
AA 6 pad 7.5x5.2mm SMD
Environmental
L Contains a level of lead that is in
excess of RoHS directive and is
not designed for reflow
R RoHS compliant
Operating Voltage
A 3.3 V ± 5%
B 2.5 V ±5%
Enable Option
H Enable High
N N/C
Temperature Range, ºC
A 0 to 50
B 0 to 70
C -20 to 70
D -40 to 85
9 Customer Specific
Overall Frequency Stability, ppm
E ±20
F ±25
G ±50
H ±100
9 Customer specific
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL OSCILLATORS
AA-X53AXXX Series

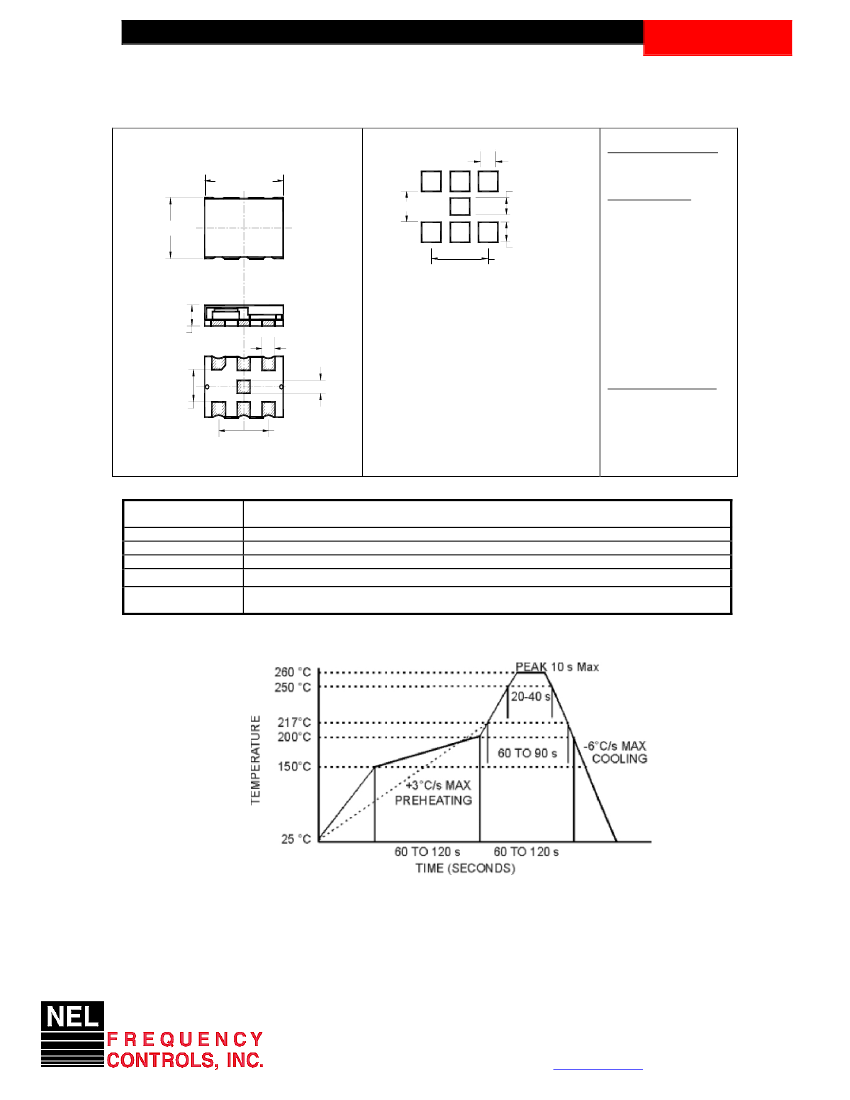

Drawing Specification
Data Sheet 0832B
Rev. C
0.054 (1,37 mm)
0.295 (7,5 mm)
0.060 (1,5 mm)
0.100 (2,54 mm)
OUTLINE TOLERANCE:
Dimension are typical in
mm
PIN FUNCTIONS:
[1] EN / DIS or N/C
[2] Fsel1
[3] Gnd
[4] OUTPUT
[5] Fsel2
[6] Vcc
[7] N/C
0.205 (5,2 mm)
0.070 (1,8 mm)
0.200 (5,08 mm)
0.078(2,0 mm)
0.054 (1,37 mm)
1
2
7
0.100 (2,54 mm)
6
5
4
0.200 (5,08 mm)
3
0.040 (1,01 mm)
Recommended solder
pads layout
MARKING (EXAMPLE):
XX-XXXX
Environmental and Mechanical Characteristics
Operating temp.
range
Mechanical Shock
Thermal Shock
Vibration
Hermetic Seal
Soldering conditions
see part # table
Per MIL-STD-202, Method 213, Cond. A
Per MIL-STD-883, Method 1011, Cond. A
Per MIL-STD-883, Method 2007, Cond. A
Leak rate less than 1x10-8 atm.cc/s of helium , crystal only.
See MAX reflow profile below; The device may be reflowed once. Reflowing upside down is not
allowed. NO CLEAN assembly is recommended.
MAX Reflow Profile
The device may be reflowed once. Reflowing upside down is not allowed. NO CLEAN assembly
is recommended.
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL OSCILLATORS
AA-X53AXXX Series
Absolute Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Enable/Disable Voltage
Data Sheet 0832B
Rev. C
Symbol
To
Tst
Vcc
Ven/dis
Value
-40 to +85
-50 to +90
-0.5 to 3.6
0 to Vcc
Unit
ºC
ºC
V
V
Electrical Parameters (1)
Parameter
Nominal Frequency
Supply Voltage
Supply current
Output Logic Type
Load
Symb
F1,F2,
F3, F4
Vcc
Icc
Conditions, Note
Code A
Code B
MIN
10
3.135
2.375
TYP
3.3
2.5
50
LVCMOS
15 pF in
parallel
with 10
KOhm
MAX
250
3.465
2.625
60
Unit
MHz
V
mA
Output Levels
Duty Cycle
(Symmetry)
Rise/Fall Time
Fsel Function
Voh
Vol
Tr/Tf
overall
At 50% of output voltage
swing
20 to 80, 80 to 20 %
Fsel1=HIGH,Fsel2=HIGH
Fsel1=LOW, Fsel2=HIGH
Fsel1=HIGH,Fsel2=LOW
Fsel1=LOW, Fsel2=LOW
Integrated from Phase
Noise, 12 KHz to 20 MHz
, RMS
125.00 MHz
@1 KHz
@10KHz
@100KHz
@1MHz
@10 MHz
156.25 MHz
@1 KHz
@10KHz
@100KHz
@1MHz
@10 MHz
212.5 MHz
@1 KHz
@10KHz
@100KHz
@1MHz
@10 MHz
Overall, including initial
calibration, temperature,
aging 10 years, shock and
vibration
0.9Vcc
45/55
50/50
2.0
F1
F2
F3
F4
0.1Vcc
55/45
3
V
%
ns
Jitter
Integrated
J
£(Δf)
1.0
-112
-122
-125
-145
-152
-110
-118
-122
-138
-150
-107
-115
-118
-135
-148
See “Creating a Part Number”
Not all combinations available,
consult factory
ps
dBc/Hz
Phase Noise
dBc/Hz
dBc/Hz
Frequency Stability
ΔF/F
ppm
CMOS Logic “0”
0
0.1 Vcc
CMOS Logic “1” or floating
0.7Vcc
Vcc
Note 1: All parameters, unless otherwise specified, are at nominal conditions, ie: T=25°C, Nominal Vcc & Nominal Load.
Enable High Option
Disabled
Enabled
V
