CRYSTAL OSCILLATORS
Data Sheet 0629K
Rev. R
AB-X32AXXX-X Series
CMOS/LVCMOS HF VCXO
Description
The AB-X32AXXX Series
of voltage controlled crystal oscillators (VCXO) provides high
frequency with CMOS/LVCMOS outputs. The outputs can be Tri-stated for test automation or
combining multiple clocks. The device does not use any frequency multiplication, providing
exceptionally low Phase Noise and Jitter and wide pull. It’s packaged in a miniature, FR-4 based
9x14 mm SMD package
Applications and Features
•
Wide frequency range – 12.0MHz to 250.000MHz
•
•
•
•
•
•
•
•
Fiber Channel; 10 GbE; Infiniband; Network Processors; SONET/SDH
High Reliability – NEL HALT/HASS qualified for crystal oscillator start-up conditions
Extremely Low Phase Noise and Jitter
High Shock Resistance, to 1000g
No Multiplication
Absolute Pull Range (APR) to ±1000 ppm
SONET ± 20 ppm overall free-run stability available
COTS/Dual use
Creating a Part Number
AB - X 32A X X X – X - FREQ
Package code
AB 6 pad 9x14 mm SMD
Environmental
L Contains a level of lead that is in
excess of RoHs directive and is
not designed for reflow
R RoHS compliant
Operating Voltage
0 5.0V ± 5%
A 3.3V ± 5%
B 2.5V ± 5%
Tri-State Option
T Tri-state
N N/A
Temperature Range, ºC
A 0 to 50
B 0 to 70
C -20 to 70
D -40 to 85
9 Customer Specific
Absolute Pull Range, ppm
E ±20
F ±32
G ±50
H ±100
9 Customer specific
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL OSCILLATORS
AB-X32AXXX-X Series

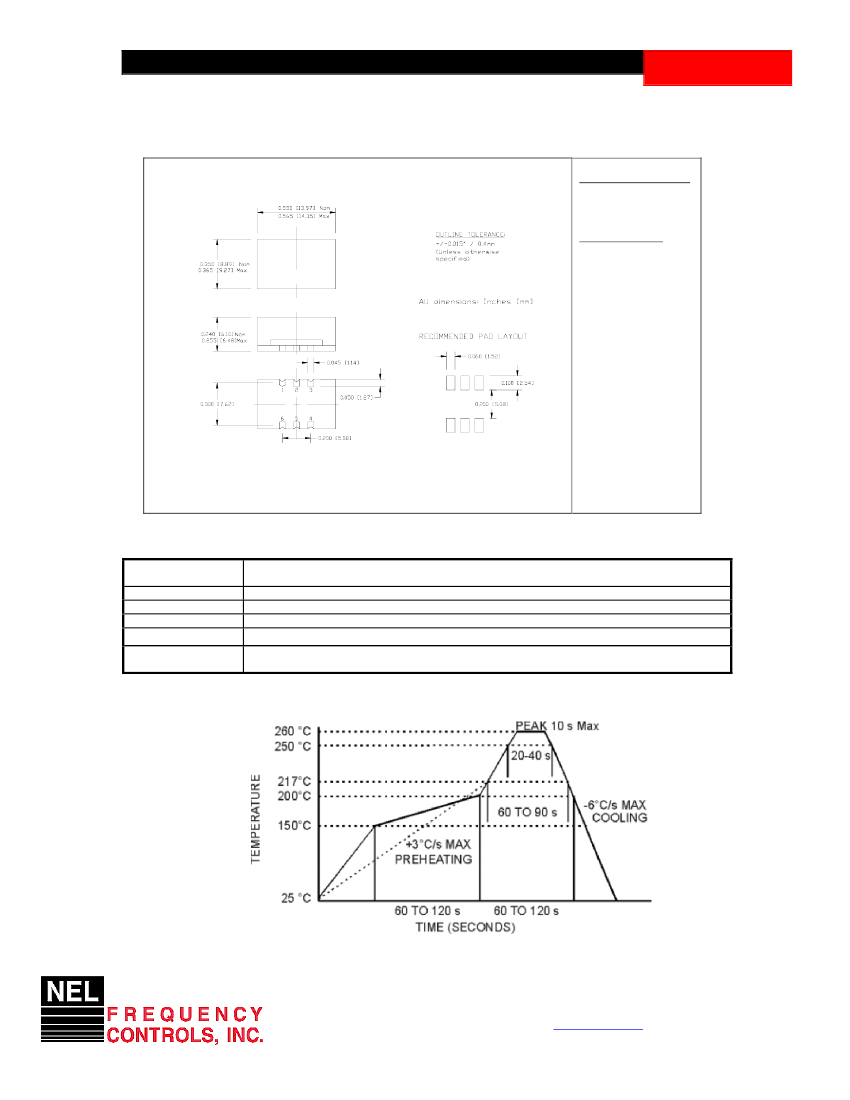

Drawing Specification
Data Sheet 0629K
Rev. R
OUTLINE TOLERANCE:
±0.015” / 0.4mm
(Unless otherwise
specified)
PIN FUNCTIONS:
[1] Vco
[2] ENABLE / DISABLE
[3] GROUND
[4] OUTPUT
[5] NC
[6] Vcc
Environmental and Mechanical Characteristics
Operating temp.
range
Mechanical Shock
Thermal Shock
Vibration
Hermetic Seal
Soldering conditions
see part # table
Per MIL-STD-202, Method 213, Cond. A
Per MIL-STD-883, Method 1011, Cond. A
Per MIL-STD-883, Method 2007, Cond. A
Leak rate less than 1x10-8 atm.cc/s of helium
See MAX reflow profile below; The device may be reflowed once. Reflowing upside down is not
allowed. NO CLEAN assembly is recommended
MAX Reflow Profile
The device may be reflowed once. Reflowing upside down is not allowed. NO CLEAN assembly is recommended
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL OSCILLATORS
AB-X32AXXX-X Series
Absolute Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Enable/Disable Voltage
Data Sheet 0629K
Rev. R
Symbol
To
Tst
Vcc
Ven/dis
Value
-40 to +85
-50 to +90
-0.5 to 5.5
0 to Vcc
Unit
ºC
ºC
V
V
Electrical Parameters
(1)
Parameter
Nominal Frequency
Supply Voltage
Symb
Fo
Vcc
Conditions, Note
Code 0
Code A
Code B
No Load, Vcc-3.3V 40MHz
MIN
12
4.75
3.135
2.375
TYP
5.0
3.3
2.5
CMOS
15pf/10 KOhm
MAX
250
5.25
3.465
2.625
80
Unit
MHz
V
Supply current
Output Logic Type
Load
Output Levels
Duty Cycle(Symmetry)
Rise/Fall Time
Icc
Voh
Vol
Tr/Tf
mA
Ohm
V
Overall
At 50% Vcc
0.2Vcc to 0.8Vcc
F<70MHz
70MHz<F<125MHz
125MHz<F<250MHz
Integrated from Phase Noise,
12 KHz to 20 MHz , RMS
10Hz to 80KHz,RMS
50 KHz to 80 MHz
Random
period,
Accumul., pk-
to-pk
Deterministic
155.52MHz,
@ 10 Hz
APR 50 ppm
@100 Hz
or less
@1 KHz
@10KHz
@100KHz
@>1MHz
Overall, including
temperature, aging 10 years,
shock and vibration @
Vc=Vcc/2; APR 50ppm, or
less
Vc to set F at Fo; T, Vcc,
load – nominal as shipped
Overall conditions, see part #
creation
0.9Vcc
45/55
50/50
3
2
1.5
0.1
0.1Vcc
55/45
5
3
2.5
0.15
0.8
0.2
2.5
17
0
-75
-105
-135
-160
-165
-165
-70
-100
-130
-155
-160
-160
%
ns
ps
ps
ps
ps
ps
ps
dBc/Hz
Jitter
Integrated
J
Wavecrest
characterized
Phase Noise
£(Δf)
Sub-harmonics
Frequency Stability
usually not specified
unless necessary. APR
is specified to
incorporate stability
Control Voltage Range
Setability
Absolute Pull Range
Input Impedance
Modulation Bandwidth
Enable
Disable
ΔF/F
±20
None
±30
dBc
ppm
Vc
Vcs
APR
Zin
0V
0.4 Vcc
20,32,
50,100
50
20
0.5 Vcc
Vcc
0.6 Vcc
V
V
ppm
KOhm
KHz
Pin 2 = High, or floating
V
Enabled
Pin 2 = Low
Tri-stted, output – High Z
V
Note 1. All parameters, unless otherwise specified, are at nominal conditions, ie: T=25°C, Nominal Vcc & Nominal Load.
@ Fmod < 100kHz
At Vc = Vcc/2, -3dB
