AE-A36DSAF-R-250.000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> AE-A36DSAF-R-250.000MHZ

AE-A36DSAF-R-250.000MHZ: DescriptionOscillator; CategoryPassive components oscillator; File Size155KB，4 Pages; ManufacturerNEL; Websitehttp://www.nelfc.com

Download Datasheet Parametric View All

AE-A36DSAF-R-250.000MHZ Overview

Oscillator

AE-A36DSAF-R-250.000MHZ Parametric

Parameter Name	Attribute value
Objectid	114132625
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

CRYSTAL OSCILLATORS

AE-X36DXXX-X Series

PECL/LVPECL UHF VCXO

Description

Data Sheet 0701B

Rev. M

The AE-XXXX Series

of voltage controlled crystal oscillators (VCXO) provides ultra

high frequency with PECL/LVPECL or differential Sine-Wave complementary outputs.

The device is based on low noise analog harmonic frequency multiplication, providing

exceptionally low Phase Noise and Jitter. It’s packaged in a miniature, FR-4 based 17x14

mm SMD package.

Applications and Features

•

Fiber Channel; 10 GbE; Infiniband; Network Processors; SONET/SDH

High Reliability – NEL HALT/HASS qualified for crystal oscillator start-up

conditions

Extremely Low Phase Noise and Jitter

Frequency Range to 2,000 MHz

Absolute Pull Range (APR) to ± 1,000 ppm

SONET ± 20 ppm overall free-run stability available

High Shock Resistance, to 1000g

COTS/Dual use

Creating a Part Number

AE- X 36D X X X - X - FREQ

Package code

AE – 8 pad 17x14 mm SMD

Operating Voltage

0 - 5.0 V ± 5%

A - 3.3 V ± 5%

B - 2.5 V ± 5%

Output Type

P – PECL

S – Differential Sine

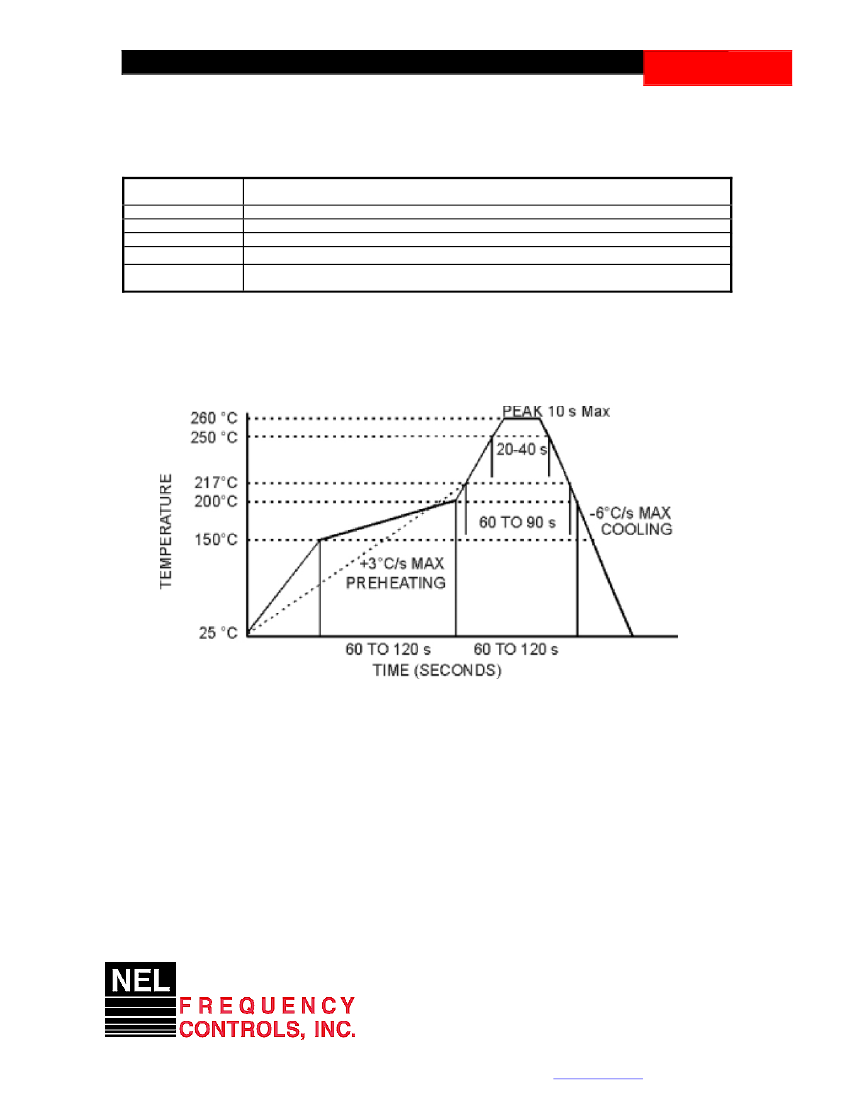

Environmental

L Contains a level of lead that is in

excess of RoHS directive and is

not designed for reflow

R RoHS compliant

Temperature Range, ºC

A – 0 to 50

B - 0 to 70

C - -20 to 70

D - -40 to 85

9 – customer specific

Absolute Pull Range, ppm

E – 20

F – 32

G – 50

H – 100

357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591

FAX 262/763-2881

Email:

nelsales@nelfc.com

www.nelfc.com
