AWL254-DG-G70D datasheet, PDF - EEWORLD Datasheet

AWL254-DG-G70D: DescriptionBoard Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size148KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric View All

AWL254-DG-G70D Overview

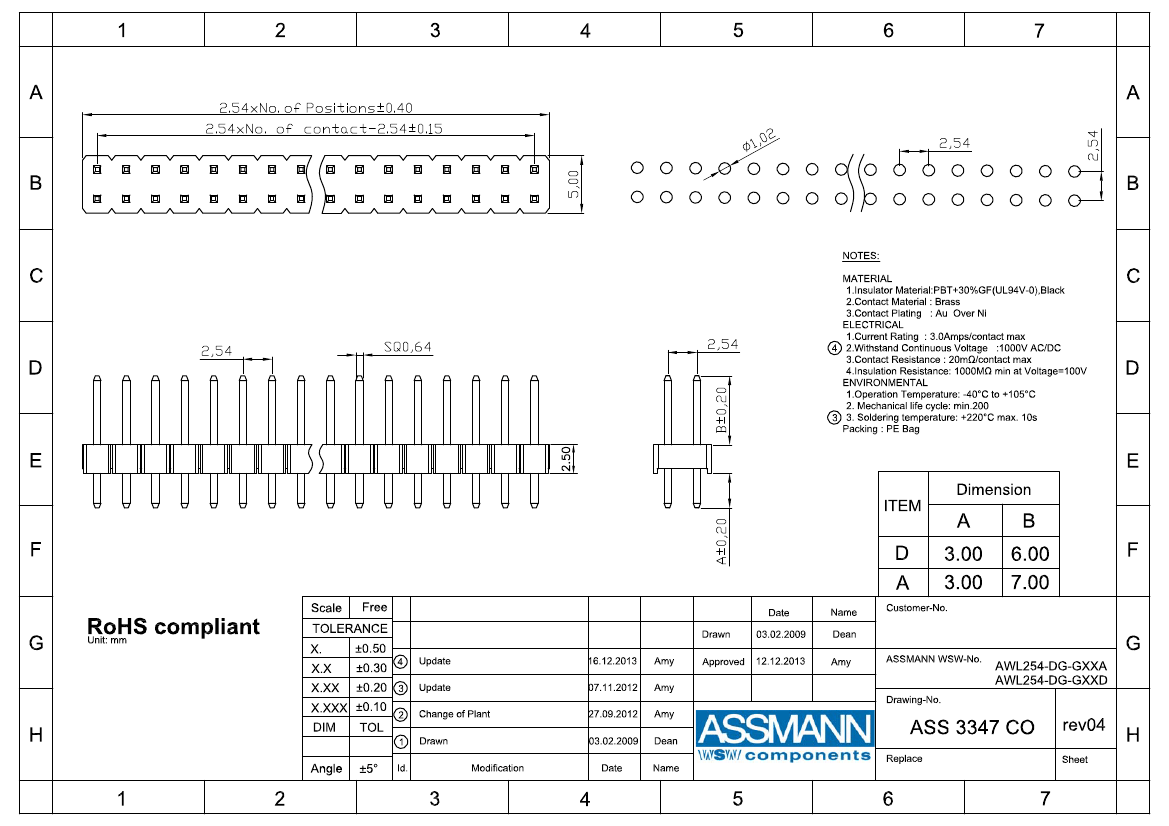

Board Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8257866684
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Taiwan
ECCN code	EAR99
YTEOL	9.1
Other features	MATING LENGTH=0.236 INCHES
body width	0.2 inch
subject depth	0.1 inch
body length	3.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL,VDE
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	70
UL Flammability Code	94V-0
