Part Number

Search

5-912069-0

Description
HEADER CONNECTOR,PCB MNT,RECEPT,160+160 CONTACTS,SKT,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING
CategoryThe connector    The connector
File Size774KB,5 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

5-912069-0 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,160+160 CONTACTS,SKT,0.024 PITCH,SURFACE MOUNT TERMINAL,LOCKING

5-912069-0 Parametric

Parameter NameAttribute value
Objectid313292607
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL8.4

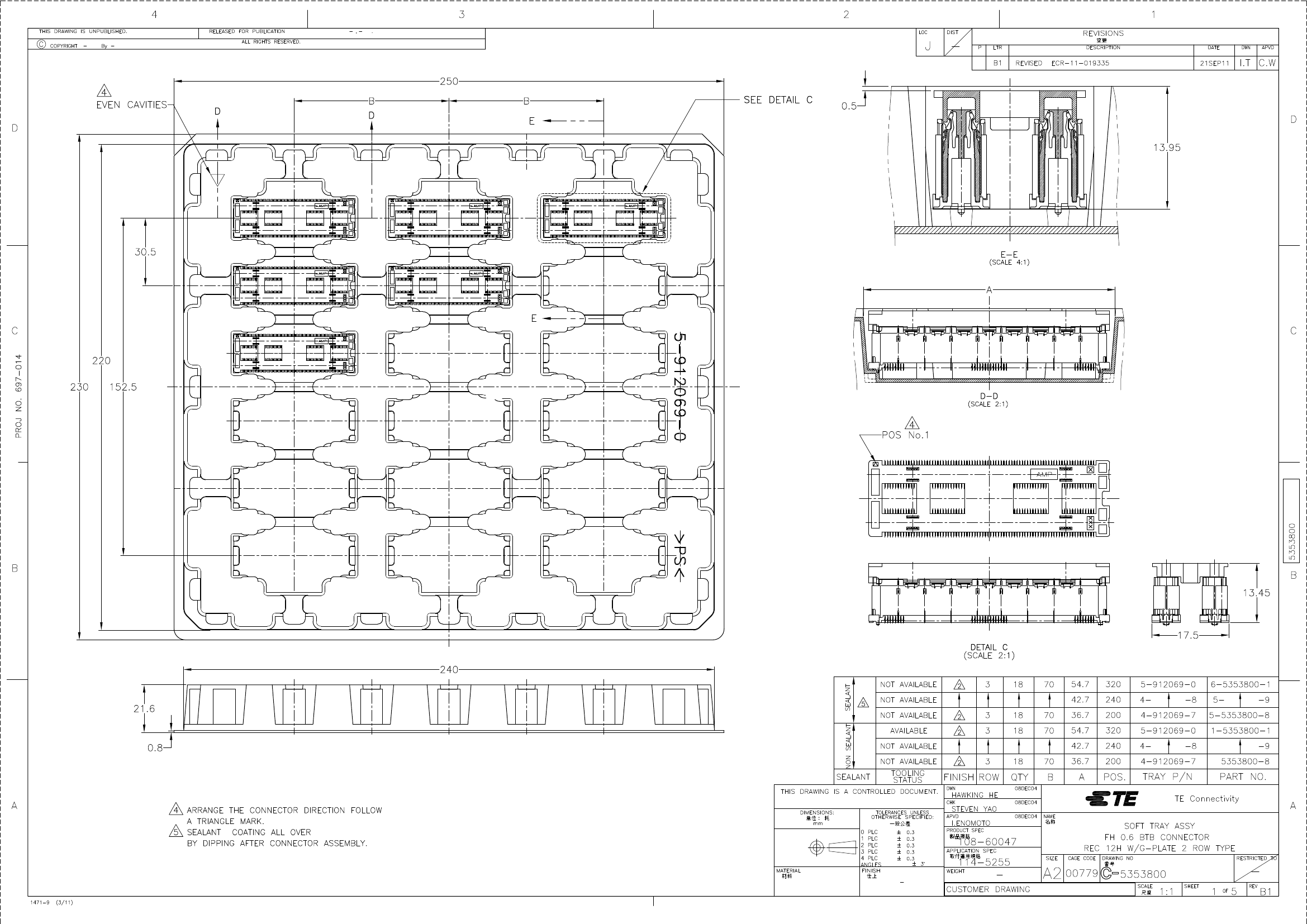

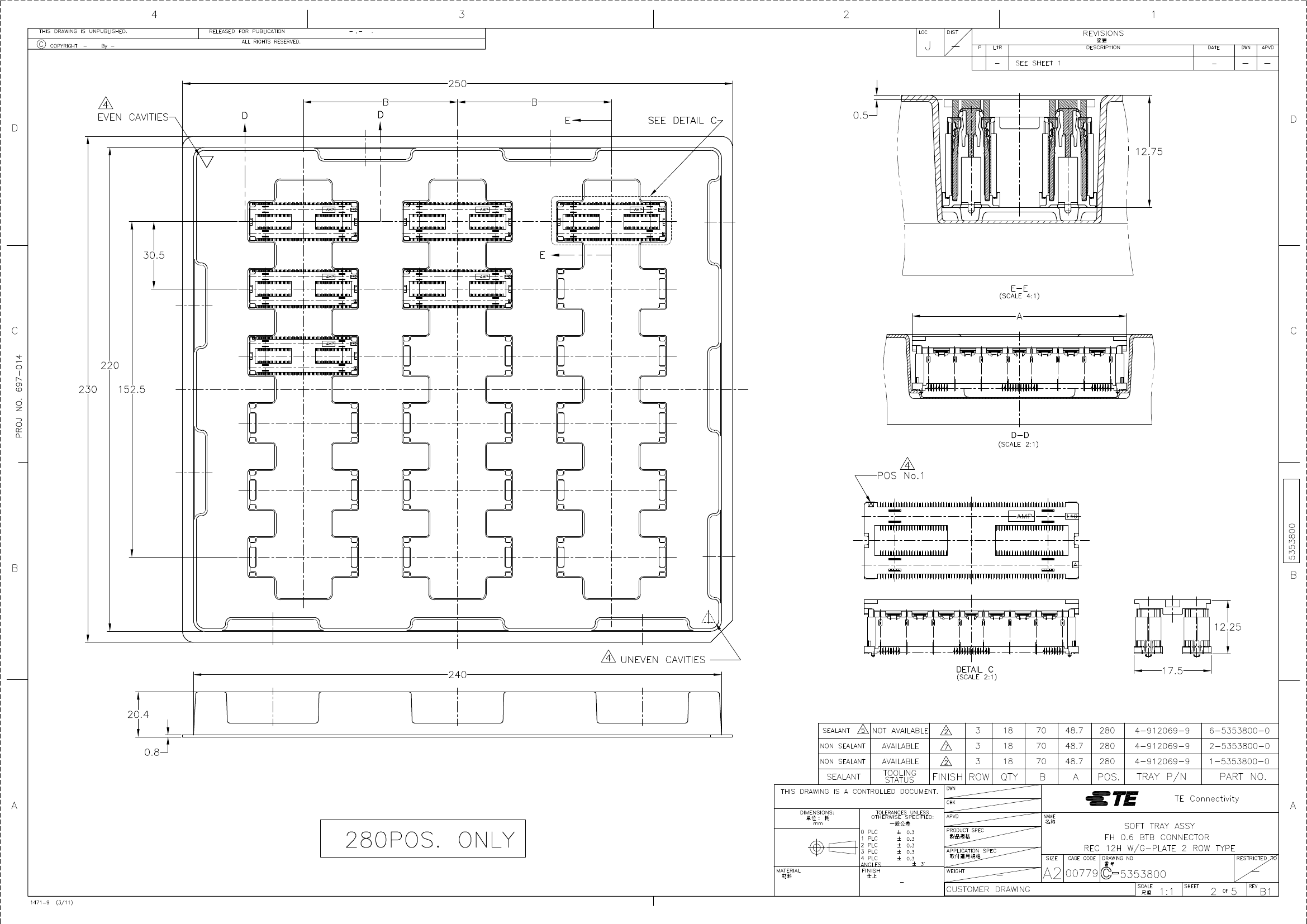

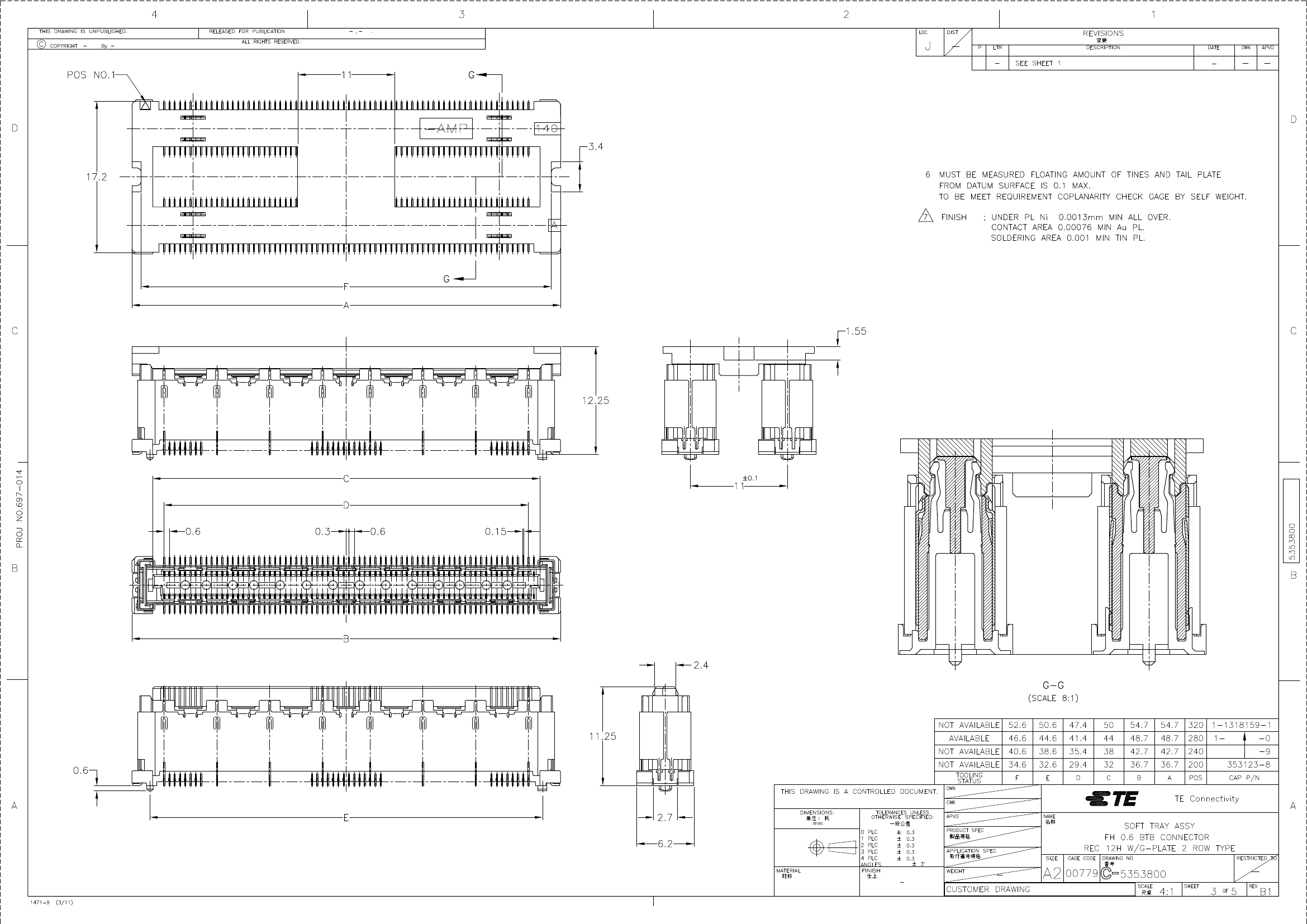

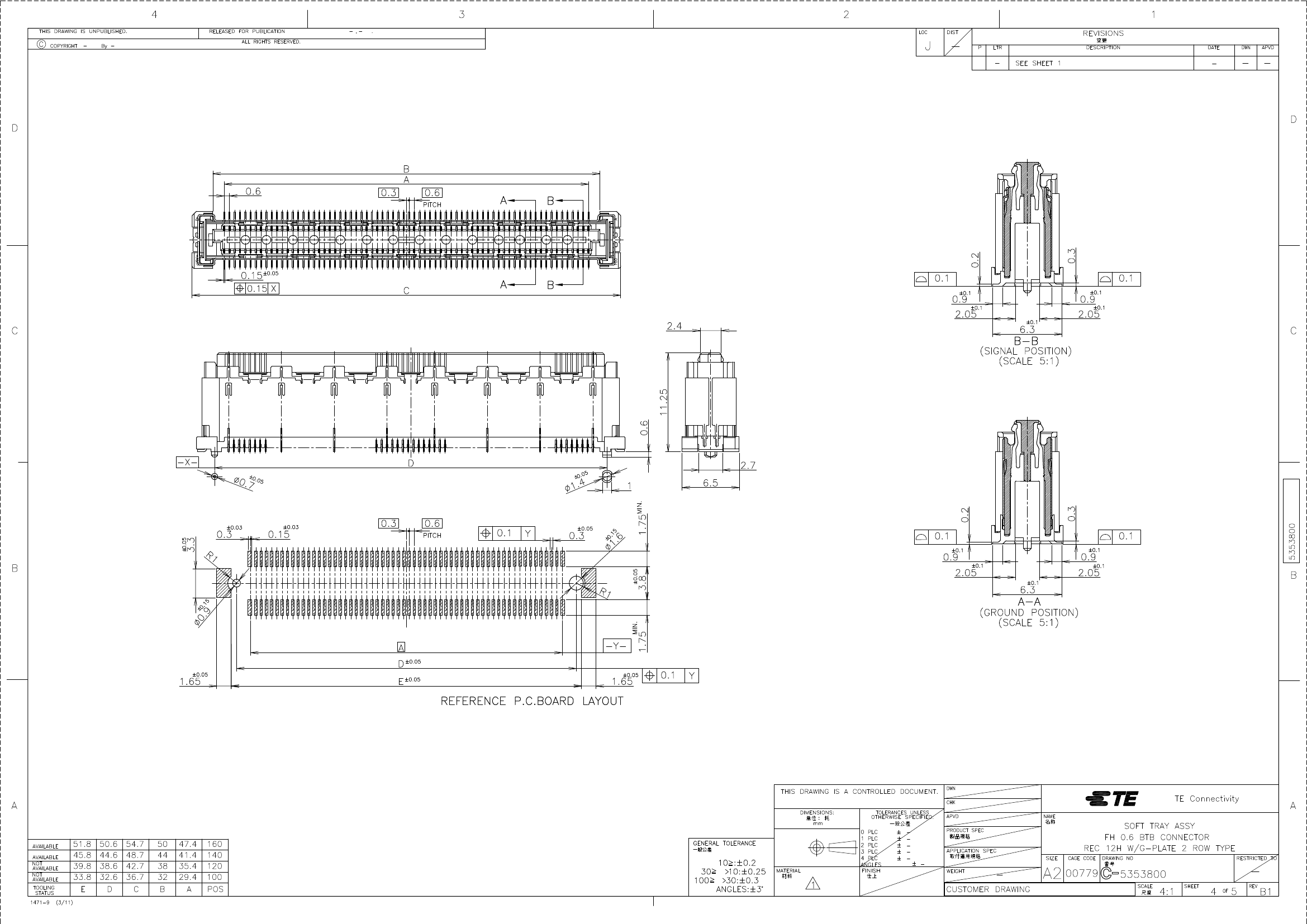

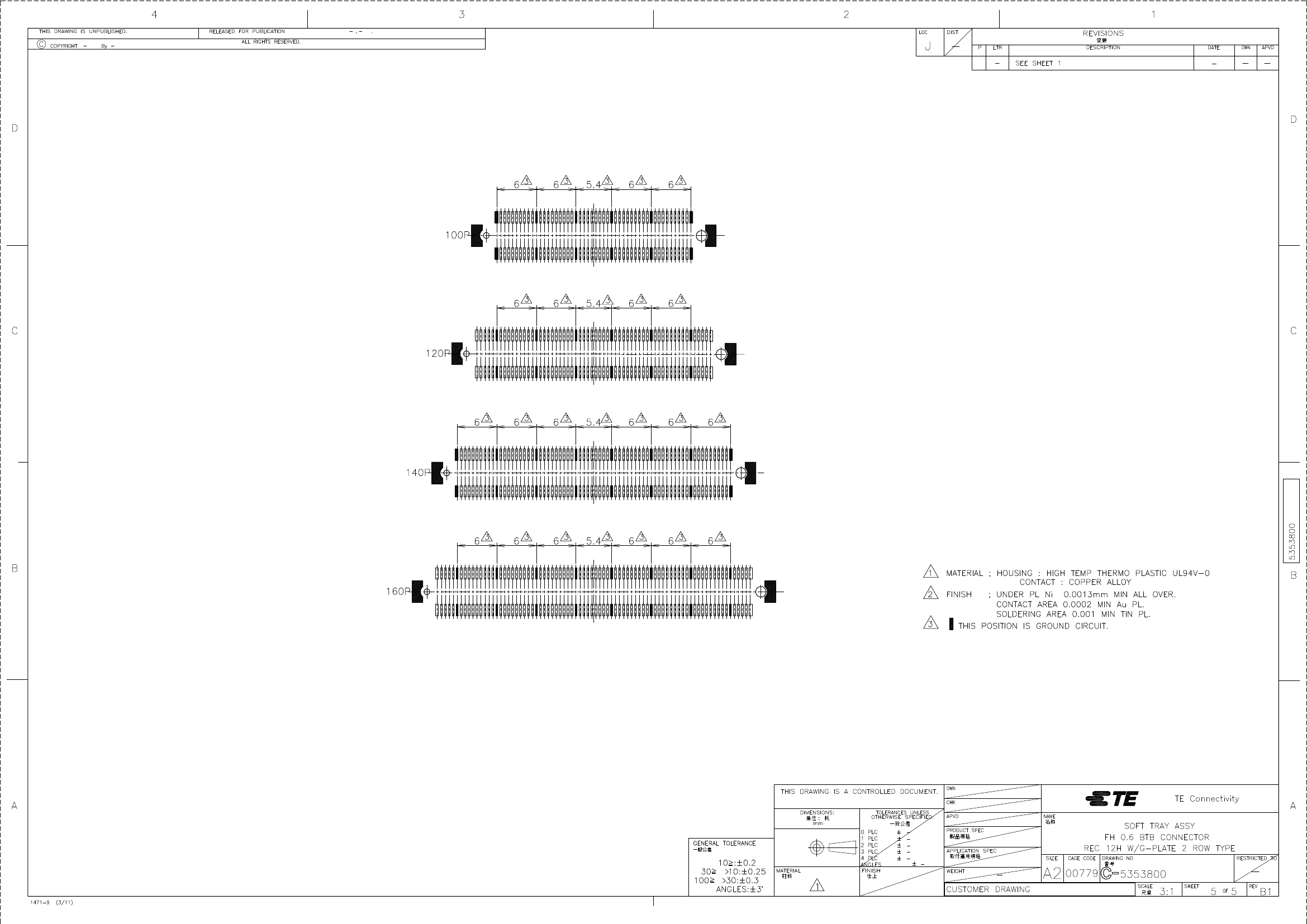

Other featuresTRAY PACKAGING
Board mount optionsPEG
body width0.677 inch
subject depth0.443 inch
body length2.154 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleBELLOWED TYPE
Dielectric withstand voltage200VAC V
Durability50 Cycles
Filter functionNO
maximum insertion force.8896 N
Insulation resistance100000000 Ω
insulator materialPOLYETHYLENE
Plug contact pitch0.024 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsTWO
PCB row number2+2
Number of rows loaded2+2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Plating thickness8u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
Terminal pitch0.6096 mm
Termination typeSURFACE MOUNT
Total number of contacts320
Evacuation force-minimum value.0973 N
