398-1.25A

Description
Non-Linear Resistor
CategoryPassive components    The resistor
File Size45KB,2 Pages
ManufacturerLittelfuse
Websitehttp://www.littelfuse.com
Download Datasheet Parametric View All

398-1.25A Overview

Non-Linear Resistor

398-1.25A Parametric

Parameter NameAttribute value
MakerLittelfuse
package instruction,
Reach Compliance Codeunknown
Base Number Matches1
C
IRCUIT
P
ROTECTORS
WICKMANN

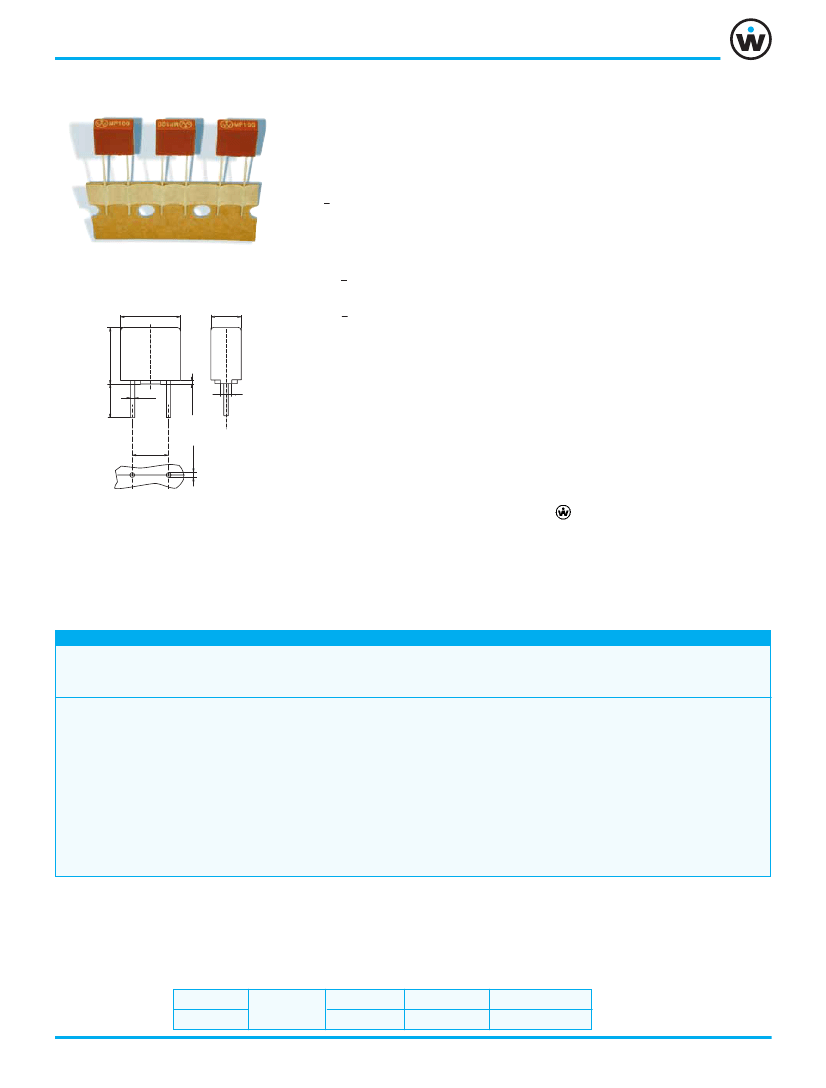

MP / No. 398
Modul Protector ® , 65V
For Short Circuit Protection of Sensitive
Electronic Components and Assemblies
Time-Current Characteristic
Medium Time Lag (M)
Specifications
Packaging
000: Tape/Ammopack (1400 pcs.)
Materials
Base/Cap:
Brown Thermoplastic
Polyamide PA 6.6, UL 94V0
Round Pins: Copper alloy, tin plated
Operating Criteria
Maximum continuous current:
IC > Ioperating max x F T time lag
Maximum melting integral:
I 2 t MP
<
I 2 t semiconductor (warm)
Minimum fault current:
IFault > 3 x IC
Temperature
Operating Temperature
-40ºC to +85ºC (consider de-rating)
Climatic Category
-25ºC/+70ºC/21 days (EN 60068-1..3)
Stock Conditions
+10ºC to +60ºC
relative humidity
75% yearly average,
without dew, maximum value for 30 days-95%
Dimensions (mm)
8,5
max. 8
max. 4
Maximum fault current:
IFault < 50A at 65VAC/DC
Vibration Resistance
24 cycles at 15 min. each (EN 60068-6)
10 - 60Hz at 0.75mm amplitude
60 - 2000Hz at 10g acceleration
Features
0,5 min
18,8
0,6
1,5
For worldwide applications
Reduced PCB space requirements
Highly defined cut-off times
Irreversible physical separation
Low internal resistance
Flame resistant encapsulated casing
Lead Pull Strength
10N (EN 60068-2-21)
Solderability
260ºC,
3 sec. (Wave)
350ºC,
1 sec. (Hand)
5,08
1 +0,1
WebLinks
Data Sheet
www.wickmann.com/products/398.pdf
Soldering Heat Resistance
260ºC, 10 sec. (IEC 60068-2-20)
Holes in PCB
Marking
, Type
Time-Current Curve
Page 116
www.wickmann.com/itcurves
Unit Weight
0.60g (approx.)
Packaging
Page 118
www.wickmann.com/pack
FaxBack Document # 311
100%
Permissible continuous operating current is
100% at ambient temperature of 23ºC (73.4ºF).
Continous
Type
Amp
Voltage
Fault
Cold Resistance
Current
Code
Rating
Current
0.1 x IC
IC
max.
typ. (mΩ)
125mA
250mA
315mA
400mA
500mA
630mA
800mA
1.00A
1.25A
1.60A
2.00A
2.50A
3.15A
4.00A
MP 13
MP 25
MP 32
MP 40
MP 50
MP 63
MP 80
MP100
MP125
MP160
MP200
MP250
MP315
MP400
0125
0250
0315
0400
0500
0630
0800
1100
1125
1160
1200
1250
1315
1400
65V
65V
65V
65V
65V
65V
65V
65V
65V
65V
65V
65V
65V
65V
900
355
260
186
155
115
85
65
48
34
26
21
16
12
Power Dissipation
1.0 x IC
max. (mW)
50
50
60
75
90
120
140
170
210
320
425
550
650
1000
Melting Integral
10 x IC
typ. (A
2
s)
0.0093
0.045
0.081
0.18
0.2
0.37
0.64
1.1
2.3
4.5
7.8
13
23
40
50A / 65VAC/DC
50-60Hz
cos
ϕ
= 1.0
Order
Information
000801
Qty.
Order-
Number
Series
398
Amp Code
Packaging
WebSite:
www.wickmann.com
FaxBack: +1 (404) 699-6176
• Europe
Tel: +49 (2302) 662-107
• Americas
Tel: +1 (404) 699-7820
• Asia
Tel: +852 26 14-1108
E-mail: sales@wickmann.com
E-mail: service@wickmannusa.com E-mail: sales@wickmann.com.hk
