42K101-009A1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 42K101-009A1

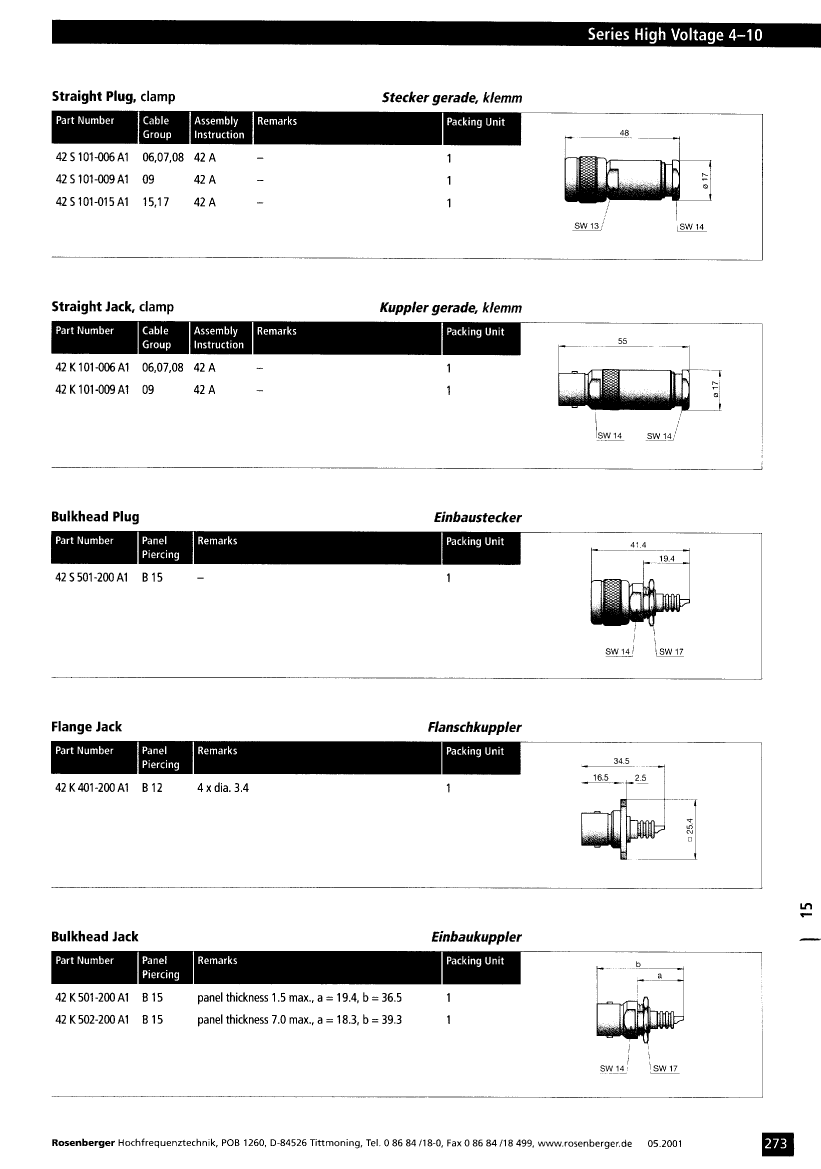

42K101-009A1: DescriptionRF SHV Connector, Female, Cable Mount, Clamp Terminal, Jack,; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

42K101-009A1 Overview

RF SHV Connector, Female, Cable Mount, Clamp Terminal, Jack,

42K101-009A1 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Reach Compliance Code	compliant
Other features	APPLICABLE CABLE: RG 59
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SHV CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	4-10
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CLAMP
Base Number Matches	1

Preview

Download Datasheet

View All

42K101-009A1 Related Products

	42K101-009A1	42K501-200A1	42S101-006A1	42S501-200A1	42K502-200A1	42K401-200A1	42S101-015A1	42S101-009A1	42K101-006A1
Description	RF SHV Connector, Female, Cable Mount, Clamp Terminal, Jack,	RF SHV Connector, Female, Panel Mount, Solder Terminal, Jack,	RF SHV Connector, Male, Cable Mount, Clamp Terminal, Plug,	RF SHV Connector, Male, Panel Mount, Solder Terminal, Plug,	RF SHV Connector, Female, Panel Mount, Solder Terminal, Jack,	RF SHV Connector, Female, Panel Mount, Solder Terminal, Jack,	RF SHV Connector, Male, Cable Mount, Clamp Terminal, Plug,	RF SHV Connector, Male, Cable Mount, Clamp Terminal, Plug,	RF SHV Connector, Female, Cable Mount, Clamp Terminal, Jack,
Maker	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	JACK	JACK	PLUG	PLUG	JACK	JACK	PLUG	PLUG	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SHV CONNECTOR	RF SHV CONNECTOR	RF SHV CONNECTOR	RF SHV CONNECTOR	RF SHV CONNECTOR	RF SHV CONNECTOR	RF SHV CONNECTOR	RF SHV CONNECTOR	RF SHV CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	MALE	MALE	FEMALE	FEMALE	MALE	MALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	4-10	4-10	4-10	4-10	4-10	4-10	4-10	4-10	4-10
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	YES	NO	YES	YES	YES	NO	NO	NO
Termination type	CLAMP	SOLDER	CLAMP	SOLDER	SOLDER	SOLDER	CLAMP	CLAMP	CLAMP
Base Number Matches	1	1	1	1	1	1	1	1	1
Other features	APPLICABLE CABLE: RG 59	-	APPLICABLE CABLES: RG 58; RG 141; RG 142; RG 223	-	-	-	APPLICABLE CABLES: RG 213; RG 214	APPLICABLE CABLE: RG 59	APPLICABLE CABLES: RG 58; RG 141; RG 142; RG 223
Installation type	CABLE	-	CABLE	-	-	-	CABLE	CABLE	CABLE
