Data sheet...
Power Solid-State Relais

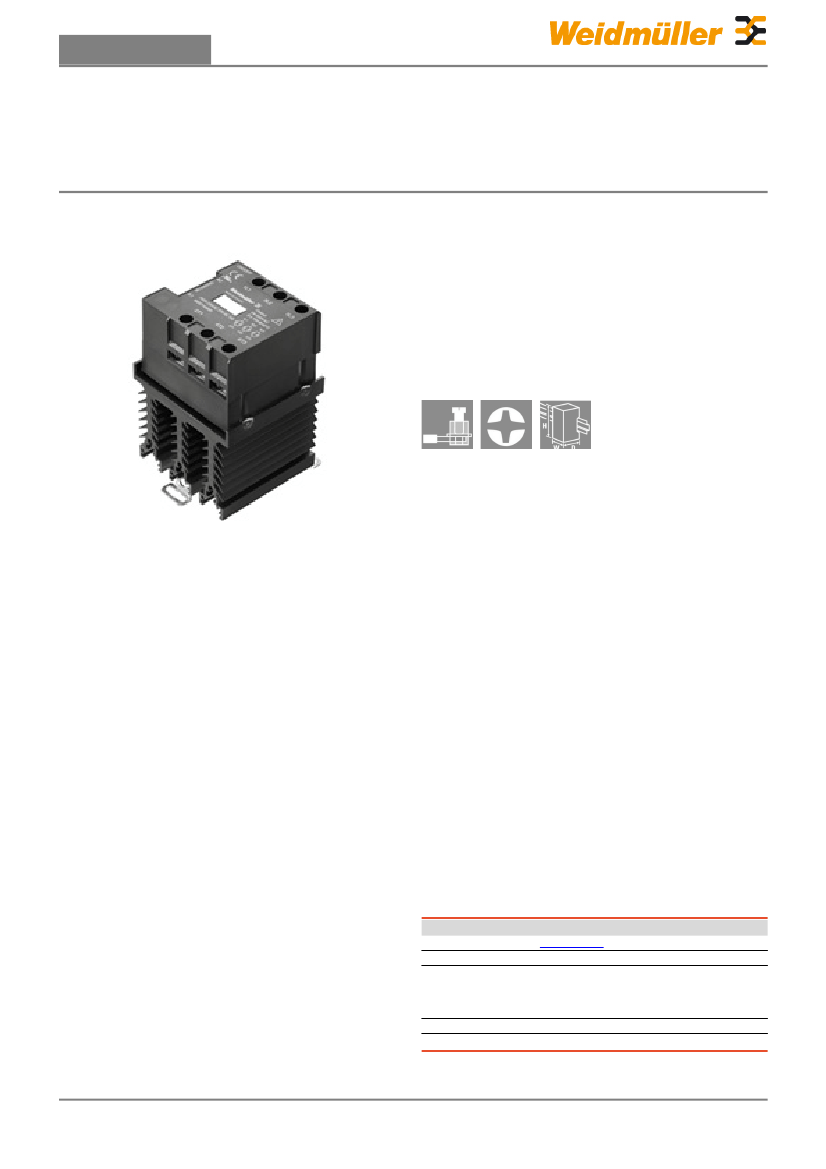

PSSR 230VAC/3PH AC 20A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
• Load circuit: triple phase 24...520 VAC / 15 A
• Ready-to-use: simply clip on and connect
• Silent, wear-free switching
• High surge current rating I
2
t = 1500 A
2
s (10 ms)
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
8952140000
PSSR 230VAC/3PH AC 20A
Power Solid-State Relais, Rated control voltage:
90...240 V AC / DC , Rated switching voltage: 24…
520 V AC, Rated switching current: 20 A @ 55 °C,
Screw connection
4032248743261
1 pc(s).
Creation date April 3, 2013 4:11:50 PM CEST
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
1
Data sheet...
Power Solid-State Relais
PSSR 230VAC/3PH AC 20A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
89.6 mm
126.2 mm
Height
Net weight
Dimensions and weights
Width
Depth
98 mm
976 g
Temperatures
Operating temperature
-40 °C...+80 °C
Storage temperature
-40 °C...+100 °C
Connection data
Clamping range, rated connection
10 mm²
Clamping range, rated connection, max. 10 mm²
Clamping range, rated connection, min. 1.5 mm²
Control side
Rated control voltage
Input frequency
Dropout voltage
Status display on control side
90...240 V AC / DC
max. 10 Hz
15 V
Green LED
Power rating
Cut-in (switch-on) voltage
Protective circuit, control side
0.4...2.6 W
90 V AC/DC
RC element, Varistor
Load side
Rated switching voltage
Rated switching current
Switch-on delay
Load category
Protective circuit, load side
Short-circuit-proof
24…520 V AC
20 A @ 55 °C
30 ms
AC 53: 3 x 12 A
Varistor, RC element
No
Continuous current
Pulse load, max. current
Switch-off delay
Leakage current
Voltage drop at max. load
Cartridge fuse
20 A
550 A (10 ms)
30 ms
< 1 mA
1.4 V
FERRAZ gRC 63 A 22x58
1353 A
2
s
General data
Solid-state type
Conductor connection system
Standards
Triac (no-voltage switch)
Screw connection
DIN EN 60950, IEC
60947-4-3
No. of poles
Humidity
3
40...85 % (indoor) no
condensation
Insulation coordination
Rated voltage
300 V
4 kV
III
Clearance and creepage distances for
control side - load side
Pollution severity
≥ 6.4 mm
2
Impulse withstand voltage
Surge voltage category
Further details of approvals
Standards
DIN EN 60950, IEC
60947-4-3
Classifications
ETIM 3.0
eClass 5.1
eClass 7.0
EC001504
27-27-09-90
27-37-16-01
UNSPSC
eClass 6.0
30-21-18-01
27-37-16-01
Creation date April 3, 2013 4:11:50 PM CEST
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
2
Data sheet...
Power Solid-State Relais
PSSR 230VAC/3PH AC 20A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Approvals
Approvals
Downloads
Package insert
Declaration of Conformity
EPLAN
3-D model
4350020000.pdf
K299_02_08.pdf
8952140000.ema
Creation date April 3, 2013 4:11:50 PM CEST
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
3
Data sheet...
Power Solid-State Relais
PSSR 230VAC/3PH AC 20A
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings

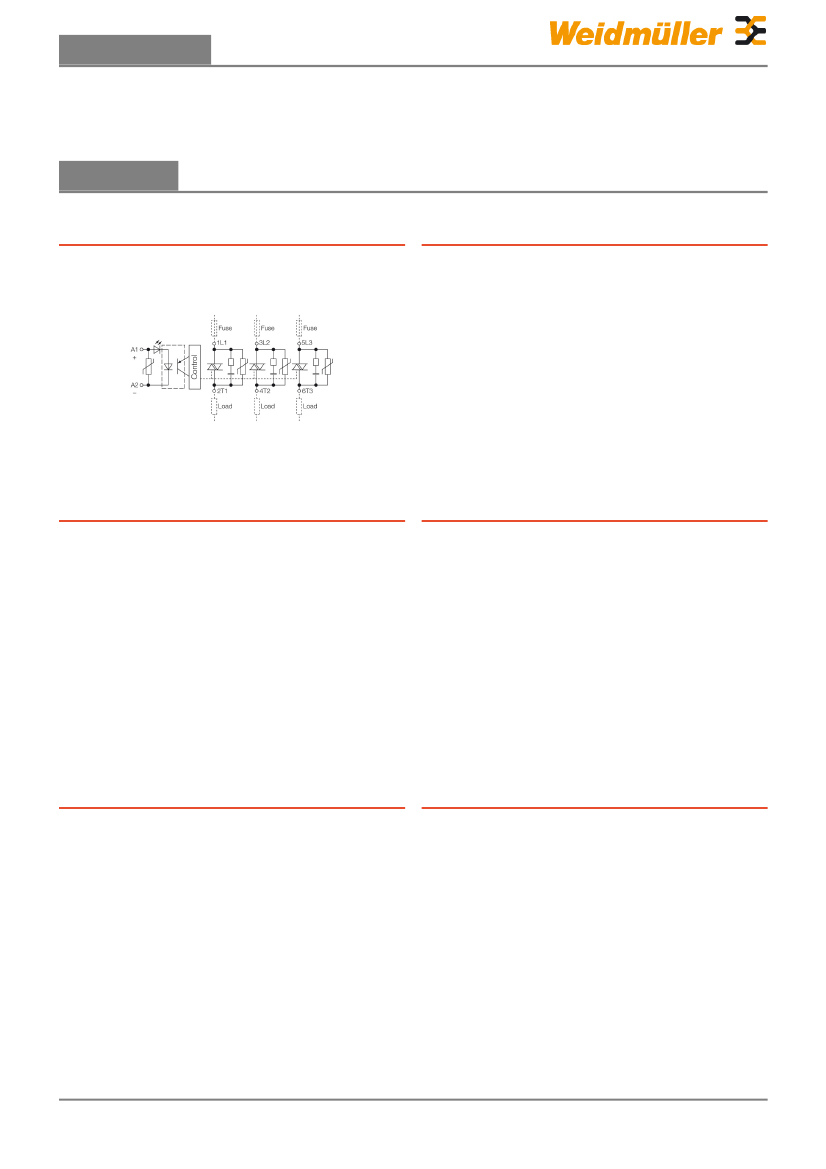

Electric symbol
Creation date April 3, 2013 4:11:50 PM CEST
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
4
