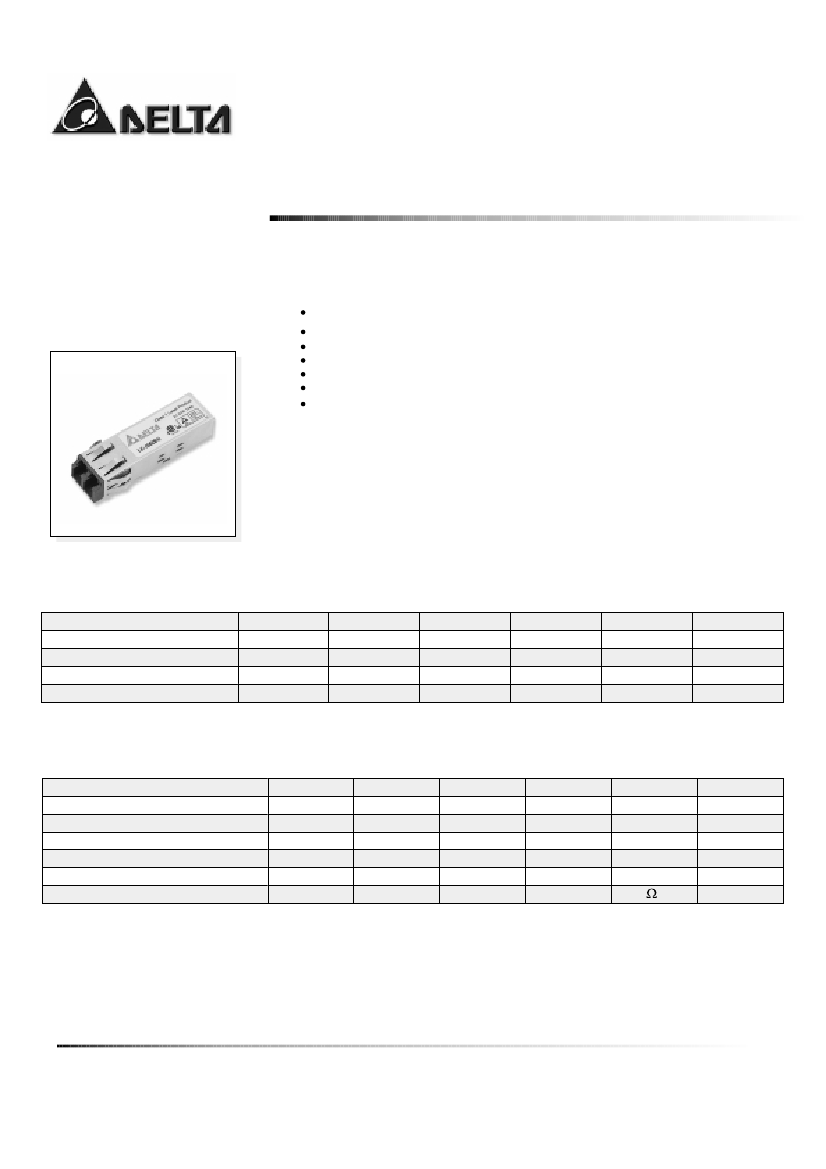

2x5 SFF LC Duplex Singlemode 1310nm Fiber
Optical Transceiver Modules for Fibre Channel
(PECL/5KM, 5V )
LC-1062B1I
(TTL/5KM, 5V )
LC-1062B3I
PECL/10KM, 5V )
LC-1062B1Q
(TTL/10KM, 5V )
LC-1062B3Q
Features
Compliant with Fibre Channel standard
Small Form Factor RJ-45 style LC
TM
connector system
Half the size of SC Duplex 1x9 transceiver
Data Link up to 5 KM (LC-1062B1/3I) or 10 KM (LC-1062B1/3Q) in 9/125 SMF
Single + 5V Power Supply and PECL Logic Interface
Signal detection function (TTL/PECL output)
Class 1 FDA and IEC Laser safety compliant (Laser Klasse 1 Produkt)
Absolute Maximum Ratings
Parameter
Storage temperature
Lead soldering temperature
Lead soldering time
Supply voltage
Symbol
Ts
T
SOLD
t
SOLD
Vcc
Min.
-65
Typ.
Max.
150
260
10
6
Unit
o
C
o
C
sec.
V
Reference
0
Recommended Operating Conditions:
Parameter
Ambient Operating Temperature
Supply voltage
Transmitter Data input voltage-Low
Transmitter Data input voltage-High
Transmitter Differential Input Voltage
Data Output Load
Symbol
T
A
Vcc
V
I L
- V
CC
V
I H
- V
CC
V
D
R
DL
Min.
-40
3.175
-1.810
-1.165
0.3
Typ.
Max.
85
3.465
-1.475
-0.880
1.6
Unit
o
C
V
V
V
V
Reference
50
DELTA ELECTRONICS, INC.
(CHUNGLI PLANT CPBG)
3, TUNG YUAN ROAD, CHUNGLI INDUSTRIAL ZONE, TAOYUAN SHIEN, TAIWAN, R.O.C.
TEL: 886-3-4526107 FAX: 886-3-4527314
www.deltaca.com
PRELIMINARY
9
2x5 SFF LC Duplex Singlemode 1310nm Fiber
Optical Transceiver Modules for Fibre Channel
(PECL/5KM, 5V )
LC-1062B1I
(TTL/5KM, 5V )
LC-1062B3I
PECL/10KM, 5V )
LC-1062B1Q
(TTL/10KM, 5V )
LC-1062B3Q
Transmitter Electro-Optical Performance Specifications:
Parameter
Supply current
Launched power (avg.)
LC-1062B1/3I
LC-1062B1/3Q
Optical extinction ratio
Center wavelength
Spectral width (RMS)
Relative Intensity Noise
Symbol
Icc
P
O
Min.
Typ.
Max.
180
-3
-3
1340
4
-117
dB
nm
nm, rms
DB/Hz
Note (1)
Unit
mA
dBm
Reference
Note (1)
c
RIN
1280
-12
-9.5
9
1310
Note (1). The maximum optical output power complies with the IEEE 802.3z/D2 specification, and is class 1 laser eye safe.
Receiver Electro-Optical Performance Specifications:
Parameter
Supply current
Data output voltage-Low
Data output voltage-High
Optical input sensitivity (avg.)
Optical input saturation (avg.)
Optical wavelength
Output Data risetime
Output Data falltime
Signal detect- Assert
Signal detect- Deassert
Signal detect- Hysteresis
Symbol
Icc
V
OL
- V
CC
V
OH
- V
CC
P
I N
P
SAT
t
r
t
f
P
A
P
D
P
A
-P
D
Min.
-1.950
-1.045
-3
1310
0.4
0.4
-20
-30
1
Typ.
Max.
130
-1.620
-0.740
-19
Unit
mA
V
CC
V
CC
dBm
dBm
nm
ns
ns
dBm
dBm
dB
Reference
Note (1)
Note (1)
Note (2)
Note (2)
Note (1). With BER better than or equal to 1x10
-12
, measured in the center of the eye opening with 2
23
-1 NRZ PRBS
Note (2). These are 20%~80% values
DELTA ELECTRONICS, INC.
(CHUNGLI PLANT CPBG)
3, TUNG YUAN ROAD, CHUNGLI INDUSTRIAL ZONE, TAOYUAN SHIEN, TAIWAN, R.O.C.
TEL: 886-3-4526107 FAX: 886-3-4527314
www.deltaca.com
PRELIMINARY
10
2x5 SFF LC Duplex Singlemode 1310nm Fiber
Optical Transceiver Modules for Fibre Channel
(PECL/5KM, 5V )
LC-1062B1I
(TTL/5KM, 5V )
LC-1062B3I
PECL/10KM, 5V )
LC-1062B1Q
(TTL/10KM, 5V )
LC-1062B3Q

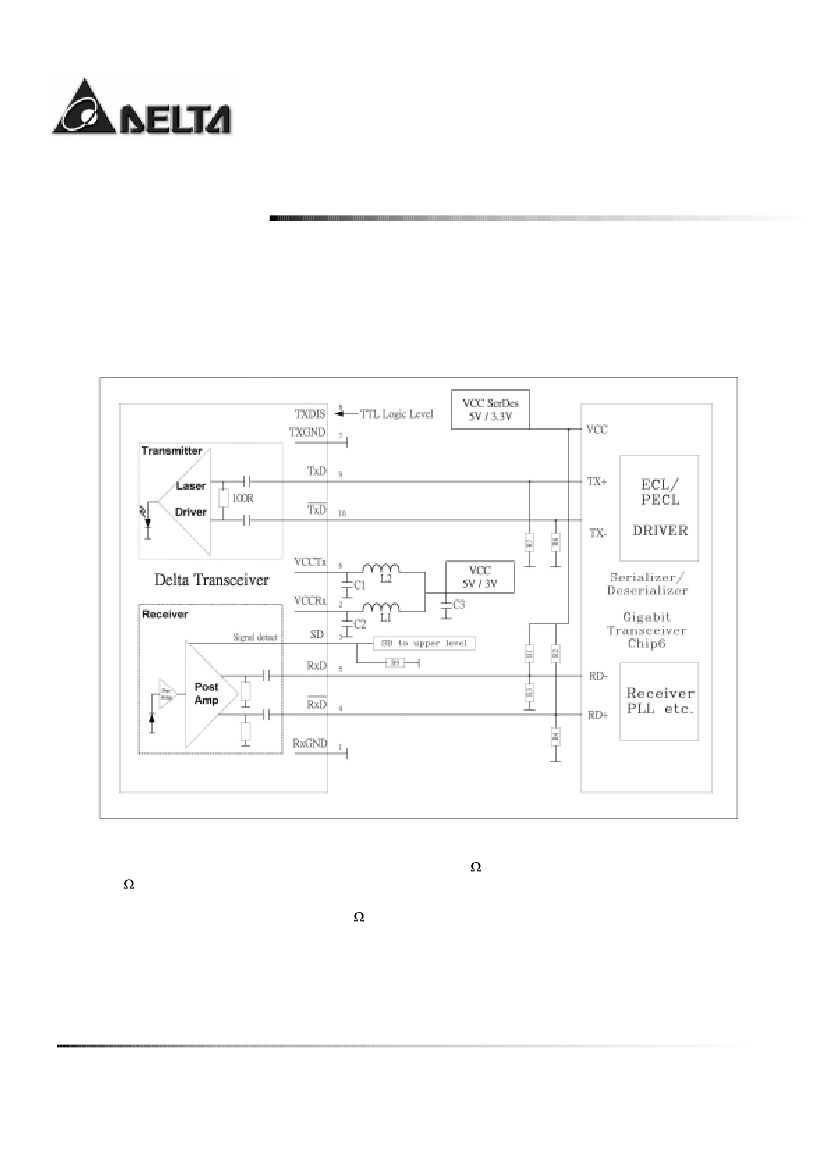

Small Form Factor Singlemode 1310nm Fibre Channel 2x5 Transceiver AC/AC 5V Transceiver Version
Recommended Circuit Schematic
C1/2/3 = 4.7 uF
L1/2
= 1 uH
R1/2/3/4/7/8 Depend on SerDes chip used and desired line termination (50 Strip line)
R9
= 510
When we want PECL output in SD pin we use R9=510, and no connector
When we want TTL output.
Value of R1/2/3/4/7/8 may very as long as proper 50 termination to VEE, it depend on SerDes chip used and desired line
termination. All the transceiver of Delta contains an automatic shutdown circuit. Reset depends on power OFF and then ON. For
Good EMI pergormance the power supply filter is require. Use short tracks from the inductor L1/2 to the module VccTx/VccRx. This
recommended Circuit assume Gigabit Ethernet / Fiber Channel usies 3.3V power supply and SerDes Chip usies 3.3 / 5 V power supply.
DELTA ELECTRONICS, INC.
(CHUNGLI PLANT CPBG)
3, TUNG YUAN ROAD, CHUNGLI INDUSTRIAL ZONE, TAOYUAN SHIEN, TAIWAN, R.O.C.
TEL: 886-3-4526107 FAX: 886-3-4527314
www.deltaca.com
PRELIMINARY
11
2x5 SFF LC Duplex Singlemode 1310nm Fiber
Optical Transceiver Modules for Fibre Channel
(PECL/5KM, 5V )
LC-1062B1I
(TTL/5KM, 5V )
LC-1062B3I
PECL/10KM, 5V )
LC-1062B1Q
(TTL/10KM, 5V )
LC-1062B3Q

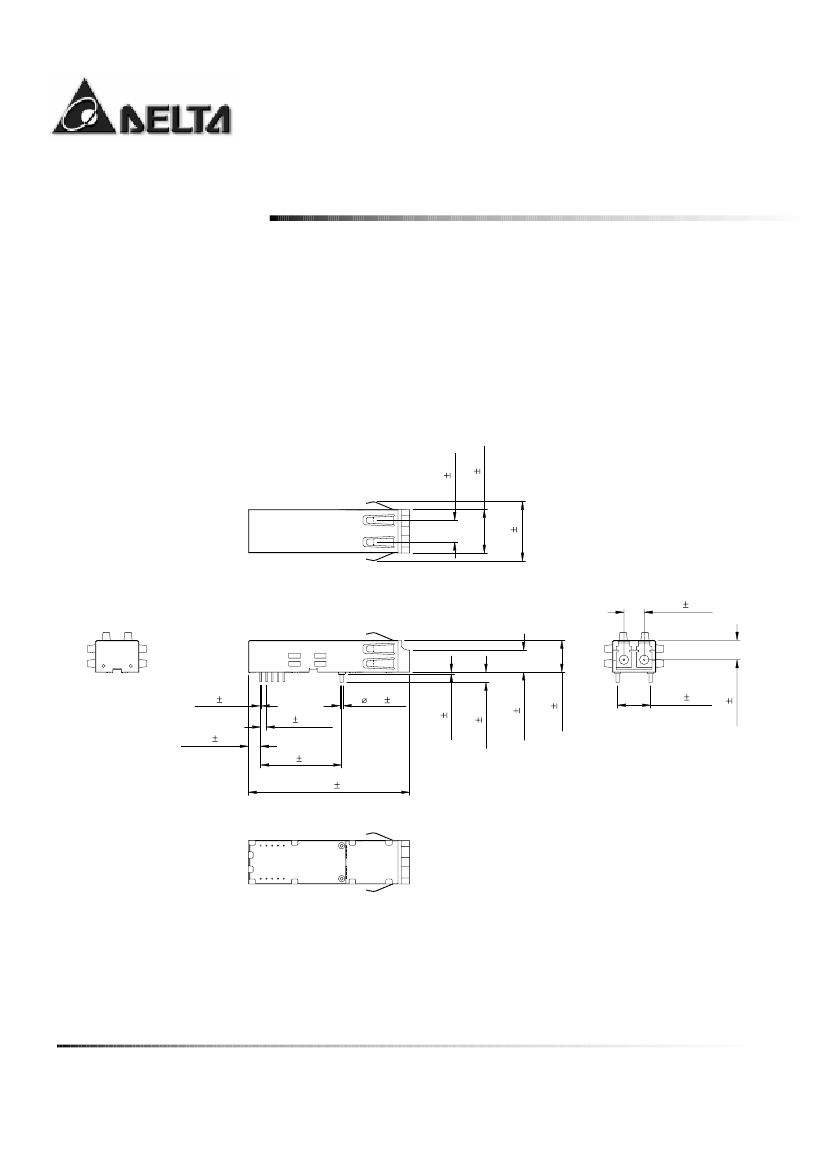

Mechanical Dimensions
Unit : mm
13.40 0.20
6.70 0.20
18.22 0.20
6.25 0.10
6.75 0.20
9.80 0.20
1.78 0.20
3.80 0.20
24.90 0.20
49.60 0.20
DELTA ELECTRONICS, INC.
(CHUNGLI PLANT CPBG)
3, TUNG YUAN ROAD, CHUNGLI INDUSTRIAL ZONE, TAOYUAN SHIEN, TAIWAN, R.O.C.
TEL: 886-3-4526107 FAX: 886-3-4527314
www.deltaca.com
PRELIMINARY
12
3.18 0.20
0.45 0.10
1.00 0.1
0.50 0.20
10.16 0.20
6.00 0.20
