Low Voltage Crystal Oscillator
7.0 x 5.0mm
0.9V~1.5V CMOS XO
LX701

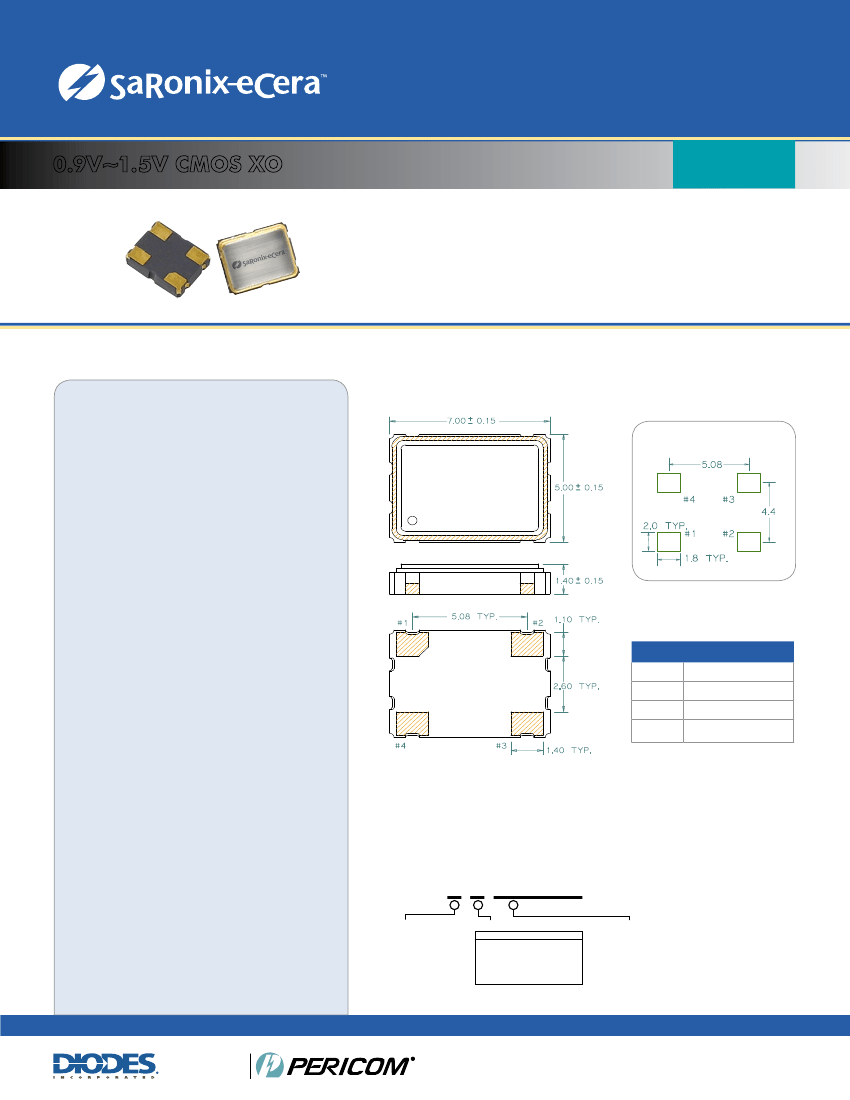

7.0 x 5.0mm Ceramic SMD
Package:
(Scale: none; dimensions are in mm)
Product Features
•
Industrial temperature range
•
Low phase jitter: < 1ps RMS max.
•
Supports frequency range: 1.25~50MHz
•
Supports voltage range: 0.9~1.5V
•
Low power consumption
•
Pb-free & RoHS compliant
Recommended Land Pattern:
Product Description
The LX701 XO series is a high performance
CMOS crystal oscillator family with very low
jitter performance.
It supports 0.9V/1.0V/1.2V/1.5V voltages
and consumes very low operating current.
It is designed to meet the clock source
specifications for communication systems,
industrial applications and other high
performance equipment.
Pin Functions:
Pin
Function
1
2
3
4
OE
Ground
Output
V
DD
Applications
•
Networking and communication systems
•
Industrial and outdoor systems
•
Storage and server systems
•
Hand-held devices
•
Professional video equipments
•
Test and measurement equipments
*Extended high frequency power decoupling is recommended (see test circuit for minimum
recommendation). To ensure optimal performance, do not route RF traces beneath the
package.
Part Ordering Information:
LX 701
Voltage:
V
A
I FFFF.FFFFFF
B
C
4=+1.5V
5=+1.2V
6=+1.0V
7=+0.9V
Stability and Temp Range:
Stability
A = +/-20 ppm
B = +/-25 ppm
C = +/-50 ppm
D = +/-25 ppm
E = +/-50 ppm
Temp Range
-20/+70°C
-20/+70°C
-20/+70°C
-40/+85°C
-40/+85°C
Frequency:
FFFF.FFFFFF
MHz, “4 digits/decimal/6 digits” format
© Diodes Incorporated
A product Line of
Diodes Incorporated
•
US: +1-408-232-9100 TW: +886-3-4518888
•
www.diodes.com
All specifications are subject to change without notice.
LX701 Rev A 07/13/16
1
16-0056
0.9V~1.5V CMOS XO
LX701
Low Voltage Crystal Oscillator
7.0 x 5.0mm
Electrical Performance
Parameter
Min.
Typ.
Max.
Units
Notes
Output Frequency
1.25
1.425
1.5
1.2
1.0
0.9
1.14
0.95
0.855
50
1.575
1.26
1.05
0.945
4
100
±50
MHz
Supply Voltage
V
See ordering options
Supply Current, Output Enabled
Supply Current, Output Disabled only
Frequency Stability
Operating Temperature Range
Output Logic 0, V
OL
Output Logic 1, V
OH
Output Load
Duty Cycle
Rise and Fall Time
Jitter, Accumulated, RMS (1-σ)
Jitter, Phase, RMS
Jitter, pk-pk
< 40MHz
>=40MHz
45
0.8 V
DD
-40
mA
uA
ppm
°C
V
V
pF
%
ns
ps
ps
ps
Measured 50% V
DD
Measured 20/80% of waveform
20.000 adjacent periods
12kHz to 5 MHz frequency band
12kHz to 20 MHz frequency band
100,000 random periods
See ordering options
See ordering options
+85
0.2 V
DD
15
55
4
6
1
1
50
Notes:
1. Stability includes all combinations of operating temperature, load changes, rated input (supply) voltage changes, initial calibration tolerance (25°C),
aging (1 year at 25°C average effective ambient temperature), shock and vibration.
2. For specifications other than those listed, please contact sales.
Output Enable / Disable Function
Parameter
Min.
Typ.
Max.
Units
Notes
Input Voltage (pin 1), Output Enable
Input Voltage (pin 1), Output Disable (low power standby)
Output Disable Delay
Output Enable Delay
Start up Time
0.7 V
DD
0.3 V
DD
50
2
10
V
V
us
ms
ms
or open
Output is Hi-Z
Absolute Maximum Ratings
Parameter
Min.
Typ.
Max.
Units
Notes
Storage Temperature
-55
+125
°C
For the latest product information visit:
http://www.pericom.com/products/crystals-and-crystal-oscillators/cxo/?part=LX701
For test circuit go to:
http://www.pericom.com/pdf/sre/tc_cmos2.pdf
For soldering reflow profile and reliability test ratings go to:
http://www.pericom.com/pdf/sre/reflow.pdf
For tape and reel information go to:
http://www.pericom.com/pdf/sre/tr_7050_xo.pdf
© Diodes Incorporated
A product Line of
Diodes Incorporated
•
US: +1-408-232-9100 TW: +886-3-4518888
•
www.diodes.com
All specifications are subject to change without notice.
LX701 Rev A 07/13/16
2
16-0056
