A29KH-CB datasheet, PDF - EEWORLD Datasheet

A29KH-CB: DescriptionRocker Switch, DPDT, On-off-(on), Horizontal, 8 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size959KB，6 Pages; ManufacturerNKK Switches; Environmental Compliance

Download Datasheet Parametric View All

A29KH-CB Overview

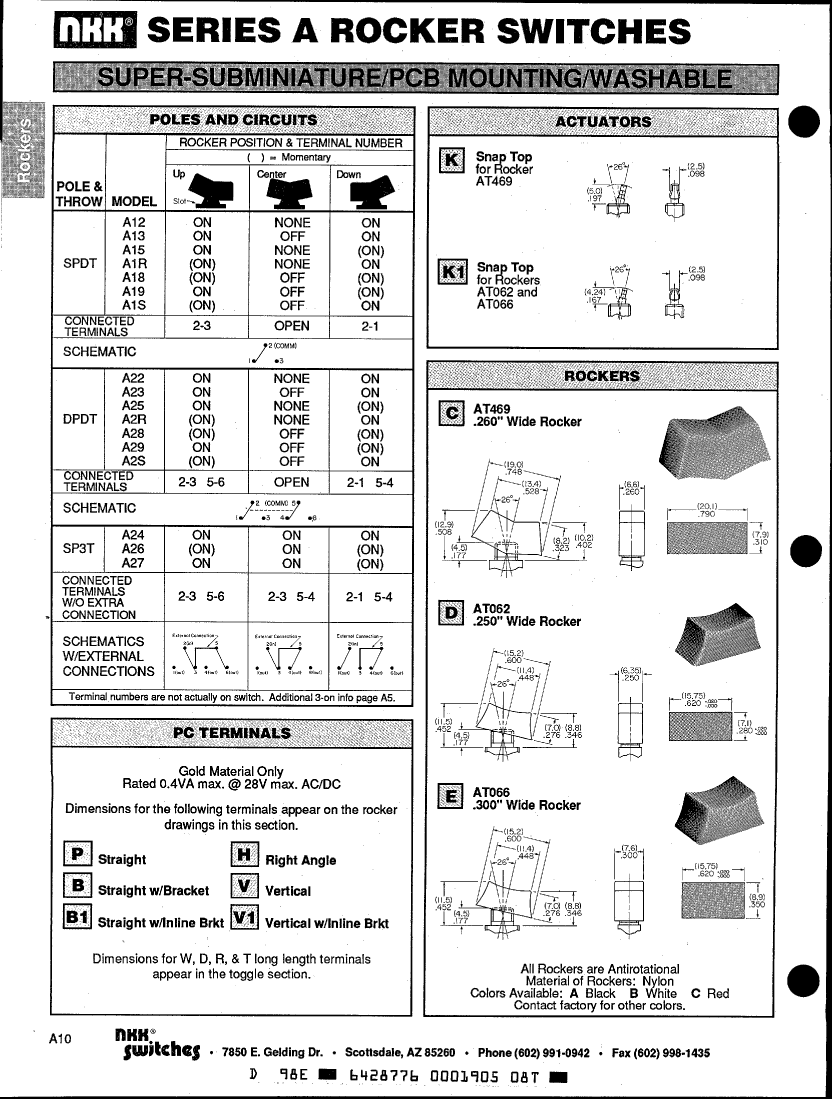

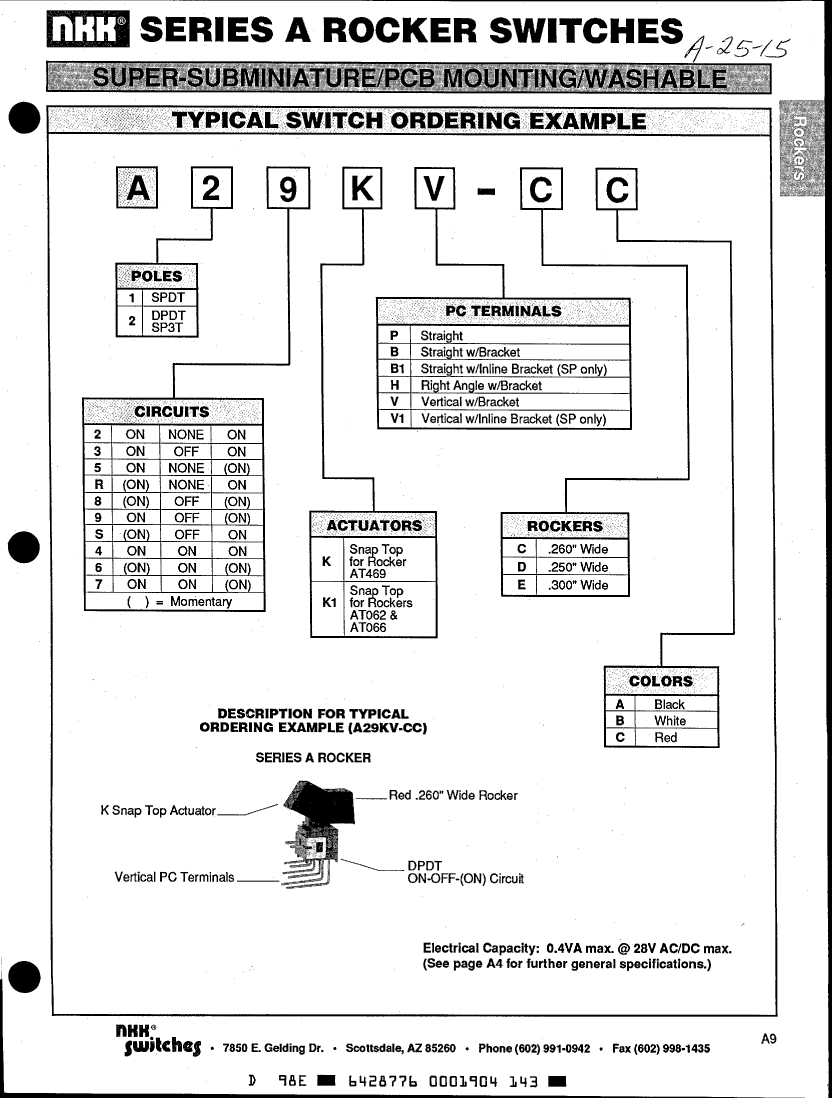

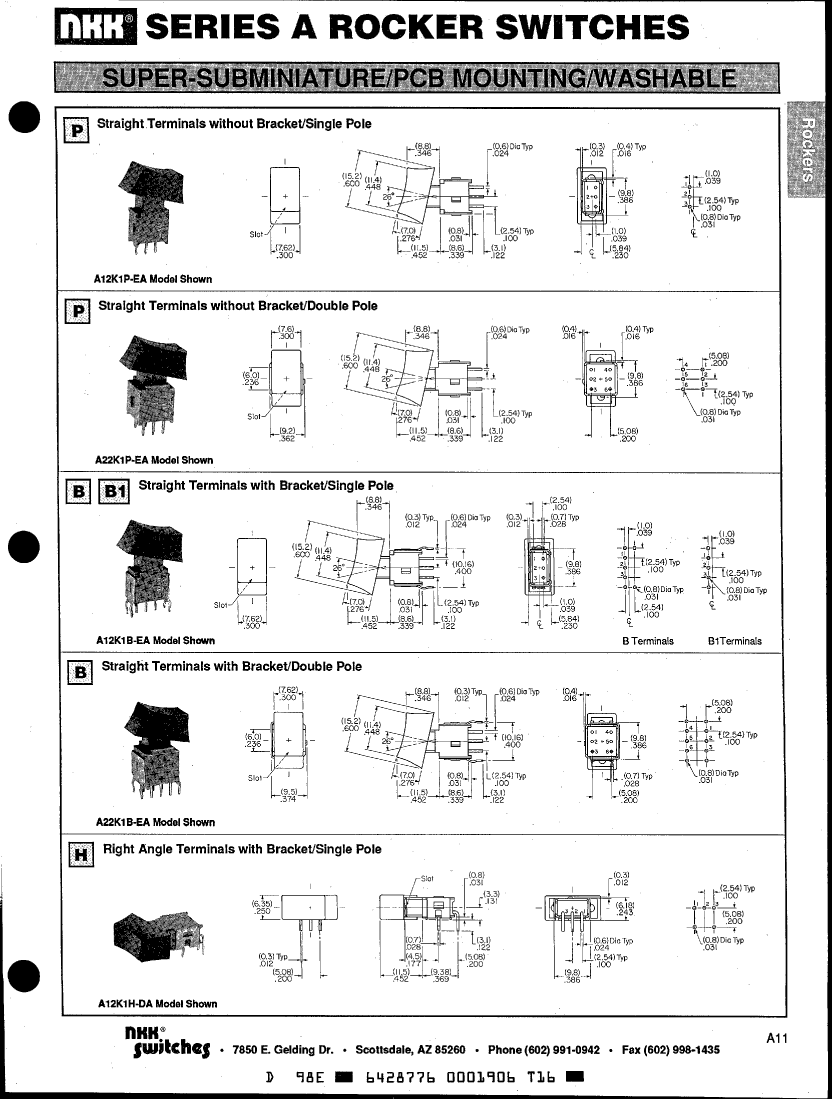

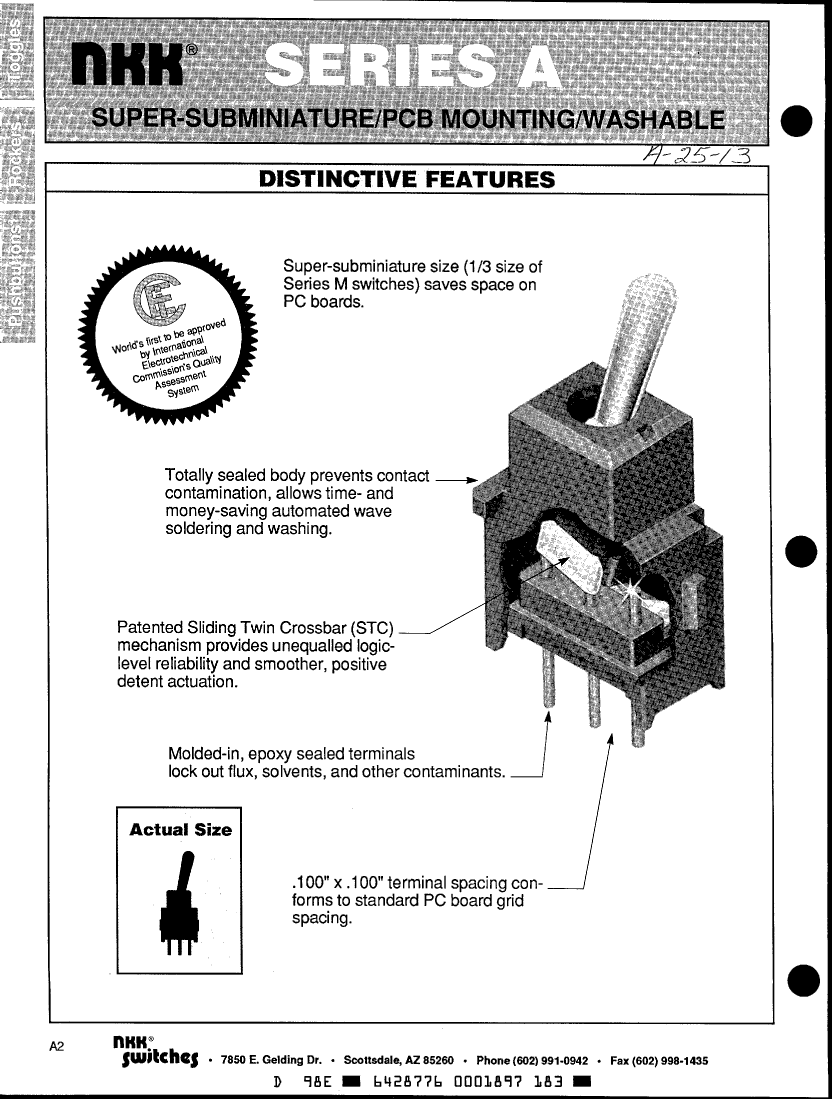

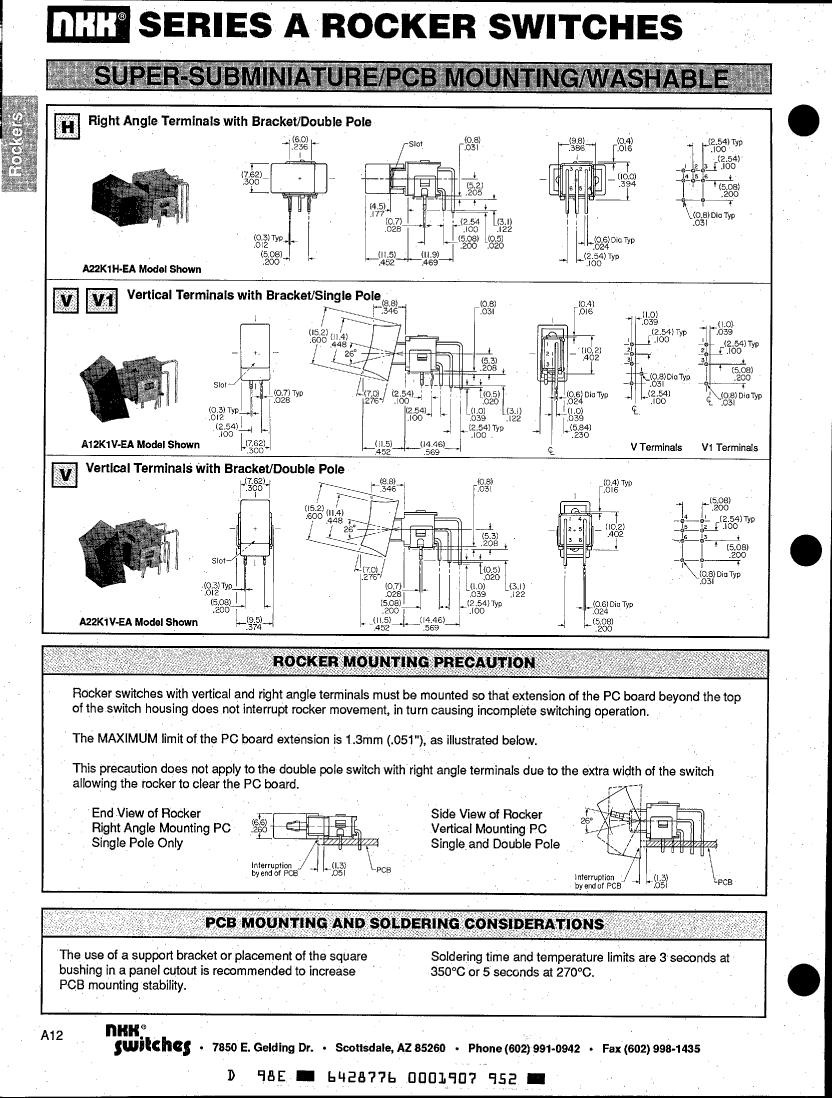

Rocker Switch, DPDT, On-off-(on), Horizontal, 8 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-right Angle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1166888142
Reach Compliance Code	not_compliant
ECCN code	EAR99
Actuator angle	26 deg
Actuator color	WHITE
Actuator length	0.508 inch
Actuator material	NYLON
Actuator type	ROCKER
Other features	MOUNTING BRACKET
body width	10.0076 mm
body height	23.6982 mm
Body length or diameter	9.8044 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	GOLD OVER SILVER
Contact (DC) maximum rated power R load	0.4VA@28VDC
Contact function	ON-OFF-(ON)
Contact resistance	0.05 mΩ
Dielectric withstand voltage	500VAC V
Electrical life	50000 Cycle(s)
End contact material	BRASS
End contact plating	GOLD OVER NICKEL
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYAMIDE
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating force	2.73 N
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
PCB hole count	8
seal	EPOXY
Solderability	WAVE
surface mount	NO
Switch action	HORIZONTAL
switch function	DPDT
Switch type	ROCKER SWITCH
Terminal surface	Gold (Au)
Terminal length	0.122 inch
Termination type	SOLDER
Washability	SOLVENT
