AQ-E
VDE
1A AC and 3A DC
space saving
PC board terminal type
AQ-E RELAYS
4. Two load types available:
DC output type (3A)
AC output type (1A)
5. Zero-cross type are availale (AC
type)
The zero-cross type generates minimal
noise
6. Snubber circuit integrated (AC type)
The snubber circuit is integrated to
prevent malfunction caused by the rapid
rise of voltage on the output side, such as
inductive load and current.
28.0
1.102
5.0
.197

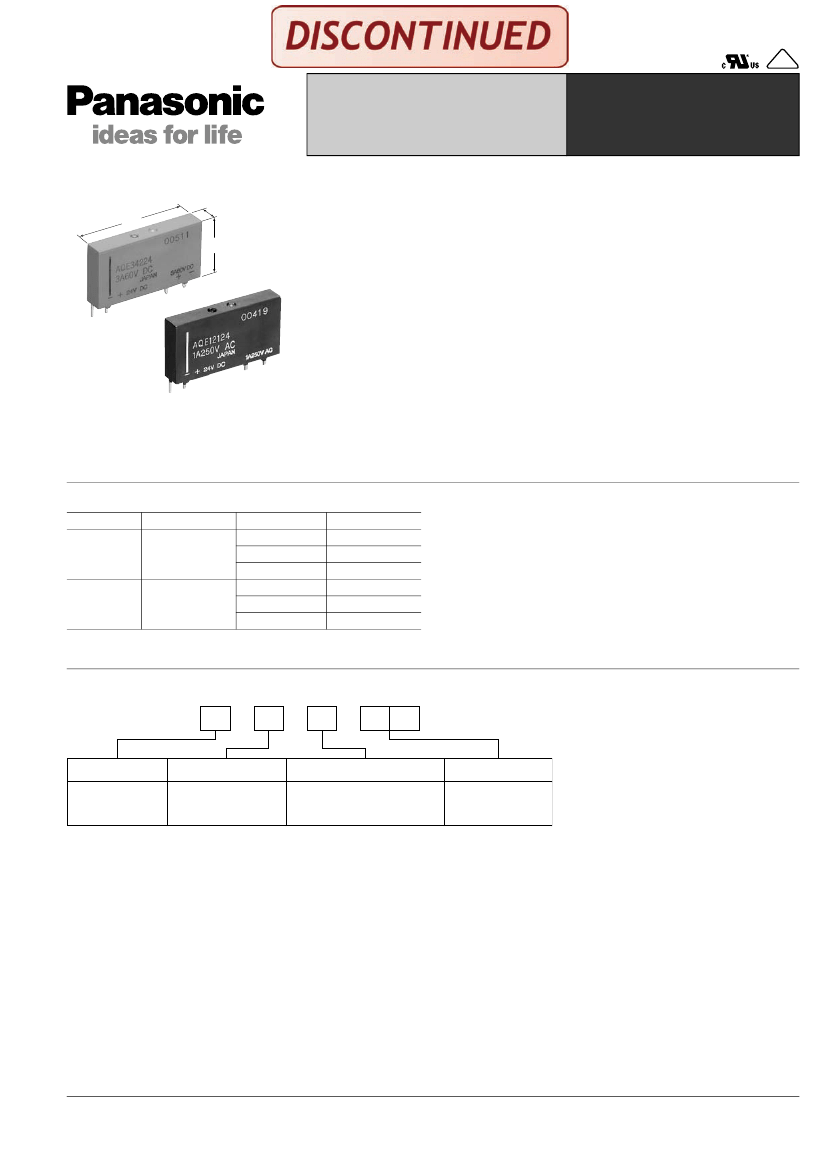

FEATURES
1. Conforms to European safety
standards (VDE0110)
dielectric distance between input and
output
• Creepage distance: Min. 3.0 mm
• Clearances distance: Min. 2.5 mm
2. The small-sized vertical type
28 mm (L)×5 mm (W)×15 mm
1.063 inch (L)×.197 inch (W)×.591 inch
permits high density mounting to PC
board
3. High dielectric strength: 2,500V AC
(between input and output)
15.0
.591
mm
inch
TYPES
Type
AC output
Load voltage
75 to 250 V AC
Input voltage
5 V DC
12 V DC
24 V DC
5 V DC
DC output
3 to 60 V DC
12 V DC
24 V DC
Part No.
AQE12105
AQE12112
AQE12124
AQE34205
AQE34212
AQE34224
TYPICAL APPLICATIONS
• Interface relays for programmable controllers
• Industrial equipment
• Timers and counters
• Air conditioners
ORDERING INFORMATION
Ex. AQE
1
2
1
0
5
Load current
1: 1 A
3: 3 A
Load voltage
2: 75 to 250 V AC
4: 3 to 60 V DC
Type
1: AC output (Zero-cross)
2: DC output
Input voltage
05: 5 V DC
12: 12 V DC
24: 24 V DC
(Note) Standard packing: Carton 20 pcs., Case 1,000 pcs.
ds_61610_en_aqe: 060207D
1
AQ-E

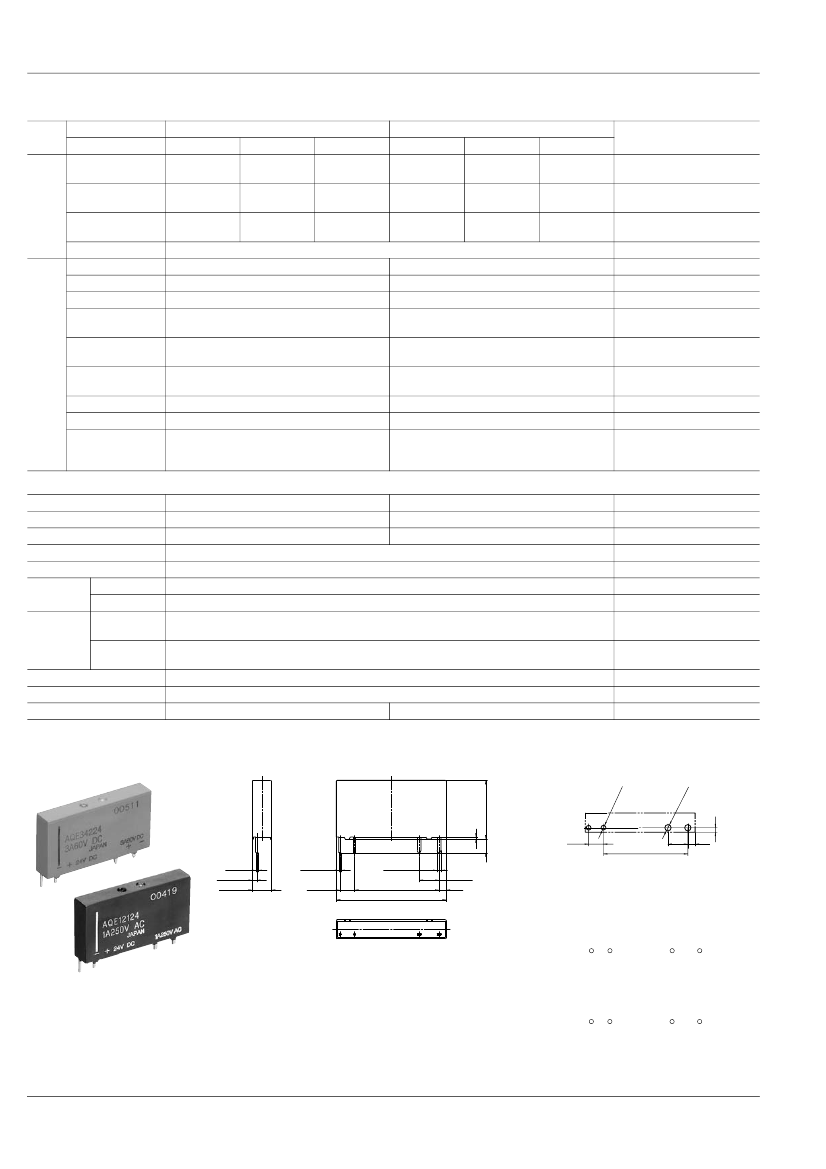

SPECIFICATIONS
Ratings (at 20°C
68°F,
Input voltage ripple: 1% or less)
Item
Type
Part No.
Input voltage
Input
side
Input impedance
Drop-out voltage,
min.
Reverse voltage
Max. load current
Load voltage
Frequency
Non-repetitive
surge current
Load
side
Max. “OFF-state”
leakage current
Max. “ON-state”
voltage drop
Min. load curent
OFF state dV/dt
Max. operating
speed
1 A AC
75 to 250 V AC
45 to 65 Hz
20 A
1.5 mA (applied 200 V)
1.6 V
20 mA
50 V/μs
—
AQE12105
4 to 6 V DC
Approx.
0.5k
Ω
0.5 V DC
AC output
AQE12112
9.6 to 14.4
V DC
Approx.
1.3k
Ω
1.2 V DC
AQE12124
21.6 to 26.4
V DC
Approx.
3k
Ω
2.4 V DC
3V
3 A DC
3 to 60 V DC
—
15 A
10μA
0.3 V
1 mA
—
0.5cps.
at rated operating voltage,
rated load voltage and
current
at Max. carrying current
AC: In one cycle at 60 Hz
DC: 10 ms
AQE34205
4 to 6 V DC
Approx.
0.5k
Ω
0.5 V DC
DC output
AQE34212
9.6 to 14.4
V DC
Approx.
1.3k
Ω
1.2 V DC
AQE34224
21.6 to 26.4
V DC
Approx.
3k
Ω
2.4 V DC
Remarks
Characteristics (at 20°C
68°F,
Input voltage ripple: 1% or less)
Item
Operate time max.
Release time, max.
Insulation resistance, min.
Breakdown voltage
Vibration
resistance
Shock
resistance
Functional
Destructive
Functional
Destructive
AC output
(1/2 cycle of voltage sine wave) + 1 ms
(1/2 cycle of voltage sine wave) + 1 ms
10
Ω
between input and output
9
DC output
2 ms
0.4 ms
Remarks
Using 500 V DC megger
Initial for 1 min.
1 hour for X, Y, Z axes
10 min. for X, Y, Z axes
5 times each for X, Y, Z
axes
4 times each for X, Y, Z
axes
2,500 Vrms between input and output
10 to 55 Hz double amplitude of 1.5 mm
10 to 55 Hz double amplitude of 1.5 mm
Min. 490 m/s
2
{50 G}
Min. 490 m/s
2
{50 G}
–30°C to +80°C
–22°F to +176°F
–30°C to +100°C
–22°F to +212°F
Zero-cross (Turn-ON and Turn-OFF)
—
Ambient temperature
Storage temperature
Operational method
DIMENSIONS
2-1
.
2-.0
2 dia.
47
dia
.
mm
inch
Mounting hole location (Bottom view)
2-1
2-.
.6 dia
06
.
3d
ia.
15.0 max.
0.5
.591 max.
.020
3.78
.149
0.5
–0.1
.020
–.004
1.2
.047
5.0
.197
2-0.5
+0.2
-0.1
2-.020
+.008
-.004
3.78
–.012
.149
–0.3
1.2
.047
2-1.0
–0.1
2-.039
–.004
21.42
.843
–.012
28.0 max.
1.102 max.
–0.3
3.5
–0.5
5.04
–0.3
.138
–.020
.198
–.012
1.9
.075
21.42
.843
5.04
.198
1.9
.075
Tolerance:
±0.1
±.004
Schematic
AC type
Input
–
+
Output
General tolerance:
±0.5
±.020
DC type
Input
–
+
Output
+
–
2
ds_61610_en_aqe: 060207D
AQ-E
REFERENCE DATA
1. Load current vs. ambient temperature
3.5
2.-(1) Non-repetitive surge current vs. carrying
time (AC output)
Non-repetitive surge current, A
2.-(2) Non-repetitive surge current vs. carrying
time (DC output)
20
Non-repetitive surge current, A
3.0
Load current, A
2.5
2.0
1.5
1.0
0.5
0
–30
0
AC type
30
15
DC type
20
10
10
5
20
40
60
80
Ambient temperature,
°C
0
1
2
3 4 5 7 10
20 30 4050 70 100
No. of cycles at 60 Hz
0
10
100
Carrying time, ms
1,000
3. Input current vs. input voltage characteristics
4.-(1) Load current vs. ambient temperature
characteristics for adjacent mounting
(AC output)
1.2
1.0
Load current, A
0.8
0.6
0.4
0.2
= Adjacent mounting pitch
4.-(2) Load current vs. ambient temperature
characteristics for adjacent mounting
(DC output)
3.5
3.0
Load current, A
2.5
2.0
1.5
1.0
0.5
= Adjacent mounting pitch
30
25
Input current, mA
20
15
10
5
=15 mm
.591 inch
=10 mm
.394 inch
=5 mm
.197 inch
=15 mm
.591 inch
=10mm
.394 inch
=5mm
.197 inch
(5 V type)
(12 V type)
(24 V type)
0
5
10
15
20
25
Input voltage, V
30
0
–20
0
20
40
60
80 100
Ambient temperature,
°C
0
-20
0
20
40
60
80 100
Ambient temperature,
°C
Cautions for Use
ds_61610_en_aqe: 060207D
3
