M83503/25-15 datasheet, PDF - EEWORLD Datasheet

M83503/25-15: Description26 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, WIRE WRAP; CategoryThe connector The connector; File Size97KB，3 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

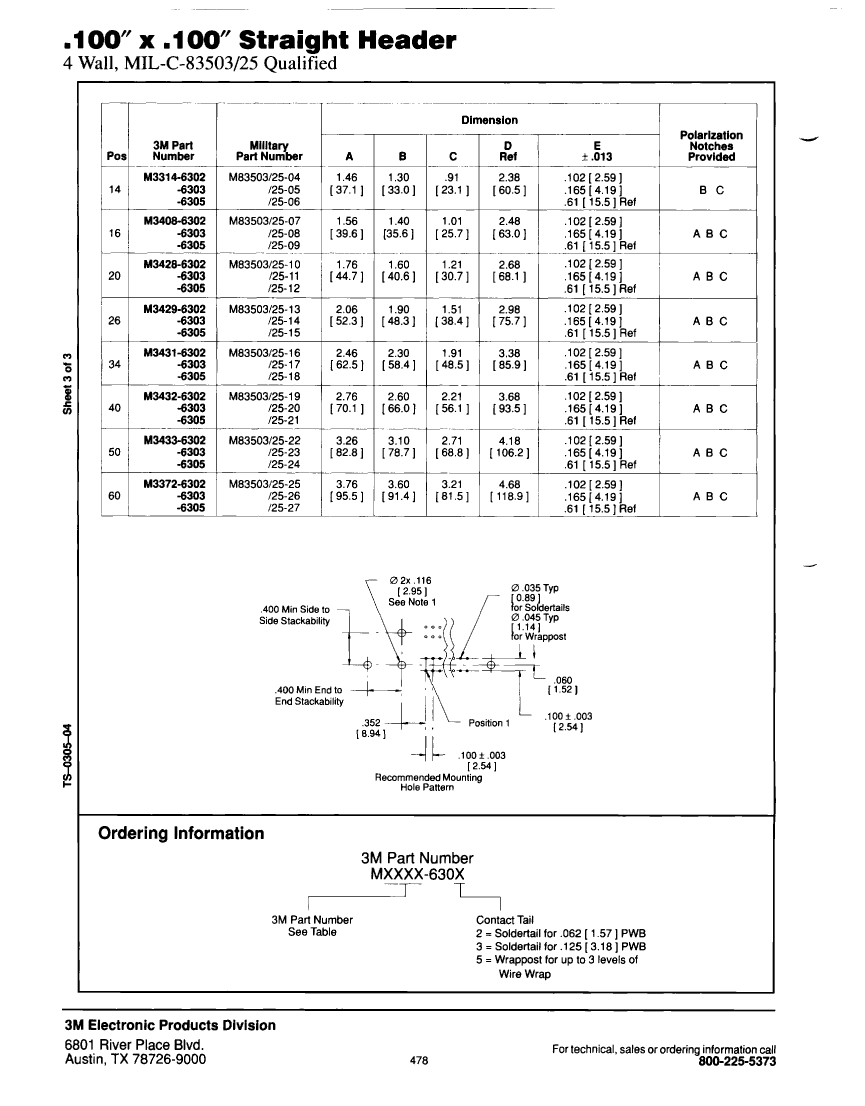

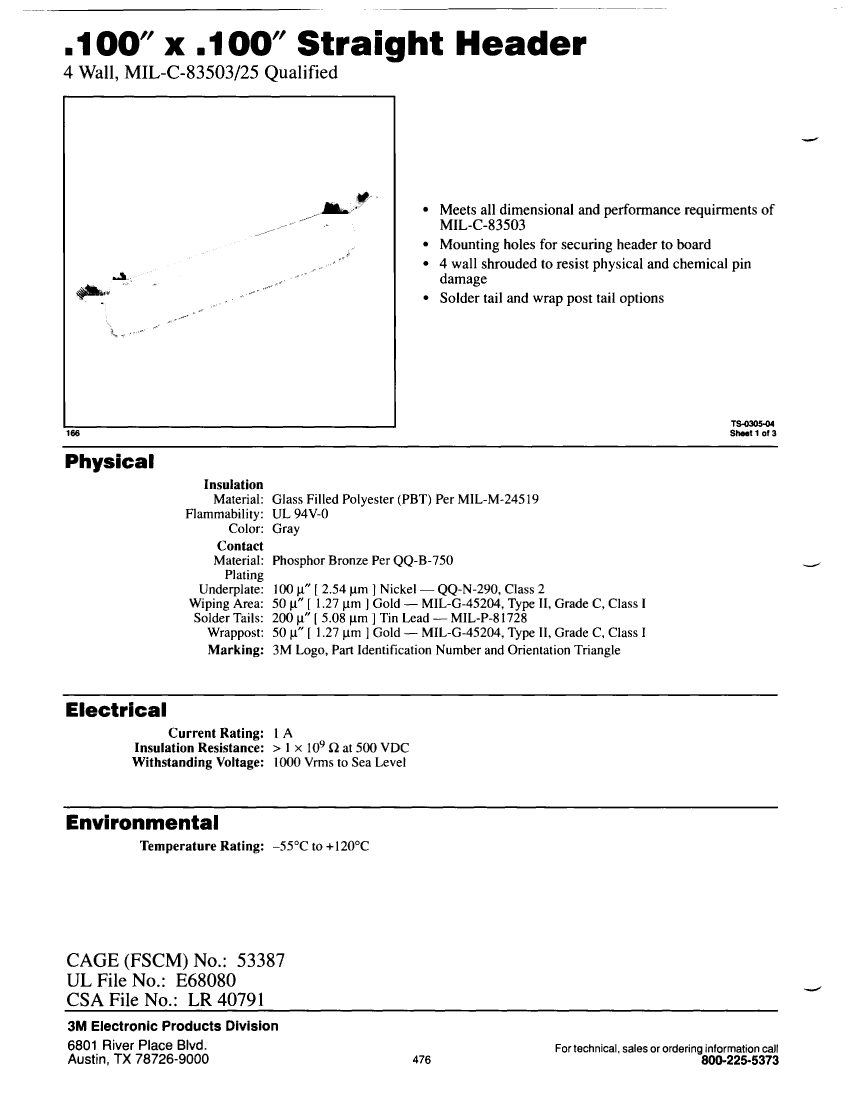

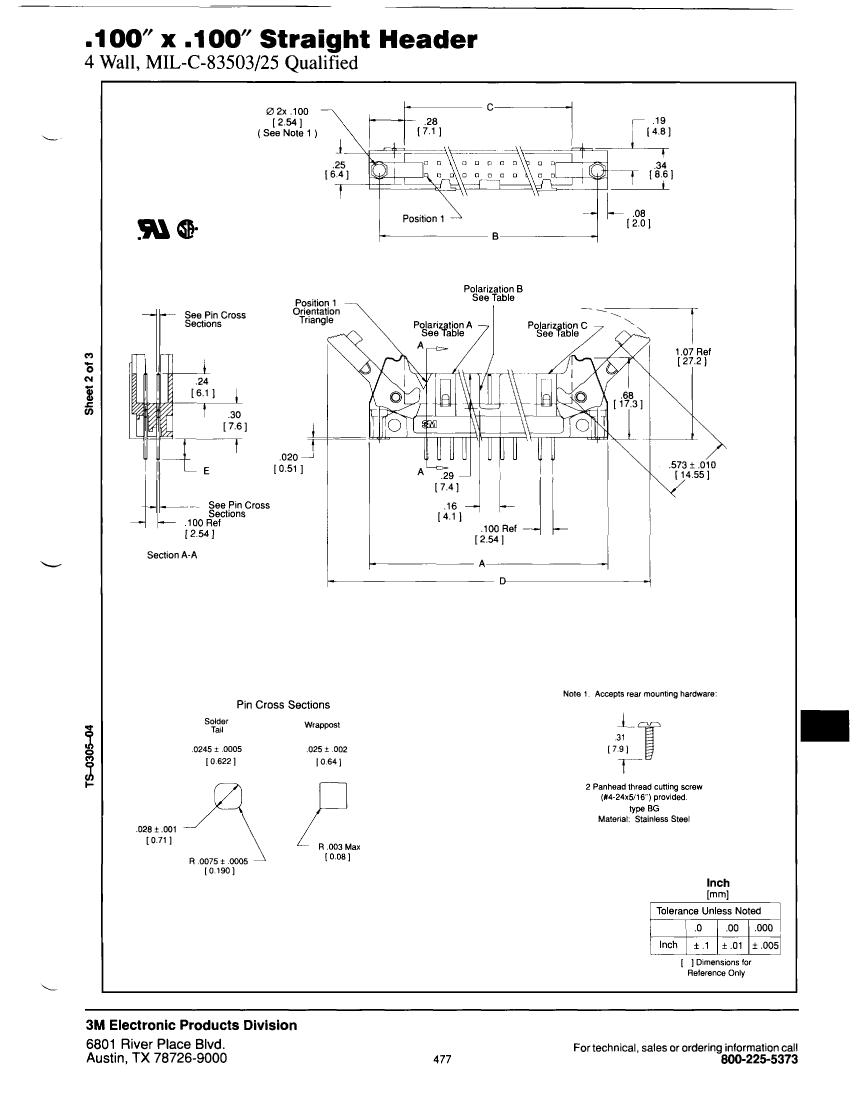

M83503/25-15 Overview

26 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, WIRE WRAP

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C-83503/25, POLARIZED, SHROUDED
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	YES
Mixed contacts	NO
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	WIRE WRAP
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1
