30NHSA08 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 30NHSA08

30NHSA08: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 80V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size302KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

30NHSA08 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 80V V(RRM), Silicon,

30NHSA08 Parametric

Parameter Name	Attribute value
Maker	Nihon Inter Electronics Corporation
package instruction	R-XALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-XALF-W2
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	3 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	80 V
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

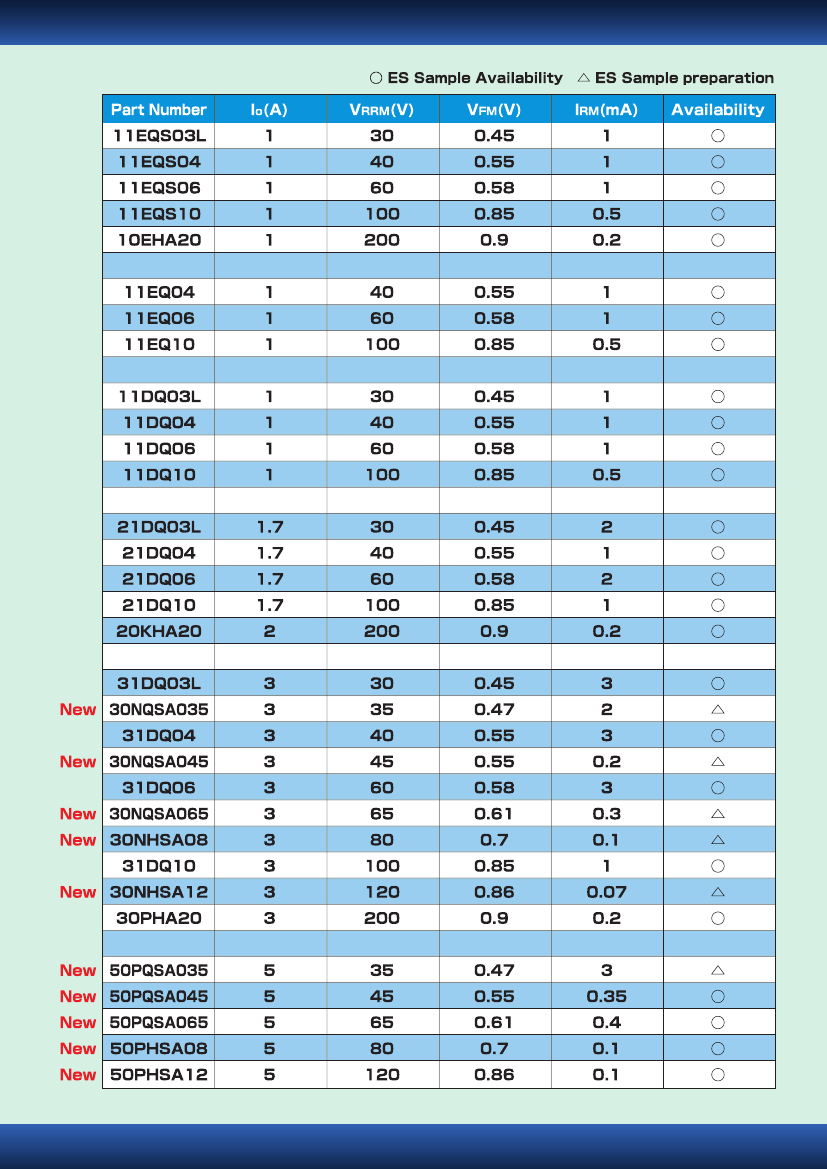

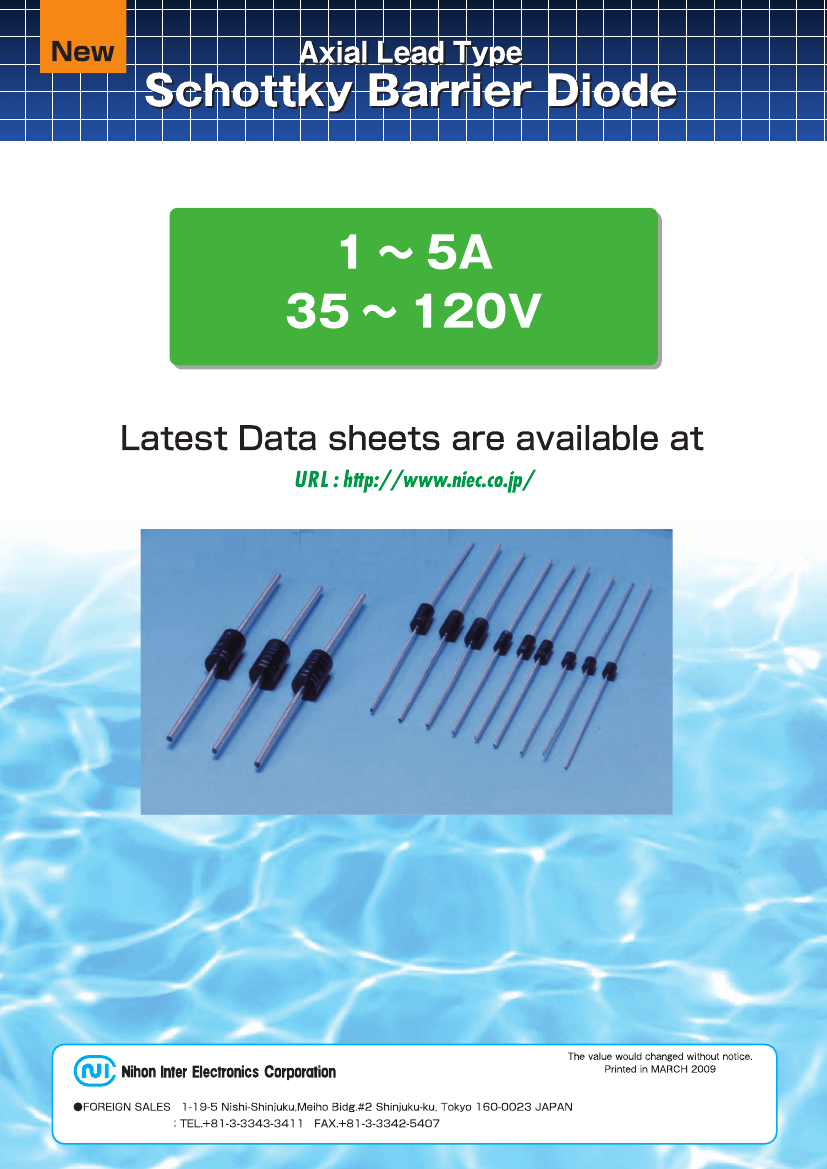

Preview

Download Datasheet

View All

30NHSA08 Related Products

	30NHSA08	30NQSA045	30NQSA065	50PQSA045	50PQSA065	50PHSA12	50PQSA035	50PHSA08	30NQSA035
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 80V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 45V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 65V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 45V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 65V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 120V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 35V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 80V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 35V V(RRM), Silicon,
package instruction	R-XALF-W2	R-XALF-W2	R-XALF-W2	R-XALF-W2	R-XALF-W2	R-XALF-W2	R-XALF-W2	R-XALF-W2	R-XALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-XALF-W2	R-XALF-W2	R-XALF-W2	R-XALF-W2	R-XALF-W2	R-XALF-W2	R-XALF-W2	R-XALF-W2	R-XALF-W2
Number of components	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum output current	3 A	3 A	3 A	5 A	5 A	5 A	5 A	5 A	3 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	80 V	45 V	65 V	45 V	65 V	120 V	35 V	80 V	35 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	-	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation
