B1136-110FP

Description
Rotary Switch, 10 Positions, SP10T, Latched, 0.2A, 28VDC, Solder Terminal, Shaft Type Actuator, Through Hole-straight
CategoryMechanical and electronic products    switch
File Size1MB,7 Pages
ManufacturerCole Instrument Corporation
Websitehttps://www.cole-switches.com/
Download Datasheet Parametric View All

B1136-110FP Overview

Rotary Switch, 10 Positions, SP10T, Latched, 0.2A, 28VDC, Solder Terminal, Shaft Type Actuator, Through Hole-straight

B1136-110FP Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Actuator typeSHAFT TYPE
body height8.89 mm
Body length or diameter8.13 mm
Contact (AC) maximum rated R load.15A@115VAC
Maximum contact current (AC)0.15 A
Maximum contact current (DC)0.2 A
Contact (DC) maximum rated R load.2A@28VDC
Maximum contact voltage (AC)115 V
Maximum contact voltage (DC)28 V
Electrical life25000 Cycle(s)
Graduation angle36 deg
Installation featuresTHROUGH HOLE-STRAIGHT
Number of positions10
Number of switching segments1
Maximum operating temperature85 °C
Minimum operating temperature-65 °C
sealSHAFT AND PANEL SEALED
surface mountNO
Switch actionLATCHED
switch functionSP10T
Switch typeROTARY SWITCH
Termination typeSOLDER
Base Number Matches1

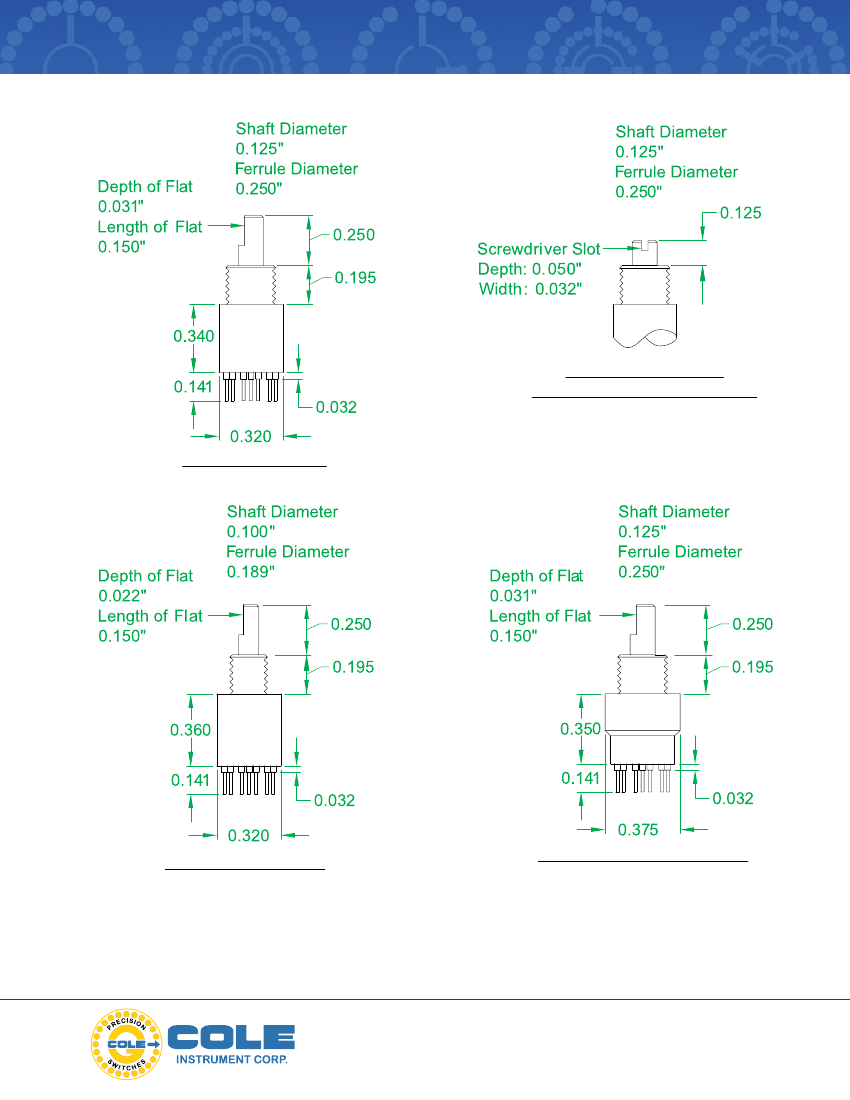

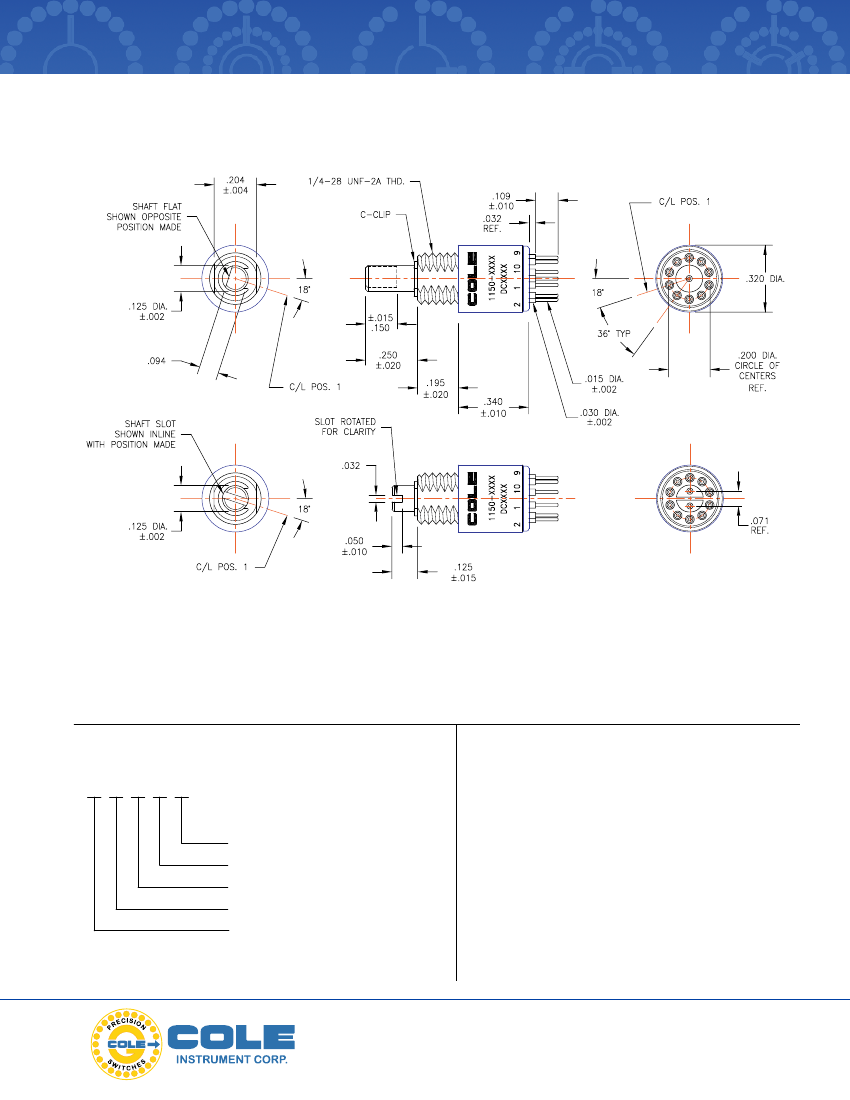

1150 series

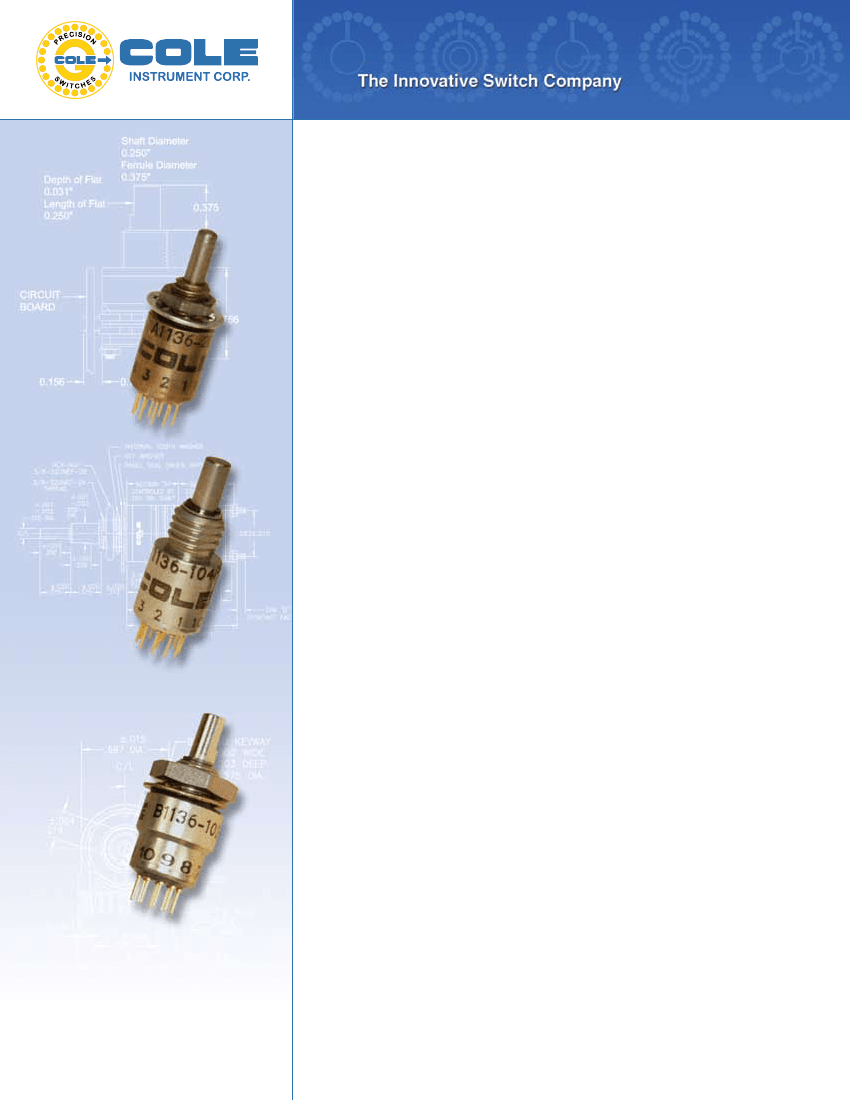

Subminiature Enclosed Precision Rotary Switch
T
he ultimate in a 30 degree rotation, single deck rotary switch,
A subminiature precision rotary selector switch, the Series 1150
is 0.320 inches in diameter and rated at 25,000 operational cycles.
It has been engineered to meet all applicable requirements of
MIL-S-3786.
The basic series 1150 is available as a 1 pole, 2-10 position or a
2 pole, 2-5 position switch. It is a non-shorting switch with 36 degree
indexing. It has PC terminals and shaft seals for contaminant free
operation.
The Series 1150 is well suited for avionics, communications, test
equipment and command and control applications where space is
at a premium and tough environmental reliability requirements are
necessary.
Quality construction, including materials that meet the strictest
standards, allows these subminiature switches to combine superior
current switching capabilities with constant low contact resistance.
Exceedingly stringent manufacturing processes, inspection and
testing requirements ensure long life and high reliability.

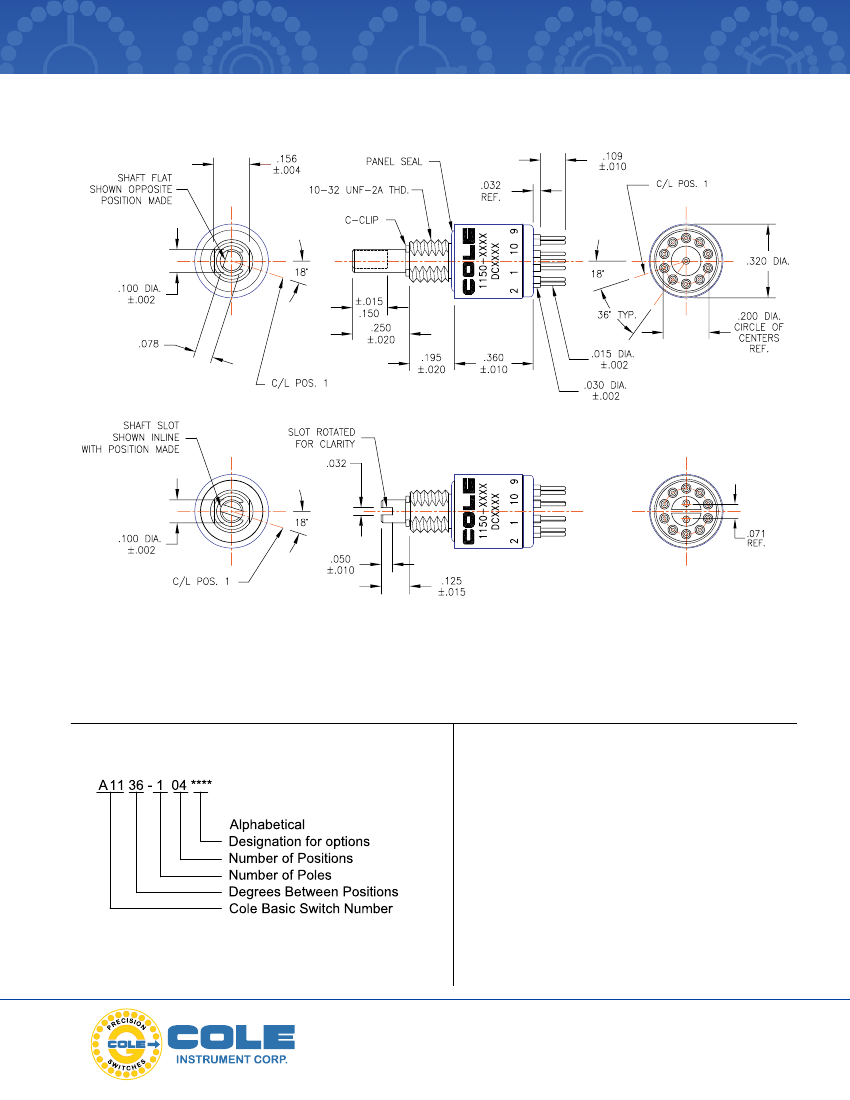

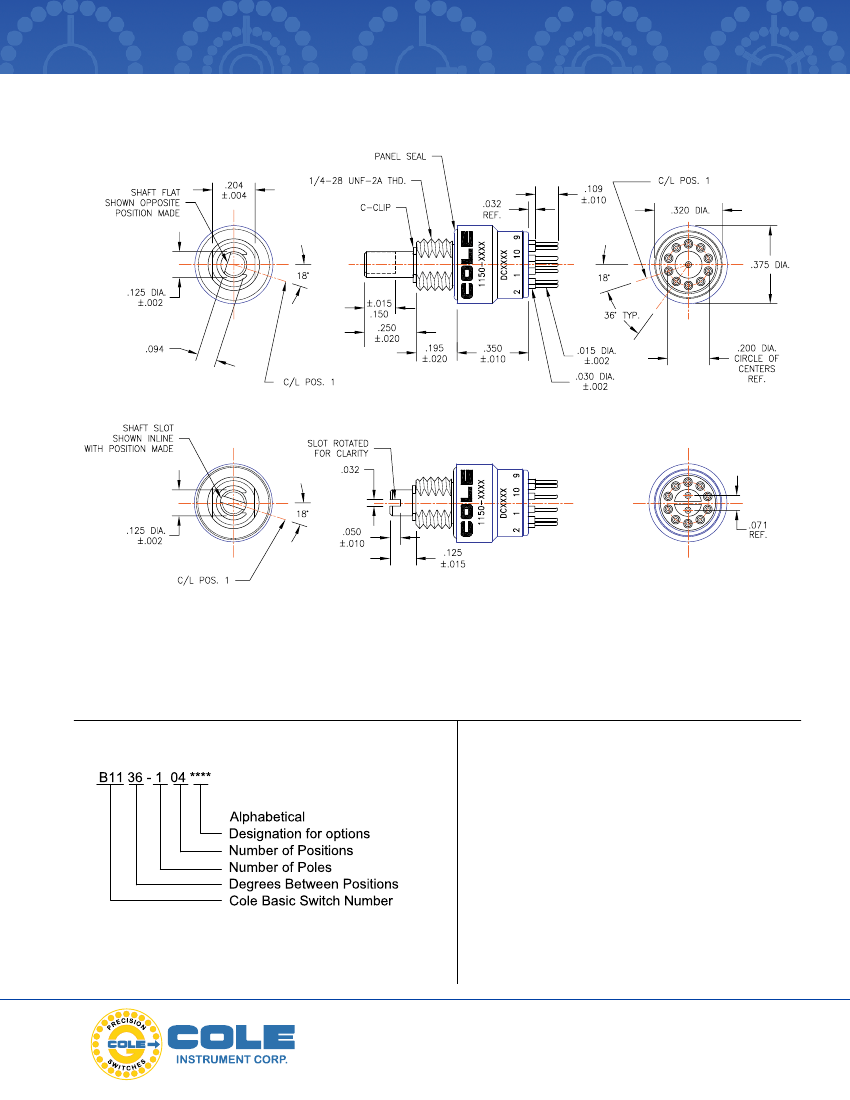

The A1150 and B1150 are designed for the addition of a panel seal.
These switches are perfect for miniature switch applications where
contamination control is a must and harsh environments are
expected. They are ideal when long life and precision in extreme
conditions are necessary.
The A1150 uses the same body as the standard 1150 but with a
smaller shaft and ferrule to allow a panel seal. The B1150 uses the
standard 1150 shaft and ferrule sizes with a larger body diameter to
allow a panel seal.
ISO 9001:2000 &
AS9100:2004 REV.B CERTIFIED
SPEC SHEET REVISION: 001 - 060707
