A60-254-03-3.3/3.4-T: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerAntelec; Websitehttp://www.antelec.fr; Environmental Compliance

Download Datasheet Parametric View All

A60-254-03-3.3/3.4-T Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

A60-254-03-3.3/3.4-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1303139431
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

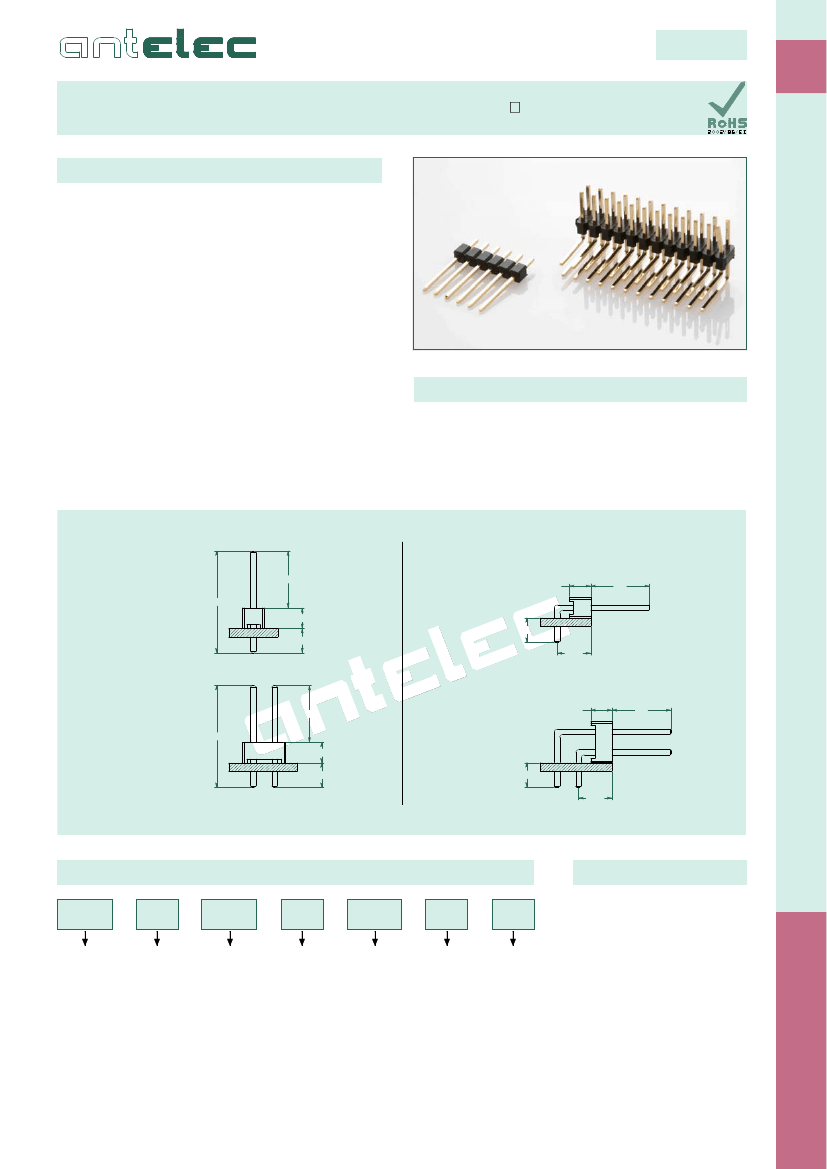

Pin header straight & right angle type pin

0.64 mm

Product specifications

Current rating : 3.0 A

Dielectric withstanding voltage : 1000 Volts AC during 1 mn

Insulation resistance : > 1000 MΩ

Contact resistance : < 10 mΩ

Operating temperature : -55°C to +125°C

Max processing temperature : 260°C during 5 sec

Contact : brass

Plating : gold flash or tin

Insulator : nylon-6T, UL94V-0

Standard pin lengths (L) : see page 19

Mates with

Female headers

0.64 mm

A

L

H (2.5)

A

A60

A60-C

H (2.5)

B

4.0

A

L

H (2.5)

A

A61

H (2.5)

B

A61-C

B

4.0

Create your part number

Product range

A60

Antelec

1 row or

A61 for

2 rows

Straight

or C for

right angle

254

Pitch

2.54 mm

XX

Total

number

of contacts

A/B

Dimensions

A and B

(replace

by values

in mm)

T

Tin plated

or G for

Gold

or T/G for

selective

Empty for

insulator

height

H = 2.5 mm

(standard)

or H175for

H = 1.5 mm

or H17 for

H = 1.7 mm

Number of pins :

1 row : 1 to 40 pins

2 rows : 2 to 80 pins

info@antelec.fr

tel: +33 (0)1 49 80 14 14

fax: +33 (0)1 49 80 14 15

121

BOARD TO BOARD 2.54

BTB

www.antelec.fr

2.54 mm
