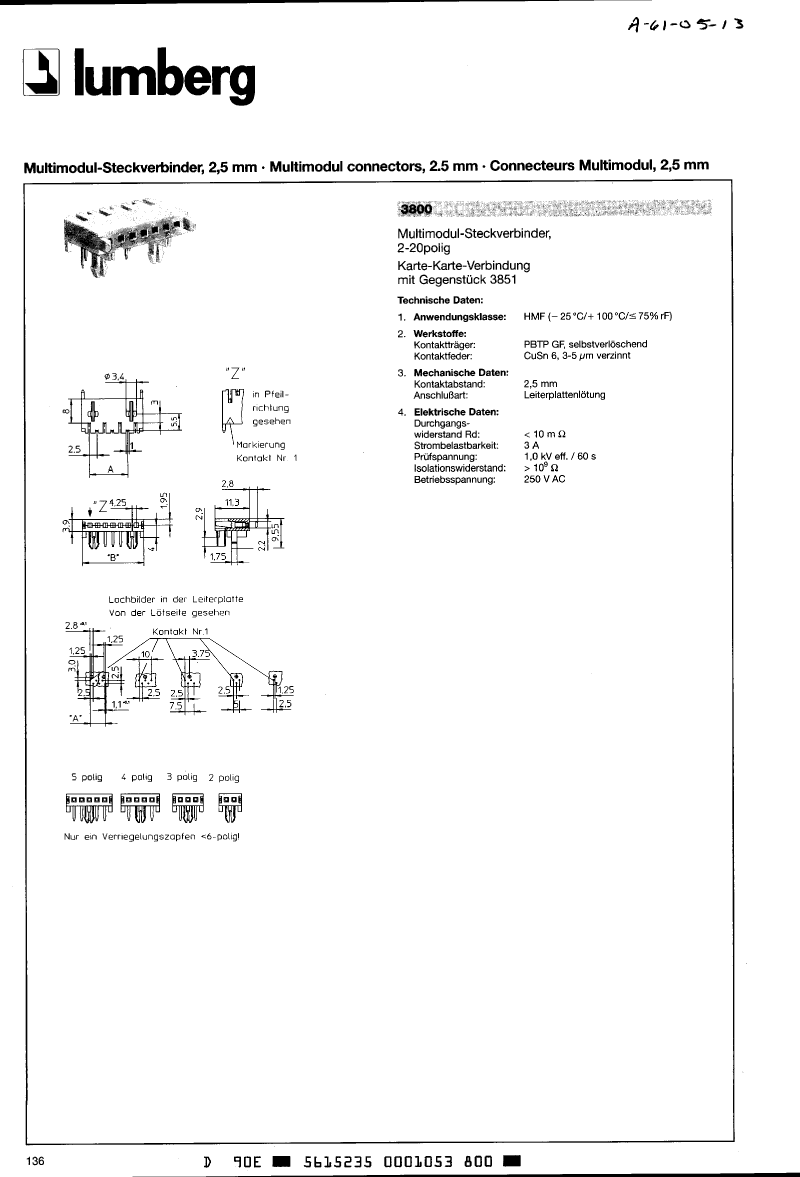

Board Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.098 inch Pitch, Solder Terminal, Guide Pin, Plug

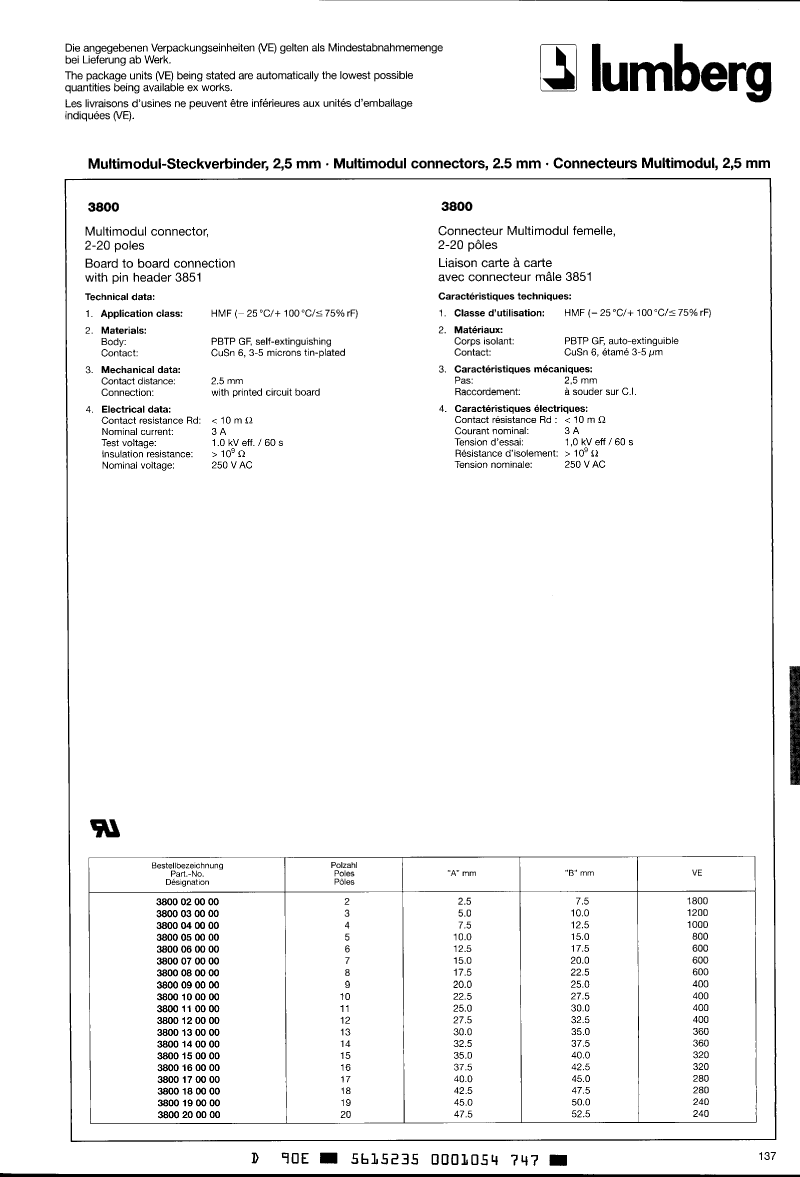

| Parameter Name | Attribute value |
| Maker | Lumberg |
| Reach Compliance Code | compliant |
| Board mount options | SPLIT BOARD LOCK |
| body width | 0.234 inch |
| subject depth | 0.555 inch |
| body length | 0.787 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN |
| Contact completed and terminated | GOLD |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| Insulation resistance | 1000000000 Ω |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | 3800 |
| Plug contact pitch | 0.098 inch |
| Installation option 1 | GUIDE PIN |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 100 °C |
| Minimum operating temperature | -25 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.4892 mm |
| Plating thickness | 120u inch |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.114 inch |
| Terminal pitch | 2.4892 mm |
| Termination type | SOLDER |
| Total number of contacts | 7 |
| Base Number Matches | 1 |
