2531-34NE: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size168KB，2 Pages; ManufacturerHo Chien Electronics Group Inc; Environmental Compliance

Download Datasheet Parametric View All

2531-34NE Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

2531-34NE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1301797595
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (100)
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

26/09/2013

Ho Chien - Headers - www.hochien.com

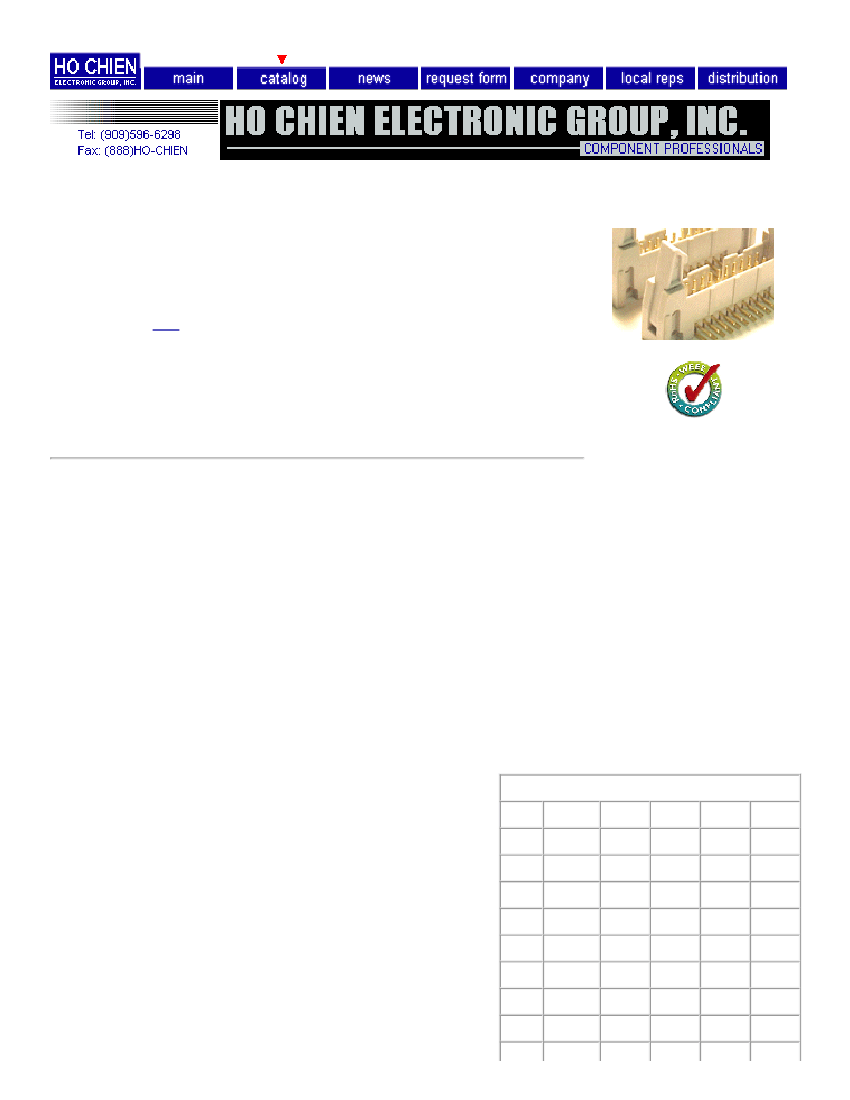

2531 Series

0.100" Center Shrouded Header; Eject Latch

[ Right Angle ]

Material:

Contact:

Phosphor Bronze

Contact Plating:

Gold ov er 0.000100" Nickel Underplating

Insulator:

PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O

Insulator Color:

Black or Gray

Mating Connector:

2540

Series

Electrical:

Current Rating:

3 Amp Max.

Contact Resistance:

30 Milliohms. Max.

Insulation Resistance:

5000 Megohms Min. DC 500V

Dielectric Strength:

1000V AC

o

Operation Temperature:

-55 C to +105 C

Ordering Part Number

2531 -

Series

Number

[][]

Number of

Positions

[]

Latch Type

[]

Contact Plating

- []

Color

10, 12, 14, 16,

20,

24, 26, 30, 34,

40,

50, 60, 64

Blank:

Long Latch

Blank:

Gold Flash (All post)

S:

Short Latch

F:

10u" Gold (All post)

N:

w /o Latch

E:

15u" Gold (All post)

D:

30u" Gold (All post)

Selected Gold:

Tin Solder Tail, Au on Contact area (2mm)

GT:

Gold Flash on Contact area (2mm)

FT:

10u" Gold on Contact area (2mm)

ET:

15u" Gold on Contact area (2mm)

DT:

30u" Gold on Contact area (2mm)

Dimensions (mm)

Pos.

10

14

16

20

24

26

30

34

A

31.94

37.08

39.62

44.70

49.78

52.32

57.40

62.48

B

29.80

34.98

37.52

42.60

47.68

50.22

55.30

60.38

C

21.84

26.92

29.46

34.54

39.62

42.16

47.28

52.32

Blank:

Black

G:

Grey

D

17.91

22.99

25.53

30.61

35.69

38.23

43.31

48.39

E

10.16

15.24

17.78

22.88

27.94

30.48

35.56

40.64

www.hochien.com/2531.html
