5962-01-248-8645 datasheet, PDF

5962-01-248-8645: DescriptionBus Driver, 2-Func, 4-Bit, True Output, TTL, PDIP20,; Categorylogic logic; File Size274KB，7 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

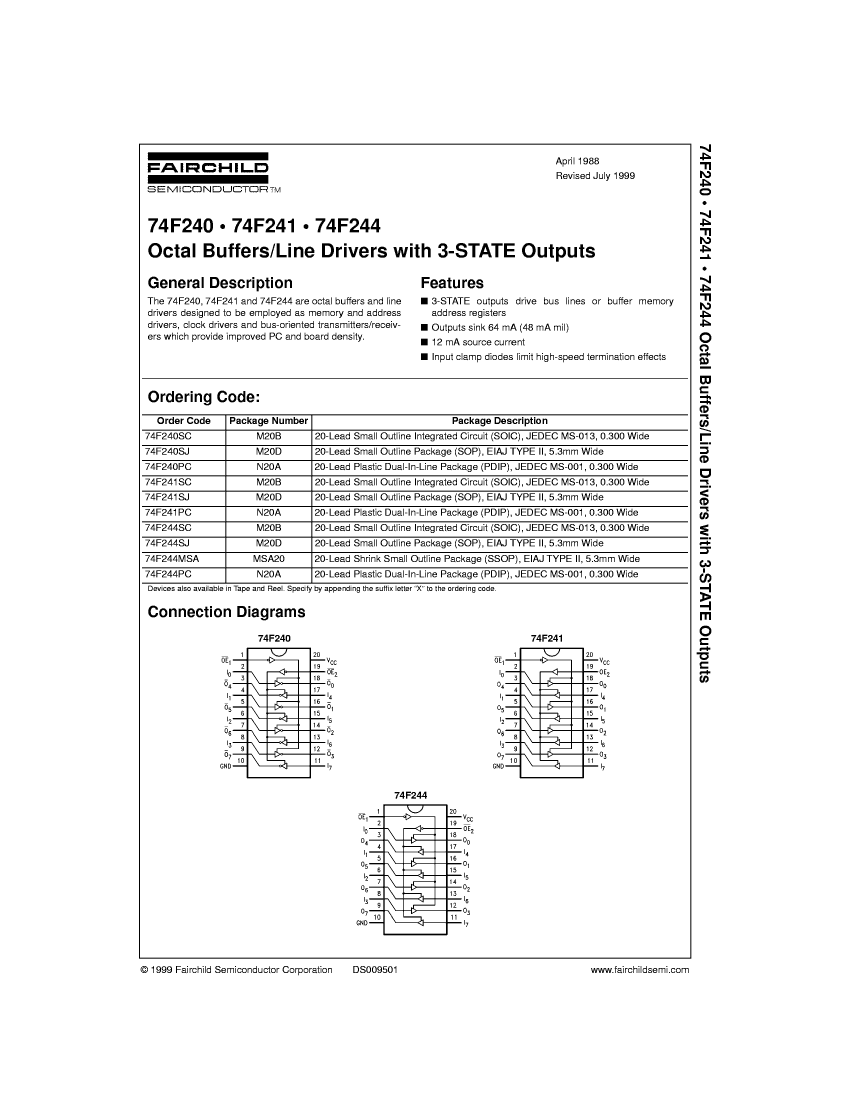

5962-01-248-8645 Overview

Bus Driver, 2-Func, 4-Bit, True Output, TTL, PDIP20,

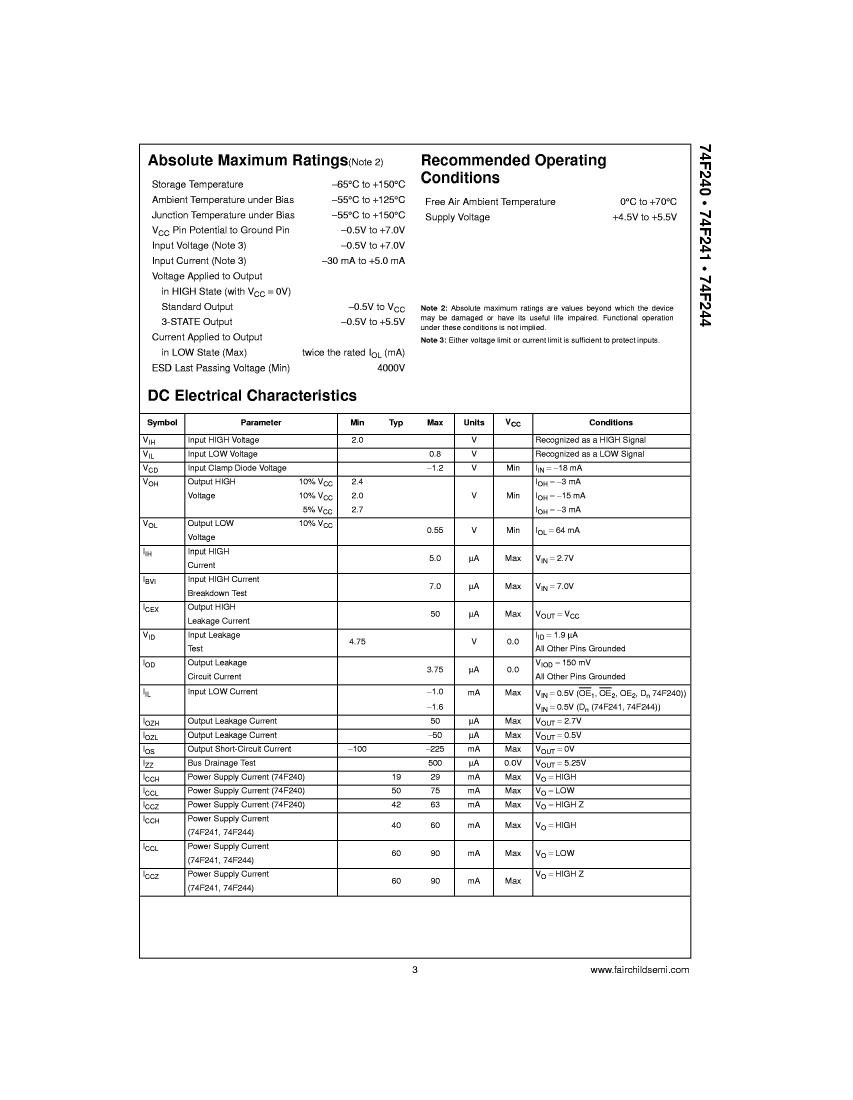

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1155482361
package instruction	DIP, DIP20,.3
Reach Compliance Code	compliant
YTEOL	0

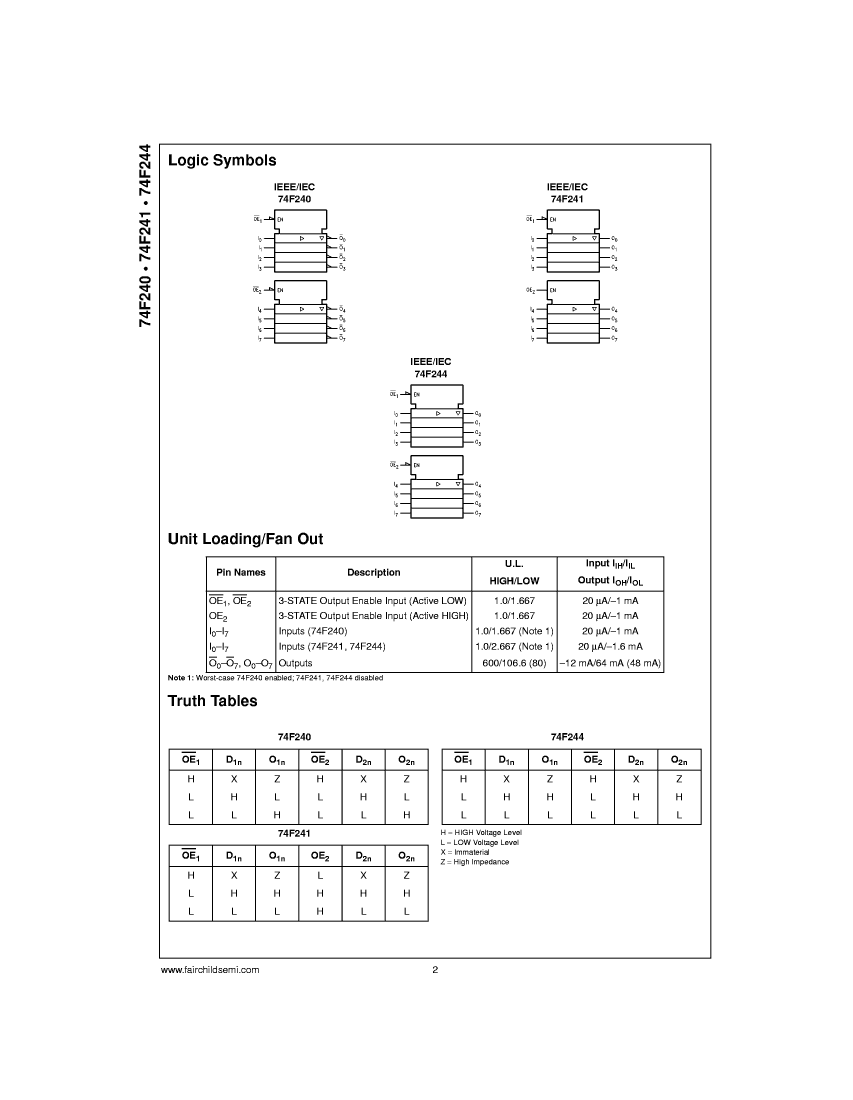

Control type	ENABLE LOW/HIGH
JESD-30 code	R-PDIP-T20
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.064 A
Humidity sensitivity level	2A
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE

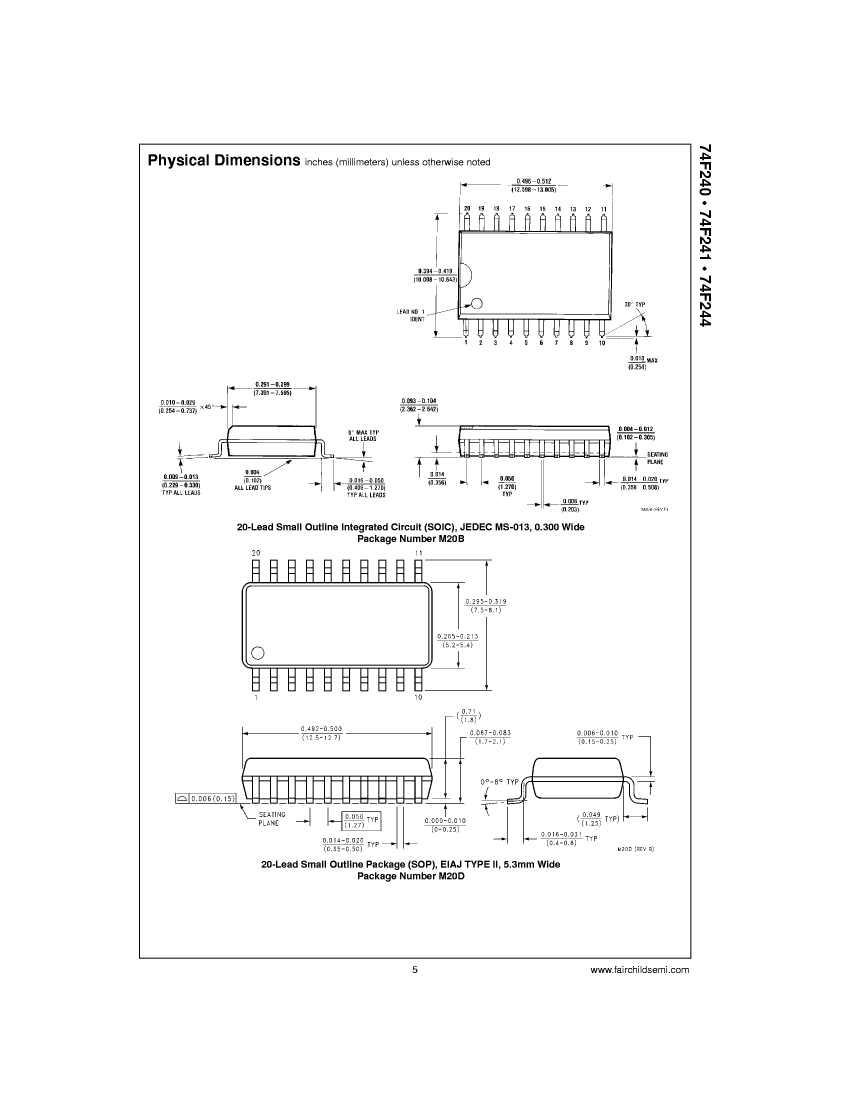

Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	90 mA

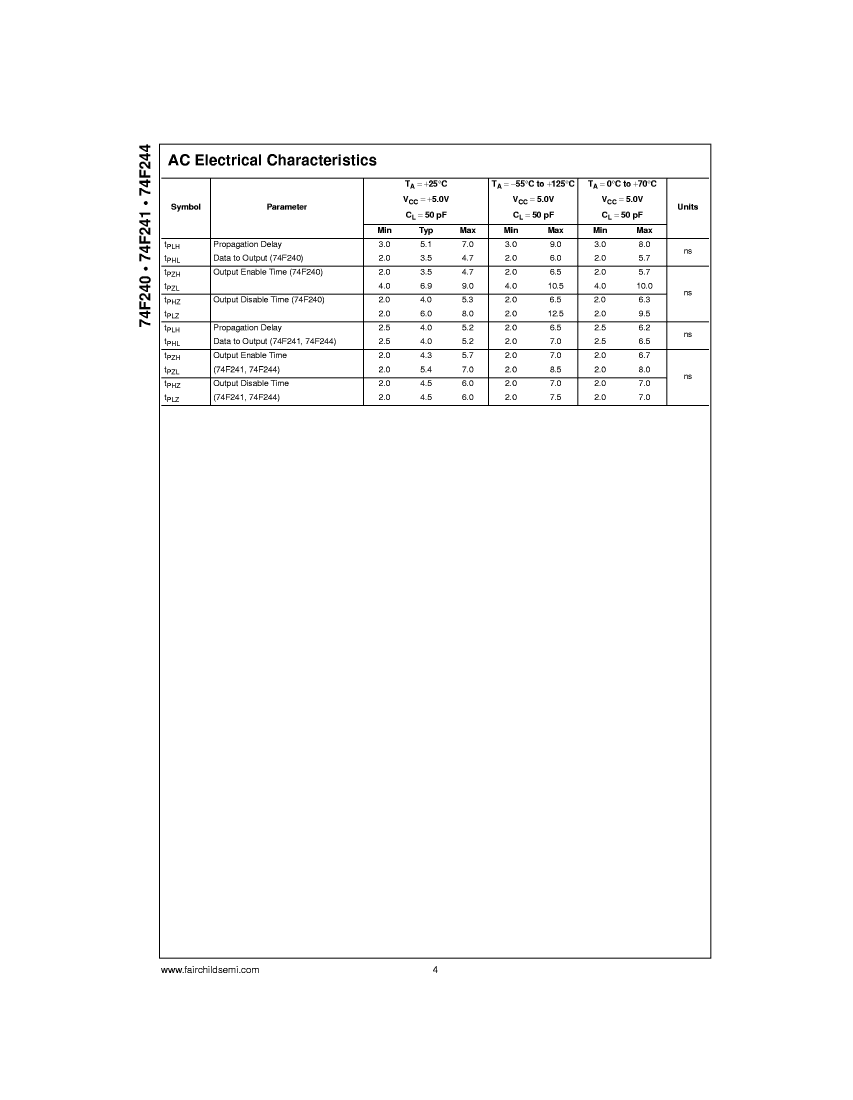

Prop。Delay @ Nom-Sup	6.5 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
