50 GHz,Wideband (Flat Top) Arrayed Waveguide Grating (AWG)
Key Features
• Low insertion loss
• Low ripple and superior loss uniformity
• Wide channel bandwidth
• Low polarization dependent loss
• Low chromatic dispersion
• High adjacent channel isolation
• Low power consumption
• Compact size
• Integrated temperature controller (optional)
Applications
• Metro and long haul mux/demux
• OADM network nodes
• Original equipment manufacturer
(OEM) applications
JDSU 50 GHz, Wideband Arrayed Waveguide Gratings (AWGs) provide a price-
competitive, small-form-factor alternative to standard thin film based dense
wavelength division multiplexing (DWDM).
JDSU AWGs are a product of advanced PLC fabrication capabilities, and are
offered in both mux and demux configurations. The low cost and high performance
make them the ideal solution for Metro and Long Haul DWDM applications.
JDSU AWGs can incorporate micro-controller-based internal temperature
control (ITC) circuitry to allow stable alignment with the ITU grid. The optional
ITC eliminates the need for external temperature control, and does not impact
package dimensions.
Compliance
• Telcordia GR-1221 qualified
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
50 GHZ, WIDEBAND (FLAT TOP) ARRAYED WAVEGUIDE GRATING
(AWG)
2

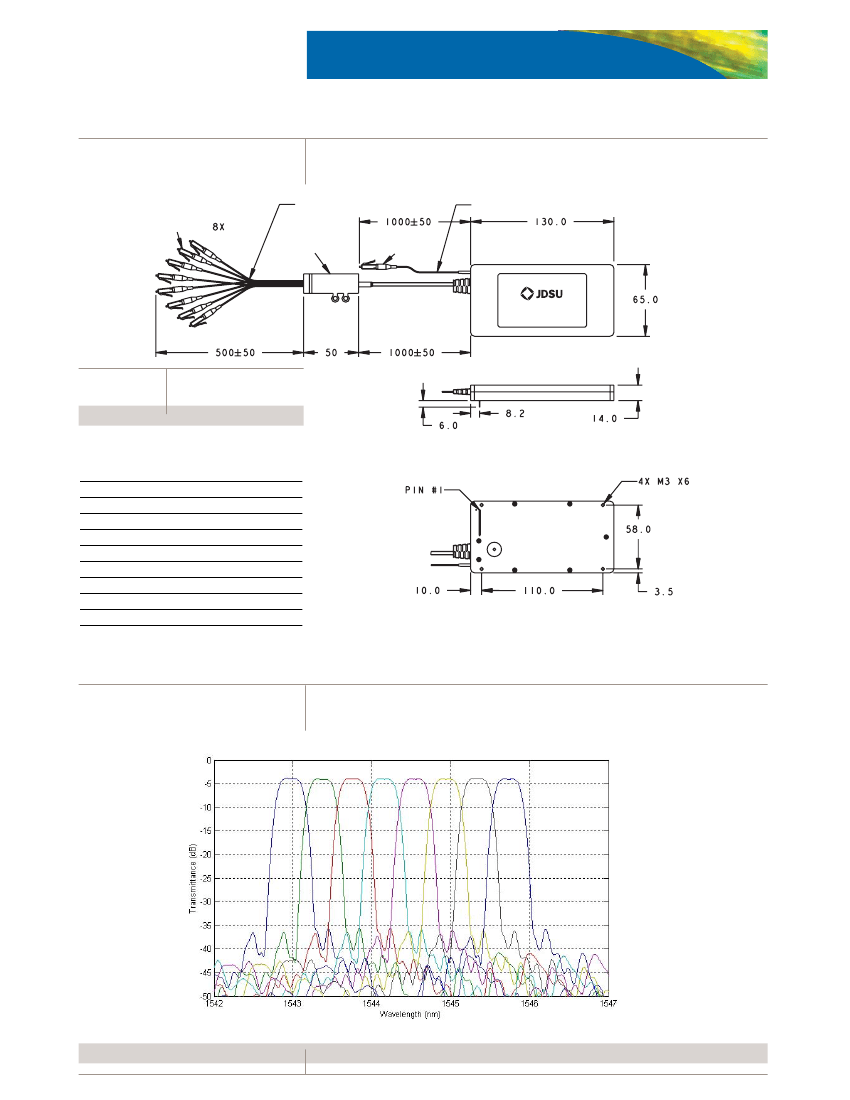

Dimensions Diagram
(Specifications in mm unless otherwise noted; tolerance= x.x±0.5)
900 µM LOOSE BUFFER
BREAKOUT
BOX
LC/UPC
CONNECTOR
900 µM TIGHT BUFFER
LC/UPC
CONNECTOR
Pinout
Pin
1
2
3
4
5
6
7
8
9
10
Description
Vdd
Vdd
EN
A2
N1
Rx
Tx
GND
GND
Vcc
Note: Reference appropriate specifications for channel marking.
50 GHz Wideband Transmission Spectrum
50 GHZ, WIDEBAND (FLAT TOP) ARRAYED WAVEGUIDE GRATING
(AWG)
3
Specifications
Parameter
Number of channels
Channel spacing
Reference passband
1
Operating wavelength range
Insertion loss
2
1 dB channel bandwidth
3
3 dB channel bandwidth
3
Loss uniformity
4
Adjacent channel crosstalk
5
Non-adjacent crosstalk
6
Polarization dependent loss
Return loss
Operating temperature
Dimensions
7
(L x W x H)
8 Channel 50 GHz Wideband AWG
8
50 GHz
±10.0 GHz
ITU grid, C band
6.0 dB
25 GHz
35 GHz
1.0 dB
25 dB
30 dB
0.5 dB
40 dB
-5 to 65 °C
130 x 65 x 14 mm
Maximum
Maximum
Minimum
Minimum
Maximum
Notes: All specifications are guaranteed at the worst-case polarization state and center frequency misalignment, over the entire operating temperature range.
1. The reference passband is centered on the ITU grid.
2. The insertion loss is defined as the ITU grid loss value, taking into account the worst-case polarization state.
3. The channel bandwidth is the total physical bandwidth of the device at specified level below peak transmission
4. Loss uniformity is the peak-to-peak variation of all channel insertion loss values.
5. Adjacent channel crosstalk is defined for a single channel as the worst-case isolation in the two neighboring channels, measured relative to the channel insertion loss.
6. Non-adjacent crosstalk is defined for a single channel as worst-case isolation of all non-adjacent channels, measured relative to the channel insertion loss.
7. Package dimensions are shown for typical devices and may not be applicable for all AWGs. Please contact JDSU for more details.
50 GHZ, WIDEBAND (FLAT TOP) ARRAYED WAVEGUIDE GRATING
(AWG)
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
customer.service@jdsu.com.
Sample: AWG-5WBD2680T
AWG-5 W
Code
W
Device Type
1
Wideband
B
Code
268
288
308
328
348
368
388
408
428
8
ITU Frequencies
Port 1
Port 2
195.900 THz 195.550 THz
195.400 THz 195.050 THz
194.900 THz 194.550 THz
194.400 THz 194.050 THz
193.900 THz 193.550 THz
193.400 THz 193.050 THz
192.900 THz 192.550 THz
192.400 THz 192.050 THz
191.900 THz 191.550 THz
Code
0
B
Connector Type/Polish
2
None
LC
Code
T
X
Package
Standard
Standard
with internal
temperature controller
Code
B
Channel Count
8
Code
D
M
Application
Demultiplexer
Multiplexer
(Band 1)
(Band 2)
(Band 3)
(Band 4)
(Band 5)
(Band 6)
(Band 7)
(Band 8)
(Band 9)
1. Other device types & configurations available upon request.
Please contact JDSU for further details.
2. Other connectorizations available upon request. Please contact
JDSU for further details.
