581-090-0041Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 581-090-0041Y

581-090-0041Y: DescriptionRF BNC Connector, Female, Board Mount, Receptacle; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

581-090-0041Y Overview

RF BNC Connector, Female, Board Mount, Receptacle

581-090-0041Y Parametric

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknown
Other features	INSERTION LOSS MAX AT 3GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	58
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

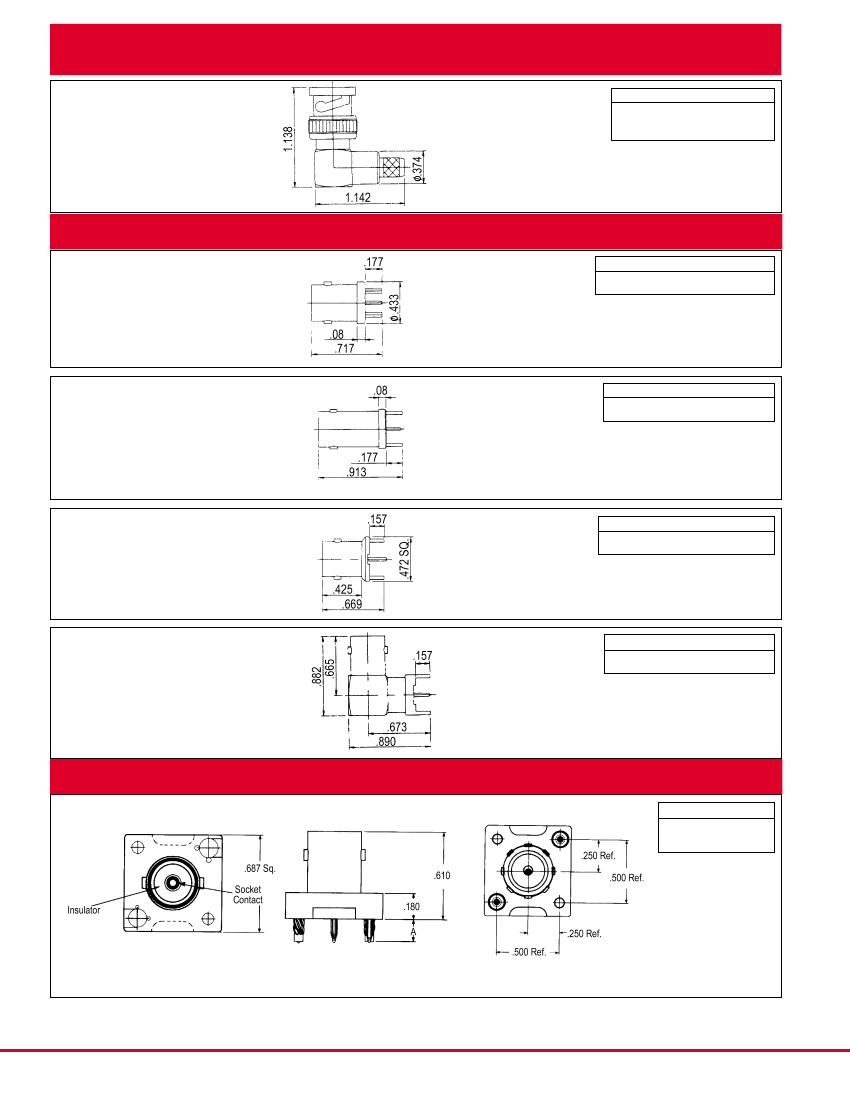

BNC:

Flexible Cable - Crimp Attachmnent

Right Angle

Plug Crimp

(Crimp

Contact)

Part Number

582-900-0632Y

582-900-0636Y

Cable

RG-316

RG-179

• See page 118 for cable assembly procedures: CM-05

BNC:

Printed Circuit Board Receptacles

Part Number

Mounting Hole

581-090-0040Y

No. 090

• See page 83 for mounting hole layout.

Straight

PCB Mount

Jack

Receptacle

Straight

PCB Mount

Jack

Receptacle

Part Number Mounting Hole

581-090-0041Y

No. 090

• See page 83 for mounting hole layout.

Straight

PCB Mount

Jack

Receptacle

Part Number Mounting Hole

581-071-0040Y No. 071 A

• See page 83 for mounting hole layout.

Right Angle

PCB Mount

Jack

Receptacle

Part Number Mounting Hole

583-071-0040Y

No. 071 C

• See page 83 for mounting hole layout.

BNC:

75 Ohm C-Press® Press-fit Connector

Part Number

121-13305-1

121-13305-2

.17

.25

Press-fit BNC

• See page 84 for mounting hole layout.

Note: Dimensions shown in inches and millimeters.

• C-Press® is a trademark of Litton Systems, Inc.

Winchester/Retconn

RF/56

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950• Internet: http://www.litton-wed.com

581-090-0041Y Related Products

	581-090-0041Y	581-090-0040Y	581-071-0040Y	582-900-0636Y	583-071-0040Y
Description	RF BNC Connector, Female, Board Mount, Receptacle	RF BNC Connector, Female, Board Mount, Receptacle	RF BNC Connector, Female, Board Mount, Receptacle	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug	RF BNC Connector, Female, Board Mount, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	INSERTION LOSS MAX AT 3GHZ	INSERTION LOSS MAX AT 3GHZ	INSERTION LOSS MAX AT 3GHZ	APPLICABLE CABLE: RG-179, INSERTION LOSS MAX AT 3GHZ	INSERTION LOSS MAX AT 3GHZ
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	MALE	FEMALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insertion loss	0.2 dB	0.2 dB	0.2 dB	0.2 dB	0.2 dB
insulator material	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	58	58	58	58	58
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	CABLE	BOARD
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO
voltage standing wave ratio	1.3	1.3	1.3	1.3	1.3
Base Number Matches	1	1	1	1	1
