8Z-25.000MDIV-T

Description
Parallel - Fundamental Quartz Crystal, 25MHz Nom, SMD, 4 PIN
CategoryPassive components    Crystal/resonator
File Size709KB,3 Pages
ManufacturerTXC Corporation
Websitehttp://www.txccrystal.com/
Environmental Compliance
Download Datasheet Parametric View All

8Z-25.000MDIV-T Overview

Parallel - Fundamental Quartz Crystal, 25MHz Nom, SMD, 4 PIN

8Z-25.000MDIV-T Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid145136703024
package instructionSMD, 4 PIN
Reach Compliance Codecompliant
Country Of OriginMainland China
YTEOL7.25
Ageing3 PPM/FIRST YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level1 µW
frequency stability0.002%
frequency tolerance20 ppm
JESD-609 codee4
load capacitance8 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency25 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
physical size2.5mm x 2mm x 0.55mm
Series resistance100 Ω
surface mountYES
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
MHz Crystal
Features
Frequency range : 12MHz to 66MHz
Ceramic SMD package
Seam sealing

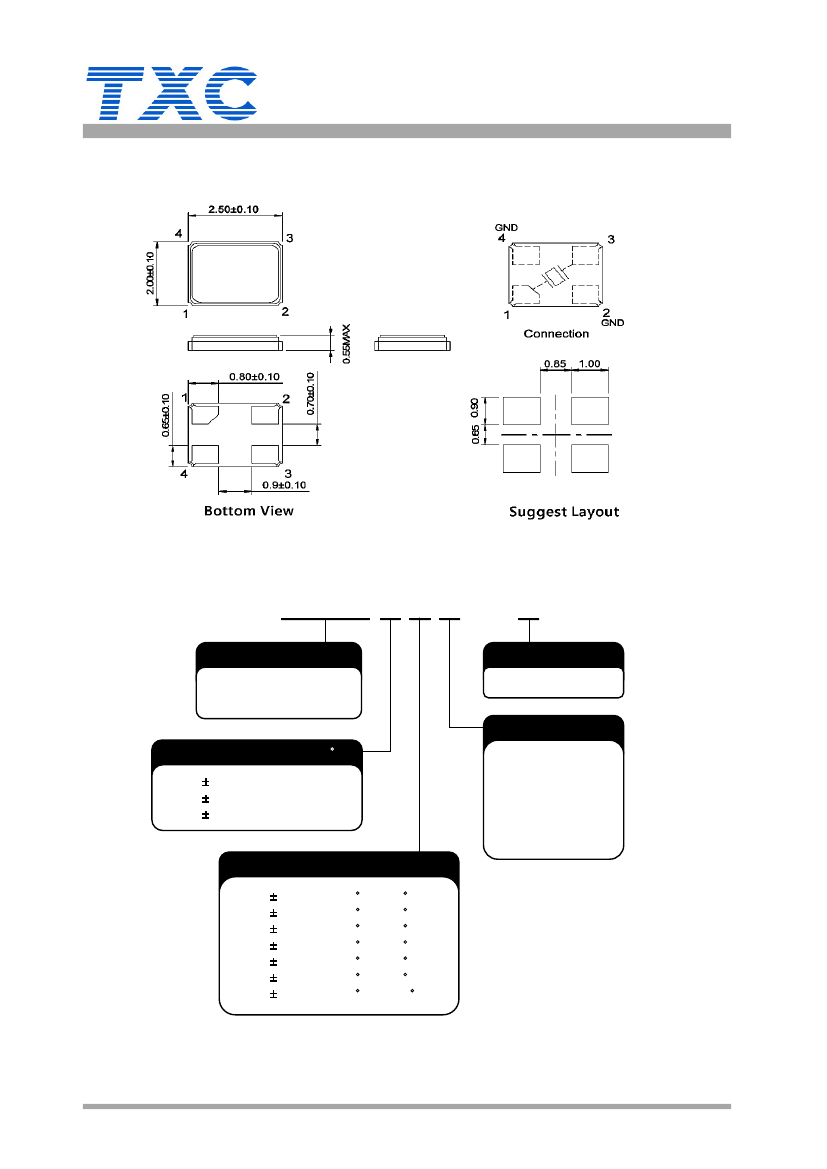

External dimensions (mm)
L : 2.5 x W : 2.0 x H : 0.55
RoHS compliant & Pb free
8Z
Applications
Bluetooth, Wireless LAN
Microprocessor
Mobile phone, Computer, Modem
Audio, Video
Consumer products
Electrical Characteristics
Item
Frequency Range
Frequency Tolerance
F
0
F
tol
8Z
12MHz ~ 66MHz
±30ppm, ±20ppm, ±10ppm
±30 ppm
±20 ppm
±10 ppm
±10 ppm
±30 ppm
±20 ppm
±60 ppm
-20°C ~ +70°C
-40°C ~ +85°C
-40°C ~ +125°C
3pF Max.
1 ~ 200 W (100 W Typ.)
6pF, 8pF, 10pF
12pF, 16pF, 18pF, 20pF
±3ppm Max.
-55°C ~ +125°C
Conditions
at 25°C
-20°C ~ +70°C
-30°C ~ +85°C
-40°C ~ +85°C
-40°C ~ +125°C
Frequency Stability over
Operating Temperature Range
(refer to 25°C)
F
stab
Operating Temperature Range
Shunt Capacitance
Drive Level
Load Capacitance
Aging (at 25°C ± 3°C, first year)
Storage Temperature Range
T
OTR
C
0
D
L
C
L
F
aging
T
STR
Note [1]
Notes:
[1] Please contact us for low aging +/-1ppm grade crystals.
Motional Resistance (ESR)
Fundamental
12 ~ 13 MHz
14 ~ 30 MHz
30 ~ 66 MHz
150
100
60
Max.
Max.
Max.

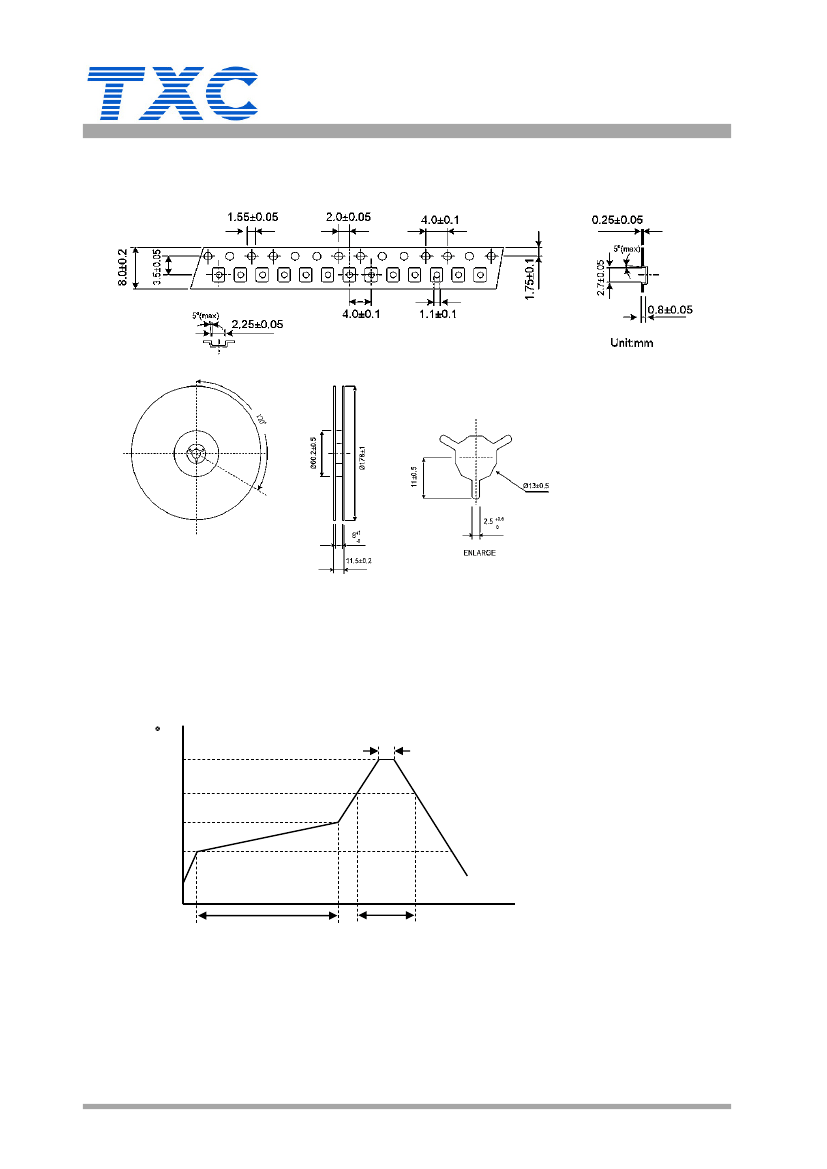

Rev. 1.08
Page 1
www.txccrystal.com
