RM01JL913 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RM01JL913

RM01JL913: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.0313W, 91000ohm, 15V, 5% +/-Tol, -200,600ppm/Cel, 01005; CategoryPassive components The resistor; File Size436KB，8 Pages; ManufacturerTA-I Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

RM01JL913 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.0313W, 91000ohm, 15V, 5% +/-Tol, -200,600ppm/Cel, 01005

RM01JL913 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TA-I Technology Co., Ltd.
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
JESD-609 code	e3
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.13 mm
Package length	0.4 mm
Package form	SMT
Package width	0.2 mm
method of packing	Tape, Paper
Rated power dissipation(P)	0.0313 W
resistance	91000 Ω
Resistor type	FIXED RESISTOR
size code	01005
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	-200,600 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Tolerance	5%
Operating Voltage	15 V
Base Number Matches	1

Preview

Download Datasheet

View All

Thick Film Chip Resistors

( Lead-Free for RM01 Series )

1. Scope :

Document No

TRM-010S001A

Revise Date

page number

2007/06/11

1/8

This specification applies for the RM01 series of thick film chip resistors made by TA-I.

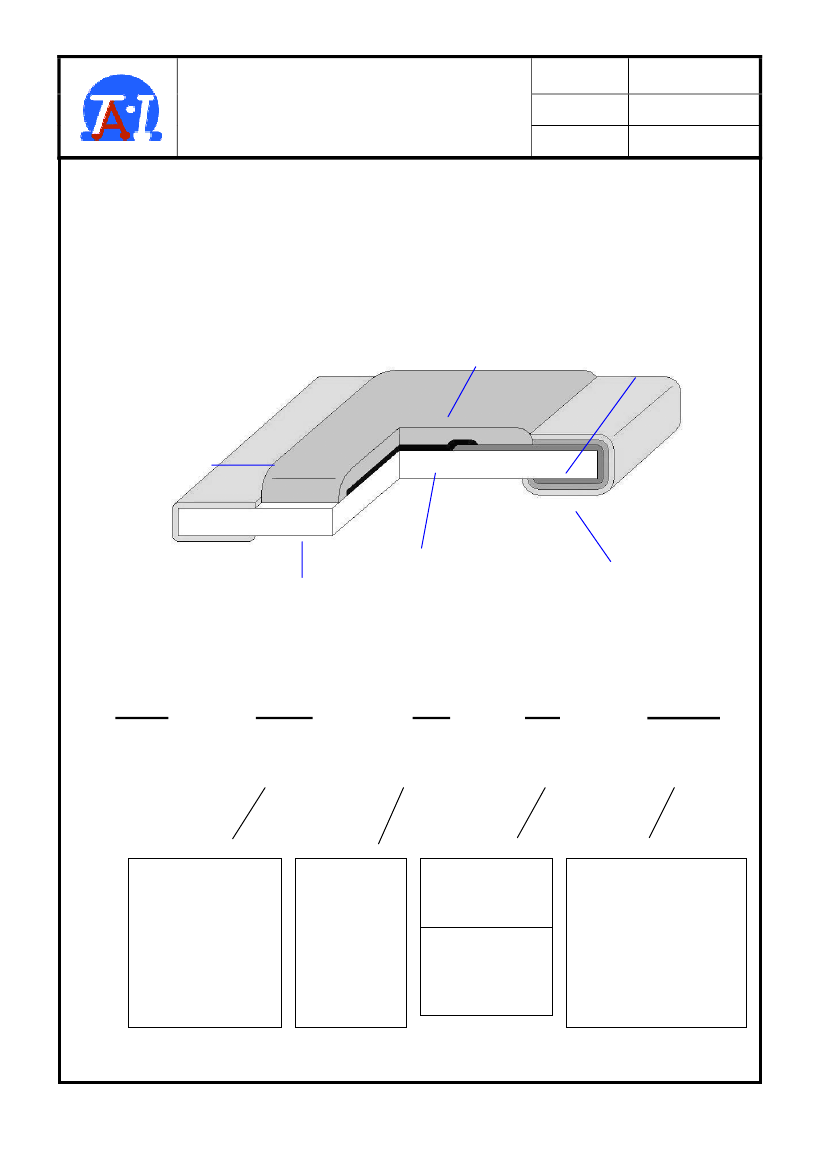

2. Construction:

Over Coat (Color : Black)

Conductor :

(Lead-free or with lead )

Sn Plating

Resistive Element

Ceramic Substrate

Ni Plating

3. Type Designation:

Product Code

RM : Chip Resistor

Size

Power Rating

Tolerance

Packaging

102

Nominal

Resistance

01-01005(0402)

32W

J -

±5%

T-Paper Tape

3 digits, e.g.,:

(E-24) 102 = 1kΩ

0 = 0

+N: Lead-Free

TA-I TECHNOLOGY CO., LTD
