Z100-0801-7141-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> Z100-0801-7141-Z

Z100-0801-7141-Z: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size400KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

Z100-0801-7141-Z Overview

Board Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug

Z100-0801-7141-Z Parametric

Parameter Name	Attribute value
Objectid	304390868
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
subject depth	0.169 inch
body length	0.215 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

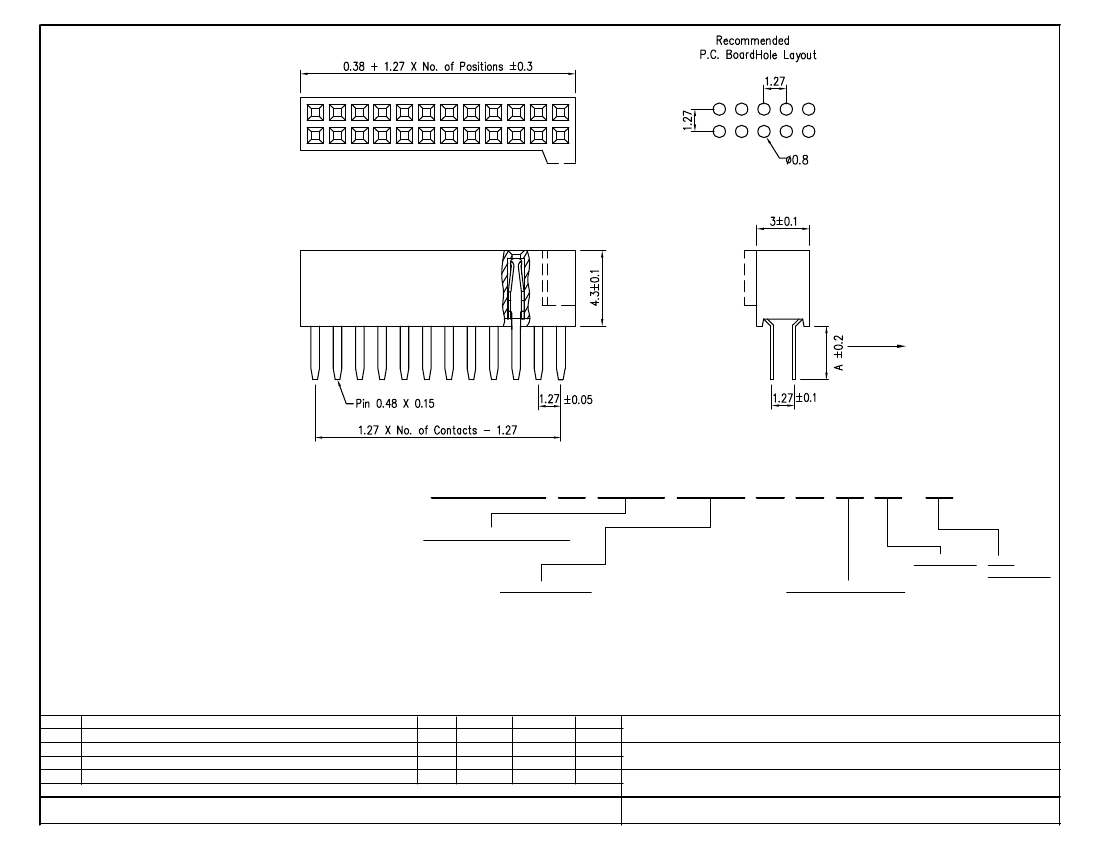

Specify “A” Dimension

When or Dering

2.4mm

3.0mm

Other Lengths Available

Please Contact SMP Technology

DIMENSION NUMBER: 0

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE:

< 30 Milliohm Max.

INSULATION RESISTANCE:

> 5000 Megaohm Min.

DIELECTRIC WITHSTANDING VOLTAGE:

600V (rms) AC for 1 Minute

OPERATING TEMPERATURE: -55ºC to +105ºC

HOW TO ORDER:

NUMBER OF CONTACTS:

01 thru 98 (A0=100)

PACKAGING:

1 - Tube

TYPE NUMBER:

SEE TYPE NUMBER

CONTACT PLATING:

0 - TIN

1 - GOLD FLASH

3 - 10u" GOLD

4 - 15u" GOLD

5 - 30u" GOLD

7 - 10u" ON CONTACT AREA

8 - 15u" ON CONTACT AREA

9 - 30u" ON CONTACT AREA

RoHS

COMPLIANT

MATERIAL:

INSULATOR: High Temperature Thermoplastic UL94V-0

(Nylon 6T)

CONTACT: High Strength Copper Alloys

MECHANICAL:

Rev

SOLDERABILITY: Per MIL-STD-202F Method 208D

Issued

Updated for RoHS Compliance

Drawn Checked

S.E.

S.M.

B.S.

S.M.

Approved Date

S.M.

4/1/98

S.M.

9/26/07

SMP TECHNOLOGY, INC.

Stacking Receptacle Assembly, 1.27mm Pitch, Single Polarization

Surface Mount

TOL. DEC.

.X +/- 0.50

.XX +/- 0.20

.XXX +/- 0.10

ANGLE +/-

UNIT: mm

SERIES: Z100-XX01-71XX-Z

Pg: 1
