SHD115434A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SHD115434A

SHD115434A: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 30A, Silicon, HERMETIC SEALED, SHD-2A, 2 PIN; CategoryDiscrete semiconductor diode; File Size60KB，2 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric View All

SHD115434A Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 30A, Silicon, HERMETIC SEALED, SHD-2A, 2 PIN

SHD115434A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
package instruction	S-CSSO-G1
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY, LOW POWER LOSS, FREE WHEELING DIODE
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	S-CSSO-G1
Maximum non-repetitive peak forward current	570 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	30 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

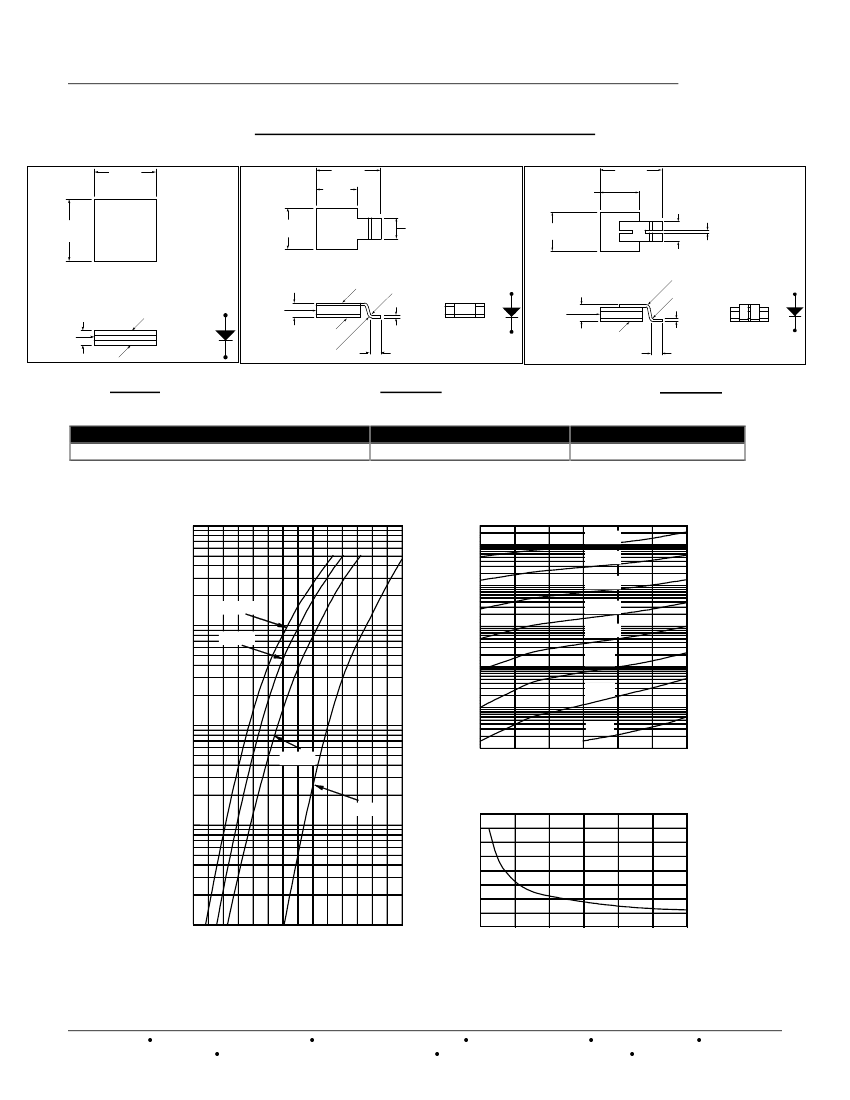

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

TECHNICAL DATA

DATA SHEET 455, REV. PRELIMINARY

SHD115434

SHD115434A

SHD115434B

(S-100 for JANTXV equivalent screening; SS for JANS equivalent screening available)

HERMETIC POWER SCHOTTKY RECTIFIER

Ultra Low Reverse Leakage

200C Operating Temperature

Applications:

Features:

Switching Power Supply

Converters

Free-Wheeling Diodes

Polarity Protection Diode

Ultra low Reverse Leakage Current

Soft Reverse Recovery at Low and High Temperature

Very Low Forward Voltage Drop

Low Power Loss, High Efficiency

High Surge Capacity

Guard Ring for Enhanced Durability and Long Term Reliability

Guaranteed Reverse Avalanche Characteristics

ALL RATINGS ARE @ T

= 25 C UNLESS OTHERWISE SPECIFIED.

MAXIMUM RATINGS

RATING

PEAK INVERSE VOLTAGE

SYMBOL

PIV

MAX.

100

570

1000

0.50

-65 to

+ 200

-65 to

+ 175

UNITS

Volts

Amps

C/W

MAXIMUM DC OUTPUT CURRENT (With Cathode Maintained @ T

=100 C)

MAXIMUM NONREPETITIVE FORWARD SURGE CURRENT

(t = 8.3ms, Sine)

MAXIMUM JUNCTION CAPACITANCE (V

=5V) (per leg)

MAXIMUM THERMAL RESISTANCE (Junction to Mounting Surface, Cathode)

MAXIMUM OPERATING TEMPERATURE RANGE

MAXIMUM STORAGE TEMPERATURE RANGE

FSM

Top

Tstg

ELECTRICAL CHARACTERISTICS

CHARACTERISTIC

MAXIMUM FORWARD VOLTAGE DROP, Pulsed (I

= 30 Amps)

= 25

= 125

MAXIMUM REVERSE CURRENT (I

@ 100V PIV)

= 25

= 125

SYMBOL

MAX.

UNITS

0.84

0.68

0.20

2.0

Volts

221 WEST INDUSTRY COURT DEER PARK, NY 11729-4681 PHONE (631) 586-7600 FAX (631) 242-9798

World Wide Web - http://www.sensitron.com E-mail Address - sales@sensitron.com
