Datasheet> All Categories > Discrete semiconductor> diode> BB119136

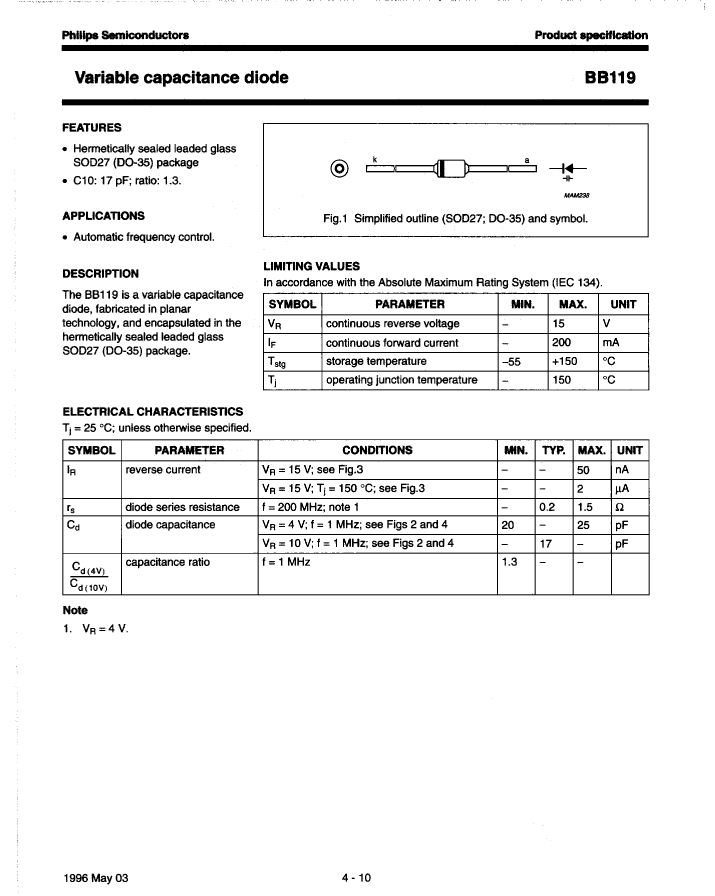

Preview

BB119136: DescriptionDIODE 15 V, SILICON, VARIABLE CAPACITANCE DIODE, DO-35, Variable Capacitance Diode; CategoryDiscrete semiconductor diode; File Size53KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BB119136 Overview

DIODE 15 V, SILICON, VARIABLE CAPACITANCE DIODE, DO-35, Variable Capacitance Diode

BB119136 Parametric

Parameter Name	Attribute value
package instruction	O-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	15 V
Shell connection	ISOLATED
Configuration	SINGLE
Minimum diode capacitance ratio	1.3
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum reverse current	0.05 µA
Reverse test voltage	15 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

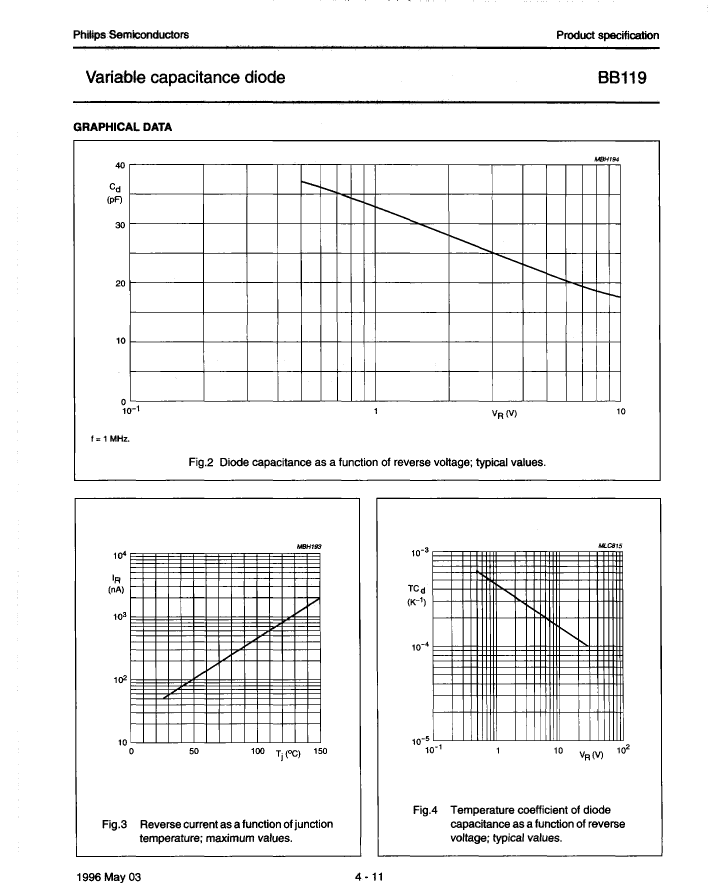

Preview

Download Datasheet

View All

BB119136 Related Products

	BB119136	BB119143	BB119113	BB119133	BB119153	BB119116
Description	DIODE 15 V, SILICON, VARIABLE CAPACITANCE DIODE, DO-35, Variable Capacitance Diode	DIODE 15 V, SILICON, VARIABLE CAPACITANCE DIODE, DO-35, Variable Capacitance Diode	DIODE 15 V, SILICON, VARIABLE CAPACITANCE DIODE, DO-35, Variable Capacitance Diode	DIODE 15 V, SILICON, VARIABLE CAPACITANCE DIODE, DO-35, Variable Capacitance Diode	DIODE 15 V, SILICON, VARIABLE CAPACITANCE DIODE, DO-35, Variable Capacitance Diode	DIODE 15 V, SILICON, VARIABLE CAPACITANCE DIODE, DO-35, Variable Capacitance Diode
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Minimum breakdown voltage	15 V	15 V	15 V	15 V	15 V	15 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum diode capacitance ratio	1.3	1.3	1.3	1.3	1.3	1.3
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
JEDEC-95 code	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.05 µA	0.05 µA	0.05 µA	0.05 µA	0.05 µA	0.05 µA
Reverse test voltage	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	-	-
Base Number Matches	1	1	1	1	-	-
Maker	-	NXP	NXP	-	NXP	NXP
