EMK33J2H-20.576M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EMK33J2H-20.576M

EMK33J2H-20.576M: DescriptionCMOS, MEMS Clock Oscillators LVCMOS (CMOS) 3.3Vdc 4 Pad 2.5mm x 3.2mm Plastic Surface Mount (SMD) MEMS Clock Oscillators LVCMOS (CMOS) 3.3Vdc 4 Pad 2.5mm x 3.2mm Plastic Surface Mount (SMD); CategoryPassive components oscillator; File Size4MB，10 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EMK33J2H-20.576M Overview

CMOS, MEMS Clock Oscillators LVCMOS (CMOS) 3.3Vdc 4 Pad 2.5mm x 3.2mm Plastic Surface Mount (SMD) MEMS Clock Oscillators LVCMOS (CMOS) 3.3Vdc 4 Pad 2.5mm x 3.2mm Plastic Surface Mount (SMD)

EMK33J2H-20.576M Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	7032781386
Parts packaging code	SMD 2.5mm x 3.2mm
Contacts	4
Manufacturer packaging code	SMD 2.5mm x 3.2mm
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	20.576 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF

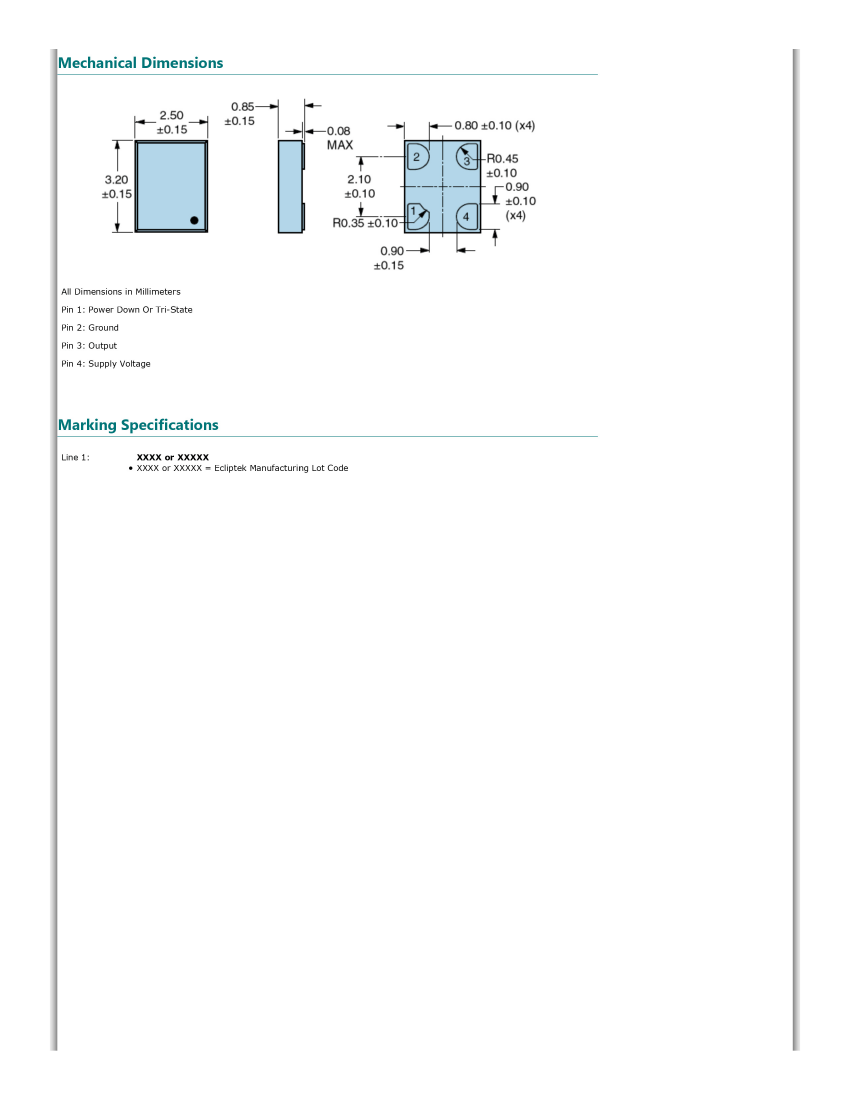

physical size	3.2mm x 2.5mm x 0.85mm
longest rise time	2 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)

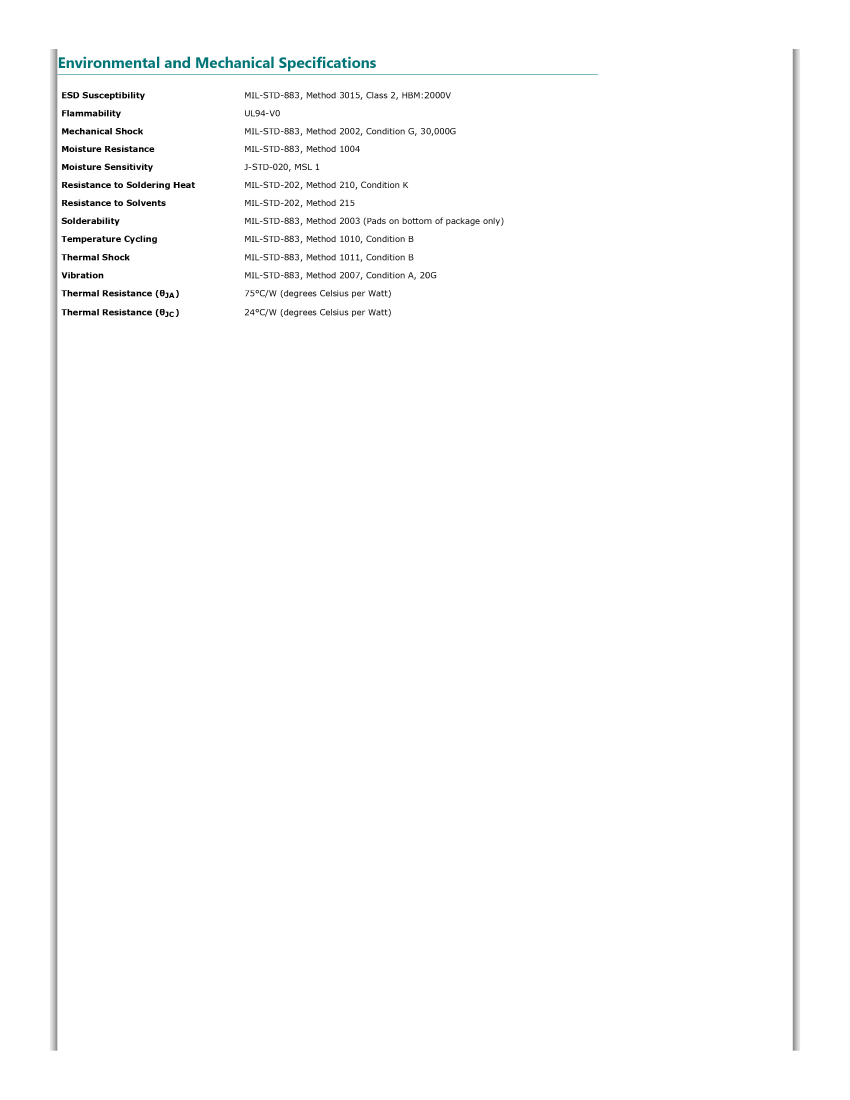

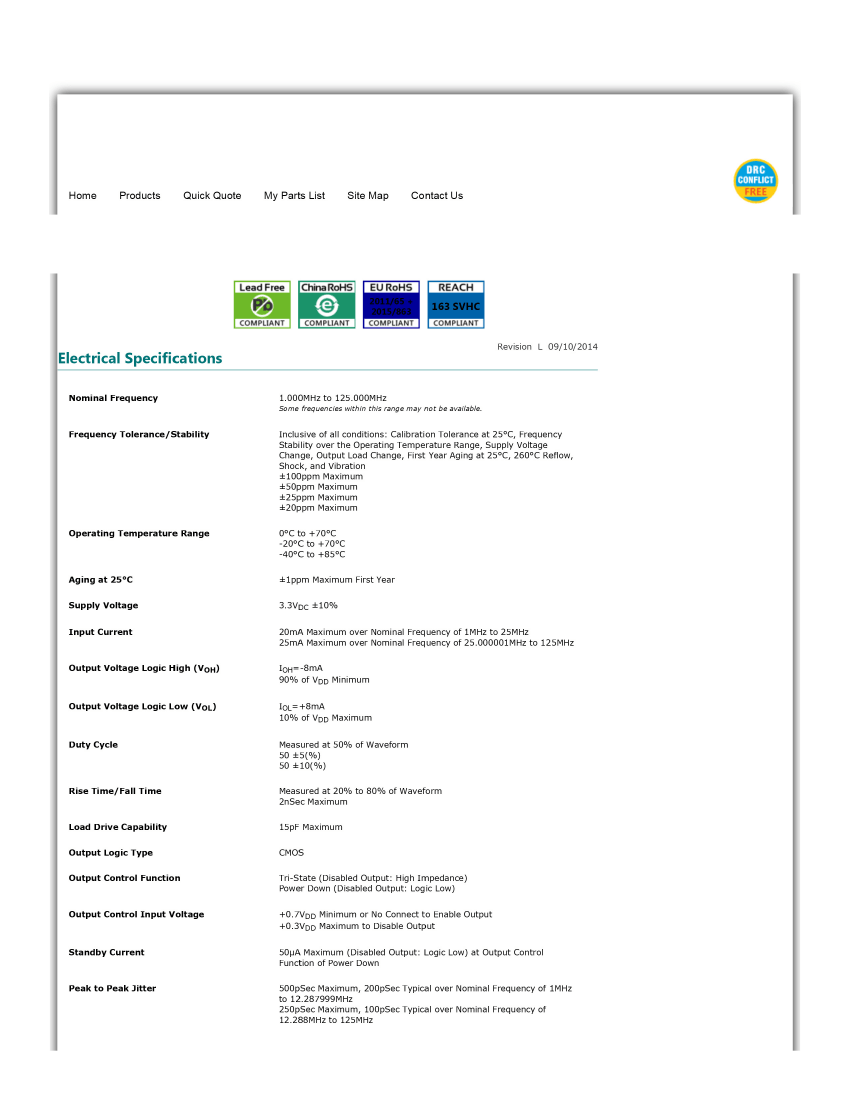

Preview

Download Datasheet

View All

Ecliptek | EMK33 Series Oscillator

http://www.ecliptek.com/oscillators/EMK33/

Log On

Email Customer Support

EMK33 Series Oscillator

MEMS Clock Oscillators LVCMOS (CMOS) 3.3Vdc 4 Pad 2.5mm x 3.2mm Plastic Surface Mount (SMD)

1 of 10

05-Jan-2016 11:05 AM
