ECS-140-20-19A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-140-20-19A

ECS-140-20-19A: DescriptionParallel - Fundamental Quartz Crystal, 14MHz Nom, ROHS COMPLIANT, RESISTANCE WELDED, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size436KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-140-20-19A Overview

Parallel - Fundamental Quartz Crystal, 14MHz Nom, ROHS COMPLIANT, RESISTANCE WELDED, SMD, 4 PIN

ECS-140-20-19A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1629441852
package instruction	ROHS COMPLIANT, RESISTANCE WELDED, SMD, 4 PIN
Reach Compliance Code	compliant
YTEOL	6.22
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	14 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L11.0XB5.0XH2.0 (mm)/L0.433XB0.197XH0.079 (inch)
Series resistance	50 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

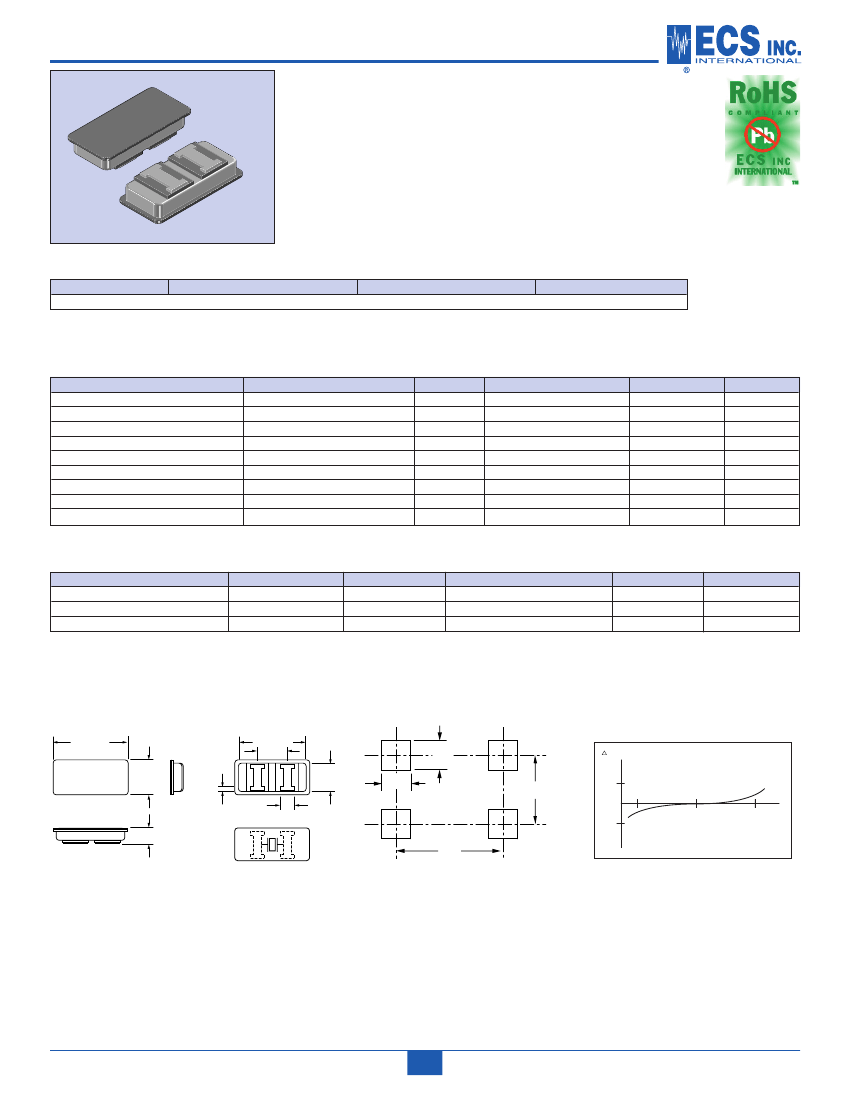

ECX-19A

SMD QUARTZ CRYSTAL

The ECX-19A SMD crystal is pin out

compatible with our CSM-12. The ECX-19A

covers a wide frequency range and has a 2.0

mm height profile.

FEATURES

• Compact and low profile

• Resistance-weld sealed

• Extended Temp range available

• Tape & Reel (1,000 pcs.)

• PbFree/RoHS Compliant

PART NUMBERING GUIDE

“EXAMPLE”

MANUFACTURER

ECS

–

FREQUENCY (4.000 MHz)

–

LOAD CAPACITANCE*

–

PACKAGE TYPE

19A

* Load capacitance (xx=xx pF, S=series resonance)

Note: See Product Selection Guide for additional options including tighter tolerances or extended temperature range.

OPERATING CONDITIONS/ELECTRICAL CHARACTERISTICS

PARAMETERS

FREQUENCY RANGE

CALIBRATION TOLERANCE

FREQUENCY STABILITY ref @25˚C

SHUNT CAPACITANCE

LOAD CAPACITANCE

DRIVE LEVEL

OPERATING TEMPERATURE

STORAGE TEMPERATURE

AGING CHARACTERISTICS

(Per Year)

CONDITIONS

@ +25˚C

-10 ~ +70˚C

(Customer Specified)

OPR

STG

@ +25˚C ± 3˚C per year

-10

-30

20.0 standard

MINIMUM

3.579545

TYPICAL

MAXIMUM

80.000

±30*

±50*

Series

100

+70

+85

±5

UNITS

MHz

PPM

µW

˚C

PPM

* Tighter specifications are available. **Extended temperature range available.

EQUIVALENT SERIES RESISTANCE / MODE OF OSCILLATION

FREQUENCY RANGE (MHz)

3.579545 ~ 3.999

4.000 ~ 5.999

6.000 ~ 9.999

MODE OF OSC

Fundamental

MAX ESR

200

150

100

FREQUENCY RANGE (MHz)

10.000 ~ 13.999

14.000 ~ 30.000

27.000 ~ 80.000

MODE OF OSC

Fundamental

3rd O/T

MAX ESR

PACKAGE DIMENSIONS (mm)

1.0

0.1

11.0

0.2

5.0

0.2

10.0 max.

2.4

PPM

5.0±0.3

f/f

3.8

0.2

2.0

0.1

3.5

2.4

+ 30

- 10

TEMP.(˚C)

- 30

2.0 max.

5.08

Figure 1) ECX-19A - Top, Side, Bottom and End views

Figure 2) ECX-19A Land Pattern

Figure 3) Frequency vs Temperature Curve

ECS, INC. INTERNATIONAL

1105 S. RIDGEVIEW, OLATHE, KS 66062 • 913-782-7787 • 800-237-1041 • FAX 913-782-6991 • WWW.ECSXTAL.COM
