stressed); Thermocompression bonding is preferred over
thermosonic bonding. For thermocompression bonding:
Stage Temperature: 250°C; Bond Tip Temperature: 150°C;
Bonding Tip Pressure: 18 to 40 gms depending on size of
wire.
Drain Voltage
Gate Voltage
Drain Current
Continuous Power Dissipation
Channel Temperature
Storage Temperature
Mounting Temperature
Input Power
Typical Performance

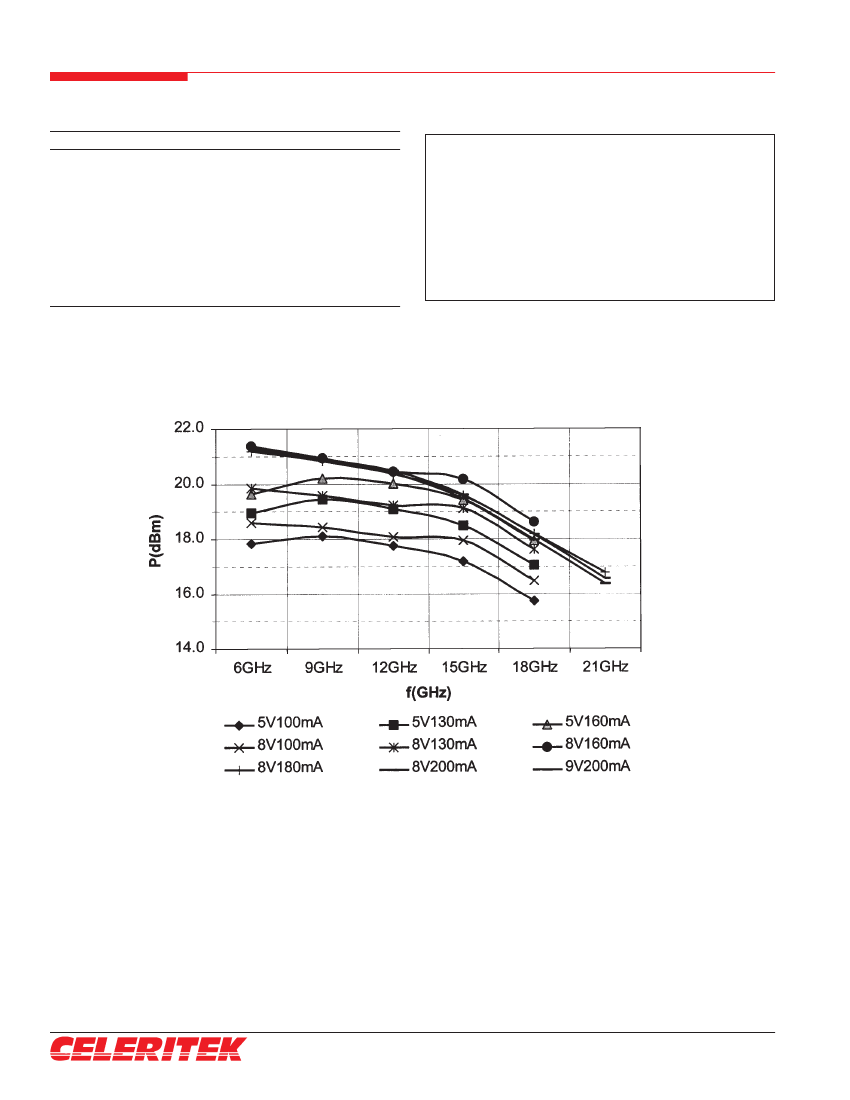

P1dB vs Frequency
Performance Optimization
Using the Gain-Ctl facility of the CMM2030-BD, out-
put power may be increased by application of 1.2 to 1.8 Volts
to the Bias Control pad. If the Gain-Ctl facility is not used, a
fixed voltage at the Bias Control pad can be implemented by
connecting a off-chip parallel resistor to the pad which will
lower the output voltage accordingly.
If Bias Control voltage is decreased further than those
lowest values given in the tables, both gain and output power
will start to drop.
3236 Scott Boulevard, Santa Clara, California 95054
Phone: (408) 986-5060
Fax: (408) 986-5095
CMM2030-BD
Advanced Product Information - February 2003
Typical Performance

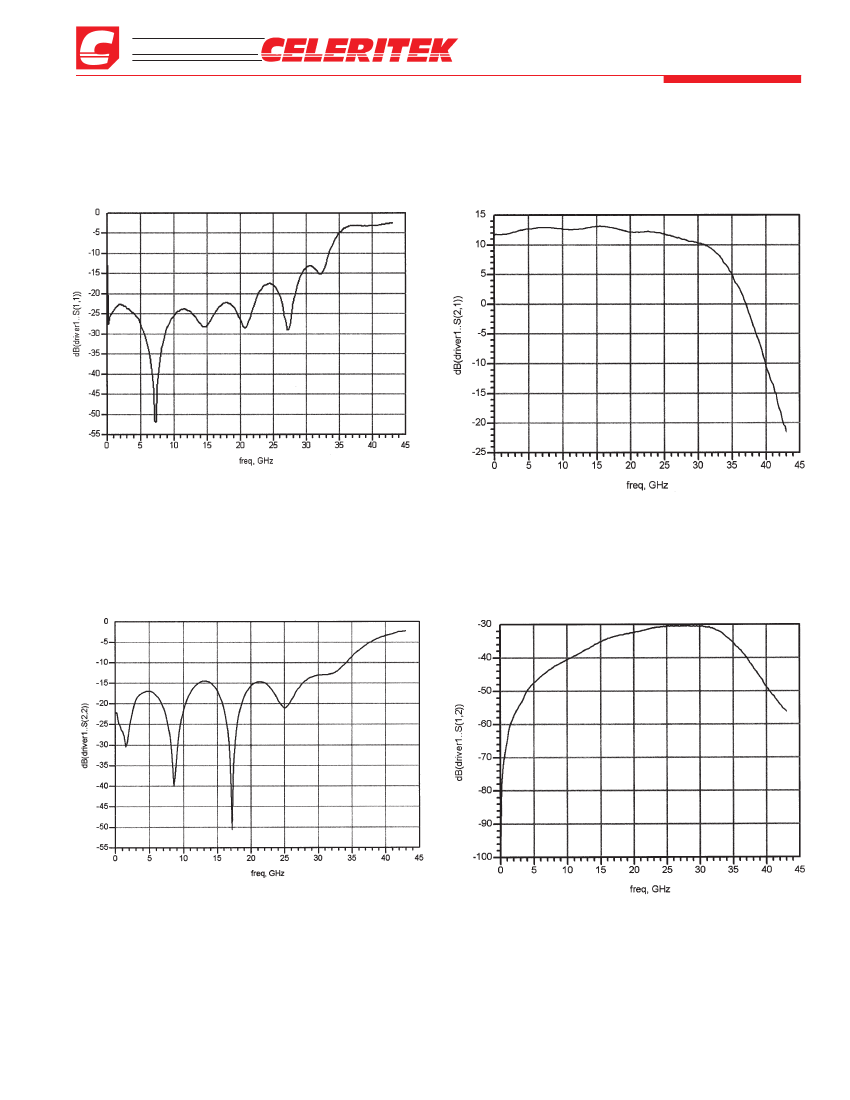

S11 vs Frequency
S21 vs Frequency
(3 of 4)
S22 vs Frequency
S12 vs Frequency
3236 Scott Boulevard
Santa Clara, California 95054
Phone: (408) 986-5060
Fax: (408) 986-5095
CMM2030-BD
Typical Performance
S22 & S11 vs Frequency
Advanced Product Information - February 2003
(4 of 4)
Gain Delay vs Frequency

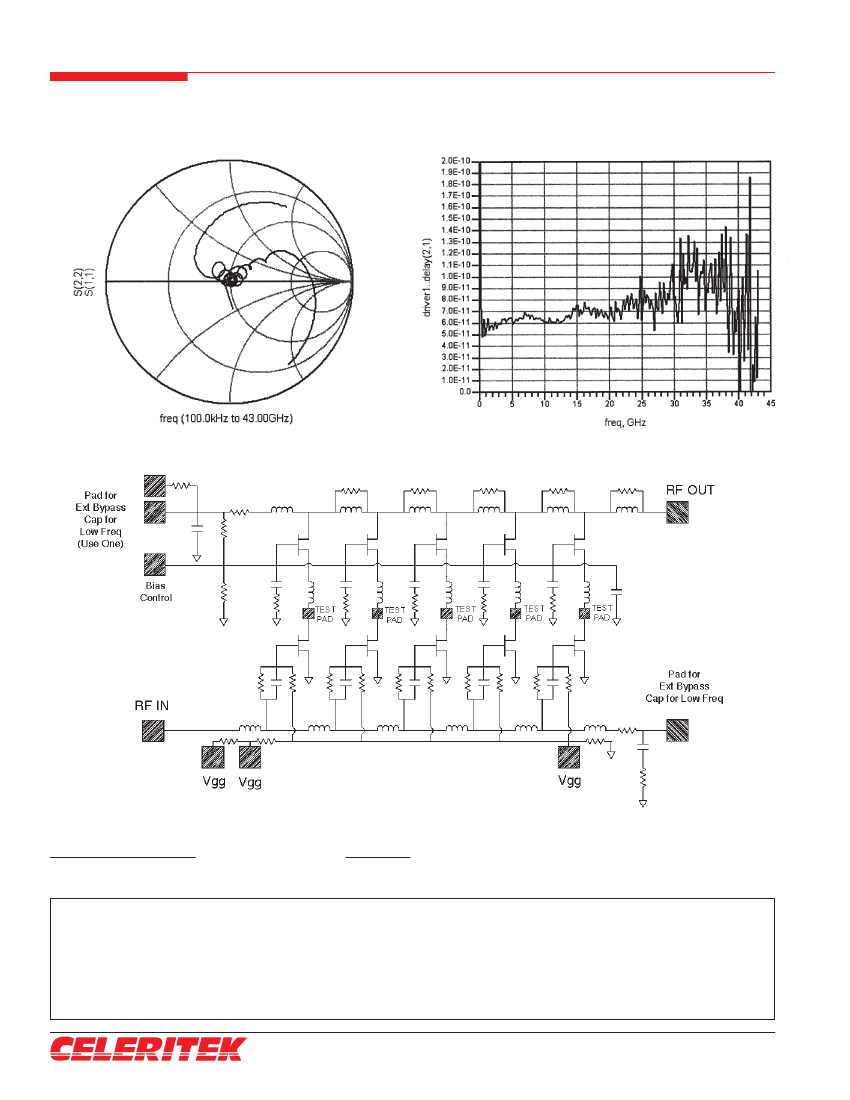

Schematic Diagram
Ordering Information
Part Number for Ordering
CMM2030-BD
Description
Optical Modulator Driver Amplifier
