1808-0-15-80-22-02-04-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 1808-0-15-80-22-02-04-0

Preview

1808-0-15-80-22-02-04-0: DescriptionPCB Terminal; CategoryThe connector; File Size656KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

1808-0-15-80-22-02-04-0 Overview

PCB Terminal

1808-0-15-80-22-02-04-0 Parametric

Parameter Name	Attribute value
Objectid	1340949679
Reach Compliance Code	compliant
ECCN code	EAR99
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

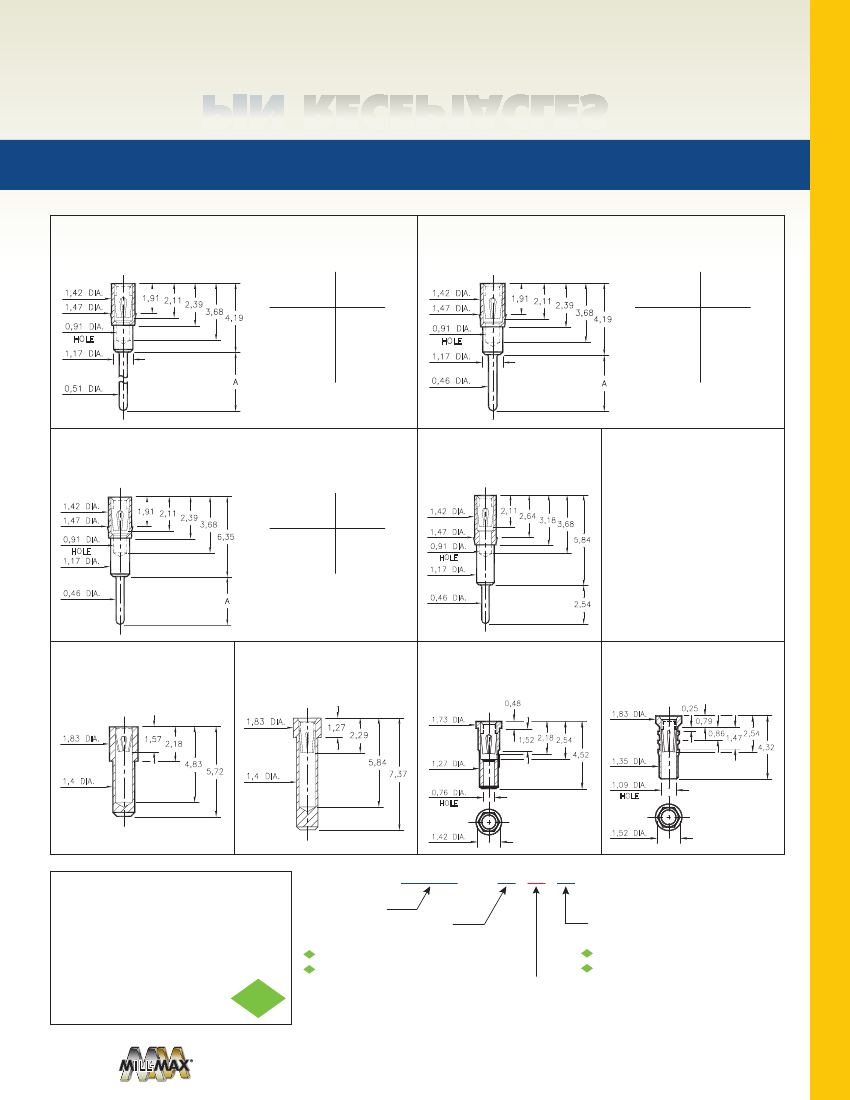

RECEPTACLES

FOR 0,38 - 0,64 DIAMETER PINS

1802/3802/4030/8866

XXXX-0-15-XX-43-XX-04-0

Press-fit in 1,45 mounting hole

1,42 DIA.

1,47 DIA.

0,91 DIA.

HOLE

1,17 DIA.

A

1,91 2,11

1803/1805/1808/3805

XXXX-0-15-XX-XX-XX-04-0

Press-fit in 1,45 mounting hole

2,39

Basic Part

Number

3,68

4,19

Length

A

1,42 DIA.

1,47 DIA.

1,91 2,11

2,39

Basic Part

Number

3,68

4,19

Length

A

1802-0

3802-0

8866-0

4030-0

3,18

4,19

19,69

20,70

0,91 DIA.

HOLE

1,17 DIA.

0,46 DIA.

1808-0

1803-0

1805-0

3805-0

2,54

3,68

5,41

9,98

0,51 DIA.

A

1804/1806

1,42 DIA.

1,47 DIA.

0,91 DIA.

HOLE

1,17 DIA.

180X-0-15-XX-43-XX-04-0

Press-fit in 1,45 mounting hole

1807

Basic Part

Number

Length

A

1,42 DIA.

1,47 DIA.

0,91 DIA.

HOLE

1,17 DIA.

1807-0-15-XX-43-XX-04-0

Press-fit in 1,45 mounting hole

1,91 2,11

2,39

2,11

3,68

6,35

2,64

3,18

3,68

5,84

1804-0

1806-0

2,03

2,92

0,46 DIA.

A

0,46 DIA.

2,54

8830

8830-15-XX-22-XX-10-0

Solder mount in 1,45 min. mounting hole

8363

1,83 DIA.

8363-0-15-XX-35-XX-10-0

Solder mount in 1,45 min. mounting hole

4622

1,73 DIA.

4622-0-15-XX-30-XX-10-0

Hex press-fit in 1,35 plated

through-hole

0,48

6252

1,83 DIA.

6252-0-15-XX-32-XX-10-0

Hex press-fit in 1,45 plated

through-hole

0,25

0,79

0,86

4,52

1,27

1,83 DIA.

1,57

2,18

4,83

5,72

2,29

5,84

1,27 DIA.

1,52 2,18 2,54

1,47

2,54

4,32

1,35 DIA.

1,09 DIA.

HOLE

1,4 DIA.

7,37

0,76 DIA.

HOLE

1,42 DIA.

1,52 DIA.

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Millimeters

Tolerances On:

Lengths: ± 0,13

Diameters: ± 0,051

Angles:

±2°

ORDER CODE: XXXX - X - 15 - XX -

XX

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

5,08μm TIN/LEAD OVER NICKEL

80

5,08μm TIN OVER NICKEL (RoHS)

15

0,25μm GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

02

2,54μm TIN/LEAD OVER NICKEL

84

2,54μm TIN OVER NICKEL (RoHS)

27

0,76μm GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

SELECT CONTACT:

#22, #30, #32 or #43

CONTACT (DATA ON PAGES 252, 253 & 254)

(For alternate contact choices, see groups B and C on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 169 | PIN RECEPTACLES
