ELECTRONICS & TECHNOLOGY, INC.
Vectorbord
®
Plugbord
tm
S-100 Bus
10.50”H x 5.3”L x .062” TH
8801-1

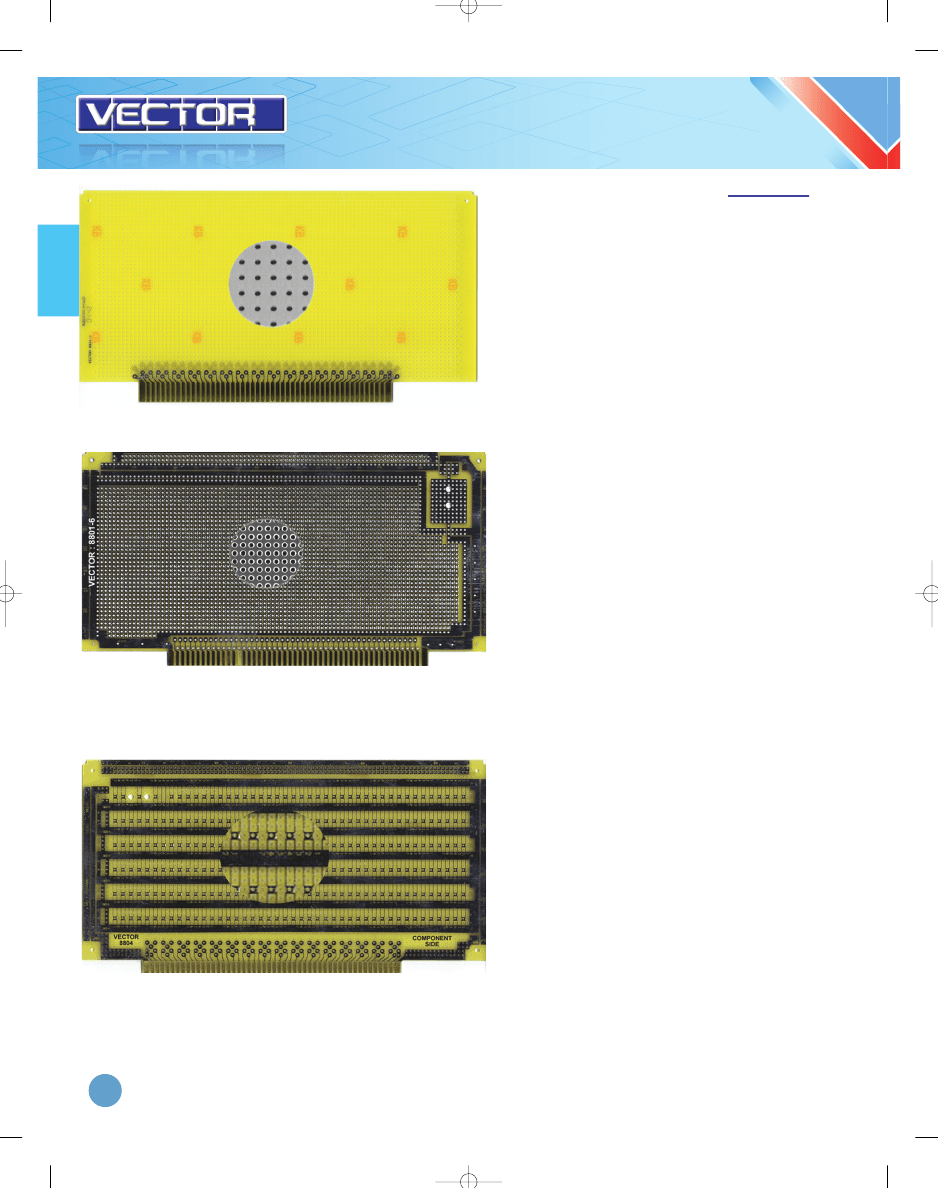

Plugbord
0.100” grid on 0.42” diameter holes. Gold-plated edge con-
tacts only. Bare prototyping board allows unrestricted com-
ponent placement. 100 gold-plated edge contacts (50 on
each side) on 0.125” centers.
16-Pin DIP Capacity:
WW Terminals:
Socket Pin:
Solder Connector:
WW Connector:
Extender:
Card Cage:
Material:
110
T125, T126
R32
R681-3
R681-2
3690-12
CCK100
FR-4
8801-6
10.50”H x 5.3”L x .062” TH
0.100” grid on 0.42” diameter holes. Gold-plated edge
contacts with square pad-per-hole pattern on both sides,
holes plated-thru. Solder-coated copper pads. Pad area
for mounting of ribbon cable I/O connector. 0.085”
square pads around each hole both sides.
Pin coordinate legend on board surface. Pins 1 & 51
committed to power; pins 50 & 100 committed to ground
per S-100 bus specification. 100 gold-plated edge con-
tacts (50 on each side) on 0.125” centers.
16-Pin DIP Capacity:
WW Terminals:
Socket Pin:
Solder Connector:
WW Connector:
Extender:
Card Cage:
Material:
80
T125, T126
R32
R681-3
R681-2
3690-12
CCK100
FR-4
8804
10.50”H x 5.3”L x .062” TH
0.100” grid on 0.42” diameter holes. Gold-plated edge
contacts with voltage/ground busses, zig-zag busses and
square pads both sides. Solder-coated copper pads not
plated-thru. Pad area for mounting of ribbon cable I/O
connector. Pin coordinate legend on board surface.
Pins 1 & 51 committed to power; pins 50 & 100 commit-
ted to ground per S-100 bus specification. 100 gold-plat-
ed edge contacts (50 on each side) on 0.125” centers.
16-Pin DIP Capacity:
WW Terminals:
Socket Pin:
Solder Connector:
WW Connector:
Extender:
Card Cage:
Material:
70
T125, T126
R32
R656-1
R656-2
3690-16
CCK13
FR-4
Specification subject to change without notice
