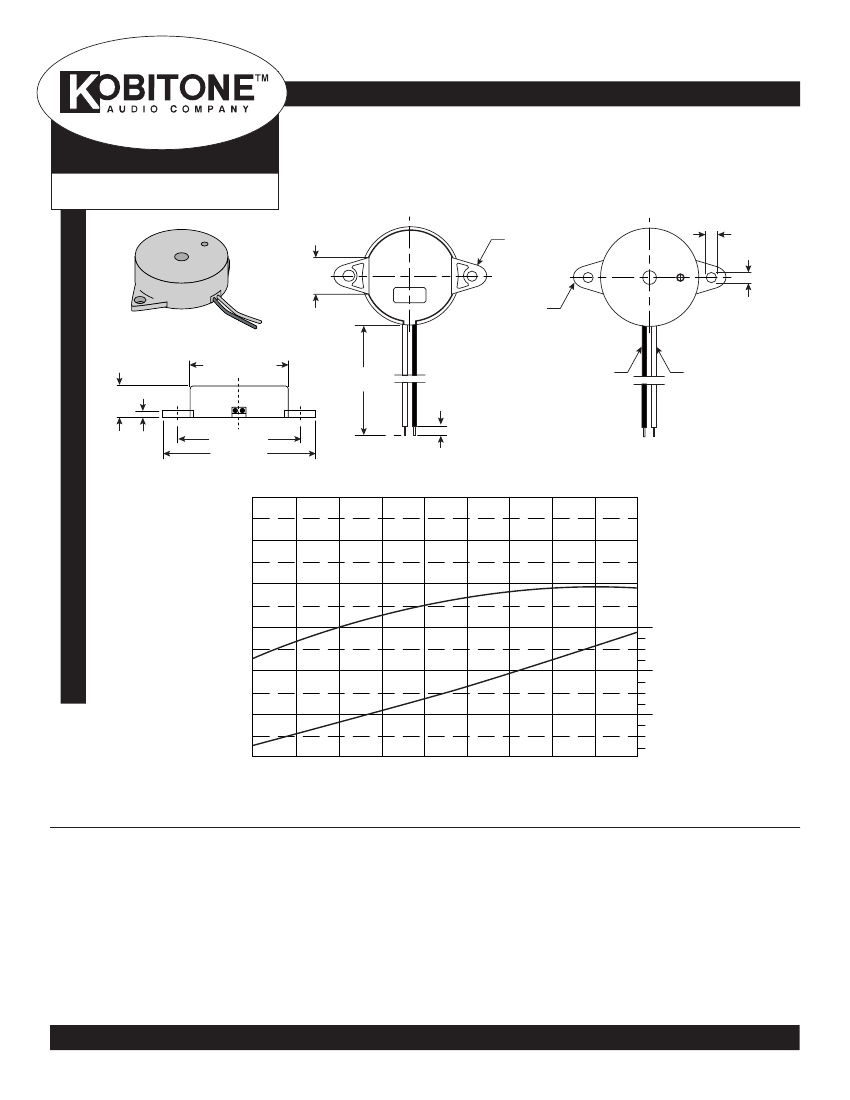

Piezoelectric Buzzer
(Built-In Drive)
Part Number:
254-PB511
Date:
3/6/06
Dimensions: mm (
In.)
ø3±.10
(ø.118±.004)
10
(.394)
R3.25
(R.128)
3.70±.10
(.146±.004)
3
(.118)
ø31 (ø1.22)
10
(.394)
2
(.079)
39 (1.53)
45.5 (1.79)
75±5
(2.95±.197)
3±1
(.118±.039)
Black Wire “-”
Red Wire “+”
Piezoelectric Buzzer
110
90
80
30
25
70
20
15
10
5
3
6
9
12
15
18
21
24
27
30
Power Source Voltage (V)
KT-400142
Electrical Specifications:
•
Sound Pressure Level: 80dB min./30cm./9VDC
• Oscillating Frequency: 2.5 ± 0.5KHz
• Current Consumption: 8mA max./9VDC
• Operating Voltage: 3 to 30VDC
Mechanical Specifications:
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -40°C to +85°C
Materials:
• Tone: Continuous
•
Case: PBT
•
Lead Wire: UL1095 28AWG
• Weight: 7 grams
Available from Mouser Electronics
www.mouser.com
(800) 346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
Current Consumption (mA)
Sound Pressure Level dB
100
(Built-In Drive)
