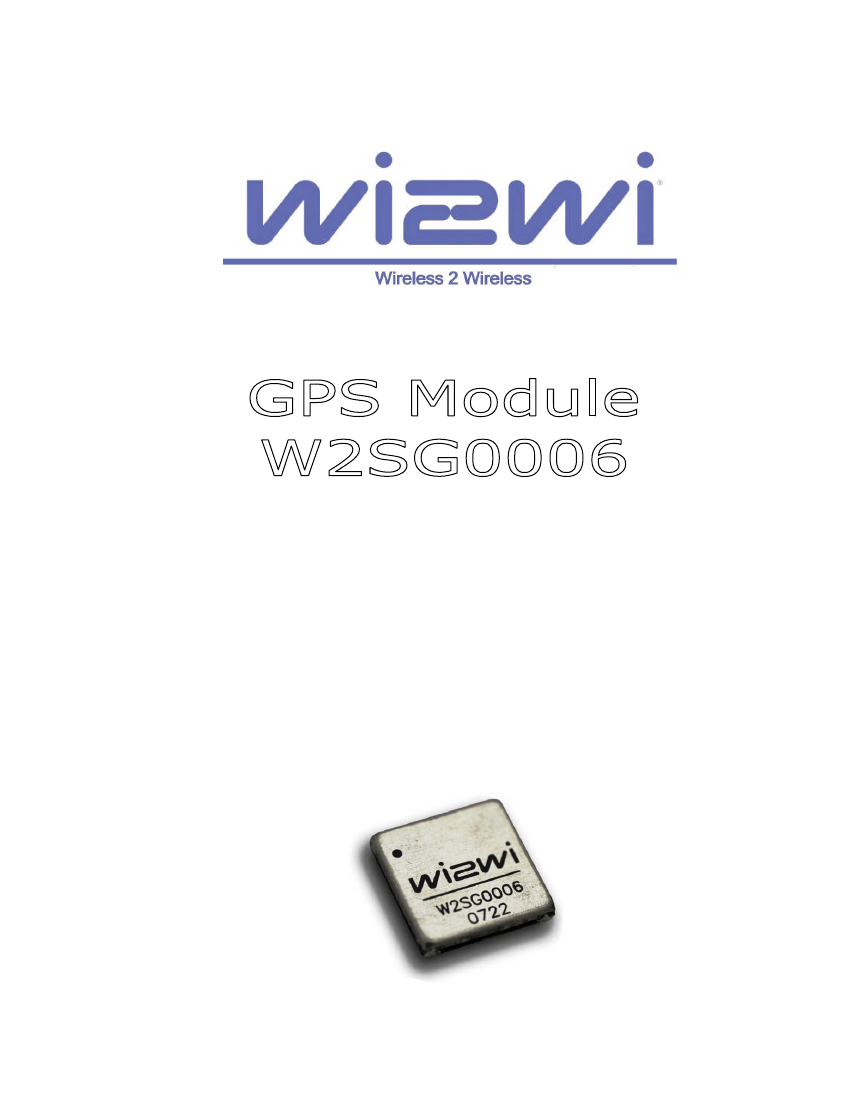

Wi2Wi, Inc. Doc No. A06-PDT-DOC Rev.1.64
Datasheet, GPS Module– W2SG0006
Dated: July10, 2009
Product Datasheet
A06-PDT-DOC Revision 1.64
July 10, 2009
Copyright © 2009 Wi2Wi, Inc.
Wi2Wi, Inc. Doc No. A06-PDT-DOC Rev.1.64
Datasheet, GPS Module– W2SG0006
Dated: July 10, 2009
Table of Contents
1
2
General Description.............................................................................................................4
Features................................................................................................................................4
2.1
2.2
2.3
Pin Definition ............................................................................................................................5
Pin Configuration......................................................................................................................6
System Block Diagram .............................................................................................................6
3
Specifications.......................................................................................................................7
3.1
Clock Frequency ......................................................................................................................7
3.2
Absolute Maximums Ratings....................................................................................................7
3.3
Interfaces..................................................................................................................................7
3.3.1 Host UART Interface ...........................................................................................................7
3.3.2 GPIOs ..................................................................................................................................7
3.3.3 GPS and Flash Enable ........................................................................................................8
3.4
Electrical/RF Characteristics: Operating ..................................................................................8
3.5
Performance.............................................................................................................................9
3.5.1 Acquisition Time ..................................................................................................................9
3.5.2 Position Accuracy (3-D NAV) ..............................................................................................9
3.6
Environmental Characteristics ...............................................................................................10
3.7
Antenna ..................................................................................................................................10
3.8
Normal Operation Implementation .........................................................................................10
3.9
Backup Cell and Main Battery Implementation ......................................................................11
3.10 Flash Enable/Firmware Upgrade Implementation..................................................................11
4
5
6
7
Development Support ........................................................................................................12
NMEA Input and Output Messages...................................................................................12
5.1
5.2
6.1
6.2
7.1
7.2
7.3
7.4
NMEA Output Messages........................................................................................................12
NMEA Input Messages ..........................................................................................................13
SiRF Binary Output Messages...............................................................................................13
SiRF Binary Input Messages..................................................................................................15
Mechanical Specification........................................................................................................16
Outline Drawing......................................................................................................................16
Recommended PCB Layout...................................................................................................16
Recommended Reflow Profile................................................................................................17
Data Sheet Status ..................................................................................................................19
SiRF Binary Input and Output Messages ..........................................................................13
Mechanical Information ....................................................................................................16
8
9
10
11
12
Disclaimers ........................................................................................................................19
8.1
Firmware Settings..............................................................................................................19
Part Numbering..................................................................................................................19
Certifications .....................................................................................................................20
References .........................................................................................................................20
Specifications .........................................................................................................................20
Trademarks, Patents and Licenses .......................................................................................20
Other ......................................................................................................................................20
12.1
12.2
12.3
Copyright © 2009 Wi2Wi, Inc.
Page 2 of 20
Wi2Wi, Inc. Doc No. A06-PDT-DOC Rev.1.64
Datasheet, GPS Module– W2SG0006
Dated: July 10, 2009
List of Figures:
Figure 1: Pin Configuration (Top View).................................................................................6
Figure 2: System Block Diagram.............................................................................................6
Figure 3: Normal Operation Implementation......................................................................10
Figure 4: Battery and Backup Cell Connections .................................................................11
Figure 5: Flash Enabling for Programming.........................................................................11
Figure 6: Package Outline Drawing......................................................................................16
Figure 7: Recommended PCB Layout ..................................................................................17
Figure 8: Recommended Reflow Profile ...............................................................................18
List of Tables:
Table 1: Pin Definition..............................................................................................................5
Table 2: Absolute Maximum Ratings .....................................................................................7
Table 3: Operating Electrical Characteristics .......................................................................8
Table 4: Average Time to First Fix .........................................................................................9
Table 5: Positional Accuracy ...................................................................................................9
Table 6: Environmental Characteristics...............................................................................10
Table 7: NMEA Output Messages.........................................................................................12
Table 8: NMEA Input Messages............................................................................................13
Table 9: SiRF Binary Output Messages................................................................................14
Table 10: SiRF Binary Input Messages ................................................................................15
Table 11: Mechanical Characteristics...................................................................................16
Change History
Revision
1.2
1.3
1.4
Revision Date
03/01/2007
03/19/2007
07/24/2007
Originator Changes
DS
Added battery and backup cell connections
DS
Updated current consumption numbers based on
GSC3F/LP; added Korea certification
DS
Added pin descriptions; added firmware settings; added
part numbering; updated reflow profile; added NMEA
and SiRF Binary message summary.
EK
Updated all diagrams’ and/or figures’ information and
formatting, cover page, pin description table, and all
information has been revised or added to
AP/[EK] Updated pin descriptions and information on
development tools [EK FORMATTED DATASHEET}
EK
Formatted/Removed Confidential
Information/Markings and added sect 7.4 information
AP
Update documentation to reflect change of W2SG0006
SiRF device from LP to LPx chipset.
Change Current Consumption Figure for LPx
1.5
3/13/2008
1.6/[1.62]
1.63
1.64
2/1/2009
[6/19/09]
7/10/09
7/17/2009
Copyright © 2009 Wi2Wi, Inc.
Page 3 of 20
Wi2Wi, Inc. Doc No. A06-PDT-DOC Rev.1.64
Datasheet, GPS Module– W2SG0006
Dated: July 10, 2009
1 General Description
This specification provides a general guideline on the performance and the integration of the Wi2Wi, Inc.
NAVSTAR L1C/A Band, 20 Channel GPS Receiver Module Solution. The solder-down module, Part Number
W2SG0006, is targeted to assist companies to easily integrate GPS functionally into their products. This is
accomplished by reducing their development times and cost by using a complete, small form factor, low power,
ready to integrate GPS Receiver System Solution.
The specification maximum and minimum limits presented herein are those guaranteed when the unit is integrated
into the Wi2Wi, Inc. W2SG0006-DEV Development System. These limits are to serve as the representative
performance characteristics of the W2SG0006 when properly designed into a customer’s product. Wi2Wi makes
no warranty, implied or otherwise specified, with respect to the customer’s design and the performance
characteristics presented in this specification.
2 Features
The Wi2Wi W2SG0006 is a 20 Channel Global Position System (GPS) receiver surface mount device (SMD)
solution. Based upon the SiRFstar III™ technology, the SMD features fast acquisition times, high receiver
sensitivity and low power consumption in a small, compact form factor. The W2SG0006 is a flexible design that
supports a broad range of applications where GPS functionality and location based services is required.
Key features of the W2SG0006 are as follows:
GPS technology based upon by the SiRF Technologies™ SiRFStar III™ LPx device
Compact design for easy integration: 15mm x 15mm x 2.5mm (including shield)
Fast acquisition time and high sensitivity GPS Receiver
Ultra-low power consumption.
Surface Mount Design (SMD)
50Ω Antenna Launch
20 channel GPS receiver
Multi-path Mitigation
Uses NAVSTAR GPS L1 C/A signal
SBAS (WAAS, ENGOS and MSAS) support
Single 3.3 VDC supply input
Two Configurable UART Interfaces
Available Software accelerator for improved sensitivity: Satellite acquisition and tracking
Format Selectable Output Data: NMEA, SiRFBinary™ and AI3/F
Compatible with SiRF Technologies GSW3 Software
RoHS Compliant
Copyright © 2009 Wi2Wi, Inc.
Page 4 of 20
Wi2Wi, Inc. Doc No. A06-PDT-DOC Rev.1.64
Datasheet, GPS Module– W2SG0006
Dated: July 10, 2009
2.1
Pin Definition
The functional pin definition for the W2SG0006 is presented below in
Table 1
.
Table 1: Pin Definition
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Signal
GND
GND
GPIO9
VDD_3V3
GPS_ENABLE
FLASH_ENABLE
GND
GPIO4
GPIO13
GND
GPIO14
GPIO1
GND
BACKUP_CELL
GND
RXA
TXA
GND
VDD_3V3
VCC_LNA
VCC_ANT
ANT_IN
GND
RTC_OUT
RXB
TXB
ECLK
Type
PWR
PWR
I/O
I
I
I
PWR
I/O
I/O
PWR
I/O
I/O
PWR
PWR
PWR
I
O
PWR
I
O
I
I
PWR
O
O
I
Description
Ground
Ground
General Purpose I/O; Default configuration is for generating 1PPS
Time Mark Output; Leave unconnected if it is not used
3.3V Power supply
GPS Enable; Connect to ground if there is no external control
Flash programming; Pull high to 3.3V DC for flash mode and pull
low for normal operation
Ground
Generel Purpose I/O; Leave unconnected if it is not used
General Purpose I/O; Leave unconnected if it is not used
Ground
General Purpose I/O; Leave unconnected if it is not used
General Purpose I/O; Leave unconnected if it is not used
Ground
Connect to the backup battery as shown in Figure 4; Leave
unconnected if it is not used
Ground
UART Input Port for Channel A; Maximum voltage at this port
should be 3.0V.
UART Output Port for Channel A; Maximum output voltage at
this port is 3.0V.
Ground
3.3V power supply
2.85V DC Regulated Output
Active antenna bias input; Connect to 3.3V DC is using active
antenna; Leave unconnected if using passive antenna
Antenna RF Input (50 ohm impedance)
Ground
It is the output of the crystal oscillator located in the RF section of
the chip; It is for minotoring purposes only and should be left
unconnected if it is not used.
UART Input Port for Channel B; Maximum voltage at this port
should be 3.0V.
UART Output Port for Channel B; Maximum output voltage at
this port is 3.0V.
External CMOS clock input only for AGPS applications under
SiRFLoc Client software;Leave unconnected if it is not used
Timesync(Yclk) is an auxiliary clock input that supports alternate
oscillator calibration system; It is used to for SiRFLoc Client time
aiding information; Leave unconnected if it is not used
I
28
TIMESYNC (YCLK)
I
