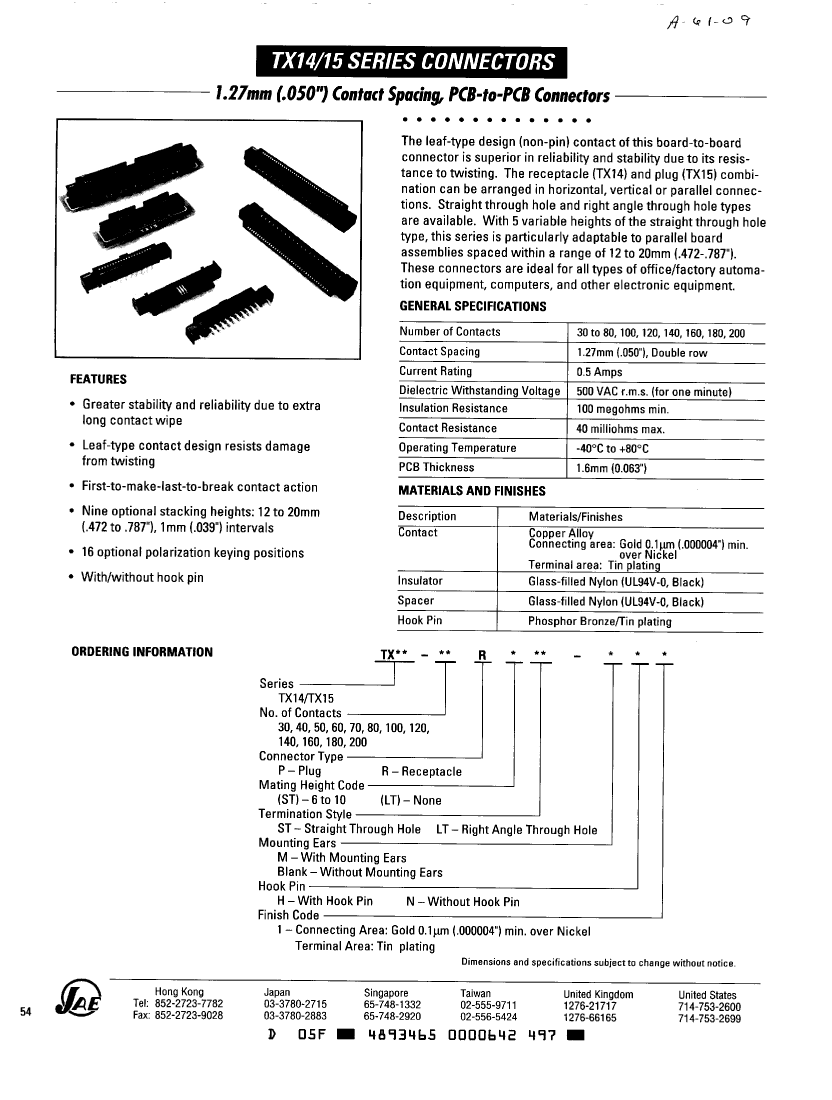

TX15-200P-9ST-MH1 datasheet, PDF

TX15-200P-9ST-MH1: DescriptionBoard Stacking Connector, 200 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size598KB，14 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric View All

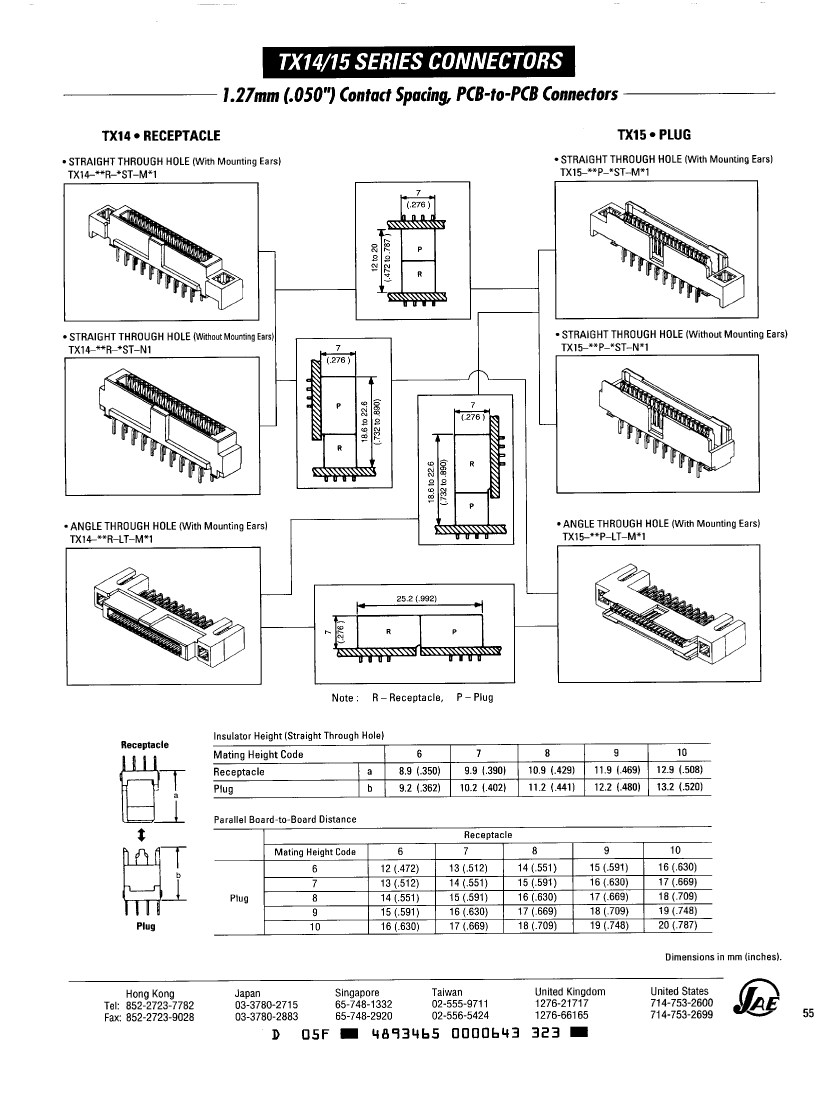

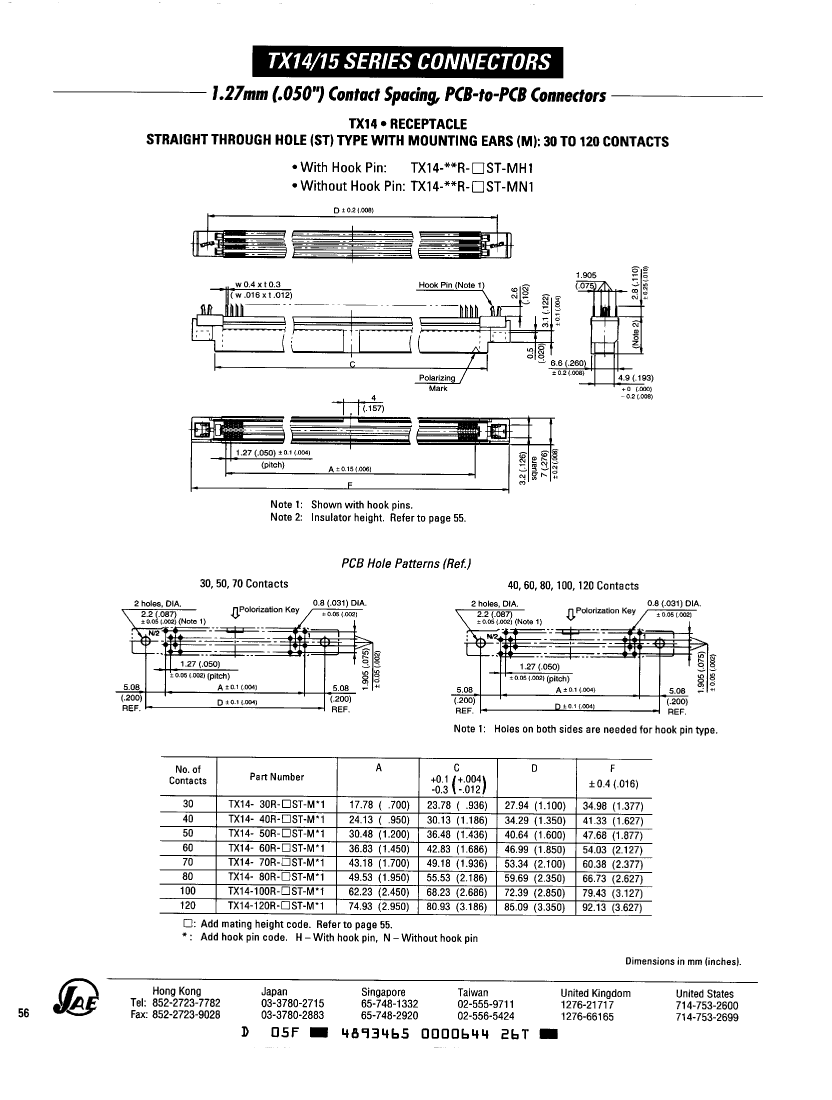

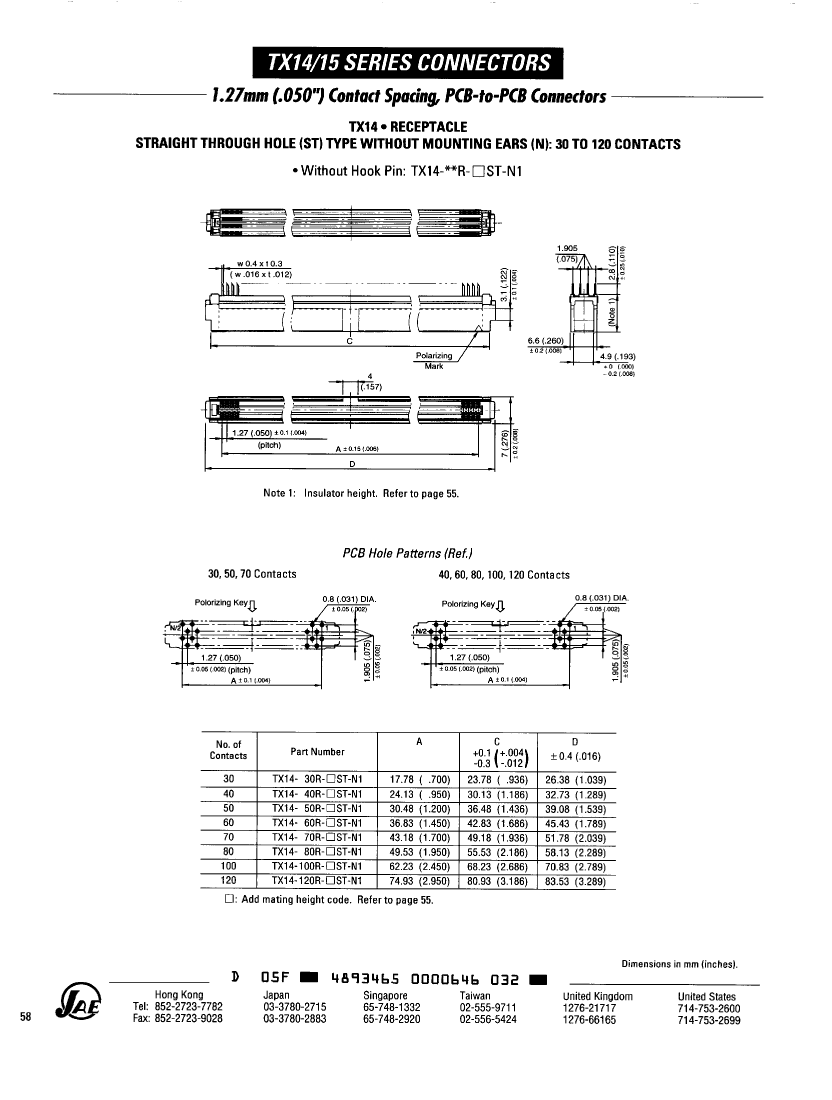

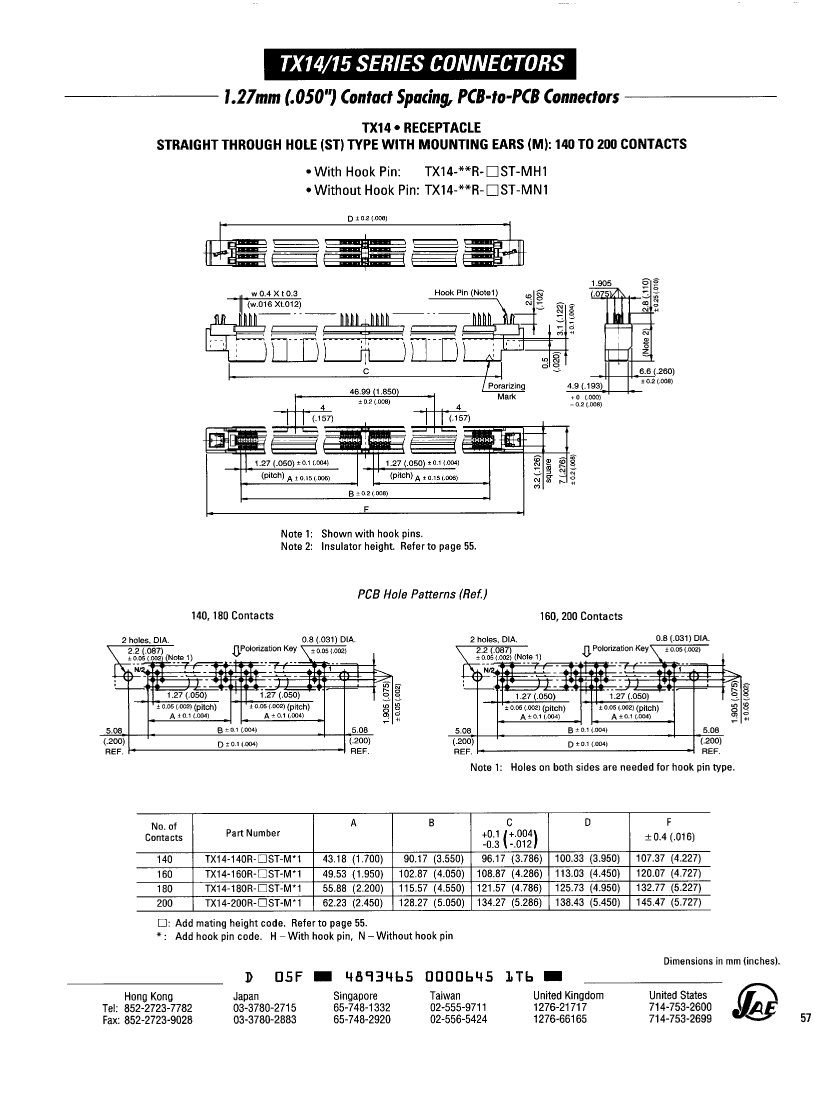

TX15-200P-9ST-MH1 Overview

Board Stacking Connector, 200 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1985735975
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Other features	STAGGERED CONFIGURATION
Board mount options	SPLIT BOARD LOCK
body width	0.276 inch
subject depth	0.48 inch
body length	5.727 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
MIL compliance	NO
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	4u inch
polarization key	SHRD CENTER
Rated current (signal)	0.5 A
Guideline	UL
Terminal length	0.11 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	200
UL Flammability Code	94V-0
