3410-111 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 3410-111

3410-111: DescriptionWire Terminal; CategoryThe connector Connector bracket; File Size43KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric Compare View All

3410-111 Overview

Wire Terminal

3410-111 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MATING: TIN
Assembly name	CONTACT
Maximum number of cable entries	0.11 inch
Connector bracket type	CONNECTOR ACCESSORY
Contactor design	LOOSE
Contact point gender	FEMALE
Contact style	COMPRESSION
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Material	PHOSPHOR BRONZE
Installation method	STRAIGHT
Terminal type	CRIMP
Maximum wire diameter	18 AWG
Minimum wire diameter	24 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

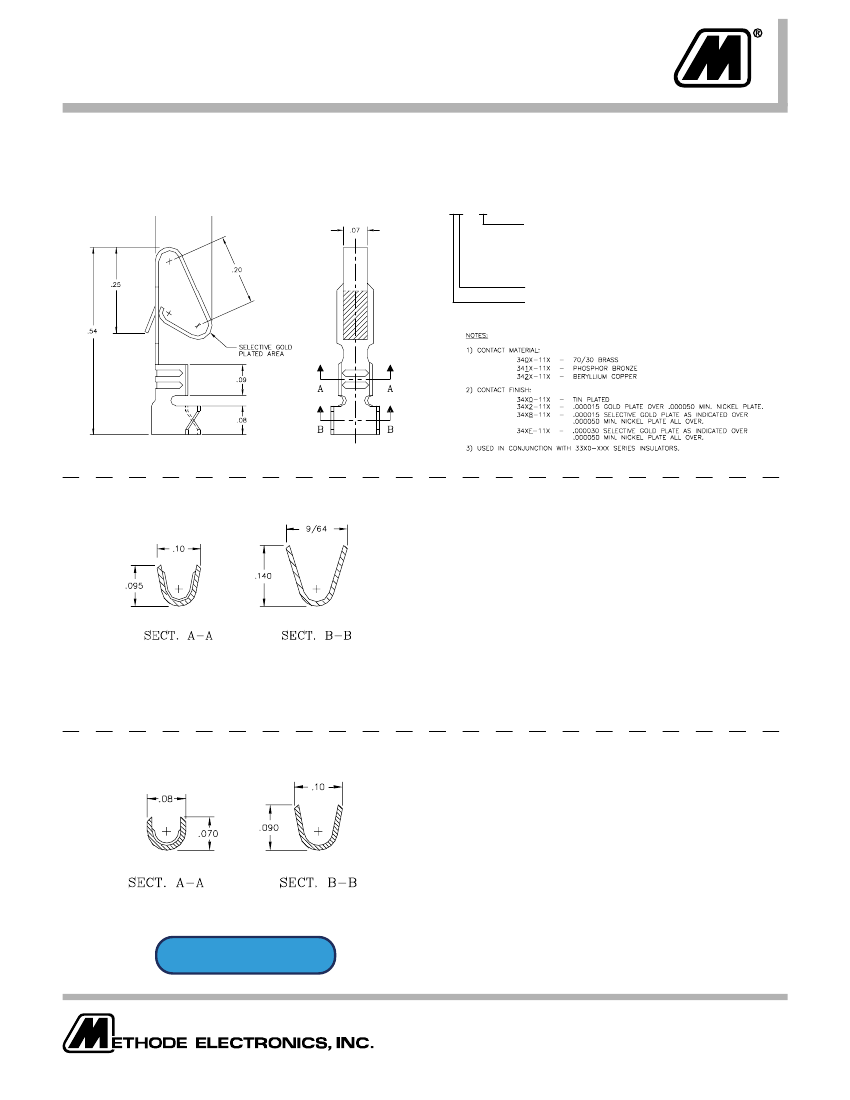

.100” (2.54 mm) Contact

3400 Series “TERMACON”

3400 Series crimp contacts are designed speciﬁcally to crimp 28 - 18 gauge wire, depending on contact

speciﬁed. Available on reels for high volume or loose style for low volume or repair work. These contacts are

required to produce complete 3300 and 3500 Series assemblies.

PART NUMBER LEGEND

34XX-11X

CRIMP SIZE

1= 18-24 AWG (LOOSE FORM)

2 = 18-24 AWG (CHAIN FORM)

3 = 22-28 AWG (LOOSE FORM)

4 = 22-28 AWG (CHAIN FORM)

CONTACT FINISH

(SEE NOTE 2)

CONTACT MATERIAL

(SEE NOTE 1)

For 18-24 AWG WIRE SIZE

(MAX. INSULATION DIAMETER .11)

Tin Plated

3400-111 Loose style

3400-112 Chain style

Gold Plated

3402 - 111 Loose style

3402 - 112 Chain style

Selective Gold

3408 - 112 Chain style (.000015)

340F - 112 Chain style (.000030)

For 22-28 AWG WIRE SIZE

(MAX. INSULATION DIAMETER .075)

Tin Plated

3400-113 Loose style

3400-114 Chain style

Gold Plated

3402 - 113 Loose style

3402 - 114 Chain style

Selective Gold

3408 - 114 Chain style (.000015)

340F - 114 Chain style (.000030)

APPLICATION TOOLING

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com

3410-111 Related Products

	3410-111	3408-112	3408-114	3400-111	3422-114	3422-113	3422-112	3410-113
Description	Wire Terminal	Wire Terminal	Wire Terminal	Wire Terminal	Wire Terminal	Wire Terminal	Wire Terminal	Wire Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	MATING: TIN	MATING: GOLD OVER NICKEL (50)	MATING: GOLD OVER NICKEL (50)	MATING: TIN	MATING: GOLD OVER NICKEL (50)	MATING: GOLD OVER NICKEL (50)	MATING: GOLD OVER NICKEL (50)	MATING: TIN
Assembly name	CONTACT	CONTACT	CONTACT	CONTACT	CONTACT	CONTACT	CONTACT	CONTACT
Maximum number of cable entries	0.11 inch	0.11 inch	0.075 inch	0.11 inch	0.075 inch	0.075 inch	0.11 inch	0.075 inch
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Contactor design	LOOSE	CHAIN	CHAIN	LOOSE	CHAIN	LOOSE	CHAIN	LOOSE
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact style	COMPRESSION	COMPRESSION	COMPRESSION	COMPRESSION	COMPRESSION	COMPRESSION	COMPRESSION	COMPRESSION
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Material	PHOSPHOR BRONZE	BRASS	BRASS	BRASS	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	PHOSPHOR BRONZE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Terminal type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Maximum wire diameter	18 AWG	18 AWG	22 AWG	18 AWG	22 AWG	22 AWG	18 AWG	22 AWG
Minimum wire diameter	24 AWG	24 AWG	28 AWG	24 AWG	28 AWG	28 AWG	24 AWG	28 AWG
Maker	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	-
Finished thickness	-	15	15	-	15	15	15	-
