ECS-80-20-20BQ-CTP-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-80-20-20BQ-CTP-TR

ECS-80-20-20BQ-CTP-TR: DescriptionParallel - Fundamental Quartz Crystal, 8MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size606KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-80-20-20BQ-CTP-TR Overview

Parallel - Fundamental Quartz Crystal, 8MHz Nom, SMD, 4 PIN

ECS-80-20-20BQ-CTP-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1338460626
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
YTEOL	6.88
Other features	AEC-Q200; TR
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	8 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
physical size	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
Series resistance	60 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

Compact and low profile

RoH Compliant (2011/65/EU)

MSL 1

Lead Finish: Au

AEC-Q200 Qualified

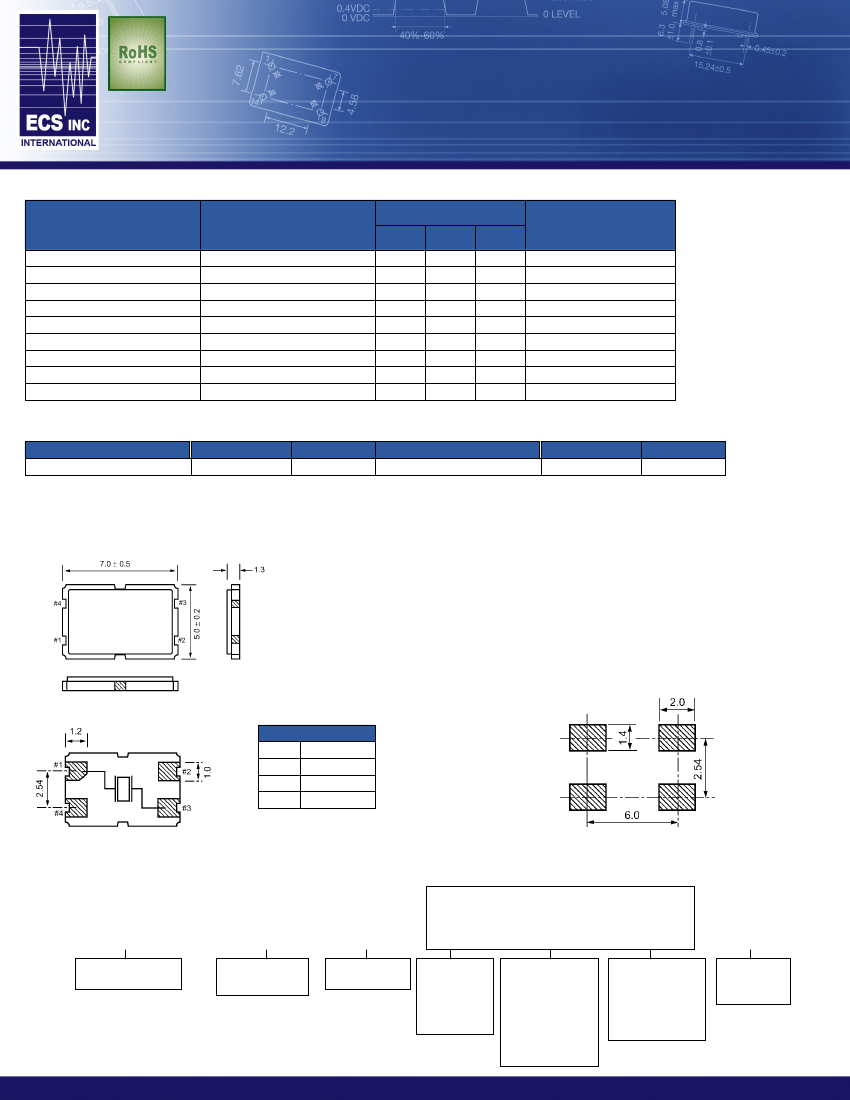

CSM-8Q

SMD QUARTZ CRYSTAL

The CSM-8Q is a miniature SMD Crystal with a 7.0 x 5.0 mm

footprint. AEC-Q200 Qualified.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (Per Year)

CONDITIONS

CSM-8Q

MIN

8.000

TYP

MAX

36.000

± 30 *

± 100 *

Series

100

+125

±5

UNITS

MHz

ppm

µW

ppm

at +25°

-55 to +125° (DU Option)

Specify in P/N

DU Option

@ +25° ±3°

-55

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

8.000 ~ 15.999

Fundamental

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

16.000 ~ 36.000

Fundamental

DIMENSIONS (mm)

Pad Connections

In/Out

**Gnd

In/Out

**Gnd

** Pad 2 & 4 is tied to metal cover and can

be tied to ground or no connected

Figure 1) Top, Side, Bottom and End views

Figure 2) Suggested Land Pattern

PART NUMBERING GUIDE: Example ECS-200-20-20BQ-DU-TR

ECS - Frequency Abbreviation - Load Capacitance - Package

200 = 20.000 MHz

See P/N Guide

20 =20 pF

S=Series

20BQ =

CSM-8Q

Custom Options

Tolerance

* Stability

Blank = Std

D = ± 100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm

W = ± 15 ppm

K = ± 10 ppm

Temp Range

Blank = Std

M = -20 ~ +70°

N = -40 ~ +85°

P = -40 ~ +105°

S = -40 ~ +125°

U = -55 ~ +125°

- Packaging

TR= Tape

& Reel

1K/Reel

Blank = Std

A = ± 25 ppm

J = ± 20 ppm

R = ± 15 ppm

C = ± 10 ppm

Rev. 4/13

1105 South Ridgeview Road

Olathe, KS 66062

*Consult Factory for available stability

options over extended temp range.

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
