39-27-1208 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-27-1208

39-27-1208: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size256KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

39-27-1208 Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

39-27-1208 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	QF 50, POLARIZED, SHROUDED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5578
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

10 to 64 circuits

Tin plated on solder tail

Complies with industry standard DIN 41654

Polarized

Selective Gold plating options for contacts

Eject levers allow end-to-end stacking with or without strain

relief with no loss of board space

Reference Information

Packaging: Tray

Mates With:

5320

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 1.0A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 500V

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: Glass-filled PBTP

Contact: Brass

Operating Temperature: -40 to +105˚C

2.54mm (.100") Pitch

QF 50

™

Shrouded Header

5578

Right Angle

With Eject Levers

Ribbon Cable Systems

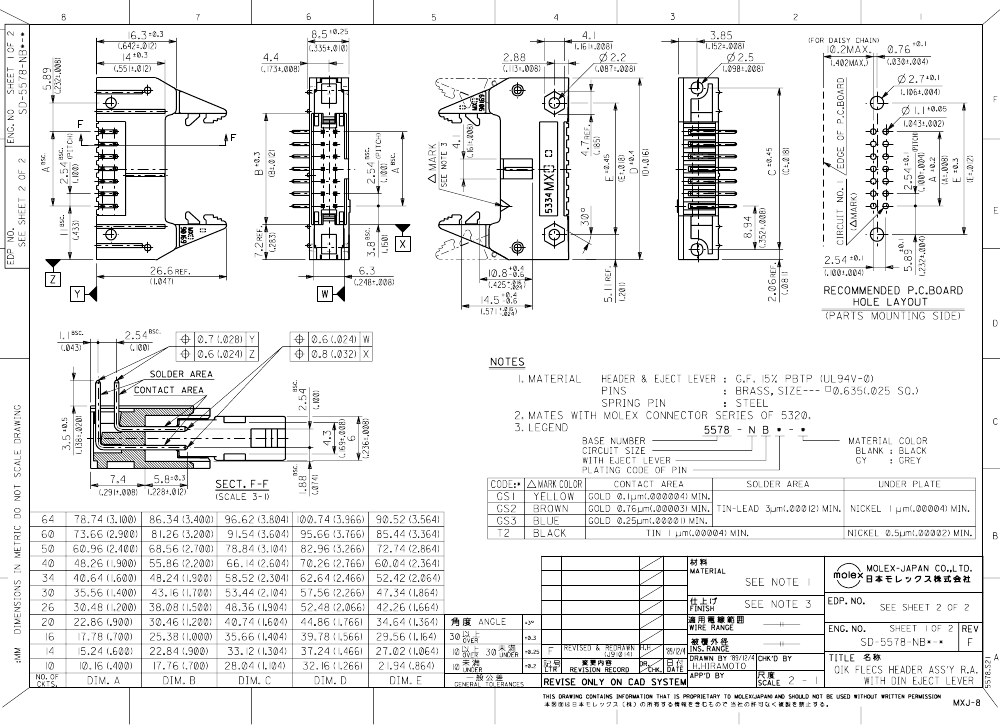

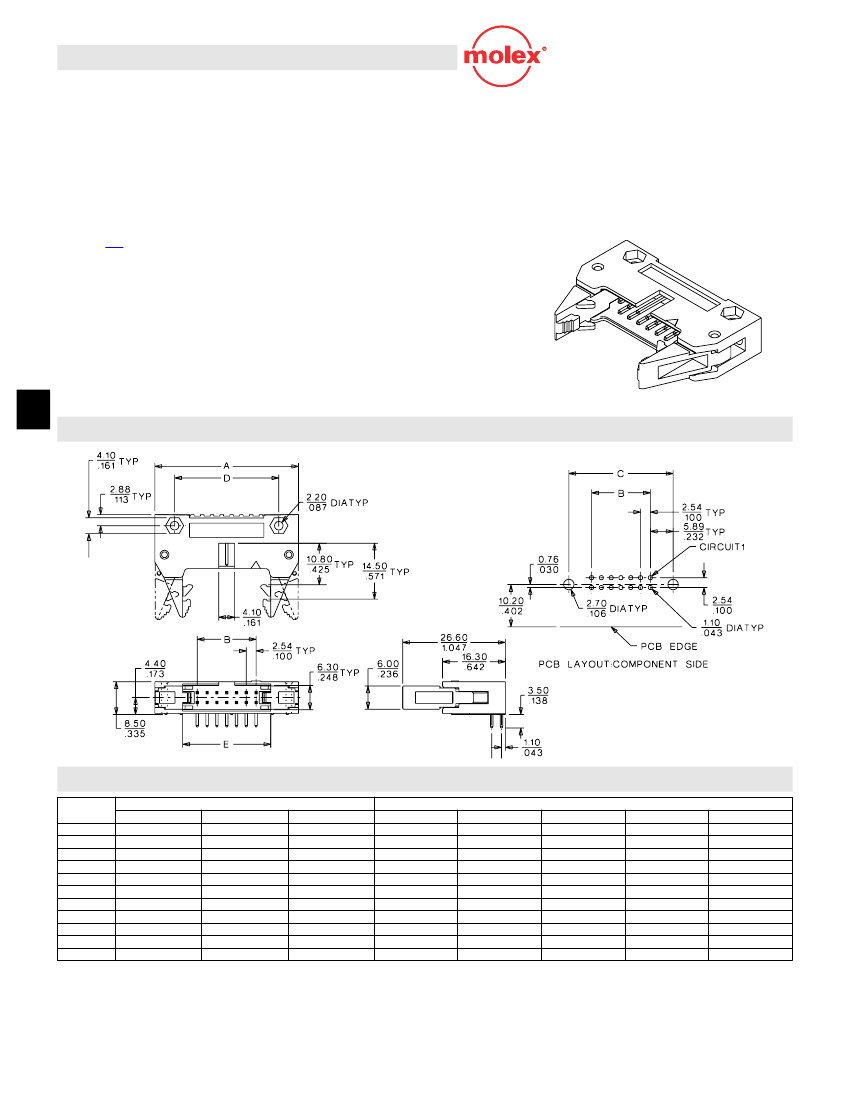

CATALOG DRAWING (FOR REFERENCE ONLY)

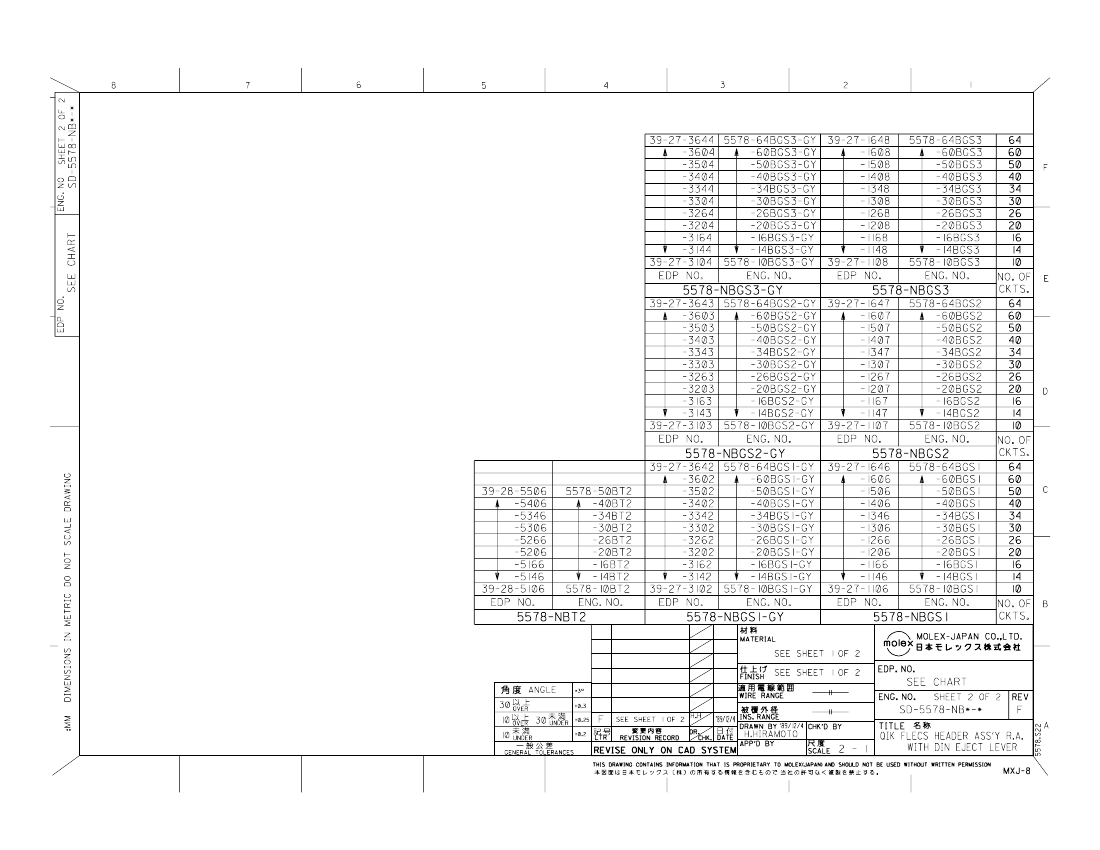

ORDERING INFORMATION AND DIMENSIONS

Circuits

Plating NBGS1

39-27-1106

39-27-1146

39-27-1166

39-27-1206

39-27-1266

39-27-1306

39-27-1346

39-27-1406

39-27-1506

39-27-1606

39-27-1646

Order No.

Plating NBGS2

39-27-1107

39-27-1147

39-27-1167

39-27-1207

39-27-1267

39-27-1307

39-27-1347

39-27-1407

39-27-1507

39-27-1607

39-27-1647

Plating NBT2

39-28-5106

39-28-5146

39-28-5166

39-28-5206

39-28-5266

39-28-5306

39-28-5346

39-28-5406

39-28-5506

(1.266)

(1.466)

(1.566)

(1.766)

(2.066)

(2.266)

(2.466)

(2.766)

(3.266)

(3.766)

(3.966)

(.400)

(.600)

(.700)

(.900)

(1.200)

(1.400)

(1.600)

(1.900)

(2.400)

(2.900)

(3.100)

Dimension

28.04 (1.104)

33.12 (1.304)

35.66 (1.404)

40.74 (1.604)

48.36 (1.904)

53.44 (2.104)

58.52 (2.304)

66.14 (2.604)

78.84 (3.104)

91.54 (3.604)

96.62 (3.804)

(.864)

(1.064)

(1.164)

(1.364)

(1.664)

(1.864)

(2.064)

(2.364)

(2.864)

(3.364)

(3.564)

(.700)

(.900)

(1.000)

(1.200)

(1.500)

(1.700)

(1.900)

(2.200)

(2.700)

(3.200)

(3.400)

32.16

37.24

39.78

44.86

52.48

57.56

62.64

70.26

82.96

95.66

100.74

10.16

15.24

17.78

22.86

30.48

35.56

40.64

48.26

60.96

73.66

78.74

21.94

27.02

29.56

34.64

42.26

47.34

52.42

60.04

72.74

85.44

90.52

17.76

22.84

25.38

30.46

38.08

43.16

48.24

55.86

68.56

81.26

86.34

Plating NBGS1: 39

" (1

m) min. Nickel underplate. Contact area: 0.1

m min. Gold.

Solder area: 3

m min. Tin/Lead.

Plating NBGS2: 39

" (1

m) min. Nickel underplate. Contact area: 0.76

m min. Gold.

Solder area: 3

m min. Tin/Lead.

Plating NBT2: 20

" (0.5

m) min. Nickel underplate. Contact and solder area: 39

" (1

m) min. Tin.

H-24

MX01
