FAS-16-18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FAS-16-18

FAS-16-18: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Plug; CategoryThe connector The connector; File Size44KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric View All

FAS-16-18 Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Plug

FAS-16-18 Parametric

Parameter Name	Attribute value
Objectid	8353212513
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.2
Other features	POLARIZED
body width	0.276 inch
subject depth	0.559 inch
body length	0.98 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
polarization key	SHRD CENTER
Rated current (signal)	1 A
Guideline	UL
Terminal length
Termination type	IDC
Total number of contacts	16
UL Flammability Code	94V-0
Maximum wire diameter	28 AWG
Minimum wire diameter	30 AWG

Preview

Download Datasheet

View All

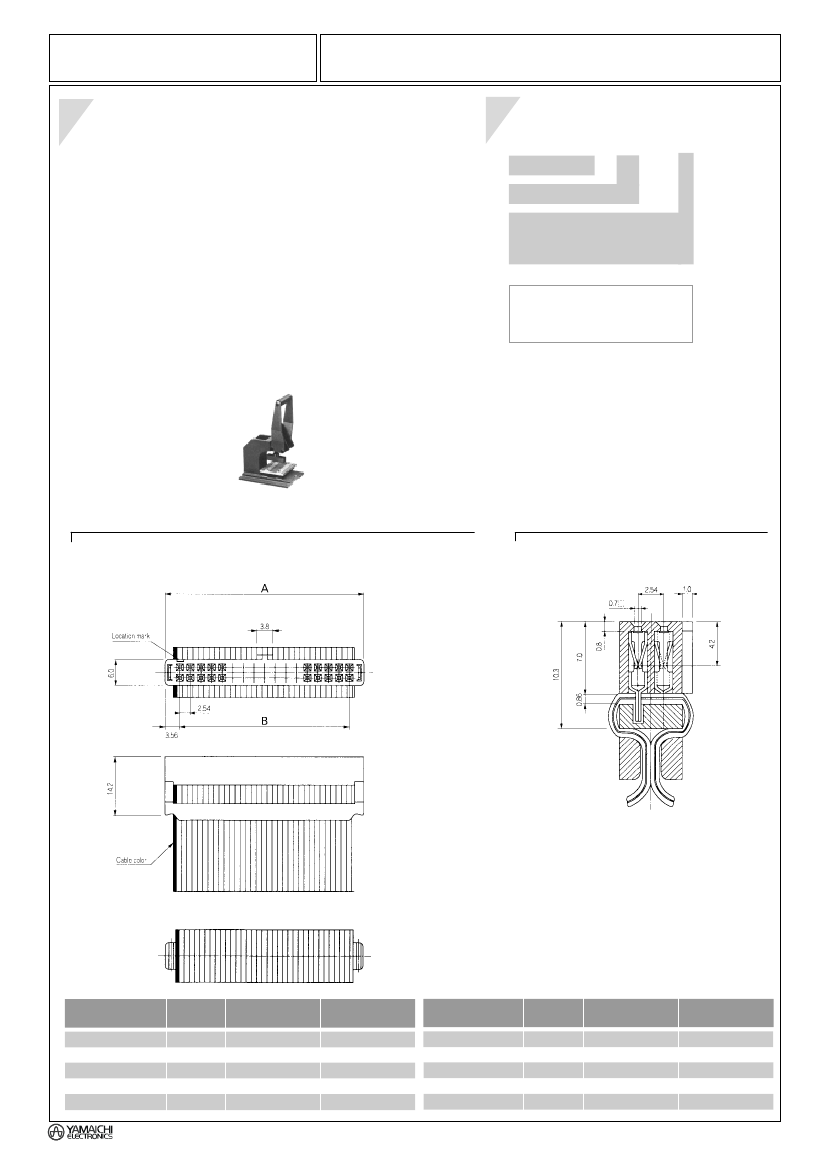

FAS Series

Specifications

IDC - Socket, 2.54mm Pitch

(2-Point Contact)

Part Number

(Details)

FAS

Series

(socket)

No. of Leads

Center Key Option:

08 = Without Center Key

18 = With Center Key

Insulation Resistance: 1,000MΩ min. at 500 V DC

Withstanding Voltage: 700 V AC rms for 1 minute

Contact Resistance:

30mΩ max. at 10mA

Current Rating:

Operating Temp. Range: –20°C to +105°C

- *8

Materials and Finish

Housing: PBT, UL 94V-0 rated

Contacts: Copper Alloy

Plating: Gold over Nickel

Features

2.54mm contact pitch sockets for flat cables with Daisy Chain strain

relief

Variations include latch header plugs (for PC-board connection

and IDC) and IDC sockets

Two-point contact of the flat cable gang wired sockets ensures

high reliability

Applicable Cables

AWG 28 stranded wire,

AWG 30 solid wire, 1.27 mm pitch

Jigs and Tools

Hand press: FX-003

Applicable jig: FA-005

Applicable Dimensions

(Reference Only)

Contact Details

YAMAICHI ELECTRONICS - Munich 089 / 451021-0

Part No.

FAS-10-*8

FAS-16-*8

FAS-20-*8

FAS-26-*8

FAS-30-*8

No. of

Leads

17.28

24.90

29.98

37.60

42.68

10.16

17.78

22.86

30.48

35.56

Part No.

FAS-34-*8

FAS-40-*8

FAS-50-*8

FAS-60-*8

FAS-64-*8

No. of

Leads

47.76

55.38

68.08

80.78

85.86

40.64

48.26

60.96

73.99

78.74

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER
