5295-26C/BRJ: DescriptionD Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size194KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

5295-26C/BRJ Overview

D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking, Receptacle

5295-26C/BRJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	306939215
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.496 inch
subject depth	0.37 inch
body length	1.543 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.09 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Rated current (signal)	5 A
Guideline	UL
Shell surface	TIN
Terminal length	0.283 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	26

Preview

Download Datasheet

View All

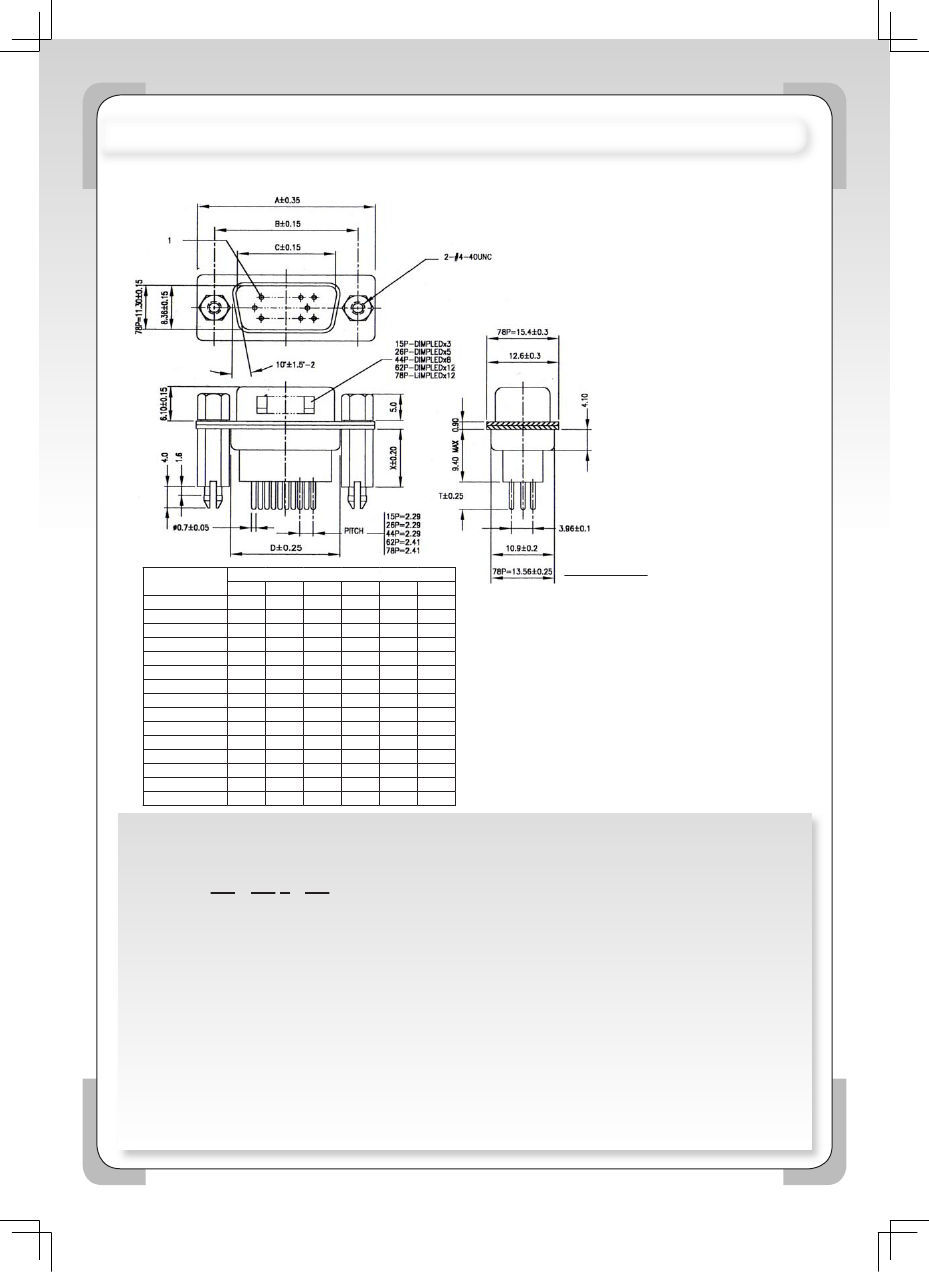

D-SUB. HIGH DENSITY MALE CONNECTOR WITH MACHINED PINS HIGH PROFILE

STRAIGHT PCB MOUNT TYPE

SPECIFICATIONS

Current Rating:

5A

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

MATERIALS

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

Part No.

5295-15A/xx

5295-15B/xx

5295-15C/xx

5295-26A/xx

5295-26B/xx

5295-26C/xx

5295-44A/xx

5295-44B/xx

5295-44C/xx

5295-62A/xx

5295-62B/xx

5295-62C/xx

5295-78A/xx

5295-78B/xx

5295-78C/xx

A

30.80

39.20

53.00

69.40

67.00

Dimensions(mm)

B

C

D

24.99 16.92 19.20

33.32 25.25 27.70

47.04 38.95 41.10

63.50 55.40 57.30

61.10 52.80 55.10

5295-xxx/BRJ

T

3.60

5.40

7.20

3.60

5.40

7.20

3.60

5.40

7.20

3.60

5.40

7.20

3.60

5.40

7.20

X

9.60

11.00

12.70

9.60

11.00

12.70

9.60

11.00

12.70

9.60

11.00

12.70

9.60

11.00

12.70

ORDERING INFORMATION:

P/N 5 2 9 5 - x x x / x x

1 2 3 4

1. CONNECTOR TYPE:

"95" MALE WITH MACHINED PINS

2. NO. OF CONTACTS:

15, 26, 44, 62, 78

3. PIN LENGTH & CONTACT TYPE:

"A" T= 3.6MM MACHINED PINS

"B" T= 5.4MM MACHINED PINS

"C" T= 7.2MM MACHINED PINS

4. MOUNTING OPTION:

" " Ø3.05MM THROUGH HOLES

"BR" BOARD LOCK

"BRJ" BOARD LOCK & SCREW

C0037
