SocketModem CDMA
®
Universal Socket Benefits
• Interchangeable
communications
device
s
• Quick-to-market
• Global approvals
• Easy migration to future networks

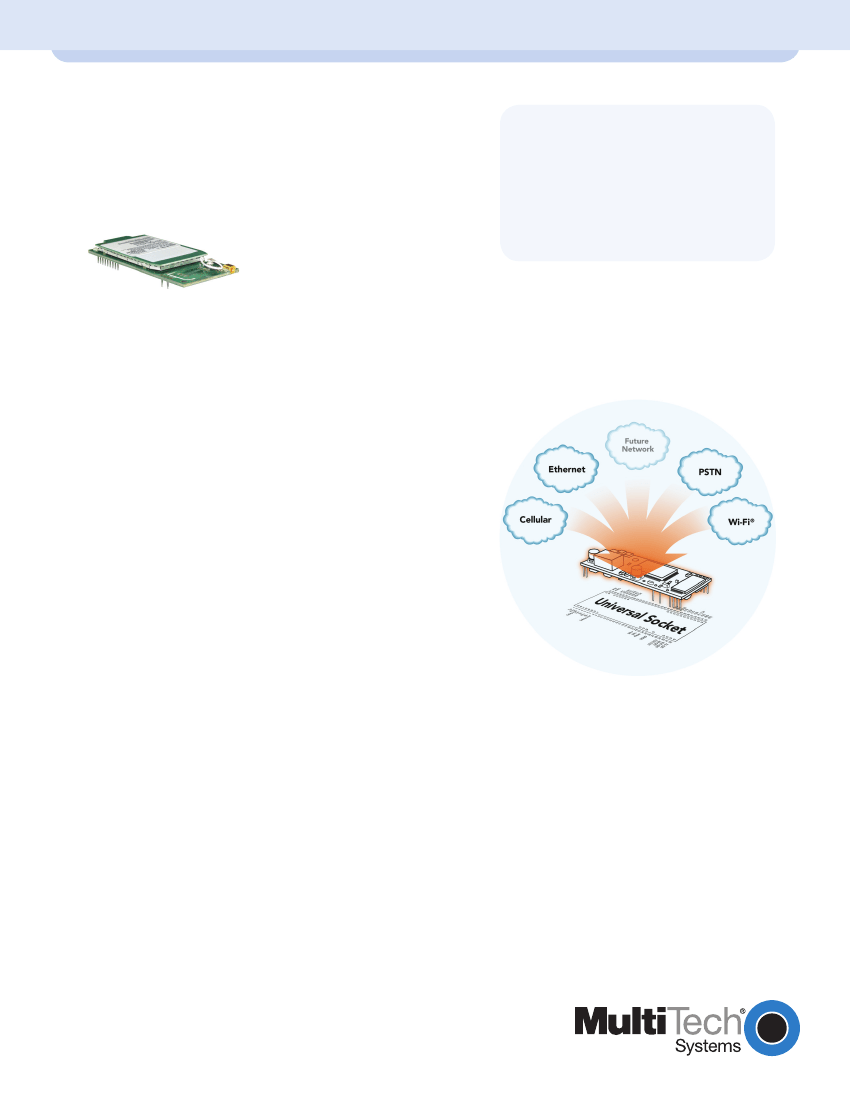

Embedded Cellular Modem
The Multi-Tech SocketModem
®
CDMA cellular modem is a complete, ready-to-integrate communications device
that offers standards-based dual-band CDMA2000 1xRTT performance. This quick-to-market communications
device allows developers to add wireless communication to products with a minimum of development time and
expense. The SocketModem CDMA cellular modem is based on industry-standard open interfaces and utilizes
Multi-Tech's Universal Socket design.
Features
• CDMA2000 1xRTT
• Qualcomm
®
MSM6050 chipset
• CDMA IS-95A, IS-95B backwards compatible
• Dual-band 800/1900 MHz CDMA
• Universal Socket connectivity
• Packet data up to 153.6K bps forward and reverse
• Circuit-switched data up to 14.4K bps
• Short Message Services (SMS)
• MMCX antenna connector
• Serial interface supports DTE speeds to 230K bps
• AT command compatible
• CDG 1 and 2 network certified
• Two-year warranty
Highlights
Applications. The SocketModem CDMA cellular modem is
targeted at applications that periodically need to send or
receive data over a wireless network. It is ideal for:
• Appliances
• Asset tracking
• ATM terminals
• Automotive
• Data collection
• Industrial and medical
remote monitoring systems
• Remote diagnostics
• Remote metering
• Security systems
• Vending/gaming machines
• Other devices requiring
wireless connectivity
Developer's Kit. The Developer's Kit allows you to plug in the
communications device
and use it for testing, programming
and evaluation. The kit includes one development board with
RS-232 DB-25 connector, universal power supply, antenna
and RS-232 cable.
Specifications
Packet Data Features
CDMA2000 1xRTT, up to 153K bps forward & reverse
channels
Circuit Switched Data/Fax Features
IS-95A, IS-95B up to 14.4K bps
Integration Reduces Space, Power and Cost. The SocketModem
CDMA cellular modem integrates the controller, RF
transceiver, and antenna interface into one
communications
device
. This integration requires low power, low real estate
and provides an overall reduction in costs.
Reduces Development Time. The SocketModem CDMA
cellular modem enhances your product while you focus
on developing its core features. It actually provides faster
time-to-market because it relieves the burden and expense
of obtaining CDG 1 and 2 network and RF approvals.
Management Features. The SocketModem CDMA cellular
modem provides advanced management features including
phone book management, fixed dialing number, real time
clock and alarm management.

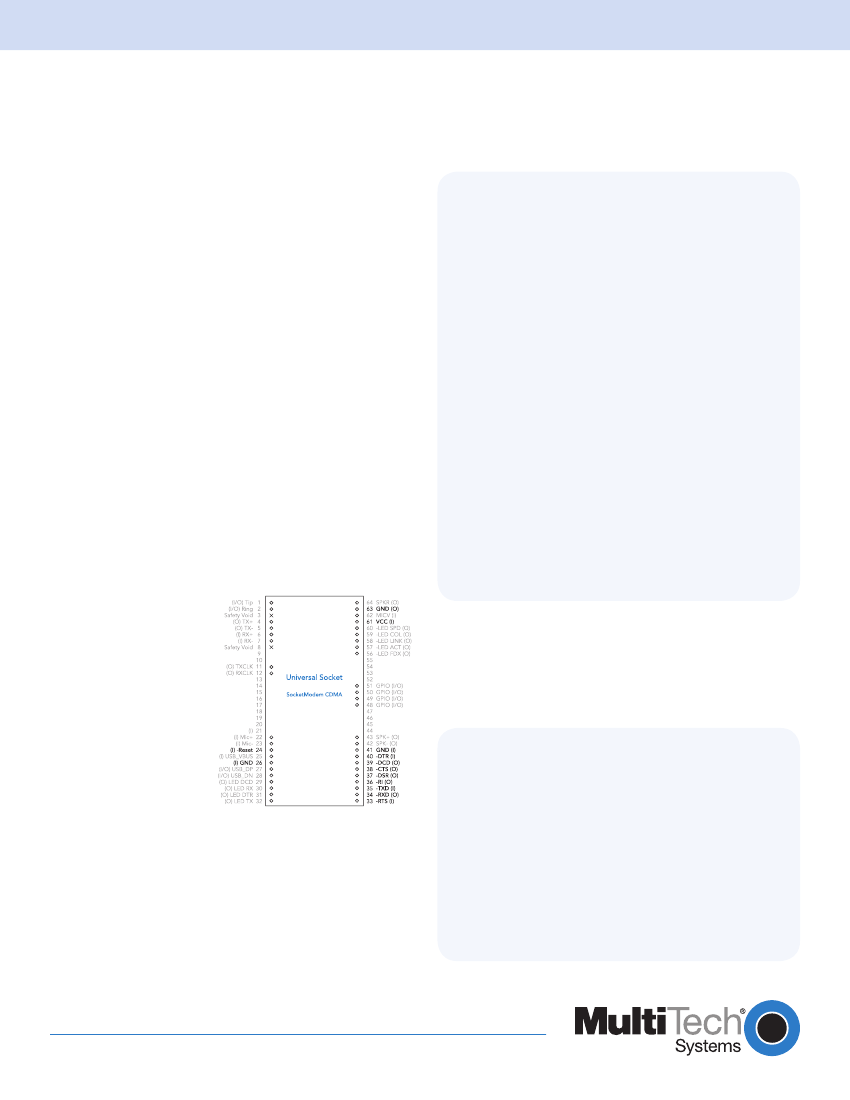

SocketModem CDMA Pin-Out. The SocketModem CDMA
cellular modem interfaces easily with existing products
through a standard serial communication channel. The
serial DTE channel
is capable of transfer
speeds to 230K bps
and can be interfaced
directly to a UART
or microcontroller.
The complete on-
board RF transceiver
interfaces with an
antenna for direct
connection to wireless
SMS, circuit-switched
dial-up, or packet
data networks. It also
includes an onboard
LED to display network status.
Universal Socket Connectivity. Multi-Tech’s Universal
Socket is a flexible, comm-port architecture that provides
cellular, Ethernet, PSTN or Wi-Fi
®
network access with
interchangeable
communications device
s. This means you
can utilize one system design and populate it with your
connectivity
device
of choice accommodating multiple
connectivity requirements. In addition, you are assured a
seamless migration to future technologies.
World Headquarters
Tel: (763) 785-3500
(800) 328-9717
www.multitech.com
5/10 86002039
SMS Features
Text & PDU, Point-to-Point, cell broadcast
Connectors
Antenna: MMCX
Power Requirements
5VDC; 400mA typical, 700mA maximum
Physical Description
3.1" L x 1.4" W x 0.5" H; 1.2 oz.
(8.0 cm x 3.5 cm x 1.2 cm; 34 g)
Operating Environment
-30° to +70° C (FCC certified from -30° to +50° C)
Certifications
EMC: FCC Part 2, 15, 22, 24, EN 55022, EN 55024
Safety: cUL, EN 60950, UL 60950
Network: CDG 1 & 2
RoHS Compliant
Ordering Information
Product
MTSMC-C*
Ordering Codes
-N2
-N3
-N16
Description
800/1900 MHz CDMA Modem
Description
For Sprint Networks (USA)
For Verizon Networks (USA)
For Aeris Networks (USA)
Region
Regional
* Use ordering codes for specific build options. Go to www.multitech.com for
detailed product model numbers.
Made in Mounds View, MN, U.S.A.
Features and specifications are subject to change without notice.
Trademarks / Registered Trademarks: SocketModem, Multi-Tech, and the
Multi-Tech logo: Multi-Tech Systems, Inc. / All other products and technologies
are the trademarks or registered trademarks of their respective holders.
