892-001-031-4NA5-2B7-12

Description
Circular Connector
CategoryThe connector    The connector
File Size1MB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

892-001-031-4NA5-2B7-12 Overview

Circular Connector

892-001-031-4NA5-2B7-12 Parametric

Parameter NameAttribute value
Objectid1321040217
Reach Compliance Codecompliant
SERIES 89
Circular Connectors
Front Panel Mount, Threaded Receptacle with Insulated

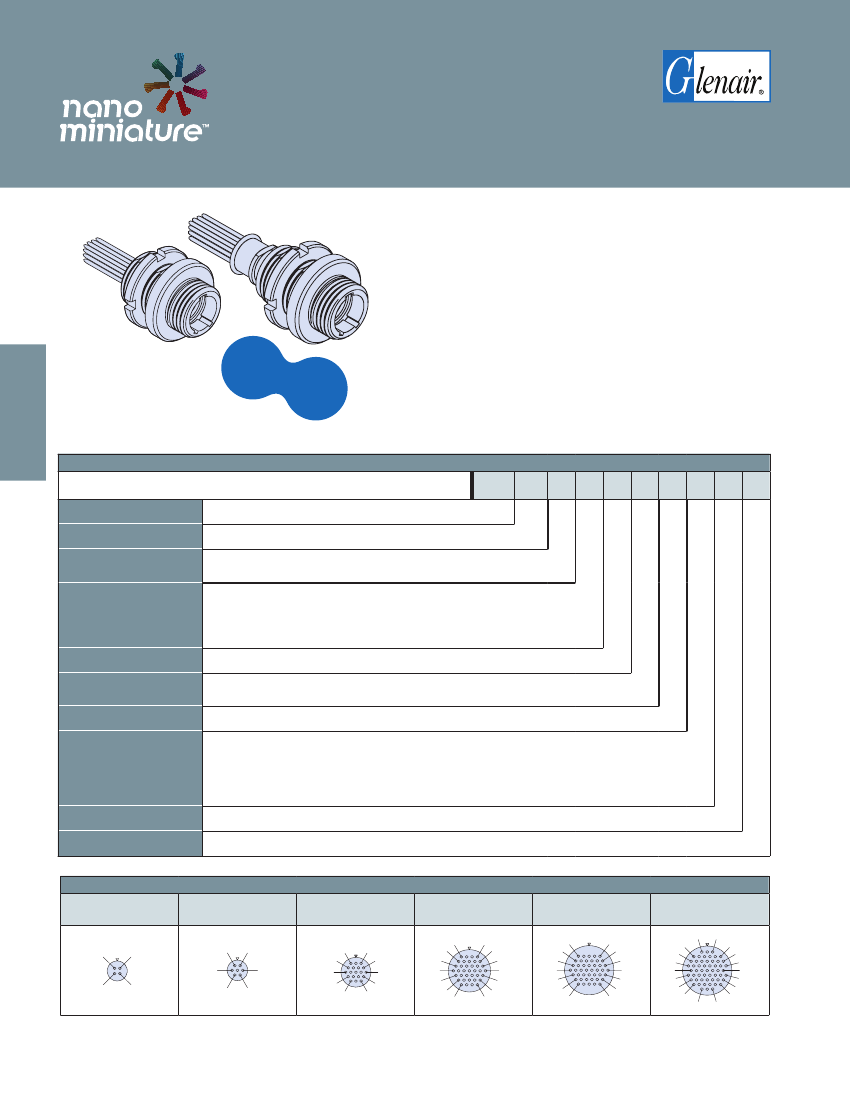

Wire - How to Order
Glenair Front Panel Mount Threaded Coupling Receptacle
Connectors
feature gold alloy TwistPin contacts, offering
premium performance and reliability for demanding
applications. Available with or without backshell. Backshell
option available with shrink boot or overmolding.
Choose Aluminum or Stainless Steel Shells
in 6 layouts from
4 to 55 contacts. These connectors are intermateable with
nanominiature plug connectors 892-006.
B
Sample Part Number
Series
Shell Style
Accessory
Shell Size/Contact
Arrangement
Polarization
Shell Material/Finish
Wire Gauge
MATES
WITH 892-006
How To Order
892
892
= Nano Circular with Insulated Wire
001
= Front Panel Mount Threaded Coupling Receptacle
01
= No Backshell
02
= With Backshell
03
= Overmolded
04
= Shrink Boot
1-4
- Shell Size 1 with 4 contacts
3-37
- Shell Size 3 with 37 contacts
1-7
- Shell Size 1 with 7 contacts
4-44
- Shell Size 4 with 44 contacts
2-19
- Shell Size 2 wih 19 contacts
4-55
- Shell Size 4 with 55 contacts
See Receptacle Mating Face View and Contact Layout Table
N
= Normal
A
= Alternate
S1
= Stainless Steel/Zinc Cobalt (Black)
S2
= Stainless Steel/Passivated
-001 -02 1-7
N
A2
-0
A
7
-12
A2
= Aluminum/Electroless Nickel
A5
= Aluminum/Gold Over Nickel
0
= 30 AWG
2
= 32 AWG
Wire Type
A
= Ultra Lightweight XLETFE Insulation, Silver Coated Ultra High Strength Copper. (Not available in #32
AWG)
B
= Extruded PTFE Insulation, Silver Coated Copper NEMA HP3-ETX (MIL-W-16878/6)
C
= Cross Linked Modified ETFE Insulation, Silver Coated High Strength Copper. MIL-W-22759/33 (Not
available in #32 AWG)
Wire Color
Wire Length (Inches)
1
= White
2
= Yellow
7
= 10 Color repeating (Wire type A is striped, types B and C are solid colors)
12
= 12.00 + 1.00 Inches; as required in one inch increments.

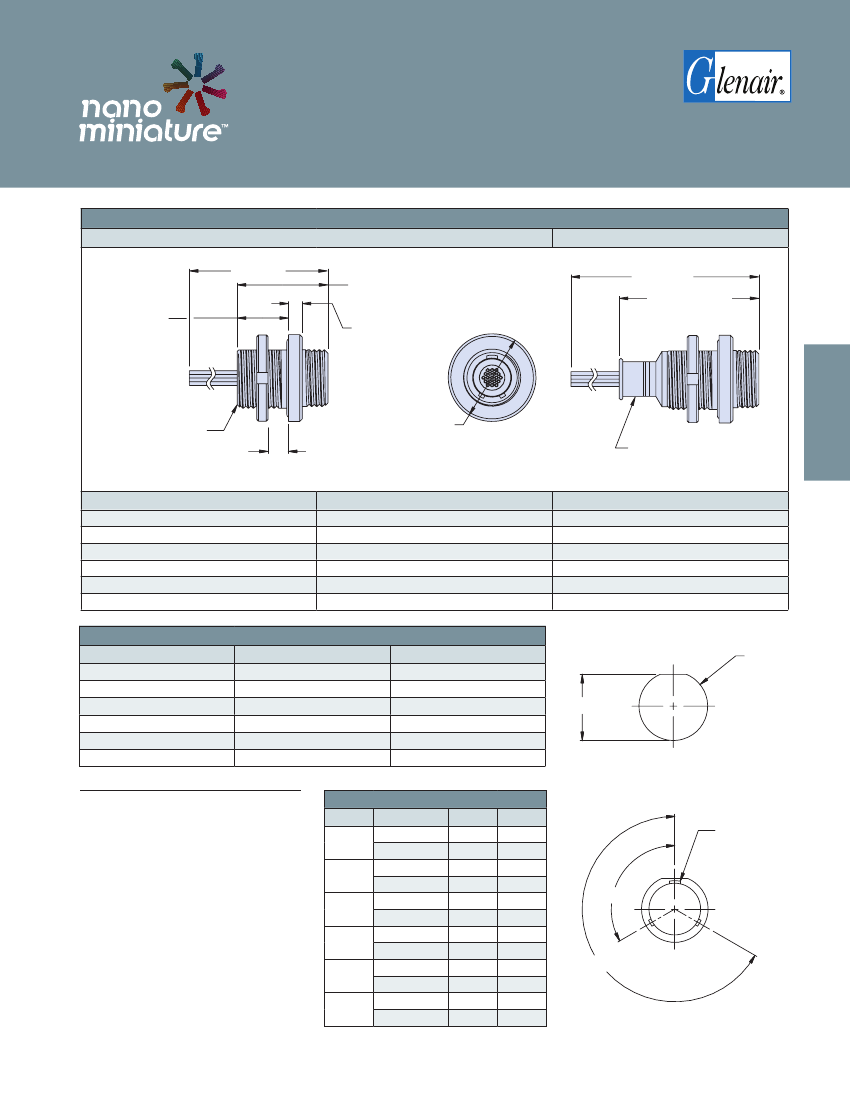

Receptacle Mating Face View and Contact Layout
Size 1-4
4 Contacts
2
1
Size 1-7
7 Contacts
2
5
1
Size 2-19
19 Contacts
3
7
1
4
8
19
13
17
15
22
28
Size 3-37
37 Contacts
9
4
1
5
10
16
23
37
34
29
11
18
26
33
39
Size 4-44
44 Contacts
5
1
6
12
19
27
34
16
24
31
93
Size 4-55
55 Contacts
9
3
1
4
10
3
7
6
12
16
4
3
33
44
40
46
52
55
53
17
25
32
40
47
B-8
