Vectorbord
®
Backplanes
Uncommitted
Universal Uncommitted Backplanes, 96-Pin or 160-pin DIN
3U Backplanes
with 6 Layer Construction
Universal (uncommitted) multilayer backplanes are designed for unique one of a kind applications requiring custom pin-out wiring from con-
nector to connector. Each individual connector pin must be “assigned” by connecting to adjacent power or ground pins with wire or jumpers.
Power or ground input through a labeled series of power taps (screw terminals) along to top and bottom of the board.
These backplanes are designed for maximum utility by incorporating labeled rows of power and ground pins for each connector slot. Up to
four distinct power planes and two ground planes accessible for each slot.+5V can be reassigned. Other power planes simply labeled AUX
A, AUX B, and AUX C. Two separate ground planes available.
Backplanes
Features Include:
• Available in slot counts of minimum 3 to 21 (0.80” spacing)
• High performance wire-wrap interconnection
• 3U size can combine into 6U or 9U
• Connector spacing of 4HP (0.800”)

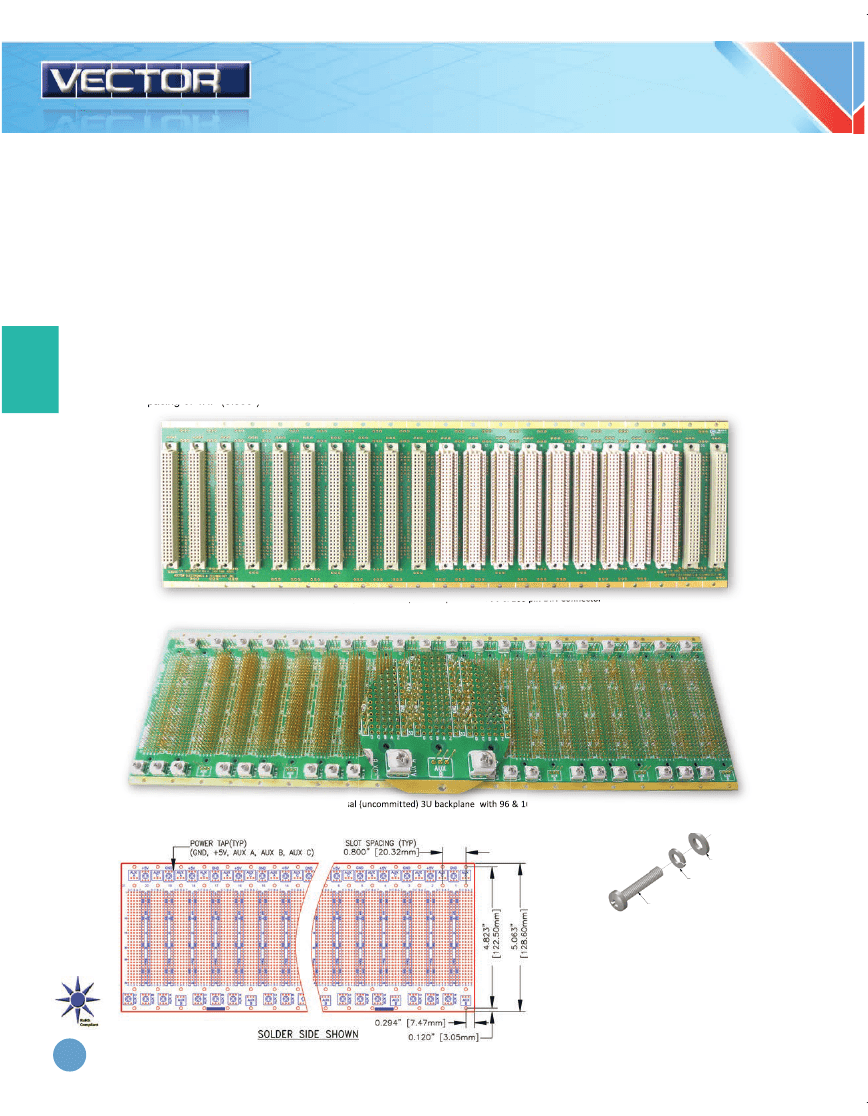

Front View Universal (uncommitted) 3U backplane with 96 & 160 pin DIN Connector
Rear View Universal (uncommitted) 3U backplane with 96 & 160 pin DIN Connector
Backplane Mounting Hardware
Each Set includes:
M2.5 X 12MM Screw
#3 Lockwasher
M2.5 (DIN#125) Flat Washer
HD56-1
42 sets
HD56
12 sets
3U with 0.8” connector spacing (min. 3-slots)
3U can combined to 6U or 9U.
22
Specification subject to change without notice
www.vectorelect.com
800-423-5659
Vectorbord
®
Backplanes
Uncommitted
6 Layer Construction
will accommodate 5-row, 160-pin DIN or 3-row, 96-pin DIN connectors

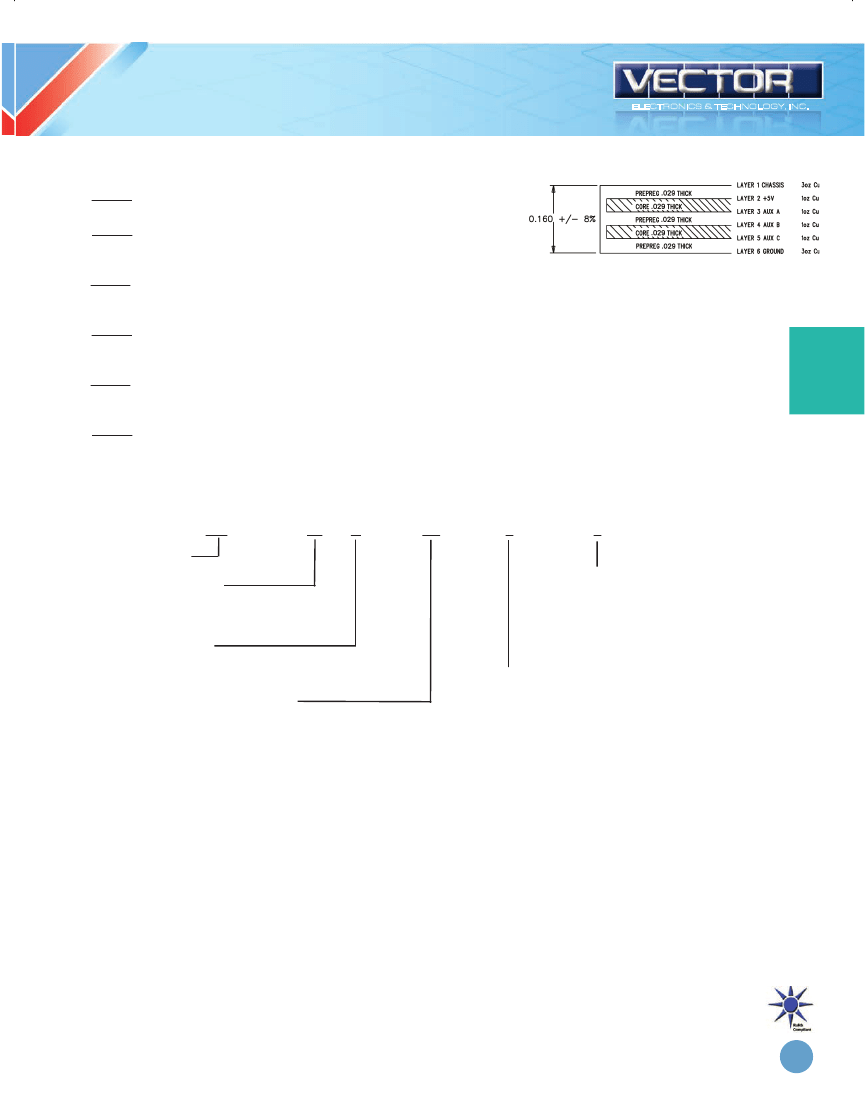

• Layer 1:
Chassis Ground (component side), full coverage on component side, also on
solder side and fully isolated from circuit ground.
• Layer 2:
+5V independent voltage plane, input source power through labeled power-
bug (screw terminals) on rear. Accessible to assign to connector pin through gold-plat-
ed wire-wrap power pick-ups labeled adjacent to connector.
• Layer 3:
AUX A independent voltage plane (can be +12V), input source power through
labeled power-bug (screw terminals) on rear. Accessible to assign to connector pin
through gold-plated wire-wrap power pick-ups labeled adjacent to connector.
• Layer 4:
AUX B independent voltage plane (can be -12V), input source power through
labeled power-bug (screw terminals) on rear. Accessible to assign to connector pin
through gold-plated wire-wrap power pick-ups labeled adjacent to connector.
• Layer 5:
AUX C independent voltage plane (can be +3.3V), input source power through
labeled power-bug (screw terminals) on rear. Accessible to assign to connector pin
through gold-plated wire-wrap power pick-ups labeled adjacent to connector.
• Layer 6:
Circuit Ground (solder side) independent ground plane, input source power
through labeled power-bug (screw terminals) on rear. Accessible to assign to connec-
tor pin through gold-plated wire-wrap power pick-ups labeled adjacent to connector.
ELECTRONICS & TECHNOLOGY, INC.
Backplanes
Uncommitted Backplane Ordering Table
UM
UM = 96-pin
UX = 160-pin
Number of Slots
Power pick-up pins
0 = No pins installed
1 = Power pins installed
2 = Power and Ground pins
installed
21
A
3U
2
0
Slot Spacing
A = 0.8”
Board Height
3U
Power Input Connectors
0 = No Connectors
2 = Power Bugs
www.vectorelect.com
800-423-5659
23
