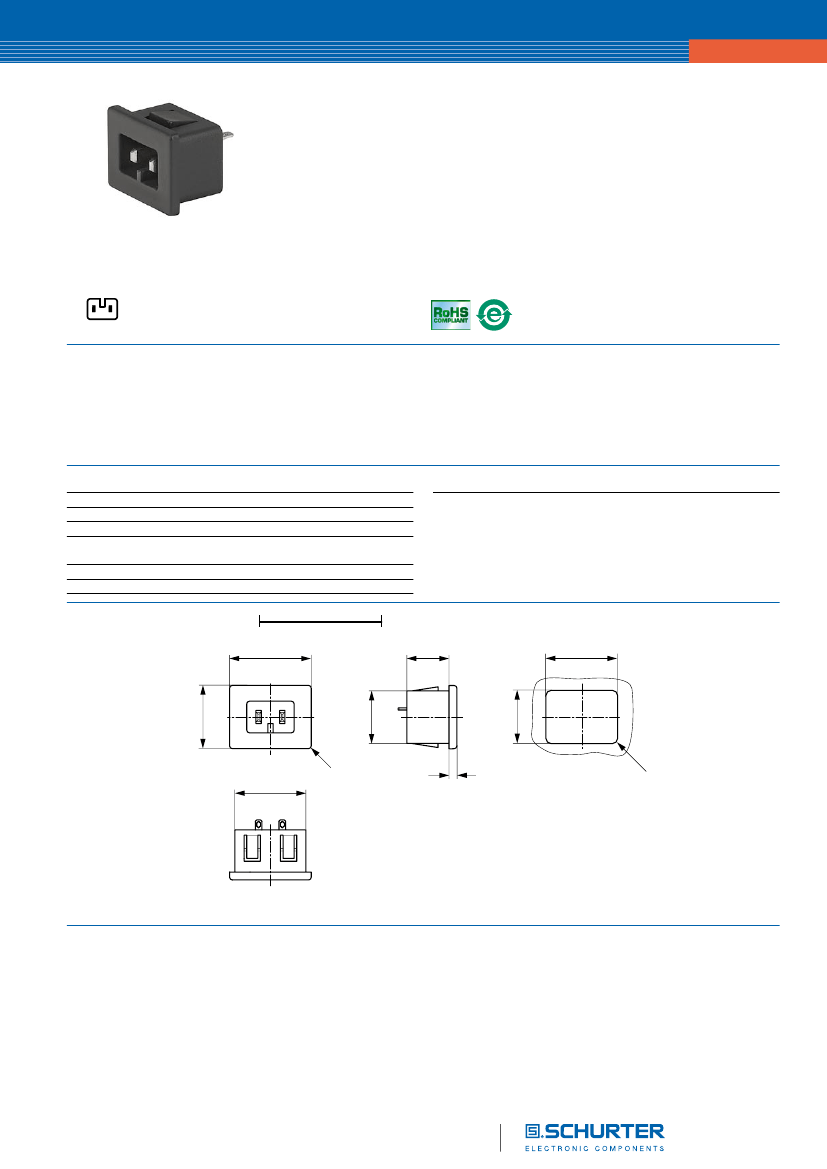

Appliance inlet for low voltage, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
20
70° C
Description
- Panel Mount:
Snap-in version, Frontside
- 1 Function:
- Appliance Inlet, Pin temperature 70 °C, Protection class II, Solder or
Quick-Connect
Technical Data
Ratings IEC
Allowable Operation Temp.
Degree of Protection
Protection Class
Panel Thickness s
Material: Housing
Dimensions
SE
31 mm
7 A / 48 VAC; 50 Hz
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class II acc. to IEC 61140
Snap-in version from 1 mm to 1.5 mm
PA6, black / grey / white, UL 94V-0
31
20.2
- 0
24
20
+0.2
PH
A
27
Length of the terminal please find at the order code configuration table
Dimension "X" please ref. to table order code
-O
UT
References
Weblinks
This type is Phase-out without alternate type
Last order date: 31.12.2012
pdf-datasheet, html-datasheet, General Product Information, Approvals,
RoHS, CHINA-RoHS, Mating Connectors, e-Shop, SCHURTER-Stock-
Check, Distributor-Stock-Check, CAD-Drawings, Accessories, Detailed
request for product
16
27.2
- 0
+0.2
R
R
<2
1
3
Connectors
20
www.schurter.com/pg07
Config. Code
1201
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
Connectors (Inlets/Outlets)
The characters are placeholders for the correspondingly keys of selections from the key tables.
Type
protection class 1
Configuration
key
X
1201
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Terminals
Terminal L
Configuration
key
2
3
7
8
9
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (2.8 x 0.8 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
Terminal N
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (2.8 x 0.8 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
Symbols similar as in table A
E-
Configuration
key
2
3
7
8
9
1201
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Terminals
1201
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Terminals
Terminal Ground
Symbols similar as in table A
Packaging unit
Mating Outlets/Connectors
PH
AS
Configuration
key
100 Pcs
Category / Description
Plug Overview complete
Appliance Outlet, Cord Connector (Rewireable), Straight, for Low Voltage
Plug further types to 1201
1251
2
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
28.02.2013
OU
T
Color
Black
Configuration
key
A
Grey
B
White
D
1201
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Type
1201
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Color
1201
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Style
Style
Configuration
key
4
snap-in (x=panel thickness)
1201
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Dimension X
Dimension "X"
41
Configuration
key
The dimension "X" is dispalyed in (
1
/
10
mm). This information is also valid for the
order code
1201
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Orientation of Terminals
Orientation of Terminals
horizontal
Configuration
key
A
B
C
vertical
vertical right
