WJR7000
Preliminary
Key Features
•
•
•
•
•
•
•
1/2 Watt Gen 2 Dense Reader Mode
Multi-protocol Support
Fast 40/240 KHz Miller Sub-Carrier Data Rate
Dynamic RF Output Power: 18 to 30dBm Range
Two Antenna Ports: Near or Far-field capable
World Wide Capability: Configurable to meet
country specific RFID UHF requirements*
Read Range up to 20ft**
WJ Communications’ WJR7000 UHF RFID
reader module is designed to enable RFID UHF
Gen2 capability for handheld readers, printers and
forklift readers. This allows original equipment
manufacturers, value added resellers and system
integrators to reach a broad spectrum of end cus-
tomers. WJ’s capability to configure WJR7000
modules for different country specific UHF fre-
quency requirements, to provide 1/2 watt Gen2
dense reader mode and to implement a 40/240
KHz data rate will enable high performance solu-
tions that can be deployed worldwide. The
WJR7000 is backwards compatible with the
MPR7000.
The 0.5-watt (+27dBm) WJR7000 reader module
operates in the UHF frequency band (902-928
MHz) used by North America and some Asia-
Pacific regions. The reader includes the RF, digi-
tal circuitry and embedded firmware required for
ISO18000-6C (UHF Gen2) and Class 0/0+ stan-
dards. The API command set enables customers
to control RF output power per command accord-
ing to their application needs. WJ provides free
demonstration software for quick evaluation, an
open source DLL and API for simple integration
and standard 3.3-5V CMOS serial communication
for universal connectivity.
Applications
Low Power Mobile RFID Devices for item level tracking
RFID Enabled Handheld Readers
RFID Enabled Fork Lift Readers
RFID Portal Readers
* Please refer to table for list of countries supported
** Read range is dependent on environment, antenna gain and other factors
WJ Communications Phone: 1-800-WJ1-4401 Fax: 408-577-6621
www.wj.com
PRELIMINARY
Key Product Features
Compliant to Global Standards
•
Class 0/0+
•
ISO 18000-6C (UHF Gen2)
⇒
Supports Multiple Frequencies (Countries)
⇒
Worldwide Coverage
⇒
⇒
⇒
⇒
1/2 Watt Dense Reader Mode (DRM)
40/240 KHz Data Rate
1 Watt Maximum Transmit Power (+30dBm)
Flexible Antenna Ports
•
Single (Monostatic) Antenna Operation
•
Dual Antenna Ports
•
50 MMCX Coaxial Connectors
•
Supports both Near and Far-Field
68-pin PCMCIA Type II PC Card form factor
Serial Interface 3.3V CMOS Levels
Superior Performance
⇒
⇒
Ease of Integration
Specifications
Symbol
fRFID
fCH
CH
V
CC
I
PEAK OP
P
TX-Max
P
RANGE
P
STEP
T
OPERATING
Sf
Parameter
RF Frequency—UHF Operation
Channel Spacing
Frequency Hopping Channels (See Hop Frequency
Channels Table)
Supply Voltage @ 1.3A, Connected to System*
Peak Operating Current**
Maximum Transmit Power
Power Control Range
Step Size
Operating Temperature Range
Frequency Stability
Min
902
Typ
500
50
Max
928
Units
MHz
kHz
Channels
4.9
5.0
1.1
+29.6
12
1
5.5
1.3
+30
V
A
dBm
dB
dB
-20
+50
±10
°C
ppm
Operating Conditions: Vcc = 5.00 VDC, T
AMB
= 25° 50 System.
C,
* Measured at connector for 1.3A load
** Peak operating current for 1 watt output power; 0.5 watt will draw less current
WJ Communications Phone: 1-800-WJ1-4401 Fax: 408-577-6621
www.wj.com
PRELIMINARY

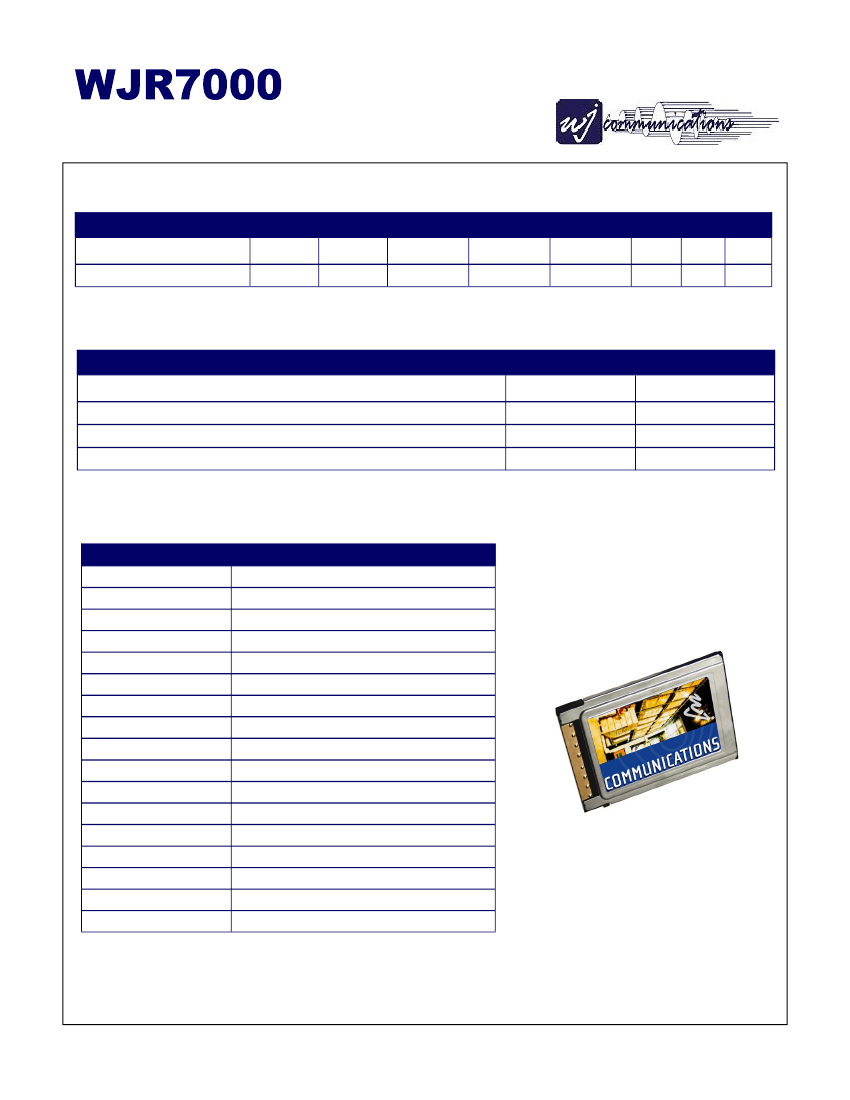

Protocol Support
Protocol
EPC Class0/0+
EPC C1G2 (ISO-18000-6C)
ID Read
X
X
ID Write
X
X
Data Read
X
X
Data Write
X
X
X
PWD Write
Lock
X
X
X
DRE
Kill
X
X
Absolute Maximum Ratings*
Parameter
ESD Protection (per ISO 7816-1)
Maximum Operating Voltage
Operating Case Temperature
Storage Temperature
* Operation of this device outside any of these parameters may cause permanent damage
Rating
2
6
-20 to +55
-40 to +65
Units
KV
V
°
C
°
C
Countries Supported**
Country
United States
Puerto Rico
Canada
Taiwan
Singapore
Hong Kong
Malaysia
Philippines
Thailand
Brazil
Argentina
Chile
Costa Rica
Mexico
Australia
South Africa
Uraguay
Frequency (MHz)
902-928
902-928
902-928
917-922
922-928
923-925
920-925
915-928
902-928
902-928
902-928
902-928
902-928
902-928
920-926
917-921
902-928
** Requires a hop table configuration
WJ Communications Phone: 1-800-WJ1-4401 Fax: 408-577-6621
www.wj.com
