300UFR120PD datasheet, PDF - EEWORLD Datasheet

300UFR120PD: DescriptionRectifier Diode, 1 Phase, 1 Element, 250A, 1200V V(RRM), Silicon, DO-205AB,; CategoryDiscrete semiconductor diode; File Size170KB，7 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric View All

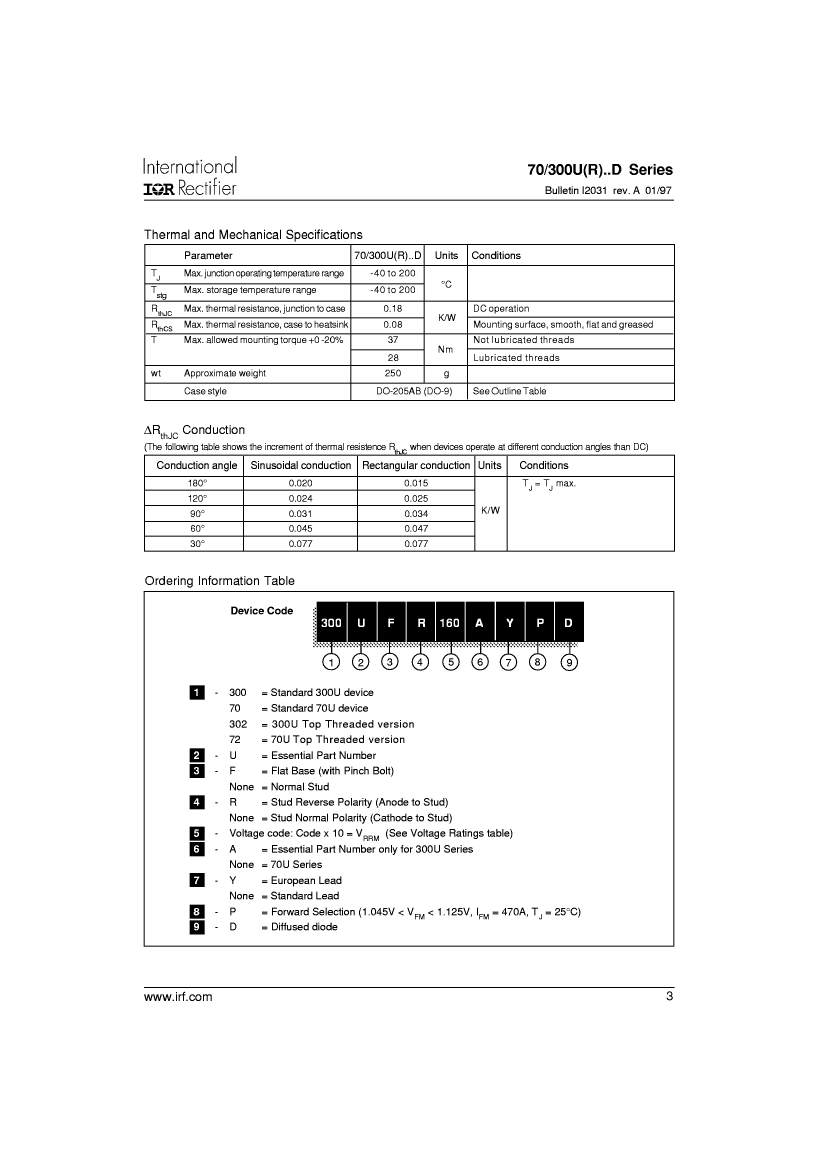

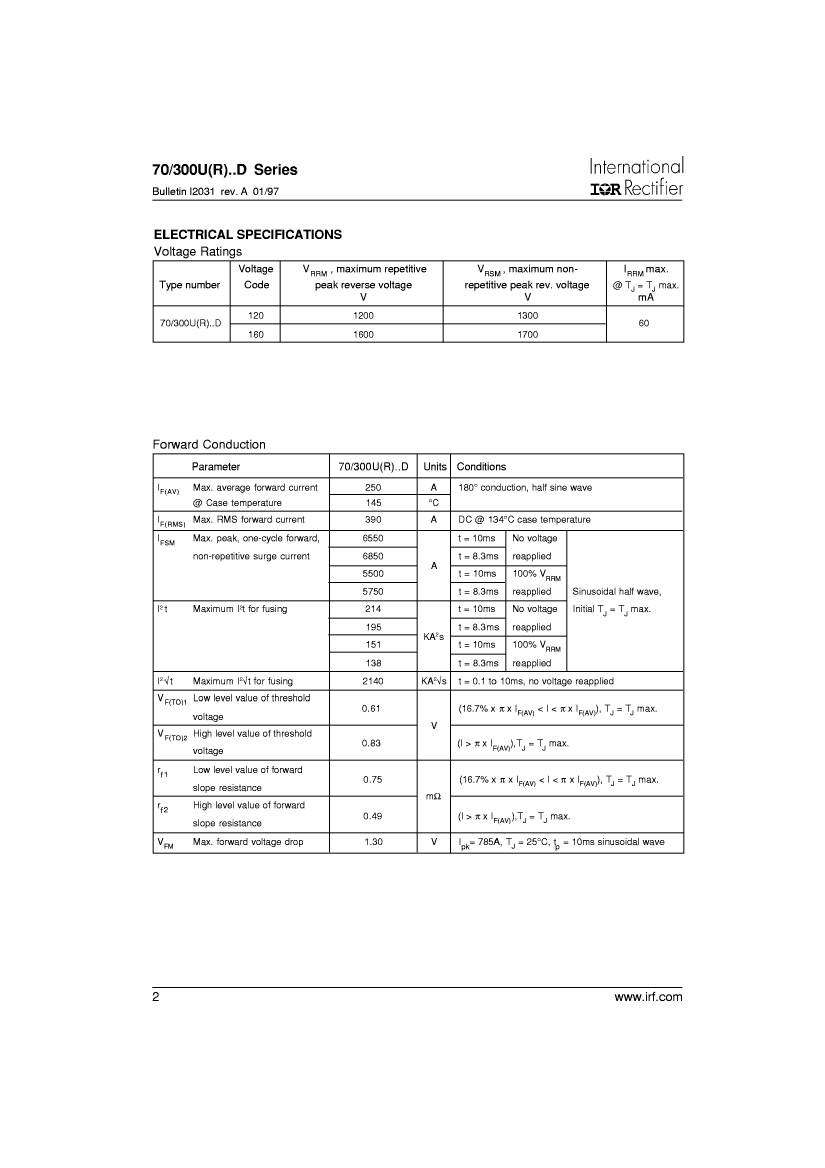

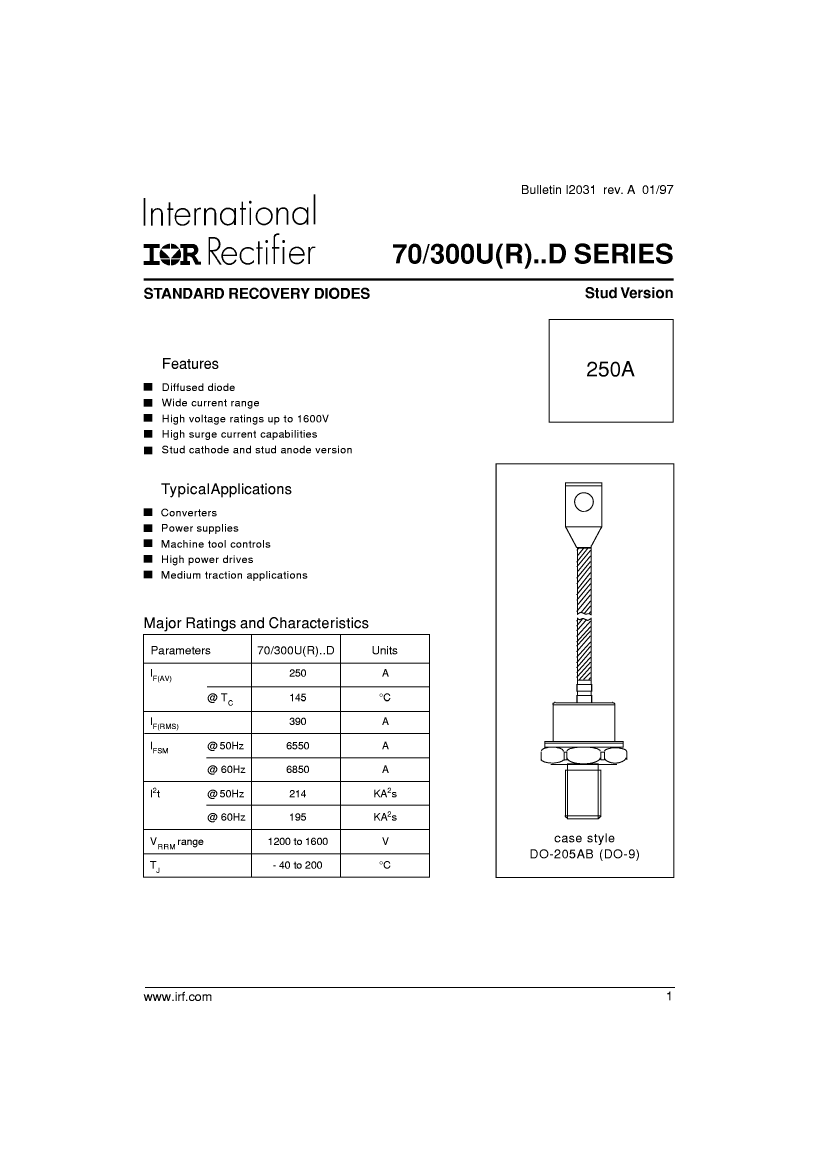

300UFR120PD Overview

Rectifier Diode, 1 Phase, 1 Element, 250A, 1200V V(RRM), Silicon, DO-205AB,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Infineon
Reach Compliance Code	compliant
application	HIGH POWER
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

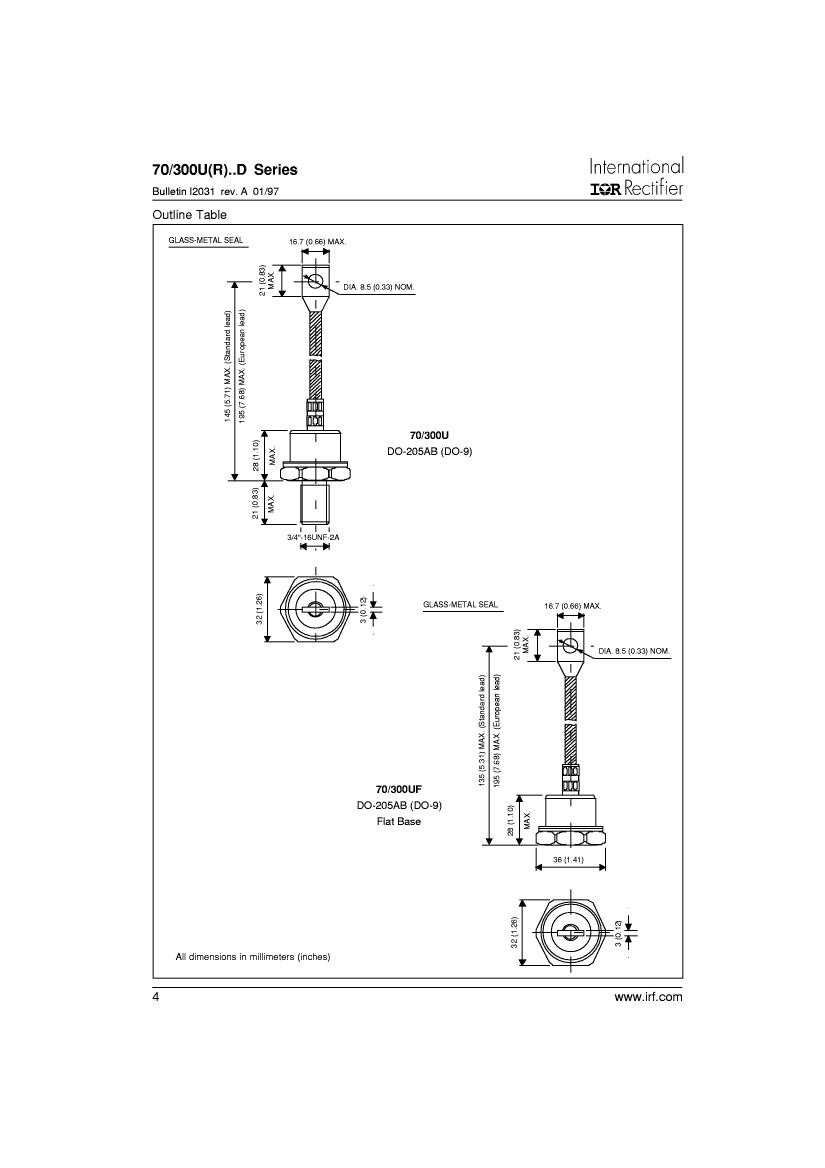

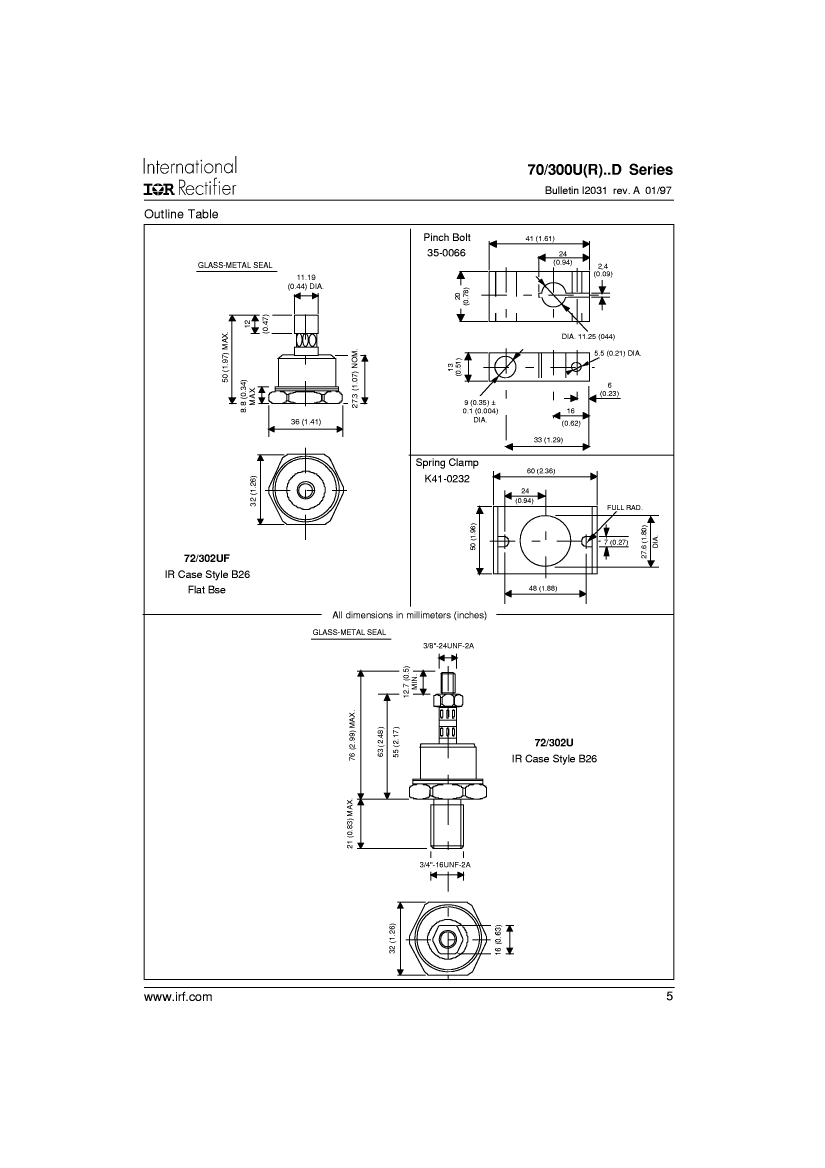

JEDEC-95 code	DO-205AB
JESD-30 code	O-MUPM-H1
Maximum non-repetitive peak forward current	6850 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	250 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1200 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	40
Base Number Matches	1
