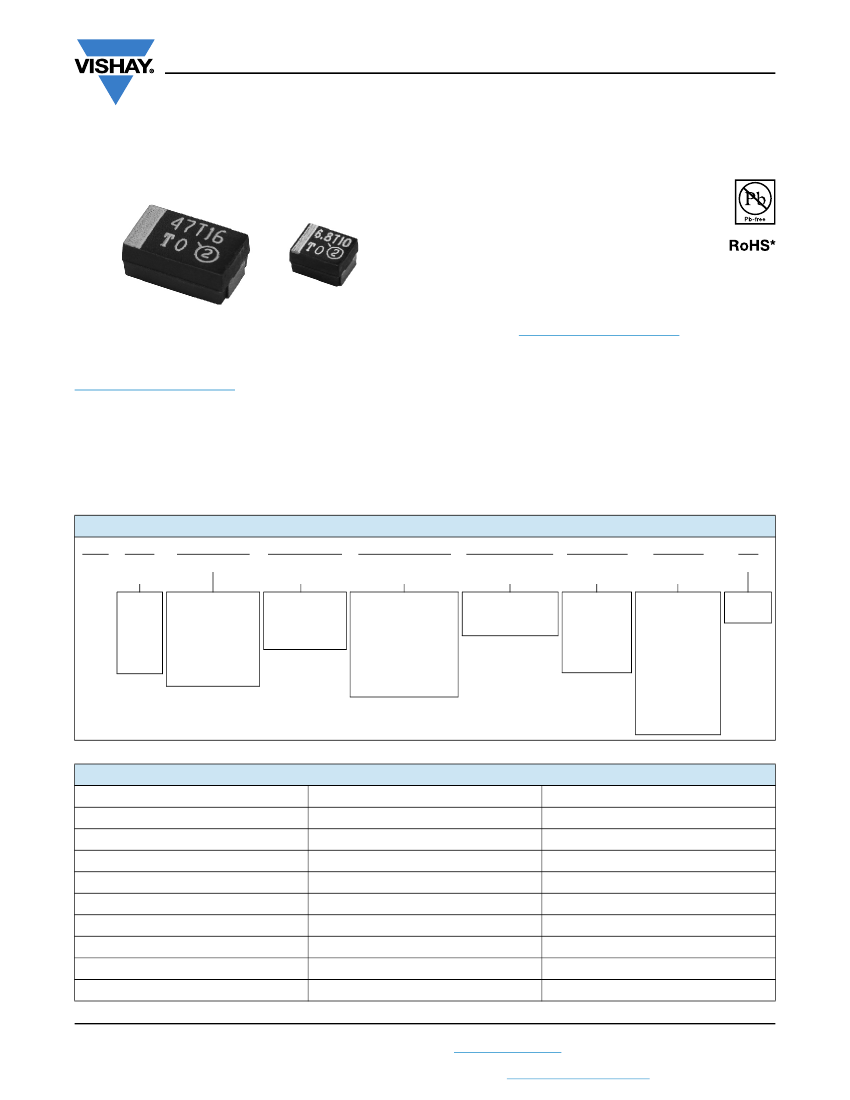

T83
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Chip Capacitors
T
ANTAMOUNT®
, Molded Case, Hi-Rel COTS
FEATURES
•
•
•
•
•
•
•
•
Standard and low ESR options
Weibull grading and surge current test options
Available
Terminations: 100 % matte tin and tin / lead
Standard EIA 535BAAC case sizes (A through E)
Available
Moisture sensitivity level 1
Compliant terminations
High reliability
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
PERFORMANCE / ELECTRICAL
CHARACTERISTICS
www.vishay.com/doc?40209
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
0.1 μF to 470 μF
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 63 V
DC
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details.
APPLICATIONS
•
•
•
•
Industrial
Medical
Military / aerospace
Telecom
ORDERING INFORMATION
T83
TYPE
D
CASE
CODE
See
Ratings
and
Case
Codes
table.
107
CAPACITANCE
This is expressed
in picofarads. The
first two digits are
the significant
figures. The third
is the number of
zeros to follow.
K
CAPACITANCE
TOLERANCE
K = ± 10 %
M = ± 20 %
J=±5%
(special order)
010
DC VOLTAGE
RATING AT +85 °C
This is expressed in
volts. To complete
the three-digit block,
zeros precede the
voltage rating. A
decimal point is
indicated by an “R”
(6R3 = 6.3 V).
E
TERMINATION
AND PACKAGING
See table
Termination and
Packaging Codes
A
RELIABILITY
LEVEL
A = 1.0 %
B = 0.1 %
C = 0.01 %
S = hi-rel
standard
Z = non-ER
A
SURGE
CURRENT
A = 10 cycles at
+25 °C
B = 10 cycles at
-55 °C / +85 °C
C = 10 cycles at
-55 °C / +85 °C
(before Weibull
grading)
Z = none
S = 3 cycles
at +25 °C
S
ESR
S = std
L = low
TERMINATION AND PACKAGING CODES
CODE
C
H
U
E
L
R
K
M
N
TERMINATION
Matte tin
Matte tin
Matte tin
Solder plated, tin / lead
Solder plated, tin / lead
Solder plated, tin / lead
Solder fused, tin / lead
Solder fused, tin / lead
Solder fused, tin / lead
PACKAGING
7" (178 mm) reels
7" (178 mm) reels, ½ reel
7" (178 mm) reels, partial reel
7" (178 mm) reels
7" (178 mm) reels, ½ reel
7" (178 mm) reels, partial reel
7" (178 mm) reels
7" (178 mm) reels, ½ reel
7" (178 mm) reels, partial reel
Revision: 27-Feb-15
Document Number: 40077
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T83
www.vishay.com
Vishay Sprague
DIMENSIONS
in inches (millimeters)
L
W
T
H
(MIN.)
Glue
Pad
H
Glue
Pad
P
T
W
CASE CODE
A
B
C
D
E
EIA SIZE
3216-18
3528-21
6032-28
7343-31
7343-43
L
0.126 ± 0.008
[3.2 ± 0.20]
0.138 ± 0.008
[3.5 ± 0.20]
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.063 ± 0.008
[1.6 ± 0.20]
0.110 ± 0.008
[2.8 ± 0.20]
0.126 ± 0.012
[3.2 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30
H
0.063 ± 0.008
[1.6 ± 0.20]
0.075 ± 0.008
[1.9 ± 0.20]
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.157 ± 0.012
[4.0 ± 0.30]
P
0.031 ± 0.012
[0.80 ± 0.30]
0.031 ± 0.012
[0.80 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.047 ± 0.004
[1.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
T
H
(MIN.)
0.028
[0.70]
0.028
[0.70]
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
Note
• Glue pad (non-conductive, part of molded case) is dedicated for glue attachment (as user option).
RATINGS AND CASE CODES
μF
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
E
A/C
B/C
D
B/D
D
A
A
A
B
B
B
A
A
A
A/B
B
B
C
A/C
B/C
B/C/D
D
B/D
D/E
C/D/E
E
B
A/B
B
A/C
A/C
A
B/C/D
B/C/D
D
C/D
D
D/E
E
E
A
A
A
A
A
B
B
A/B
A/C
A/B/C
B
B/C/D
B/C/D
C/D
D
D/E
E
A
A
A
B
A/B
B
A/B/C
C
B/C
D
C/D
D
D/E
D/E
E
A
A
B
A/B
B
A/B/C
B/C
B/C
C/D
B/C/D
C/D
D
D/E
D/E
4V
6.3 V
10 V
16 V
20 V
25 V
35 V
A
A
A
A
A/B
B
A/B
B/C
B/C
B/C
C/D
C/D
C/D
D
D/E
50 V
A
A/B
B
B
B/C
C
B/C
C/D
C/D
D
D
E
E
E
E
D
63 V
Revision: 27-Feb-15
Document Number: 40077
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T83
www.vishay.com
Vishay Sprague
MARKING
“A” CASE VOLTAGE CODE
Indicates Hi-Rel COTS
Capacitance Code, pF
VOLTS
4.0
6.3
CODE
G
J
A
C
D
E
V
T
Polarity
Band (+)
Indicates Hi-Rel COTS
Capacitance μF
Voltage
V 104T
10
16
20
22
XX
T10
2
Vishay
Sprague
Logo
Polarity Band (+)
A Case
Voltage
Code
25
35
50
Date Code
B, C, D, E Cases
Marking
Capacitor marking includes an anode (+) polarity band, capacitance in microfarads and the voltage rating. “A” case capacitors use a letter
code for the voltage and EIA capacitance code.
The Vishay Sprague
®
trademark is included if space permits. Capacitors rated at 6.3 V are marked 6 V.
A manufacturing date code is marked on all capacitors.
Call the factory for further explanation.
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
STD. (S)
MAX. ESR
AT +25 °C
100 kHz
()
7.600
7.600
6.300
4.500
3.500
2.900
2.900
1.800
2.500
1.800
0.800
1.800
0.700
0.600
0.500
8.000
7.600
6.300
5.500
3.400
3.400
LOW (L)
MAX. ESR
AT +25 °C
100 kHz
()
6.000
4.000
3.500
2.000
1.200
1.200
1.500
0.500
0.600
0.400
0.175
0.450
0.175
0.150
0.100
6.000
6.000
5.000
3.500
1.800
1.200
AVAILABLE
RELIABILITY
LEVELS
2.2
3.3
4.7
6.8
10
15
33
33
47
47
68
100
100
150
330
1.5
2.2
3.3
4.7
4.7
6.8
A
A
A
B
B
B
A
C
B
C
D
B
D
D
E
A
A
A
A
B
B
4 V
DC
AT +85 °C; 2.7 V
DC
AT +125 °C
T83A225(1)004(2)(6)(4)(5)
0.50
6
T83A335(1)004(2)(3)(4)(5)
0.50
6
T83A475(1)004(2)(6)(4)(5)
0.50
6
T83B685(1)004(2)(6)(4)(5)
0.50
6
T83B106(1)004(2)(6)(4)(5)
0.50
6
T83B156(1)004(2)(6)(4)(5)
0.60
6
T83A336(1)004(2)(3)(4)(5)
1.3
6
T83C336(1)004(2)(6)(4)(5)
1.3
6
T83B476(1)004(2)(3)(4)(5)
1.9
6
T83C476(1)004(2)(3)(4)(5)
1.9
6
T83D686(1)004(2)(6)(4)(5)
2.7
6
T83B107(1)004(2)(3)(4)(5)
4.0
6
T83D107(1)004(2)(6)(4)(5)
4.0
6
T83D157(1)004(2)(3)(4)(5)
6.0
8
T83E337(1)004(2)(3)(4)(5)
13.2
8
6 V
DC
AT +85 °C; 4 V
DC
AT +125 °C
T83A155(1)6R3(2)(6)(4)(5)
0.50
6
T83A225(1)6R3(2)(6)(4)(5)
0.50
6
T83A335(1)6R3(2)(6)(4)(5)
0.50
6
T83A475(1)6R3(2)(3)(4)(5)
0.50
6
T83B475(1)6R3(2)(6)(4)(5)
0.50
6
T83B685(1)6R3(2)(6)(4)(5)
0.50
6
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
Note
• Part number definitions:
(1) Capacitance tolerance: K, M
(2) Termination and packaging: C, E, K, H, L, M, U, R, N
(3) Reliability level: A, B, S, Z
(4) Surge current: A, B, C, Z, S
(5) ESR: L, S
(6) Reliability level: A, B, C, S, Z
(7) Reliability level: A, S, Z
Revision: 27-Feb-15
Document Number: 40077
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T83
www.vishay.com
Vishay Sprague
STD. (S)
MAX. ESR
AT +25 °C
100 kHz
()
2.900
1.800
2.900
1.800
1.900
1.500
1.900
1.400
0.800
0.700
1.700
0.700
0.600
0.500
0.700
0.600
0.500
0.500
9.300
8.000
3.500
5.000
3.400
2.900
3.400
1.800
2.900
1.800
2.500
1.900
1.400
0.800
1.800
1.100
0.700
0.700
0.900
0.600
0.600
0.600
0.500
0.500
0.500
LOW (L)
MAX. ESR
AT +25 °C
100 kHz
()
1.000
0.600
2.000
0.500
0.600
0.400
0.550
0.300
0.200
0.200
0.500
0.140
0.125
0.100
0.300
0.100
0.100
0.100
6.000
6.000
2.500
3.000
1.500
1.200
1.800
0.550
2.000
0.500
1.500
0.600
0.350
0.250
0.600
0.300
0.200
0.150
0.200
0.100
0.100
0.360
0.100
0.100
0.100
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
AVAILABLE
RELIABILITY
LEVELS
10
15
22
22
33
33
47
47
47
68
100
100
150
150
220
220
220
330
1.0
1.5
3.3
4.7
4.7
6.8
10
10
15
15
22
33
33
33
47
47
47
68
100
100
150
220
220
330
470
B
C
A
C
B
C
B
C
D
D
B
D
D
E
C
D
E
E
A
A
B
A
B
B
A
C
A
C
A
B
C
D
B
C
D
D
C
D
D
D
E
E
E
6 V
DC
AT +85 °C; 4 V
DC
AT +125 °C
T83B106(1)6R3(2)(6)(4)(5)
0.60
6
T83C156(1)6R3(2)(6)(4)(5)
0.90
6
T83A226(1)6R3(2)(3)(4)(5)
1.3
6
T83C226(1)6R3(2)(6)(4)(5)
1.3
6
T83B336(1)6R3(2)(3)(4)(5)
2.0
6
T83C336(1)6R3(2)(3)(4)(5)
2.0
6
T83B476(1)6R3(2)(3)(4)(5)
2.8
6
T83C476(1)6R3(2)(3)(4)(5)
2.8
6
T83D476(1)6R3(2)(6)(4)(5)
2.8
6
T83D686(1)6R3(2)(6)(4)(5)
4.1
6
T83B107(1)6R3(2)(3)(4)(5)
6.0
15
T83D107(1)6R3(2)(3)(4)(5)
6.0
6
T83D157(1)6R3(2)(3)(4)(5)
9.0
8
T83E157(1)6R3(2)(3)(4)(5)
9.0
8
T83C227(1)6R3(2)(3)(4)(5)
13.2
14
T83D227(1)6R3(2)(3)(4)(5)
13.2
8
T83E227(1)6R3(2)(3)(4)(5)
13.2
8
T83E337(1)6R3(2)(3)(4)(5)
19.8
8
10 V
DC
AT +85 °C; 7 V
DC
AT +125 °C
T83A105(1)010(2)(6)(4)(5)
0.50
4
T83A155(1)010(2)(6)(4)(5)
0.50
6
T83B335(1)010(2)(6)(4)(5)
0.50
6
T83A475(1)010(2)(3)(4)(5)
0.50
6
T83B475(1)010(2)(6)(4)(5)
0.50
6
T83B685(1)010(2)(6)(4)(5)
0.70
6
T83A106(1)010(2)(6)(4)(5)
1.0
6
T83C106(1)010(2)(3)(4)(5)
1.0
6
T83A156(1)010(2)(3)(4)(5)
1.5
6
T83C156(1)010(2)(6)(4)(5)
1.5
6
T83A226(1)010(2)(3)(4)(5)
2.2
8
T83B336(1)010(2)(3)(4)(5)
3.3
6
T83C336(1)010(2)(3)(4)(5)
3.3
6
T83D336(1)010(2)(6)(4)(5)
3.3
6
T83B476(1)010(2)(3)(4)(5)
4.7
6
T83C476(1)010(2)(3)(4)(5)
4.7
6
T83D476(1)010(2)(6)(4)(5)
4.7
6
T83D686(1)010(2)(3)(4)(5)
6.8
6
T83C107(1)010(2)(6)(4)(5)
10.0
8
T83D107(1)010(2)(6)(4)(5)
10.0
8
T83D157(1)010(2)(3)(4)(5)
15.0
8
T83D227(1)010(2)(6)(4)(5)
22.0
8
T83E227(1)010(2)(6)(4)(5)
22.0
8
T83E337(1)010(2)(6)(4)(5)
33.0
10
T83E477(1)010(2)(3)(4)(5)
47.0
15
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
Note
• Part number definitions:
(1) Capacitance tolerance: K, M
(2) Termination and packaging: C, E, K, H, L, M, U, R, N
(3) Reliability level: A, B, S, Z
(4) Surge current: A, B, C, Z, S
(5) ESR: L, S
(6) Reliability level: A, B, C, S, Z
(7) Reliability level: A, S, Z
Revision: 27-Feb-15
Document Number: 40077
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T83
www.vishay.com
Vishay Sprague
STD. (S)
MAX. ESR
AT +25 °C
100 kHz
()
11.000
9.300
6.700
4.600
3.500
5.000
2.900
4.200
1.900
3.000
2.800
1.800
2.000
1.900
1.100
0.800
1.800
1.100
0.700
1.000
0.700
0.600
0.600
0.600
0.500
12.000
10.000
8.400
4.600
5.900
3.500
3.000
5.000
2.900
2.300
1.900
2.500
1.700
0.900
1.100
0.700
0.700
0.700
0.600
0.700
0.600
0.500
LOW (L)
MAX. ESR
AT +25 °C
100 kHz
()
8.000
6.000
6.000
2.500
2.000
2.500
1.500
3.000
0.600
1.700
0.500
0.450
0.800
1.000
0.375
0.250
0.500
0.300
0.225
0.300
0.150
0.150
0.125
0.100
0.150
9.000
8.000
5.500
2.500
4.000
1.500
1.300
3.500
1.000
0.600
0.550
1.000
0.450
0.300
0.375
0.225
0.200
0.200
0.150
0.175
0.150
0.150
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
AVAILABLE
RELIABILITY
LEVELS
0.68
1.0
1.5
2.2
3.3
4.7
4.7
6.8
6.8
10
10
10
15
22
22
22
33
33
33
47
47
68
100
100
150
0.47
0.68
1.0
1.5
2.2
2.2
3.3
4.7
4.7
4.7
6.8
10
10
15
22
22
33
47
47
68
68
100
A
A
A
B
B
A
B
A
C
A
B
C
B
B
C
D
B
C
D
C
D
D
D
E
E
A
A
A
B
A
B
B
A
B
C
C
B
C
D
C
D
D
D
E
D
E
E
16 V
DC
AT +85 °C; 10 V
DC
AT +125 °C
T83A684(1)016(2)(3)(4)(5)
0.50
4
T83A105(1)016(2)(3)(4)(5)
0.50
4
T83A155(1)016(2)(3)(4)(5)
0.50
6
T83B225(1)016(2)(3)(4)(5)
0.50
6
T83B335(1)016(2)(3)(4)(5)
0.50
6
T83A475(1)016(2)(3)(4)(5)
0.80
6
T83B475(1)016(2)(3)(4)(5)
0.80
6
T83A685(1)016(2)(6)(4)(5)
1.1
6
T83C685(1)016(2)(3)(4)(5)
1.1
6
T83A106(1)016(2)(6)(4)(5)
1.6
6
T83B106(1)016(2)(6)(4)(5)
1.6
6
T83C106(1)016(2)(3)(4)(5)
1.6
6
T83B156(1)016(2)(6)(4)(5)
2.4
6
T83B226(1)016(2)(6)(4)(5)
3.5
6
T83C226(1)016(2)(6)(4)(5)
3.5
6
T83D226(1)016(2)(3)(4)(5)
3.5
6
T83B336(1)016(2)(3)(4)(5)
5.3
6
T83C336(1)016(2)(3)(4)(5)
5.3
6
T83D336(1)016(2)(3)(4)(5)
5.3
6
T83C476(1)016(2)(3)(4)(5)
7.5
6
T83D476(1)016(2)(6)(4)(5)
7.5
6
T83D686(1)016(2)(3)(4)(5)
10.9
6
T83D107(1)016(2)(6)(4)(5)
16.0
8
T83E107(1)016(2)(6)(4)(5)
16.0
8
T83E157(1)016(2)(6)(4)(5)
24.0
8
20 V
DC
AT +85 °C; 13 V
DC
AT +125 °C
T83A474(1)020(2)(3)(4)(5)
0.50
4
T83A684(1)020(2)(6)(4)(5)
0.50
4
T83A105(1)020(2)(6)(4)(5)
0.50
4
T83B155(1)020(2)(3)(4)(5)
0.50
6
T83A225(1)020(2)(3)(4)(5)
0.50
6
T83B225(1)020(2)(6)(4)(5)
0.50
6
T83B335(1)020(2)(6)(4)(5)
0.70
6
T83A475(1)020(2)(3)(4)(5)
0.90
6
T83B475(1)020(2)(3)(4)(5)
0.90
6
T83C475(1)020(2)(3)(4)(5)
0.90
6
T83C685(1)020(2)(6)(4)(5)
1.4
6
T83B106(1)020(2)(3)(4)(5)
2.0
6
T83C106(1)020(2)(3)(4)(5)
2.0
6
T83D156(1)020(2)(6)(4)(5)
3.0
6
T83C226(1)020(2)(6)(4)(5)
4.4
6
T83D226(1)020(2)(6)(4)(5)
4.4
6
T83D336(1)020(2)(6)(4)(5)
6.6
6
T83D476(1)020(2)(3)(4)(5)
9.4
6
T83E476(1)020(2)(3)(4)(5)
9.4
6
T83D686(1)020(2)(3)(4)(5)
13.6
6
T83E686(1)020(2)(6)(4)(5)
13.6
6
T83E107(1)020(2)(3)(4)(5)
20.0
8
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, S, Z
Note
• Part number definitions:
(1) Capacitance tolerance: K, M
(2) Termination and packaging: C, E, K, H, L, M, U, R, N
(3) Reliability level: A, B, S, Z
(4) Surge current: A, B, C, Z, S
(5) ESR: L, S
(6) Reliability level: A, B, C, S, Z
(7) Reliability level: A, S, Z
Revision: 27-Feb-15
Document Number: 40077
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
